AB273054

Anti-CCR2 antibody [EPR23494-47] - BSA and Azide free

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal CCR2 antibody. Carrier free. Suitable for Flow Cyt, ICC/IF and reacts with Human samples.

View Alternative Names

CD192, CMKBR2, CCR2, C-C chemokine receptor type 2, C-C CKR-2, CC-CKR-2, CCR-2, Monocyte chemoattractant protein 1 receptor, MCP-1-R

5 Images
Flow Cytometry - Anti-CCR2 antibody [EPR23494-47] - BSA and Azide free (AB273054)
  • Flow Cyt

Unknown

Flow Cytometry - Anti-CCR2 antibody [EPR23494-47] - BSA and Azide free (AB273054)

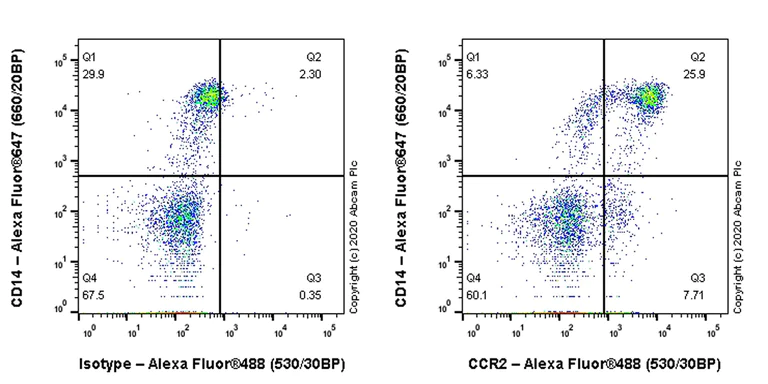

Flow cytometric analysis of Human peripheral blood mononuclear cell (PBMC) cells labelling CCR2 with ab254375 at 1/600 dilution (0.1ug) (Right) compared with a Rabbit monoclonal IgG (ab172730) isotype control (Left). Cells were stained with rabbit IgG (Left) or ab254375 (Right). Then stained with anti-CD14 conjugated to Alexa Fluor 647.

Gated on viable cells.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254375).

Flow Cytometry - Anti-CCR2 antibody [EPR23494-47] - BSA and Azide free (AB273054)
  • Flow Cyt

Unknown

Flow Cytometry - Anti-CCR2 antibody [EPR23494-47] - BSA and Azide free (AB273054)

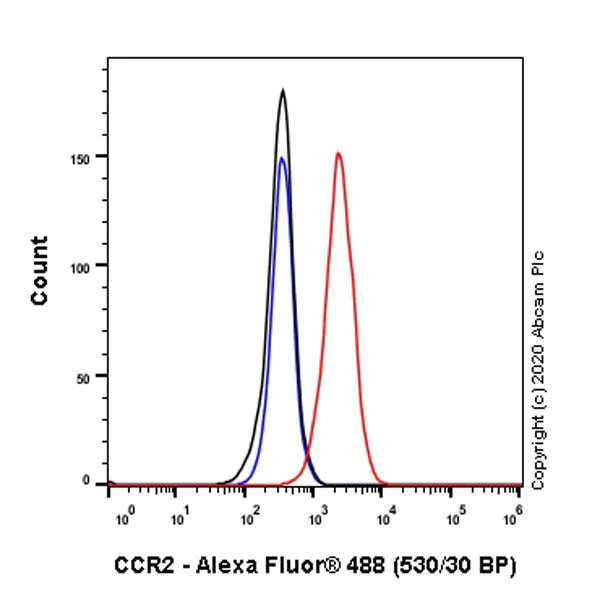

Flow cytometric analysis of THP-1 (Human monocytic leukemia monocyte) cells labelling CCR2 with ab254375 at 1/600 dilution (0.1ug) (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.

Gated on viable cells.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254375).

Immunocytochemistry/ Immunofluorescence - Anti-CCR2 antibody [EPR23494-47] - BSA and Azide free (AB273054)
  • ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-CCR2 antibody [EPR23494-47] - BSA and Azide free (AB273054)

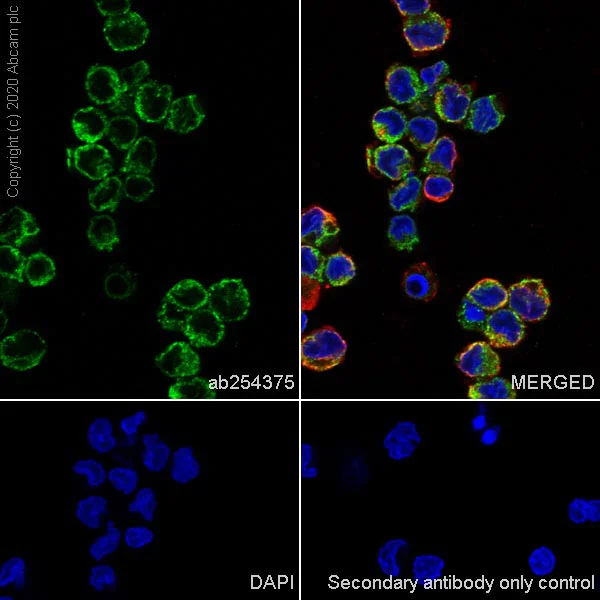

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized Human PBMC cells labelling CCR2 with ab254375 at 1/1000 dilution, followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution (Green). Confocal image showing membranous and cytoplasmic staining in Human PBMC cells. ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254375).

Immunocytochemistry/ Immunofluorescence - Anti-CCR2 antibody [EPR23494-47] - BSA and Azide free (AB273054)
  • ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-CCR2 antibody [EPR23494-47] - BSA and Azide free (AB273054)

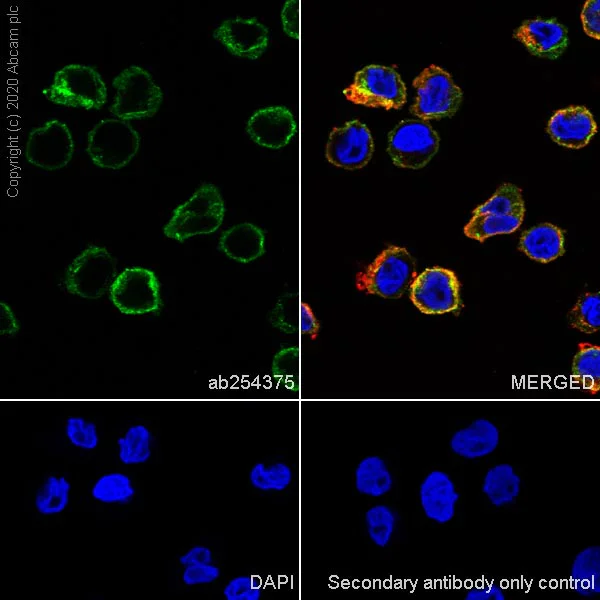

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized THP-1 cells labelling CCR2 with ab254375 at 1/1000 dilution, followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution (Green). Confocal image showing membranous and cytoplasmic staining in THP-1 cell line. ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5 dilution (Red). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254375).

Flow Cytometry - Anti-CCR2 antibody [EPR23494-47] - BSA and Azide free (AB273054)
  • Flow Cyt

Lab

Flow Cytometry - Anti-CCR2 antibody [EPR23494-47] - BSA and Azide free (AB273054)

This data was developed using the same antibody clone in a different buffer formulation (ab254375).

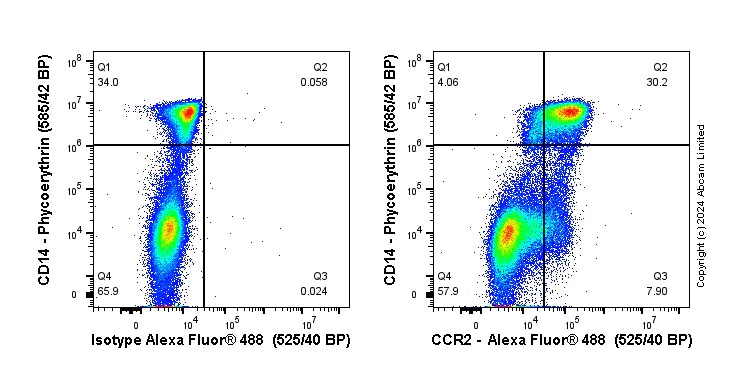

Flow cytometry staining of human peripheral blood mononuclear cells (PBMCs) with ab254375 (right) or Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) (left). PBMCs were incubated for 30 mins on ice in 1x PBS containing 10 µg/ml human IgG and 10 % normal goat serum to block FC receptors and non-specific protein-protein interaction followed by the antibody ab254375 or Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) (1x 106 in 100 µl at 0.2 μg/ml (1/11000 dilution)) for 30 mins on ice. The cells were simultaneously stained with CD14.

The secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed was incubated at 1/4000 dilution for 30 mins on ice

Acquisition of >30000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter. Events were gated on live cells.

  • Unconjugated

    Anti-CCR2 antibody [EPR23494-47]

  • 660 APC

    APC Anti-CCR2 antibody [EPR23494-47]

  • 578 PE

    PE Anti-CCR2 antibody [EPR23494-47]

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR23494-47

Isotype

IgG

Carrier free

Yes

Reacts with

Human

Applications

ICC/IF, Flow Cyt

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>" }, "Mouse": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Rat": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" } } }
style
left-column

Product details

ab273054 is the carrier-free version of ab254375.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

CCR2 also known as C-C chemokine receptor type 2 is a protein involved in immune cell trafficking. It is a member of the G-protein-coupled receptor family and has a molecular mass of approximately 43 kDa. CCR2 is primarily expressed on monocytes dendritic cells and certain subsets of T cells. It functions as a receptor for monocyte chemoattractant proteins (MCPs) with MCP-1 (CCL2) being the most well-known ligand. The interaction between CCR2 and its ligands directs the movement of these immune cells to sites of inflammation or tissue injury.
Biological function summary

CCR2 plays an important role in mediating leukocyte migration. It acts in the immune system to guide monocytes from the bloodstream into tissues contributing to immune surveillance and response. CCR2 operates not as part of a larger receptor complex but it does interact closely with other chemokine receptors which may influence its signaling. The receptor's activity has critical implications for inflammatory processes and lies at the heart of many immune responses.

Pathways

CCR2 is integrally involved in the chemokine signaling pathway and the inflammatory response pathway. Its function in these pathways highlights its role in modulating immune cell infiltration during immune challenges. The receptor also interfaces with other important signaling proteins such as CCR5 which like CCR2 is another chemokine receptor involved in mediating immune cell movement. These interactions overlap and complement each other offering nuanced regulation of immune cell dynamics.

CCR2 has connections to conditions such as atherosclerosis and rheumatoid arthritis. In atherosclerosis the receptor's involvement in monocyte recruitment to the arterial wall is an important step in plaque formation. Its role in rheumatoid arthritis centers on the promotion of leukocyte infiltration into the joint tissues contributing to inflammation and joint damage. CCR2's connection to such disorders often aligns with a similar role played by other chemokine receptors like CCR5 highlighting its relevance in inflammation-related pathologies.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Key functional receptor for CCL2 but can also bind CCL7, and CCL12 (PubMed : 23408426, PubMed : 38157855, PubMed : 8048929, PubMed : 8146186). Also transduces signaling mediated by CCL13 (PubMed : 38157855). Its binding with CCL2 on monocytes and macrophages mediates chemotaxis and migration induction through the activation of the PI3K cascade, the small G protein Rac and lamellipodium protrusion (PubMed : 38157855). Also acts as a receptor for the beta-defensin DEFB106A/DEFB106B (PubMed : 23938203). Regulates the expression of T-cell inflammatory cytokines and T-cell differentiation, promoting the differentiation of T-cells into T-helper 17 cells (Th17) during inflammation (By similarity). Facilitates the export of mature thymocytes by enhancing directional movement of thymocytes to sphingosine-1-phosphate stimulation and up-regulation of S1P1R expression; signals through the JAK-STAT pathway to regulate FOXO1 activity leading to an increased expression of S1P1R (By similarity). Plays an important role in mediating peripheral nerve injury-induced neuropathic pain (By similarity). Increases NMDA-mediated synaptic transmission in both dopamine D1 and D2 receptor-containing neurons, which may be caused by MAPK/ERK-dependent phosphorylation of GRIN2B/NMDAR2B (By similarity). Mediates the recruitment of macrophages and monocytes to the injury site following brain injury (By similarity).. (Microbial infection) Alternative coreceptor with CD4 for HIV-1 infection.
See full target information CCR2
