Anti-CCR6 antibody [EPR22259]

• IHC-P

Lab

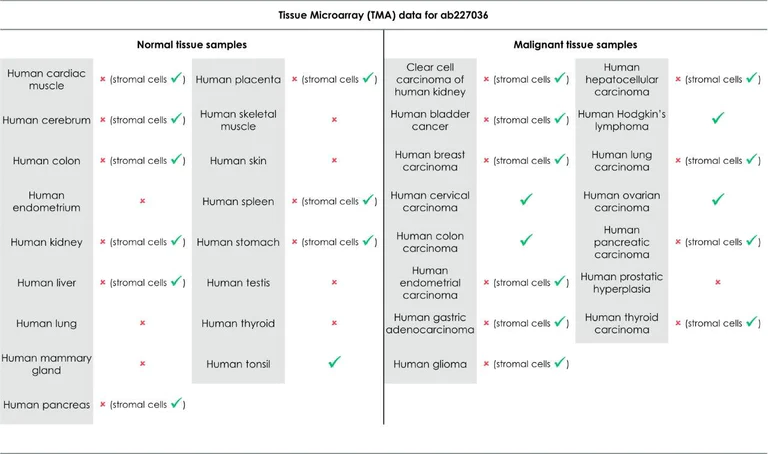

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CCR6 antibody [EPR22259] (AB227036)

Tissue Microarrays stained for CCR6 using ab227036 in immunohistochemical analysis. This table provides a detailed overview of positive (tick mark) and negative (cross mark) staining per sample type tested. The sections were pre-treated using Heat mediated antigen retrieval using Bond™ Epitope Retrieval Solution 2 (pH 9.0) for 20 minutes. The sections were incubated with ab227036 for 30 mins at 37°C followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CCR6 antibody [EPR22259] (AB227036)

Immunohistochemical analysis of paraffin-embedded human Hodgkin's lymphoma tissue labeling CCR6 with ab227036 at 1/1000 dilution, followed by the ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Membranous staining on human Hodgkin's lymphoma (PMID : 12514792) is observed. Counterstained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is the ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

The section was incubated with ab227036 for 30 mins at 37°C. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CCR6 antibody [EPR22259] (AB227036)

Immunohistochemical analysis of paraffin-embedded human tonsil tissue labeling CCR6 with ab227036 at 1/1000 dilution, followed by the ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Membranous staining on human tonsil (PMID : 12514792) is observed. Counterstained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is the ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

The section was incubated with ab227036 for 30 mins at 37°C. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

• IP

Supplier Data

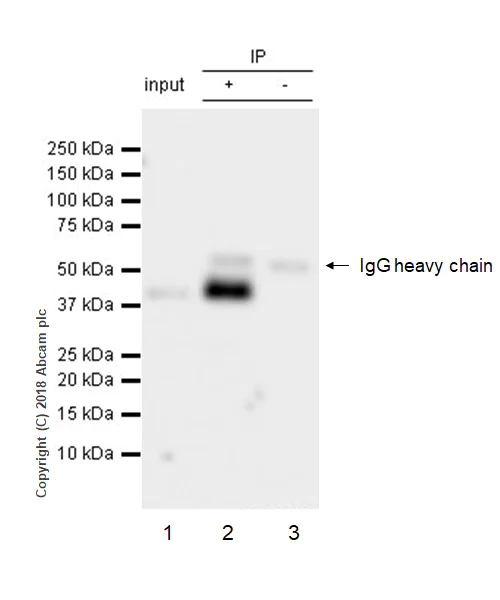

Immunoprecipitation - Anti-CCR6 antibody [EPR22259] (AB227036)

CCR6 was immunoprecipitated from 0.35 mg HL-60 (Human acute promyelocytic leukemia promyeloblast) whole cell lysate with ab227036 at 1/30 dilution. Western blot was performed on the immunoprecipitate using ab227036 at 1/500 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366) was used for detection at 1/1000 dilution.

Lane 1 : HL-60 whole cell lysate 10 μg (input).
Lane 2 : ab227036 IP in HL-60 whole cell lysate.
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab227036 in HL-60 whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.
Exposure time : 1 second.

All lanes:

Immunoprecipitation - Anti-CCR6 antibody [EPR22259] (ab227036)

Predicted band size: 42 kDa

false

• I-ELISA

Lab

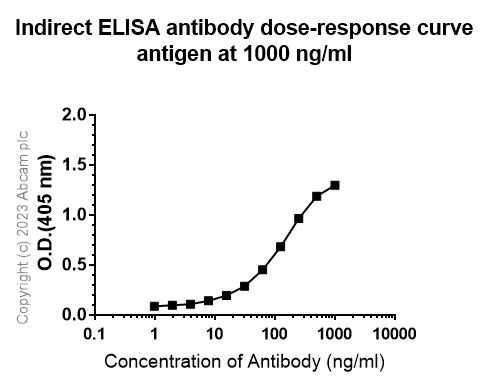

Indirect ELISA - Anti-CCR6 antibody [EPR22259] (AB227036)

Indirect ELISA showing primary antibody ab227036 binding to Human CCR6. Antigen concentration is 1000 ng/ml. Binding of ab227036 was assessed in a serial dilution range 1000-0 ng/ml. Binding was detected using the secondary antibody, Alkaline Phosphatase-conjugated AffiniPure Goat Anti-Rabbit IgG(H+L) at 1/2500 dilution.

• WB

Supplier Data

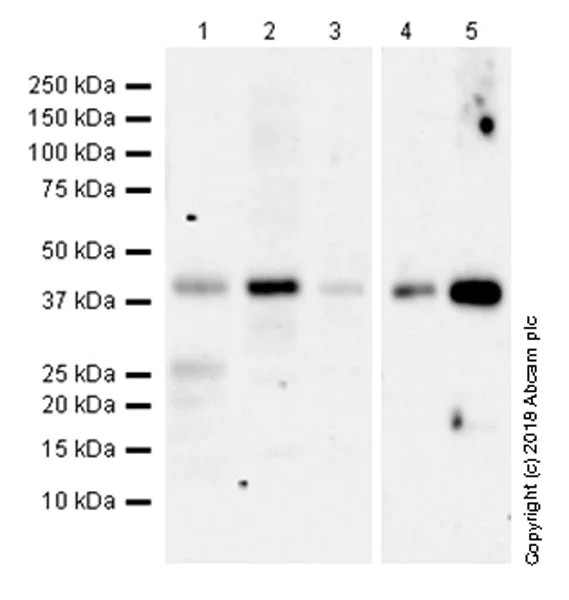

Western blot - Anti-CCR6 antibody [EPR22259] (AB227036)

Blocking/Diluting buffer and concentration : 5% NFDM/TBST

All lanes:

Western blot - Anti-CCR6 antibody [EPR22259] (ab227036) at 1/1000 dilution

Lane 1:

HL-60 (human acute promyelocytic leukemia promyeloblast) whole cell lysate at 20 µg

Lane 2:

HuT-78 (human sezary syndrome cutaneous t lymphocyte) whole cell lysate at 20 µg

Lane 3:

HUVEC (human umbilical vein endothelial cell) whole cell lysate at 20 µg

Lane 4:

Human tonsil tissue lysate at 20 µg

Lane 5:

Human thymus tissue lysate at 20 µg

Secondary

Lanes 1 - 3:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Lanes 4 - 5:

Western blot - VeriBlot for IP Detection Reagent (HRP) (<a href='/en-us/products/reagents/veriblot-for-ip-detection-reagent-hrp-ab131366'>ab131366</a>) at 1/100000 dilution

Predicted band size: 42 kDa

false

Exposure time: 3min
