Anti-CD105 antibody [EPR22811-18] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD105 antibody [EPR22811-18] - BSA and Azide free (AB256146)

Immunohistochemical analysis of paraffin-embedded human placenta tissue labeling CD105 with ab231774 at 1/100 dilution (5.1 μg/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on human placental trophoblasts (PMID : 17956952) is observed. The section was incubated with ab231774 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20mins.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab231774).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD105 antibody [EPR22811-18] - BSA and Azide free (AB256146)

Immunohistochemical analysis of paraffin-embedded human ovarian carcinoma tissue labeling CD105 with ab231774 at 1/100 dilution (5.1 μg/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on endothelial cells of human ovarian carcinoma (PMID : 17502949). The section was incubated with ab231774 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20mins.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab231774).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-CD105 antibody [EPR22811-18] - BSA and Azide free (AB256146)

Immunofluorescent analysis of 100% methanol-fixed U-937 (human histiocytic lymphoma monocyte) cells labelling CD105 with ab231774 at 1/500 dilution, followed by ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary antibody at 1/1000 dilution (Green). Confocal image showing membranous staining in U-937 cells is observed. ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) was used to counterstain tubulin at 1/200 dilution (Red). The nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary at 1/1000 dilution.

Negative control : Jurkat (PMID : 28351936).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab231774).

• Flow Cyt

Unknown

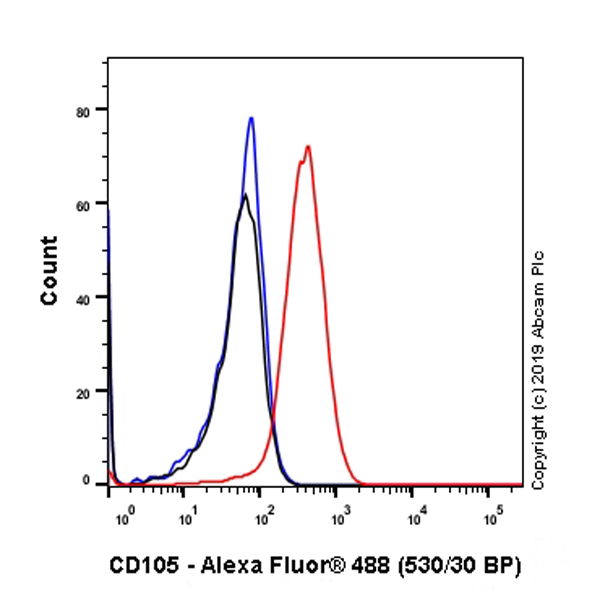

Flow Cytometry - Anti-CD105 antibody [EPR22811-18] - BSA and Azide free (AB256146)

Flow cytometric analysis of U-937 (human histiocytic lymphoma monocyte) cells labeling CD105 with ab231774 at 1/500 dilution (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (Blue). Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) at 1/2000 dilution was used as the secondary antibody. Gated on viable cells.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab231774).

• Flow Cyt

Unknown

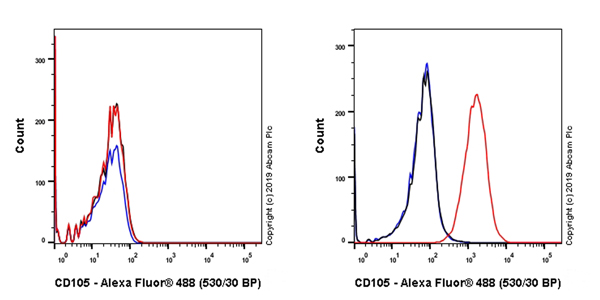

Flow Cytometry - Anti-CD105 antibody [EPR22811-18] - BSA and Azide free (AB256146)

Flow cytometric analysis of Jurkat (human T cell leukemia T lymphocyte, Left) / HUVEC (human umbilical vein endothelial cell, Right) cells labeling CD105 with ab231774 at 1/500 dilution (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (Blue). Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.

Negative control : Jurkat (PMID : 28351936). Gated on viable cells.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab231774).

• IP

Unknown

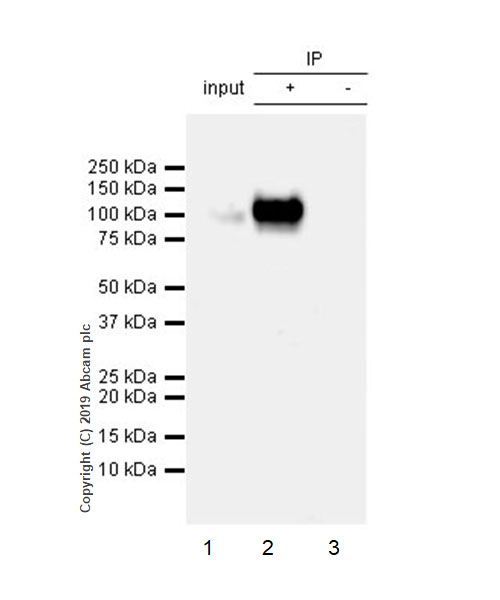

Immunoprecipitation - Anti-CD105 antibody [EPR22811-18] - BSA and Azide free (AB256146)

CD105 was immunoprecipitated from 0.35 mg HUVEC (human umbilical vein endothelial cell) whole cell lysate with ab231774 at 1/30 dilution (2μg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab231774 1/1000 dilution (0.51 μg/ml). VeriBlot for IP secondary antibody (HRP) (ab131366) was used as the secondary antibody at 1/5000 dilution.

Lane 1 : HUVEC (human umbilical vein endothelial cell) whole cell lysate 10μg
Lane 2 : ab231774 IP in HUVEC whole cell lysate
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab231774 in HUVEC whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 3 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab231774).

All lanes:

Immunoprecipitation - Anti-CD105 antibody [EPR22811-18] (<a href='/en-us/products/primary-antibodies/cd105-antibody-epr22811-18-ab231774'>ab231774</a>)

Predicted band size: 70 kDa
