Anti-CD116 antibody [EPR26505-444]

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD116 antibody [EPR26505-444] (AB308294)

Immunohistochemical analysis of paraffin-embedded human diffuse large B-cell lymphoma tissue labeling CD116 with ab308294 at 1/100 dilution (5.04 ug/ml) followed by ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Positive staining on human diffuse large B-cell lymphoma.

The section was incubated with ab308294 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD116 antibody [EPR26505-444] (AB308294)

Immunohistochemical analysis of paraffin-embedded cell pellets labeling CD116 with ab308294 at 1/100 dilution (5.04 ug/ml) followed by ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on SK-MEL-2 (image A), no staining on MCF7 (image B) and HT-29 (image C). The section was incubated with ab308294 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD116 antibody [EPR26505-444] (AB308294)

Immunohistochemical analysis of paraffin-embedded human tonsil tissue labeling CD116 with ab308294 at 1/100 dilution (5.04 ug/ml) followed by ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Positive staining on human tonsil.

The section was incubated with ab308294 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• WB

Supplier Data

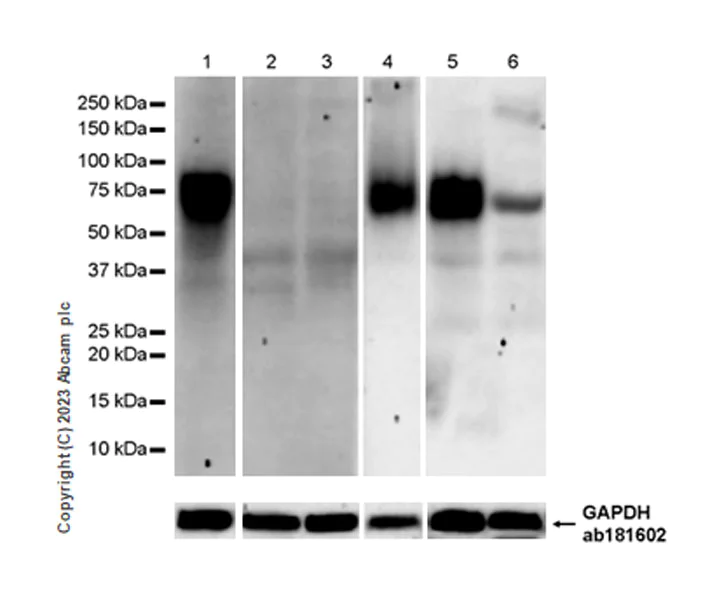

Western blot - Anti-CD116 antibody [EPR26505-444] (AB308294)

Blocking and diluting buffer and concentration : 5% NFDM/TBST

This blot was developed using a high sensitivity ECL substrate. The high-sensitivity ECL substrate used allows for the detection of proteins in the mid-femtogram range.

Low expression : HT-29(PMID : 28811578), MCF7, human colon.

In Western blot, anti-GAPDH antibody (ab181602) loading control staining at 1/200, 000 dilution.

The higher molecular weight observed is due to the high glycosylation of this receptor.

All lanes:

Western blot - Anti-CD116 antibody [EPR26505-444] (ab308294) at 1/1000 dilution

Lane 1:

SK-MEL-2 whole cell lysate at 20 µg

Lane 2:

HT-29 whole cell lysate at 20 µg

Lane 3:

MCF7 whole cell lysate at 20 µg

Lane 4:

Human placenta tissue lysate at 20 µg

Lane 5:

Human lymphoma tissue lysate at 20 µg

Lane 6:

Human colon tissue lysate at 20 µg

Secondary

Lanes 1 - 6:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/20000 dilution

Lanes 1 - 6:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/2000 dilution

Observed band size: 80 kDa

true

Exposure time: 92s
