Anti-CD11b antibody [EPR1344] - BSA and Azide free

10 product images

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - BSA and Azide free (ab209970)

  Anti-CD11b antibody [EPR1344] ab133357 staining CD11b in paraffin embedded Mouse lung tissue sections by Immunohistochemistry. Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). Samples were incubated with primary antibody at 1/4000 dilution (0.031 μg/ml). A ready to use Goat Anti-rabbit IgG H&L (HRP) was used as the secondary antibody. Hematoxylin was used as a counterstain. Positive staining on stromal cells of mouse lung.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD11b antibody [EPR1344] ab133357).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - BSA and Azide free (ab209970)

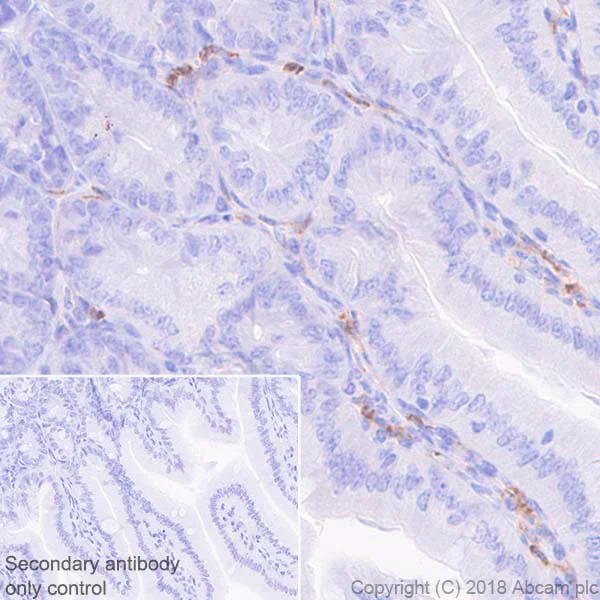

  Anti-CD11b antibody [EPR1344] ab133357 staining CD11b in paraffin embedded Mouse colon tissue sections by Immunohistochemistry. Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). Samples were incubated with primary antibody at 1/4000 dilution (0.031 μg/ml). A ready to use Goat Anti-rabbit IgG H&L (HRP) was used as the secondary antibody. Hematoxylin was used as a counterstain. Positive staining on stromal cells of mouse colon.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD11b antibody [EPR1344] ab133357).

•

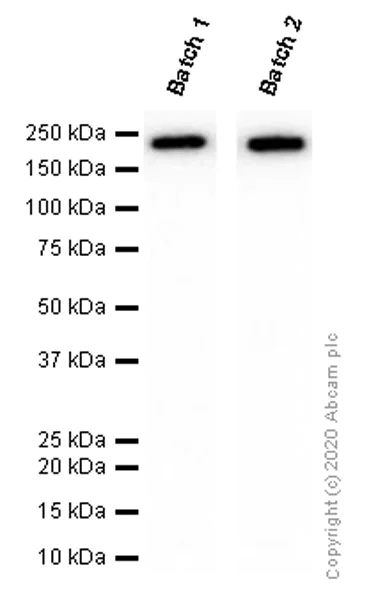

  Western blot - Anti-CD11b antibody [EPR1344] - BSA and Azide free (ab209970)

  This data was developed using Anti-CD11b antibody [EPR1344] ab133357, the same antibody clone in a different buffer formulation. Different batches of Anti-CD11b antibody [EPR1344] ab133357 were tested on Rat spleen lysate at 0.1 µg/ml. 15 µg of lysate was loaded in each lane. Bands observed at 170 kDa.

  All lanes: Western blot - Anti-CD11b antibody [EPR1344] (Anti-CD11b antibody [EPR1344] ab133357)

  Predicted band size: 127 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - BSA and Azide free (ab209970)

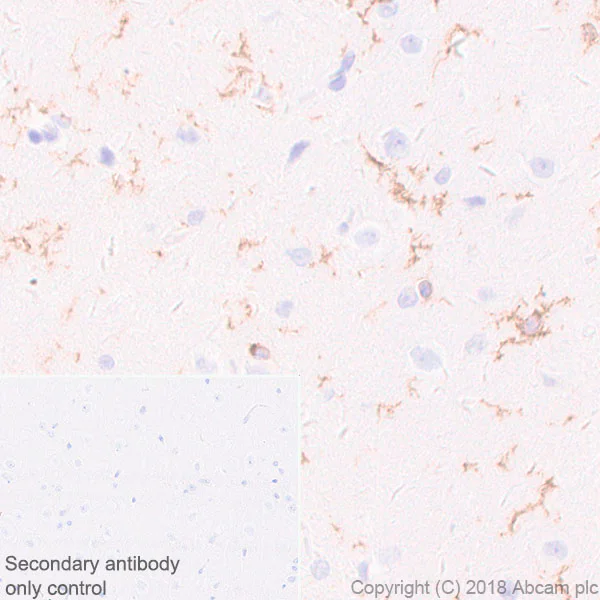

  Anti-CD11b antibody [EPR1344] ab133357 staining CD11b in paraffin embedded Rat cerebrum tissue sections by Immunohistochemistry. Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). Samples were incubated with primary antibody at 1/4000 dilution (0.29 μg/ml). A ready to use Goat Anti-rabbit IgG H&L (HRP) was used as the secondary antibody. Hematoxylin was used as a counterstain. Positive staining on gliocytes of rat cerebrum [PMID: 20483006].


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD11b antibody [EPR1344] ab133357).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - BSA and Azide free (ab209970)

  Formaldehyde-fixed, paraffin-embedded rat bone marrow tissue stained for CD11b using Anti-CD11b antibody [EPR1344] ab133357 at 1/5000 in immunohistochemical analysis.


  Heat mediated antigen retrieval with EDTA buffer pH 9 was performed before commencing with staining protocol. 1% casein was used as blocking agent.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD11b antibody [EPR1344] ab133357).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - BSA and Azide free (ab209970)

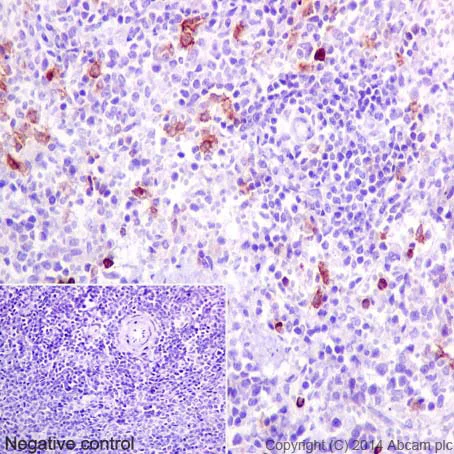

  Immunohistochemical staining of paraffin embedded human spleen with purified Anti-CD11b antibody [EPR1344] ab133357 at a working dilution of 1 in 4000. The secondary antibody used is a HRP goat anti-rabbit (Goat Anti-Rabbit IgG H&L (HRP) ab97051). The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD11b antibody [EPR1344] ab133357).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - BSA and Azide free (ab209970)

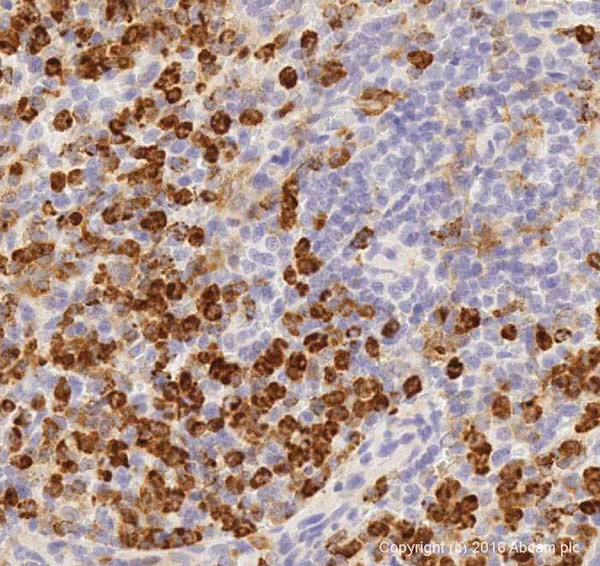

  IHC image of CD11b staining in a formalin fixed, paraffin embedded human normal spleen tissue section*, performed on a Leica Bond™ system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with Anti-CD11b antibody [EPR1344] ab133357 at 1/4000 dilution, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.


  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

  *Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD11b antibody [EPR1344] ab133357).

•

  Multiplex immunohistochemistry - Anti-CD11b antibody [EPR1344] - BSA and Azide free (ab209970)

  This data was developed using Anti-LY6C antibody [RM1151] ab317272 the same antibody clone in a different buffer formulation.

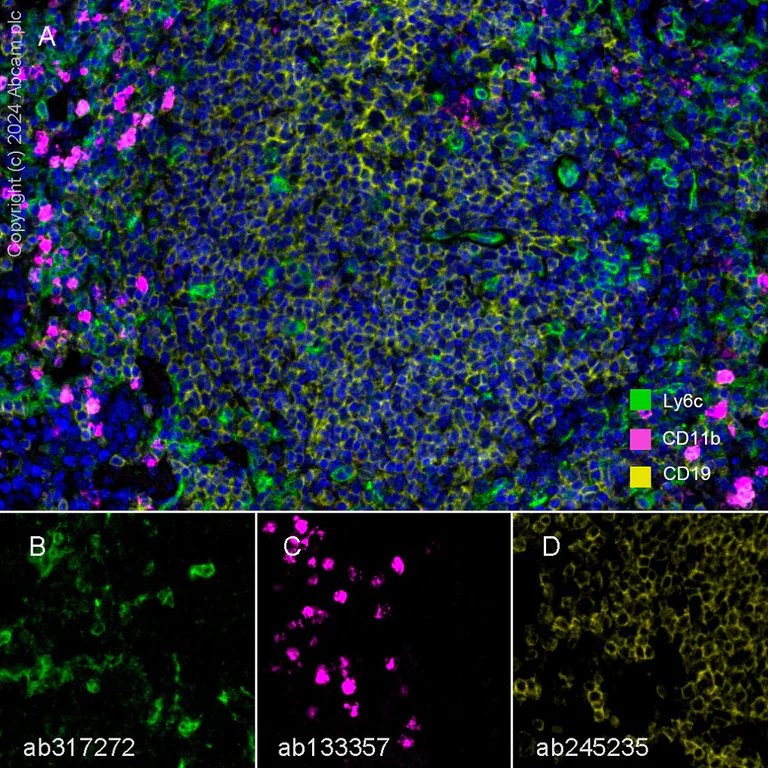

  Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded mouse spleen tissue staining LY6C with Anti-LY6C antibody [RM1151] ab317272 at a 1:100 (0.978 ug/ml) dilution, Anti-CD11b antibody [EPR1344] ab133357 anti-CD11b used at 1:20000 (0.05 ug/ml) dilution and Anti-CD19 antibody [EPR23174-145] ab245235 anti-CD19 used at a 1:1000 (0.999 ug/ml) dilution.

  Panel A: merged staining of anti-Ly6c (green; Opal™690), anti-CD11b (magenta; Opal™570) and anti-CD19 (yellow; Opal™520) on mouse spleen.

  Panel B: anti-Ly6c stained on monocytes/macrophages.

  Panel C: anti-CD11b stained on monocytes/macrophages.

  Panel D: anti-CD19 stained on B cells.

  Co-staining of Ly6c and CD11b can be observed.

  The section was incubated in three rounds of staining: in the order of Anti-LY6C antibody [RM1151] ab317272, Anti-CD11b antibody [EPR1344] ab133357, and Anti-CD19 antibody [EPR23174-145] ab245235 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

  Nuclear DNA was labeled with DAPI (shown in blue).

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

  Nuclear counter stain with DAPI.

  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - BSA and Azide free (ab209970)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-CD11b antibody [EPR1344] ab133357).

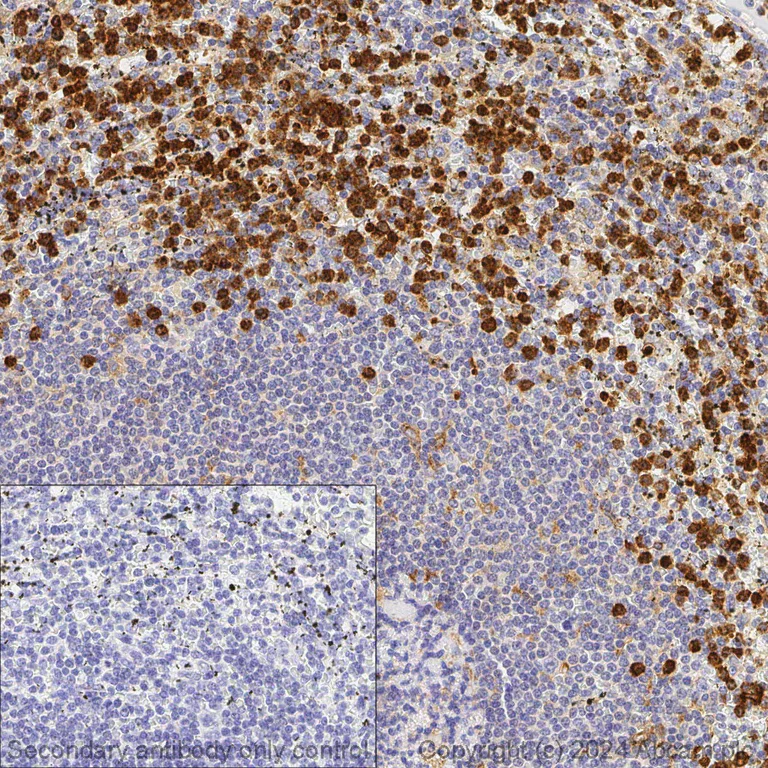

  Immunohistochemical analysis of formalin fixed paraffin embedded human spleen labelling CD11b with Anti-CD11b antibody [EPR1344] ab133357 at a concentration of 1µg/ml. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with an OptiView DAB IHC Detection Kit. Heat mediated antigen retrieval was conducted for 32 mins at 100°C with ULTRA cell conditioning solution (CC1, pH 8.5). Anti-CD11b antibody [EPR1344] ab133357 Anti-CD11b antibody was incubated at 37°C for 16 mins. Sections were counterstained with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - BSA and Azide free (ab209970)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-CD11b antibody [EPR1344] ab133357).

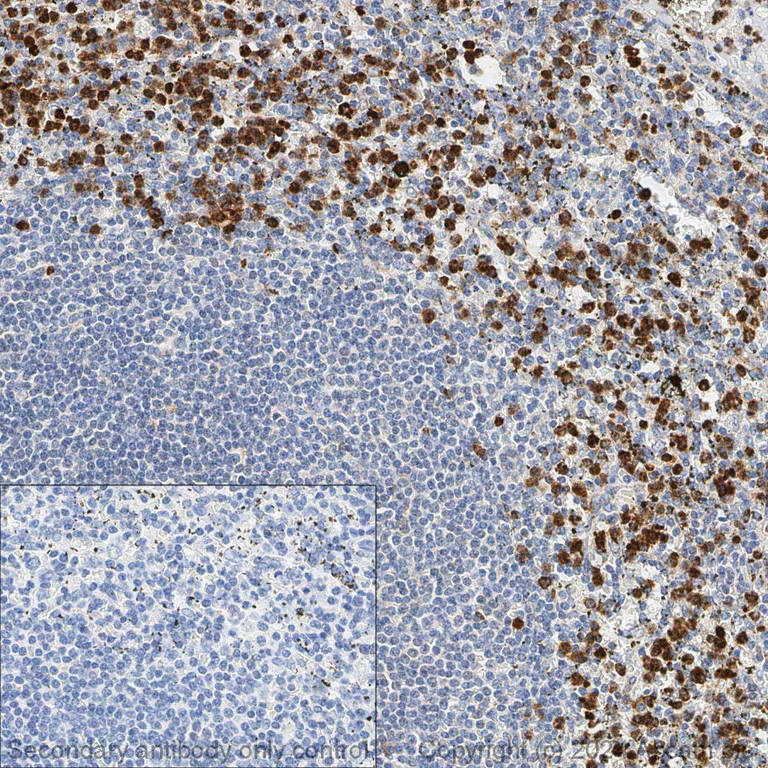

  Immunohistochemical analysis of formalin fixed paraffin embedded human spleen labelling CD11b with Anti-CD11b antibody [EPR1344] ab133357 at a concentration of 0.32 µg/ml. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with a Bond™ Polymer Refine Detection kit. Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution 2) for 20 mins. ab133357Anti-CD11b antibody was incubated for 30 mins at room temperature. Sections were counterstained with Hematoxylin. Image inset shows absence of staining in secondary antibody only control.
