Anti-CD11b antibody [EPR1344] - Low endotoxin, Azide free

12 product images

•

  Min, M et al PLoS One. 2017 Dec 22;12(12):e0190051. doi: 10.1371/journal.pone.0190051. eCollection 2017 Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - Low endotoxin, Azide free (ab216445)

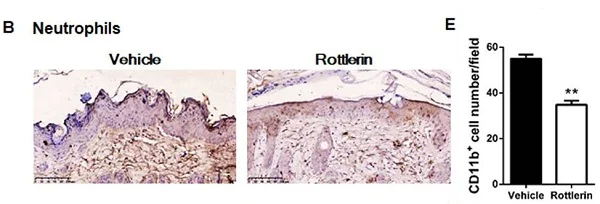

  Rottlerin decreases the number of effector cells that mainly infiltrate the skin in IMQ-treated mice


  Immunohistochemical detection of immune cell-related markers was performed on paraffin-embedded sections obtained from the back skin of IMQ-induced mice treated with vehicle or rottlerin.

  Representatives IHC images of CD11b (B) on the skin of the vehicle or rottlerin-treated mice. Scale bar = 100μm.

  Quantification analysis of IHC staining for CD11b(E) on the skin of the vehicle and rottlerin treated mice. Two independent researchers counted the number of positive staining cells were per high-power field (HPF). The data are representative of three experiments (n = 5 mice per group). ** P

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD11b antibody [EPR1344] ab133357).

  Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - Low endotoxin, Azide free (ab216445)

  Immunohistochemical analysis of human tonsil tissue labeling CD11b with ab216445 at 1/8000 dilution. No blocking step performed. Anti-Rabbit HRP polymer was used as the secondary detection system. Heat-mediated antigen retrieval was performed using citrate based pH 6.0 buffer.

•

  Western blot - Anti-CD11b antibody [EPR1344] - Low endotoxin, Azide free (ab216445)

  All lanes: Western blot - Anti-CD11b antibody [EPR1344] - Low endotoxin, Azide free (ab216445) at 1/1000 dilution

  Lane 1: TF-1 cell lysate at 15 µg

  Lane 2: rat spleen tissue lysate at 15 µg

  Lane 3: RAW 264.7 cell lysate at 15 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Predicted band size: 127 kDa

•

  Western blot - Anti-CD11b antibody [EPR1344] - Low endotoxin, Azide free (ab216445)

  This WB data was generated using the same anti-CD11b antibody clone, EPR1344, in a different buffer formulation (cat# Anti-CD11b antibody [EPR1344] ab133357).


  Blocking buffer: 5% NFDM/TBST

  Dilution buffer: 5% NFDM/TBST

  All lanes: Western blot - Anti-CD11b antibody [EPR1344] (Anti-CD11b antibody [EPR1344] ab133357) at 1/1000 dilution

  Lane 1: TF-1 cell lysate at 20 µg

  Lane 2: TPA treated THP-1 cell lysate at 20 µg

  Secondary

  All lanes: HRP goat anti-rabbit (H+L) at 1/1000 dilution

  Predicted band size: 127 kDa

  Observed band size: 170 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - Low endotoxin, Azide free (ab216445)

  Anti-CD11b antibody [EPR1344] ab133357 staining CD11b in paraffin embedded Mouse lung tissue sections by Immunohistochemistry. Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). Samples were incubated with primary antibody at 1/4000 dilution (0.031 μg/ml). A ready to use Goat Anti-rabbit IgG H&L (HRP) was used as the secondary antibody. Hematoxylin was used as a counterstain. Positive staining on stromal cells of mouse lung.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD11b antibody [EPR1344] ab133357).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - Low endotoxin, Azide free (ab216445)

  Anti-CD11b antibody [EPR1344] ab133357 staining CD11b in paraffin embedded Mouse colon tissue sections by Immunohistochemistry. Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). Samples were incubated with primary antibody at 1/4000 dilution (0.031 μg/ml). A ready to use Goat Anti-rabbit IgG H&L (HRP) was used as the secondary antibody. Hematoxylin was used as a counterstain. Positive staining on stromal cells of mouse colon.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD11b antibody [EPR1344] ab133357).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - Low endotoxin, Azide free (ab216445)

  Anti-CD11b antibody [EPR1344] ab133357 staining CD11b in paraffin embedded Rat cerebrum tissue sections by Immunohistochemistry. Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). Samples were incubated with primary antibody at 1/4000 dilution (0.29 μg/ml). A ready to use Goat Anti-rabbit IgG H&L (HRP) was used as the secondary antibody. Hematoxylin was used as a counterstain. Positive staining on gliocytes of rat cerebrum [PMID: 20483006].

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD11b antibody [EPR1344] ab133357).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - Low endotoxin, Azide free (ab216445)

  Formaldehyde-fixed, paraffin-embedded rat bone marrow tissue stained for CD11b using Anti-CD11b antibody [EPR1344] ab133357 at 1/5000 in immunohistochemical analysis.

  Heat mediated antigen retrieval with EDTA buffer pH 9 was performed before commencing with staining protocol. 1% casein was used as blocking agent.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD11b antibody [EPR1344] ab133357).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - Low endotoxin, Azide free (ab216445)

  Immunohistochemical staining of paraffin embedded human spleen with purified Anti-CD11b antibody [EPR1344] ab133357 at a working dilution of 1 in 4000. The secondary antibody used is a HRP goat anti-rabbit (Goat Anti-Rabbit IgG H&L (HRP) ab97051). The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD11b antibody [EPR1344] ab133357).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - Low endotoxin, Azide free (ab216445)

  This IHC data was generated using the same anti-CD11b antibody clone, EPR1344, in a different buffer formulation (cat# Anti-CD11b antibody [EPR1344] ab133357).


  IHC image of CD11b staining in a formalin fixed, paraffin embedded human normal spleen tissue section*, performed on a Leica Bond™ system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with Anti-CD11b antibody [EPR1344] ab133357 at 1/4000 dilution, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

  *Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - Low endotoxin, Azide free (ab216445)

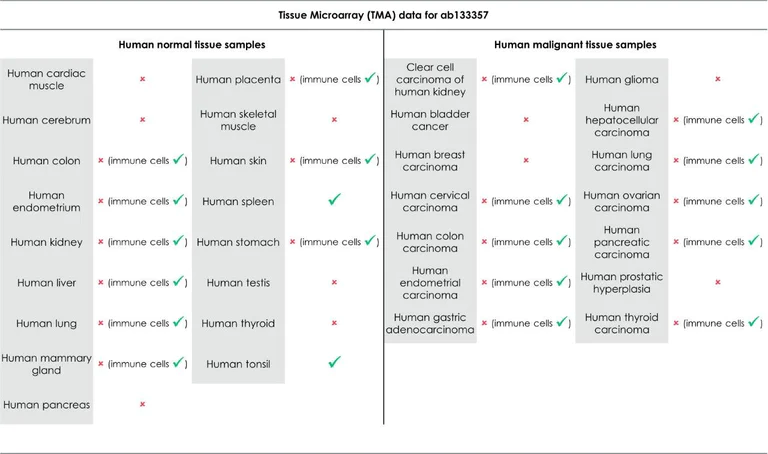

  Tissue Microarrays stained for "Anti-CD11b antibody [EPR1344]" using "Anti-CD11b antibody [EPR1344] ab133357"in immunohistochemical analysis. This table provides a detailed overview of positive (tick mark) and negative (cross mark) staining per sample type tested. The sections were pre-treated using Heat mediated antigen retrieval using Bond™ Epitope Retrieval Solution 2 (pH 9.0) for 20 minutes. The sections were incubated with Anti-CD11b antibody [EPR1344] ab133357 for 30 mins at room temperature followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD11b antibody [EPR1344] - Low endotoxin, Azide free (ab216445)

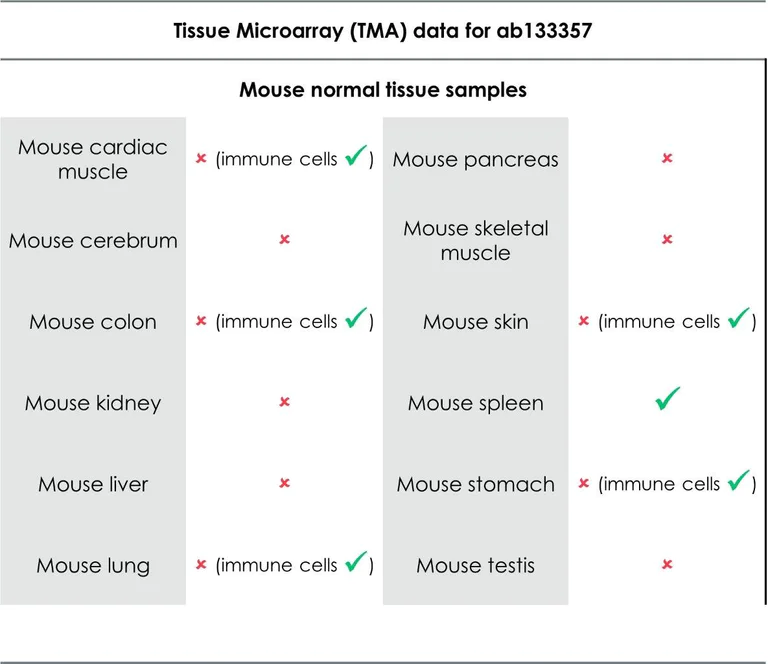

  Tissue Microarrays stained for "Anti-CD11b antibody [EPR1344]" using "Anti-CD11b antibody [EPR1344] ab133357"in immunohistochemical analysis. This table provides a detailed overview of positive (tick mark) and negative (cross mark) staining per sample type tested. The sections were pre-treated using Heat mediated antigen retrieval using Bond™ Epitope Retrieval Solution 2 (pH 9.0) for 20 minutes. The sections were incubated with Anti-CD11b antibody [EPR1344] ab133357 for 30 mins at room temperature followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). The immunostaining was performed on a Leica Biosystems BOND® RX instrument.
