Anti-CD13 antibody [WM15]

• ICC/IF

Lab

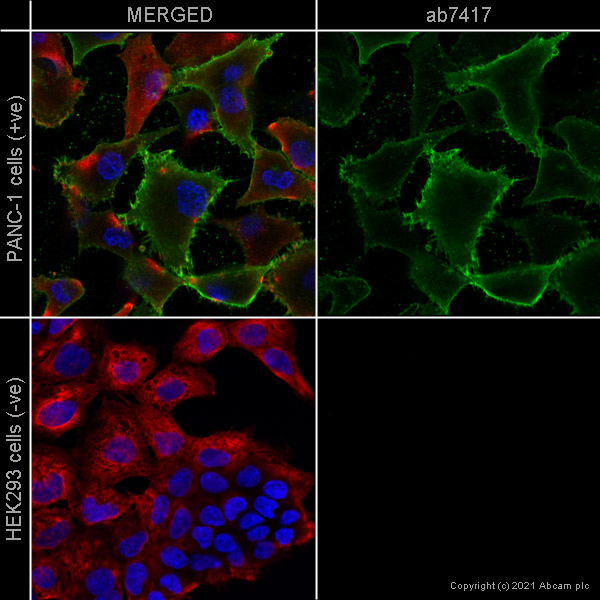

Immunocytochemistry/ Immunofluorescence - Anti-CD13 antibody [WM15] (AB7417)

ab7417 staining CD13 in PANC-1 cells (top panel - positive control) and HEK-293 cells (bottom panel - negative control). The cells were fixed with 4% paraformaldehyde (10 min) then permeabilized with 0.1% PBS-Tween for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab7417 at 0.5μg/ml concentration and ab6046 (Rabbit polyclonal to beta Tubulin) at 1/1000 dilution overnight at 4°C followed by a further incubation at room temperature for 1h with a goat secondary antibody to mouse IgG (Alexa Fluor^® 488) (ab150117) at 2 μg/ml (shown in green) and a goat secondary antibody to rabbit IgG (Alexa Fluor^® 594) (ab150080) at 2 μg/ml (shown in red). Nuclear DNA was labelled in blue with DAPI.
Image was taken with a confocal microscope (Leica-Microsystems TCS SP8).

• Flow Cyt

AbReview13738****

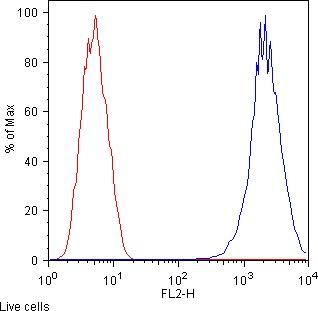

Flow Cytometry - Anti-CD13 antibody [WM15] (AB7417)

This image was generated from the hybridoma version of the product.

ab7417 staining CD13 in Human Fibrosarcoma cells by flow cytometry. Cells were fixed with paraformaldehyde. The sample was incubated with primary antibody at 10μg/ml in PBS for 1 hour at 20°C. An Allophycocyanin (APC) conjugated anti-mouse monoclonal was used as a secondary antibody at 5μg/ml. Secondary antibody only (red). ab7417 and secondary antibody (blue).

This image is courtesy of an anonymous Abreview

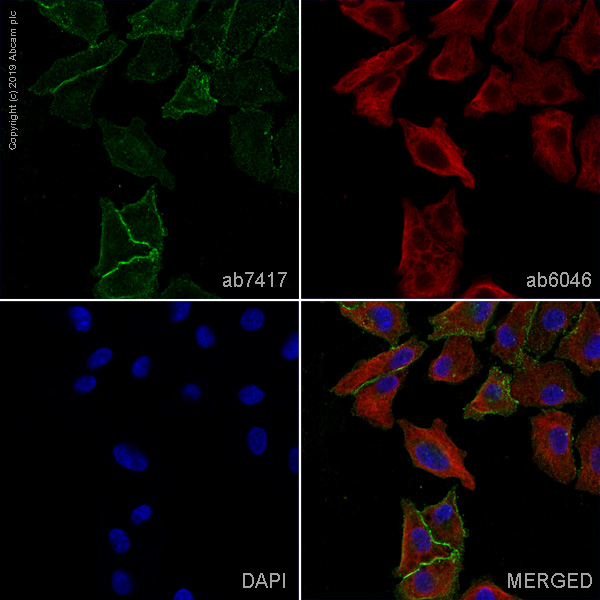

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-CD13 antibody [WM15] (AB7417)

ab7417 staining CD13 in A375 cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Tween for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°;C with ab7417 at 1μg/ml and ab6046, Rabbit polyclonal to beta Tubulin - Loading Control. Cells were then incubated with ab150117, Goat polyclonal Secondary Antibody to Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green) and ab150080, Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor®; 594) at 1/1000 dilution (shown in pseudocolour red). Nuclear DNA was labelled with DAPI (shown in blue).

Also suitable in cells fixed with 4% paraformaldehyde (10 min).

Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown

• ICC/IF

AbReview5716****

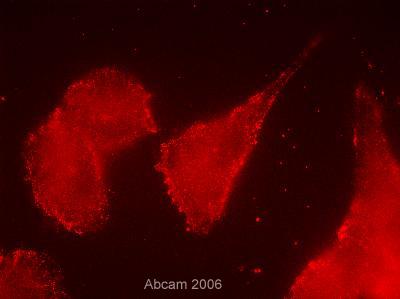

Immunocytochemistry/ Immunofluorescence - Anti-CD13 antibody [WM15] (AB7417)

This image was generated from the hybridoma version of the product.

ab7417 staining CD13 in HT1080 cells by ICC/IF (Immunocytochemistry/Immunofluorescence). Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. Samples were incubated with primary antibody at 10μg/ml for 1 hour. A Texas Red Goat Anti-mouse polyclonal was used as the secondary antibody.

This image is courtesy of an anonymous Abreview

• Flow Cyt

Lab

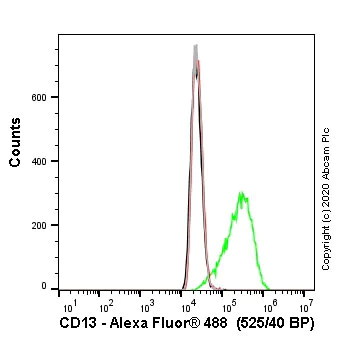

Flow Cytometry - Anti-CD13 antibody [WM15] (AB7417)

Flow cytometry overlay histogram showing wild-type THP1 (green line) and ANPEP knockout THP1 cells (ab273759) stained with ab7417 (red line). The cells were incubated in 1x PBS containing 10μg/ml human IgG and 10% normal goat serum to block FC receptors and non-specific protein-protein interaction followed by the antibody (ab7417) (1x10⁶ in 100μl at 1 μg/ml) for 30 min at 4°C.

The secondary antibody Goat anti-mouse IgG H&L (Alexa Fluor^® 488, pre-adsorbed) (ab150117) was used at 1/2000 for 30 min at 4°C.

Isotype control antibody was mouse IgG1κ (ab170190) used at the same concentration and conditions as the primary antibody (wild-type THP1 cells - black line; ANPEP knockout THP1 cells ab273759 - grey line). Unlabelled sample was also used as a control (this line is not shown for the purpose of simplicity).

Acquisition of >5000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter.

This image was generated from the hybridoma version of the product.

• ICC/IF

Lab

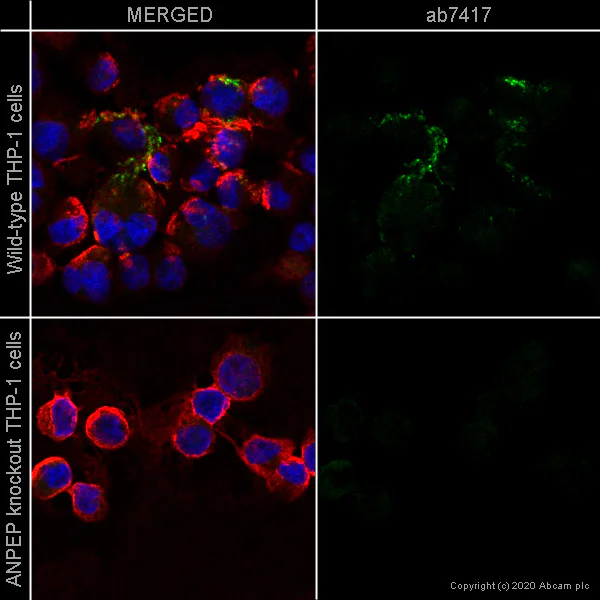

Immunocytochemistry/ Immunofluorescence - Anti-CD13 antibody [WM15] (AB7417)

ab7417 staining CD13 in wild-type THP-1 cells (top panel) and ANPEP knockout THP-1 cells (bottom panel) (ab273759). The cells were fixed with 4% paraformaldehyde (10 min) then permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab7417 at 2.5μg/ml concentration and ab6046 (Rabbit polyclonal to beta Tubulin) at 1/1000 dilution overnight at 4°C followed by a further incubation at room temperature for 1h with a goat secondary antibody to mouse IgG (Alexa Fluor^® 488) (ab150117) at 2 μg/ml (shown in green) and a goat secondary antibody to rabbit IgG (Alexa Fluor^® 594) (ab150080) at 2 μg/ml (shown in red). Nuclear DNA was labelled in blue with DAPI.
Image was taken with a confocal microscope (Leica-Microsystems TCS SP8).

This image was generated from the hybridoma version of the product.
