Rabbit Recombinant Monoclonal CD134 / OX40L receptor antibody. Suitable for IP, Flow Cyt, WB, IHC-P and reacts with Rat, Mouse samples. Cited in 3 publications.


Images

Flow Cytometry - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (AB229021), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (AB229021), expandable thumbnail
  • Immunoprecipitation - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (AB229021), expandable thumbnail
  • Flow Cytometry - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (AB229021), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (AB229021), expandable thumbnail

Publications

Key facts

Isotype

IgG

Host species

Rabbit

Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IPFlow CytWBICC/IFIHC-FrIHC-P
Mouse
Expected
Tested
Tested
Not recommended
Not recommended
Tested
Rat
Tested
Tested
Tested
Not recommended
Not recommended
Tested

Tested
Tested

Species

Rat

Dilution info

1/30

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Expected
Expected

Species

Mouse

Dilution info

Use at an assay dependent concentration.

Notes

-

Tested
Tested

Species

Mouse

Dilution info

1/500

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species

Rat

Dilution info

1/500

Notes

-

Tested
Tested

Species

Mouse

Dilution info

1/1000

Notes

-

Species

Rat

Dilution info

1/1000

Notes

-

Not recommended
Not recommended

Species

Mouse, Rat

Dilution info

-

Notes

-

Not recommended
Not recommended

Species

Mouse, Rat

Dilution info

-

Notes

-

Tested
Tested

Species

Mouse

Dilution info

1/1000

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species

Rat

Dilution info

1/1000

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Associated Products

Select an associated product type

1 product for Alternative Product

Target data

Function

Receptor for TNFSF4/OX40L/GP34. Is a costimulatory molecule implicated in long-term T-cell immunity (By similarity).

Alternative names

Recommended products

Rabbit Recombinant Monoclonal CD134 / OX40L receptor antibody. Suitable for IP, Flow Cyt, WB, IHC-P and reacts with Rat, Mouse samples. Cited in 3 publications.

Key facts

Isotype

IgG

Form

Liquid

Clonality

Monoclonal

Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number

EPR22229-5

Purification technique

Affinity purification Protein A

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

6 product images

  • Flow Cytometry - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (ab229021), expandable thumbnail

    Flow Cytometry - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (ab229021)

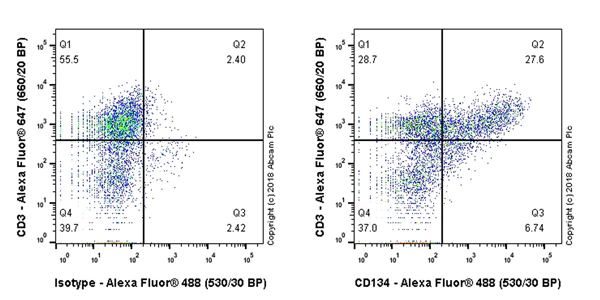

    Flow cytometric analysis of mouse primary splenocytes treated with 2.5μg/ml concanavalin A for 72h labeling CD134 / OX40L with ab229021 at 1/500 dilution (Right) compared to cells stained with Alexa Fluor® 647-conjugated CD3 and rabbit IgG (Left). Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1/2000 dilution.

    Data shown were gated on viable cells.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (ab229021), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (ab229021)

    Immunohistochemical analysis of paraffin-embedded rat spleen tissue labeling CD134 / OX40L using ab229021 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Positive staining on T cells in rat spleen (PMID: 15259024; PMID: 10233901). Counterstained with Hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

    Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 10mins.

    The section was incubated with ab229021 for 10 mins at 37°C. The immunostaining staining was performed on a Leica Biosystems BOND® RX instrument.

  • Immunoprecipitation - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (ab229021), expandable thumbnail

    Immunoprecipitation - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (ab229021)

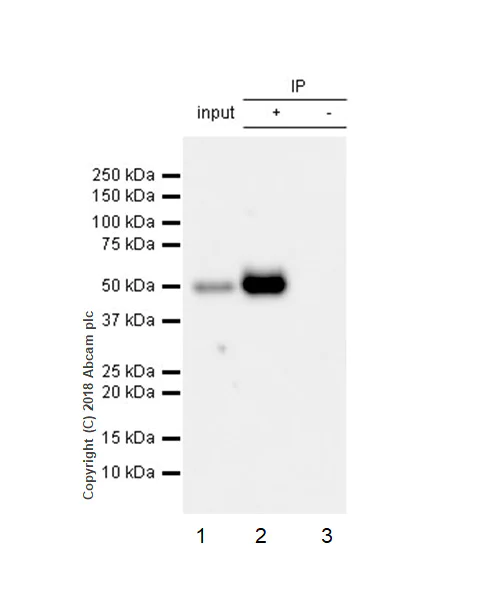

    CD134 / OX40L was immunoprecipitated from 0.35 mg rat splenocytes treated with 2.5μg/ml concanavalin A for 72h lysate using ab229021 at 1/30 dilution. Western blot was performed on the immunoprecipitate using ab229021 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) was used for detection at a 1/5000 dilution.

    Lane 1: Rat splenocytes treated with 2.5μg/ml concanavalin A for 72h lysate 10 μg (input)
    Lane 2: ab229021 IP in Rat splenocytes treated with 2.5μg/ml concanavalin A for 72h lysate.
    Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab229021 in Rat splenocytes treated with 2.5μg/ml concanavalin A for 72h lysate.

    Blocking and dilution buffer and concentration: 5% NFDM/TBST.
    Exposure time: 20 seconds.

    All lanes: Immunoprecipitation - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (ab229021)

    Predicted band size: 29 kDa

  • Flow Cytometry - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (ab229021), expandable thumbnail

    Flow Cytometry - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (ab229021)

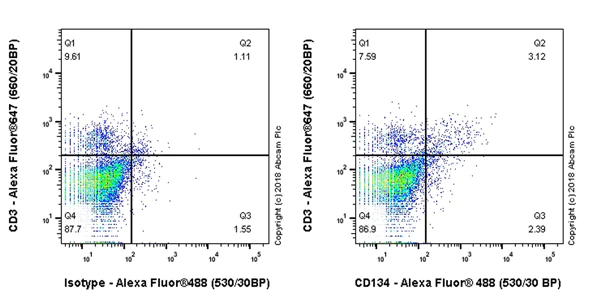

    Flow cytometric analysis of rat primary splenocytes treated with 2.5μg/ml concanavalin A for 72h labeling CD134 / OX40L with ab229021 at 1/500 dilution (Right) compared to cells stained with Alexa Fluor® 647-conjugated CD3 and rabbit IgG (Left). Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1/2000 dilution.

    Data shown were gated on viable cells.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (ab229021), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (ab229021)

    Immunohistochemical analysis of paraffin-embedded mouse spleen tissue labeling CD134 / OX40L using ab229021 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Positive staining on T cells in periarterial lymphatic sheath of mouse spleen (PMID: 15259024; PMID: 10233901). Counterstained with Hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

    Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 10mins.

    The section was incubated with ab229021 for 10 mins at 37°C. The immunostaining staining was performed on a Leica Biosystems BOND® RX instrument.

  • Western blot - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (ab229021), expandable thumbnail

    Western blot - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (ab229021)

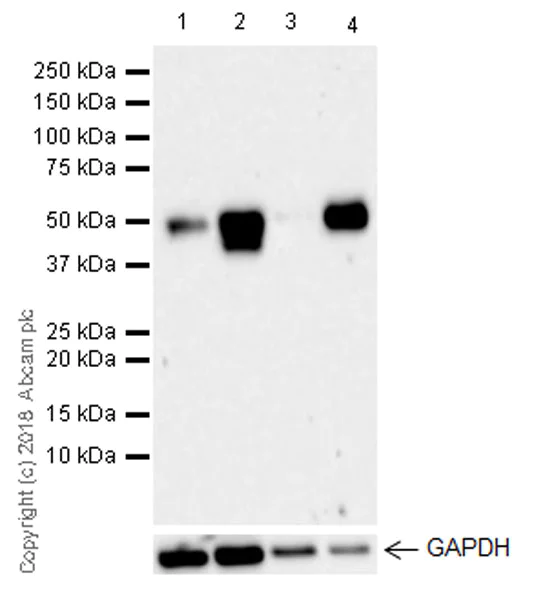

    Blocking/Diluting buffer and concentration: 5% NFDM/TBST

    CD134 / OX40L is a glycosylated protein and its expression is increased after concanavalin A treatment. PMID 23897980; PMID 17609274

    All lanes: Western blot - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (ab229021) at 1/1000 dilution

    Lane 1: Untreated mouse splenocytes lysate at 20 µg

    Lane 2: Mouse splenocytes treated with 2.5ug/ml concanavalin A for 72h lysate at 20 µg

    Lane 3: Untreated rat splenocytes lysate at 20 µg

    Lane 4: Rat splenocytes treated with 2.5ug/ml concanavalin A for 72h lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

    Predicted band size: 29 kDa

    Observed band size: 50 kDa

    Exposure time: 3min

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
