AB242024

Anti-CD134 / OX40L receptor antibody [EPR22229-5] - BSA and Azide free

Be the first to review this product! Submit a review

|

(1 Publication)

Rabbit Recombinant Monoclonal CD134 / OX40L receptor antibody. Carrier free. Suitable for IP, Flow Cyt, WB, IHC-P and reacts with Rat, Mouse samples. Cited in 1 publication.

View Alternative Names

CD134, Ox40, Txgp1, Tnfrsf4, Tumor necrosis factor receptor superfamily member 4, OX40 antigen, OX40L receptor

5 Images
Flow Cytometry - Anti-CD134 / OX40L receptor antibody [EPR22229-5] - BSA and Azide free (AB242024)
  • Flow Cyt

Supplier Data

Flow Cytometry - Anti-CD134 / OX40L receptor antibody [EPR22229-5] - BSA and Azide free (AB242024)

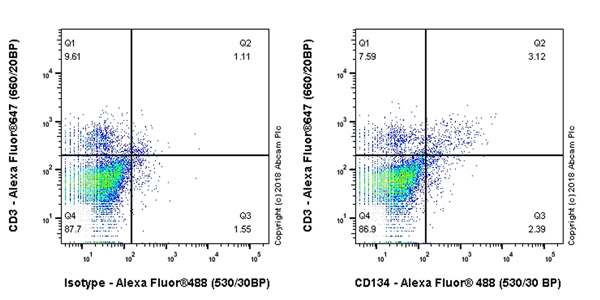

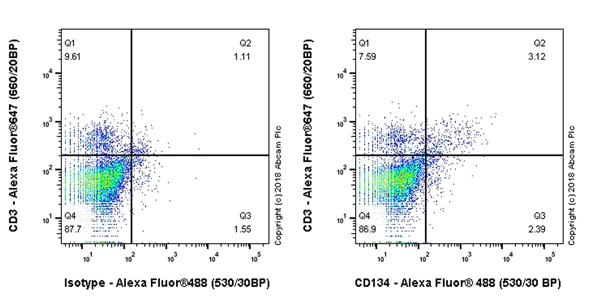

Flow cytometric analysis of rat primary splenocytes treated with 2.5μg/ml concanavalin A for 72h labeling CD134 / OX40L with ab229021 at 1/500 dilution (Right) compared to cells stained with Alexa Fluor® 647-conjugated CD3 and rabbit IgG (Left). Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) was used as the secondary antibody at 1/2000 dilution.

Data shown were gated on viable cells.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab229021).

Flow Cytometry - Anti-CD134 / OX40L receptor antibody [EPR22229-5] - BSA and Azide free (AB242024)
  • Flow Cyt

Supplier Data

Flow Cytometry - Anti-CD134 / OX40L receptor antibody [EPR22229-5] - BSA and Azide free (AB242024)

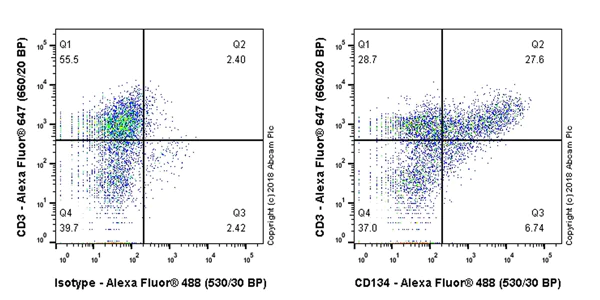

Flow cytometric analysis of mouse primary splenocytes treated with 2.5μg/ml concanavalin A for 72h labeling CD134 / OX40L with ab229021 at 1/500 dilution (Right) compared to cells stained with Alexa Fluor® 647-conjugated CD3 and rabbit IgG (Left). Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) was used as the secondary antibody at 1/2000 dilution.

Data shown were gated on viable cells.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab229021).

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD134 / OX40L receptor antibody [EPR22229-5] - BSA and Azide free (AB242024)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD134 / OX40L receptor antibody [EPR22229-5] - BSA and Azide free (AB242024)

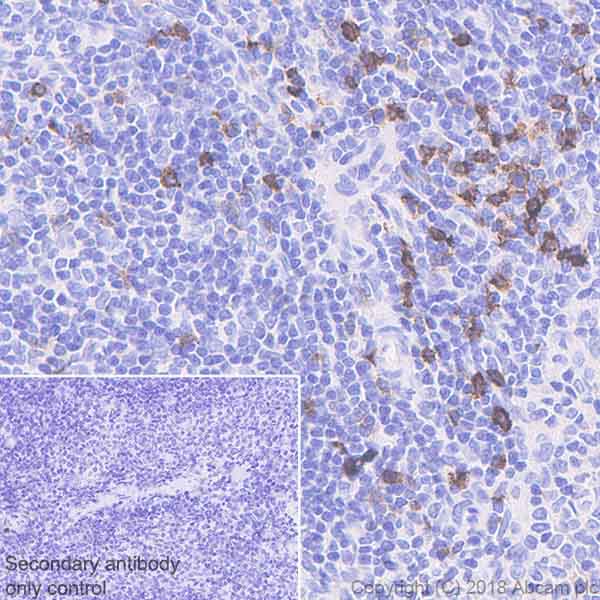

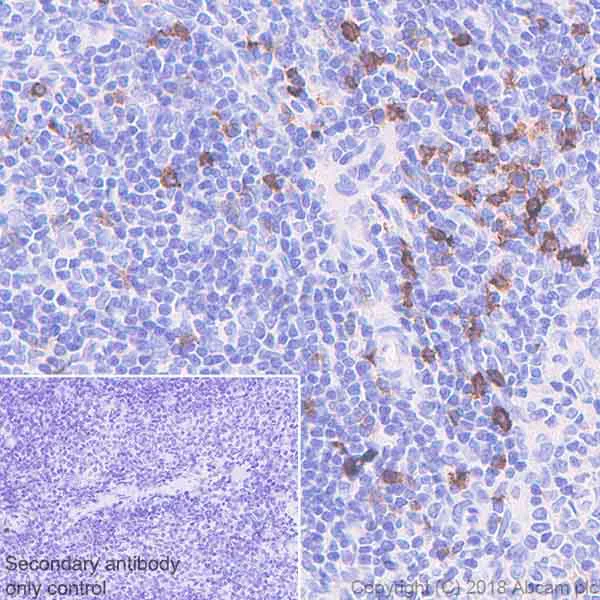

Immunohistochemical analysis of paraffin-embedded rat spleen tissue labeling CD134 / OX40L using ab229021 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Positive staining on T cells in rat spleen (PMID : 15259024; PMID : 10233901). Counterstained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 10mins.

The section was incubated with ab229021 for 10 mins at 37℃. The immunostaining staining was performed on a Leica Biosystems BOND® RX instrument.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab229021).

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD134 / OX40L receptor antibody [EPR22229-5] - BSA and Azide free (AB242024)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD134 / OX40L receptor antibody [EPR22229-5] - BSA and Azide free (AB242024)

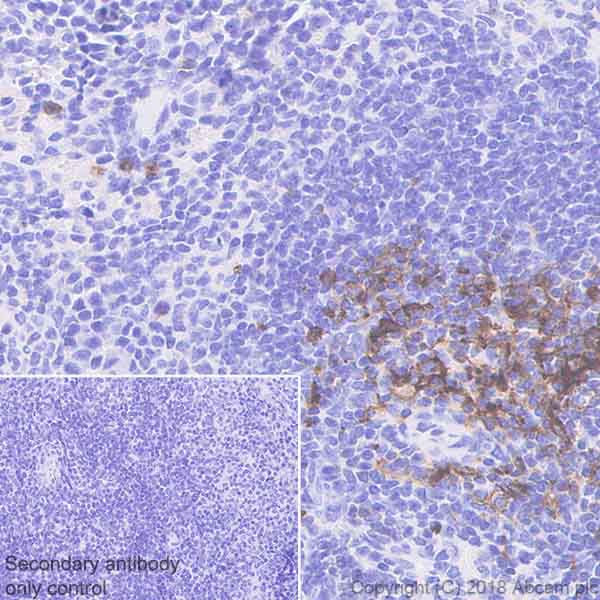

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue labeling CD134 / OX40L using ab229021 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Positive staining on T cells in periarterial lymphatic sheath of mouse spleen (PMID : 15259024; PMID : 10233901). Counterstained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 10mins.

The section was incubated with ab229021 for 10 mins at 37℃. The immunostaining staining was performed on a Leica Biosystems BOND® RX instrument.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab229021).

Immunoprecipitation - Anti-CD134 / OX40L receptor antibody [EPR22229-5] - BSA and Azide free (AB242024)
  • IP

Unknown

Immunoprecipitation - Anti-CD134 / OX40L receptor antibody [EPR22229-5] - BSA and Azide free (AB242024)

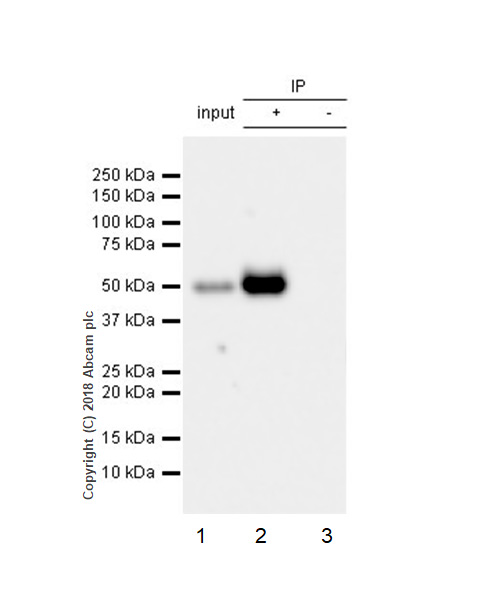

CD134 / OX40L was immunoprecipitated from 0.35 mg rat splenocytes treated with 2.5μg/ml concanavalin A for 72h lysate using ab229021 at 1/30 dilution. Western blot was performed on the immunoprecipitate using ab229021 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366) was used for detection at a 1/5000 dilution.

Lane 1 : Rat splenocytes treated with 2.5μg/ml concanavalin A for 72h lysate 10 μg (input)
Lane 2 : ab229021 IP in Rat splenocytes treated with 2.5μg/ml concanavalin A for 72h lysate.
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab229021 in Rat splenocytes treated with 2.5μg/ml concanavalin A for 72h lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.
Exposure time : 20 seconds.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab229021).

All lanes:

Immunoprecipitation - Anti-CD134 / OX40L receptor antibody [EPR22229-5] (<a href='/en-us/products/primary-antibodies/cd134-ox40l-receptor-antibody-epr22229-5-ab229021'>ab229021</a>)

Predicted band size: 29 kDa

false

  • Unconjugated

    Anti-CD134 / OX40L receptor antibody [EPR22229-5]

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR22229-5

Isotype

IgG

Carrier free

Yes

Reacts with

Mouse, Rat

Applications

WB, IP, IHC-P, Flow Cyt

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IHCFr" : {"fullname" : "Immunohistochemistry (Frozen sections)", "shortname":"IHC-Fr"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Mouse": { "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>", "WB-species-checked": "guaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "<p></p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Rat": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "FlowCyt-species-checked": "guaranteed", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "WB-species-checked": "guaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "<p></p>", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" } } }
style
left-column

Product details

ab242024 is the carrier-free version of ab229021.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

CD134 also known as OX40 or TNFRSF4 is a receptor that plays an essential role in immune response regulation. This receptor is part of the tumor necrosis factor receptor (TNFR) superfamily and has a molecular mass of approximately 50 kDa. CD134 is expressed on activated T cells particularly CD4+ T cells and is present on various other immune cells under specific conditions. The receptor binds to the OX40L its ligand which is expressed on antigen-presenting cells such as dendritic cells and B cells.
Biological function summary

CD134 influences T cell proliferation survival and memory formation being an important component of the immune system's adaptive response. OX40L engagement with CD134 enhances the activation and survival of T cells promoting long-term immunity. This interaction does not form part of a larger complex but functions as a direct signaling mechanism that augments T cell receptor (TCR) signaling leading to increased cytokine production and sustained immune responses essential for controlling infections and cancer.

Pathways

CD134 signaling intersects with the nuclear factor-kappa B (NF-κB) and phosphoinositide 3-kinase (PI3K) pathways. These pathways play significant roles in regulating immune responses and cell survival. Through the NF-κB pathway CD134 influences gene transcription related to immune activation. It also connects with other immune regulatory proteins such as CD28 which further potentiates T cell responses and enhances effector functions.

CD134 has connections to autoimmune diseases and cancers. Overactivity of the CD134-OX40L pathway can lead to exacerbated autoimmune conditions such as lupus. This receptor has also been implicated in tumor immunity where its activation enhances the anti-tumor response of T cells. CD134 interacts with CTLA-4 another immune checkpoint protein playing a role in balancing immune activation and regulation within these disease contexts.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Receptor for TNFSF4/OX40L/GP34. Is a costimulatory molecule implicated in long-term T-cell immunity (By similarity).
See full target information Tnfrsf4
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Cardiovascular diabetology 21:130 PubMed35831885

2022

Improvement in insulin sensitivity and prevention of high fat diet-induced liver pathology using a CXCR2 antagonist.

Applications

Unspecified application

Species

Unspecified reactive species

Brett E Phillips,Louise Lantier,Carl Engman,Yesica Garciafigueroa,Aatur Singhi,Massimo Trucco,Christos Mantzoros,David Wasserman,Nick Giannoukakis
