AB46679

Anti-CD16 antibody [MEM-154] - BSA and Azide free

Be the first to review this product! Submit a review

|

(5 Publications)

Mouse Monoclonal CD16a antibody. Carrier free. Suitable for Flow Cyt and reacts with Human samples. Cited in 5 publications. Immunogen corresponding to Cell preparation containing FCGR3A protein.

View Alternative Names

CD16a, CD16A, FCG3, FCGR3, IGFR3, FCGR3A, Low affinity immunoglobulin gamma Fc region receptor III-A, IgG Fc receptor III-A, CD16-II, CD16a antigen, Fc-gamma RIII-alpha, FcR-10, IgG Fc receptor III-2, Fc-gamma RIII, Fc-gamma RIIIa, FcRIII, FcRIIIa, FcgammaRIIIA

3 Images
Flow Cytometry - Anti-CD16 antibody [MEM-154] - BSA and Azide free (AB46679)
  • Flow Cyt

Unknown

Flow Cytometry - Anti-CD16 antibody [MEM-154] - BSA and Azide free (AB46679)

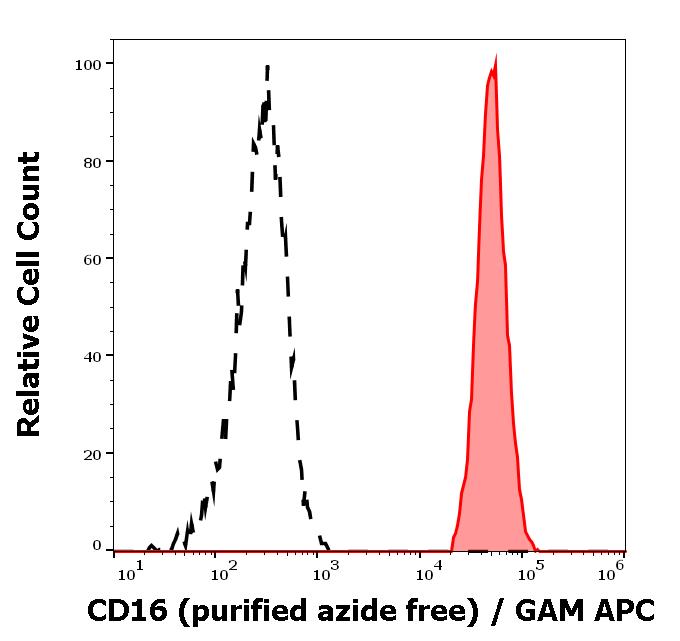

Separation of human neutrophil granulocytes (red-filled) from CD16 negative lymphocytes (black-dashed) in flow cytometry analysis (surface staining) of human peripheral whole blood stained using ab46679 at 2 μg/ml.

Flow Cytometry - Anti-CD16 antibody [MEM-154] - BSA and Azide free (AB46679)
  • Flow Cyt

Unknown

Flow Cytometry - Anti-CD16 antibody [MEM-154] - BSA and Azide free (AB46679)

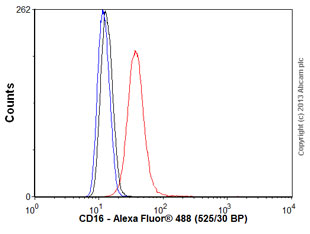

Human peripheral blood granulocytes stained with ab46679 (red line). Human whole blood was processed using a modified protocol based on Chow et al, 2005 (PMID : 16080188). In brief, human whole blood was fixed in 4% formaldehyde (methanol-free) for 10 min at 22°C. Red blood cells were then lyzed by the addition of Triton X-100 (final concentration - 0.1%) for 15 min at 37°C. For experimentation, cells were treated with 50% methanol (-20°C) for 15 min at 4°C. Cells were then incubated with the antibody (ab46679, 1μg/1x106 cells) for 30 min at 4°C. The secondary antibody used was Alexa Fluor® 488 goat anti-mouse IgG (H&L) (ab150113) at 1/2000 dilution for 30 min at 4°C. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (ab91353, 1μg/1x106 cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >30,000 total events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. Gating strategy - peripheral blood granulocytes.

Flow Cytometry - Anti-CD16 antibody [MEM-154] - BSA and Azide free (AB46679)
  • Flow Cyt

Unknown

Flow Cytometry - Anti-CD16 antibody [MEM-154] - BSA and Azide free (AB46679)

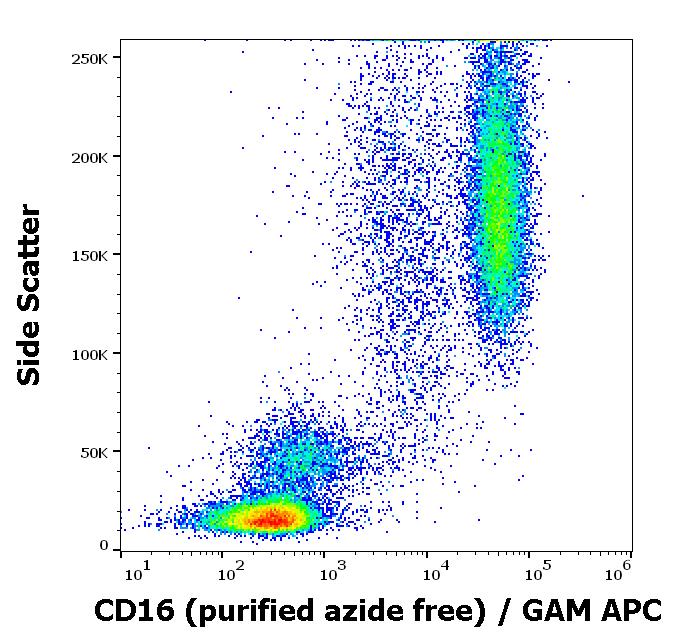

Flow cytometry surface staining pattern of human peripheral blood stained using ab46679 at 2 μg/ml GAM APC.

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

MEM-154

Isotype

IgG1

Carrier free

Yes

Reacts with

Human

Applications

Flow Cyt

applications

Immunogen

Cell preparation containing FCGR3A protein. The exact immunogen used to generate this antibody is proprietary information.

P08637

Specificity

The antibody MEM-154 reacts with the epitope on CD16 antigen residing in proximity to FG loop (probably BC or C'E loop). CD16 is a low affinity receptor for aggregated IgG (FcγRIII antigen). MEM-154 recognizes a polymorphism of CD16a (NK cells form), it reacts well with granulocyte form (CD16b) of all subjects. The antibody blocks binding of human IgG to FcγRIII.

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "1 µg for 10^6 Cells", "FlowCyt-species-notes": "<p><a href='/en-us/products/primary-antibodies/mouse-igg1-kappa-monoclonal-15-6e10a7-isotype-control-ab170190'>ab170190</a> - Mouse monoclonal IgG1, is suitable for use as an isotype control with this antibody.</p>" } } }

Product details

Preserved by filter sterilization.

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Purification notes
Purified from hybridoma culture supernatant. Purity >95% by SDS-PAGE.
Storage buffer
pH: 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

CD16 also known as FCGR3A or CD16A protein is a low-affinity receptor for the Fc region of IgG. It weighs approximately 50-70 kDa and exists on the surface of several immune cells such as natural killer (NK) cells some populations of T cells and macrophages. The expression of CD16 mediates various cellular responses including antibody-dependent cellular cytotoxicity (ADCC) where it acts by engaging with immune complexes. Researchers often use anti-CD16 antibodies in flow cytometry to analyze the presence and quantity of CD16-expressing cells.
Biological function summary

This receptor plays a significant role in immune system regulation by contributing to the activation of immune effector cells. CD16 is not part of a larger complex but it operates in concert with CD3 proteins to trigger intracellular signaling pathways upon engagement with its ligand. Its function is important for the antibody-dependent clearance of infected or malignant cells from the body representing an essential linkage between innate and adaptive immunity.

Pathways

Signaling involving CD16 is integrated into the immune response mechanisms that include the Fc gamma receptor-mediated phagocytosis pathway. This pathway involves interactions with IgG antibodies and complements the activity of other Fc gamma receptors such as CD32 and CD64. Through these interactions CD16 enhances phagocytic activity and stimulates the secretion of cytokines and chemokines important for orchestrating an effective immune response.

CD16 plays an important role in conditions like autoimmune diseases and certain cancers. Its expression and function are important in the pathophysiology of systemic lupus erythematosus where an imbalance in immune complex clearance leads to tissue damage. In oncology CD16 aids in the immune system's recognition and elimination of tumor cells working alongside proteins such as CD3 in modulating the body's anti-tumor response. Understanding CD16's involvement in these diseases helps in developing therapeutic strategies that harness the immune system's power such as monoclonal antibody therapies targeting CD16.

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Receptor for the invariable Fc fragment of immunoglobulin gamma (IgG). Optimally activated upon binding of clustered antigen-IgG complexes displayed on cell surfaces, triggers lysis of antibody-coated cells, a process known as antibody-dependent cellular cytotoxicity (ADCC). Does not bind free monomeric IgG, thus avoiding inappropriate effector cell activation in the absence of antigenic trigger (PubMed : 11711607, PubMed : 21768335, PubMed : 22023369, PubMed : 24412922, PubMed : 25786175, PubMed : 25816339, PubMed : 28652325, PubMed : 8609432, PubMed : 9242542). Mediates IgG effector functions on natural killer (NK) cells. Binds antigen-IgG complexes generated upon infection and triggers NK cell-dependent cytokine production and degranulation to limit viral load and propagation. Involved in the generation of memory-like adaptive NK cells capable to produce high amounts of IFNG and to efficiently eliminate virus-infected cells via ADCC (PubMed : 24412922, PubMed : 25786175). Regulates NK cell survival and proliferation, in particular by preventing NK cell progenitor apoptosis (PubMed : 29967280, PubMed : 9916693). Fc-binding subunit that associates with CD247 and/or FCER1G adapters to form functional signaling complexes. Following the engagement of antigen-IgG complexes, triggers phosphorylation of immunoreceptor tyrosine-based activation motif (ITAM)-containing adapters with subsequent activation of phosphatidylinositol 3-kinase signaling and sustained elevation of intracellular calcium that ultimately drive NK cell activation. The ITAM-dependent signaling coupled to receptor phosphorylation by PKC mediates robust intracellular calcium flux that leads to production of pro-inflammatory cytokines, whereas in the absence of receptor phosphorylation it mainly activates phosphatidylinositol 3-kinase signaling leading to cell degranulation (PubMed : 1825220, PubMed : 23024279, PubMed : 2532305). Costimulates NK cells and trigger lysis of target cells independently of IgG binding (PubMed : 10318937, PubMed : 23006327). Mediates the antitumor activities of therapeutic antibodies. Upon ligation on monocytes triggers TNFA-dependent ADCC of IgG-coated tumor cells (PubMed : 27670158). Mediates enhanced ADCC in response to afucosylated IgGs (PubMed : 34485821).. (Microbial infection) Involved in Dengue virus pathogenesis via antibody-dependent enhancement (ADE) mechanism. Secondary infection with Dengue virus triggers elevated levels of afucosylated non-neutralizing IgG1s with reactivity to viral envelope/E protein. Viral antigen-IgG1 complexes bind with high affinity to FCGR3A, facilitating virus entry in myeloid cells and subsequent viral replication.
See full target information FCGR3A

Publications (5)

Recent publications for all applications. Explore the full list and refine your search

Signal transduction and targeted therapy 8:24 PubMed36609561

2023

COVID-19-associated monocytic encephalitis (CAME): histological and proteomic evidence from autopsy.

Applications

Unspecified application

Species

Unspecified reactive species

Pei-Pei Zhang,Zhi-Cheng He,Xiao-Hong Yao,Rui Tang,Jie Ma,Tao Luo,Chuhong Zhu,Tian-Ran Li,Xindong Liu,Dingyu Zhang,Shuyang Zhang,Yi-Fang Ping,Ling Leng,Xiu-Wu Bian

Aging 12:25845-25864 PubMed33234721

2020

The long noncoding RNA LINC01140/miR-140-5p/FGF9 axis modulates bladder cancer cell aggressiveness and macrophage M2 polarization.

Applications

Unspecified application

Species

Unspecified reactive species

Shuiqing Wu,Ran Xu,Xuan Zhu,Haiqing He,Jinhua Zhang,Qi Zeng,Yinhuai Wang,Xiaokun Zhao

The EMBO journal 36:1348-1363 PubMed28320741

2017

Hypoxia enhances antibody-dependent dengue virus infection.

Applications

WB

Species

Unspecified reactive species

Esther Shuyi Gan,Wei Fun Cheong,Kuan Rong Chan,Eugenia Ziying Ong,Xiaoran Chai,Hwee Cheng Tan,Sujoy Ghosh,Markus R Wenk,Eng Eong Ooi

The Journal of clinical investigation 123:1457-74 PubMed23454746

2013

IgG4 subclass antibodies impair antitumor immunity in melanoma.

Applications

IHC-Fr

Species

Human

Panagiotis Karagiannis,Amy E Gilbert,Debra H Josephs,Niwa Ali,Tihomir Dodev,Louise Saul,Isabel Correa,Luke Roberts,Emma Beddowes,Alexander Koers,Carl Hobbs,Silvia Ferreira,Jenny L C Geh,Ciaran Healy,Mark Harries,Katharine M Acland,Philip J Blower,Tracey Mitchell,David J Fear,James F Spicer,Katie E Lacy,Frank O Nestle,Sophia N Karagiannis

The American journal of pathology 181:347-61 PubMed22658487

2012

Solid-phase immunoglobulins IgG and IgM activate macrophages with solid-phase IgM acting via a novel scavenger receptor a pathway.

Applications

Unspecified application

Species

Unspecified reactive species

Joseph J Boyle,Ivy Christou,M Bilal Iqbal,Aivi T Nguyen,Viola W Y Leung,Paul C Evans,Yu Liu,Michael Johns,Paul Kirkham,Dorian O Haskard
View all publications

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
