Anti-CD16 antibody [SP175] - Mouse IgG2a (Chimeric)
- BOND RX™ Validated
- 20ul selling size
- Recombinant
- What is this?
Be the first to review this product! Submit a review
|
(0 Publication)
Anti-CD16 antibody [SP175] is a Mouse Monoclonal antibody that is used in CD16 Flow Cytometry (Intra), IHC-P. Suitable for Human samples.
Chimeric antibodies eliminate issues with species on species interactions and give choice of antibody host species to support multiplexing.
View Alternative Names
CD16a, CD16A, FCG3, FCGR3, IGFR3, FCGR3A, Low affinity immunoglobulin gamma Fc region receptor III-A, IgG Fc receptor III-A, CD16-II, CD16a antigen, Fc-gamma RIII-alpha, FcR-10, IgG Fc receptor III-2, Fc-gamma RIII, Fc-gamma RIIIa, FcRIII, FcRIIIa, FcgammaRIIIA
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD16 antibody [SP175] - Mouse IgG2a (Chimeric) (AB308605)
Immunohistochemical analysis of paraffin-embedded human liver tissue labeling CD16 with ab308605 at 1/5000 (0.206 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on Kuffer cells of human liver. The section was incubated with ab308605 for 10 mins at room temperature, followed by anti-mouse IgG2a antibody for 8 mins during the LeicaDS9800 kit staining procedure. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 10 mins.
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD16 antibody [SP175] - Mouse IgG2a (Chimeric) (AB308605)
Immunohistochemical analysis of paraffin-embedded human spleen tissue labeling CD16 with ab308605 at 1/5000 (0.206 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on human spleen. The section was incubated with ab308605 for 10 mins at room temperature, followed by anti-mouse IgG2a antibody for 8 mins during the LeicaDS9800 kit staining procedure. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 10 mins.
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD16 antibody [SP175] - Mouse IgG2a (Chimeric) (AB308605)
Immunohistochemical analysis of paraffin-embedded human ovarian cancer tissue labeling CD16 with ab308605 at 1/5000 (0.206 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on stromal cells of human ovarian cancer. The section was incubated with ab308605 for 10 mins at room temperature, followed by anti-mouse IgG2a antibody for 8 mins during the LeicaDS9800 kit staining procedure. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 10 mins.
- Flow Cyt (Intra)
Supplier Data
Flow Cytometry (Intracellular) - Anti-CD16 antibody [SP175] - Mouse IgG2a (Chimeric) (AB308605)

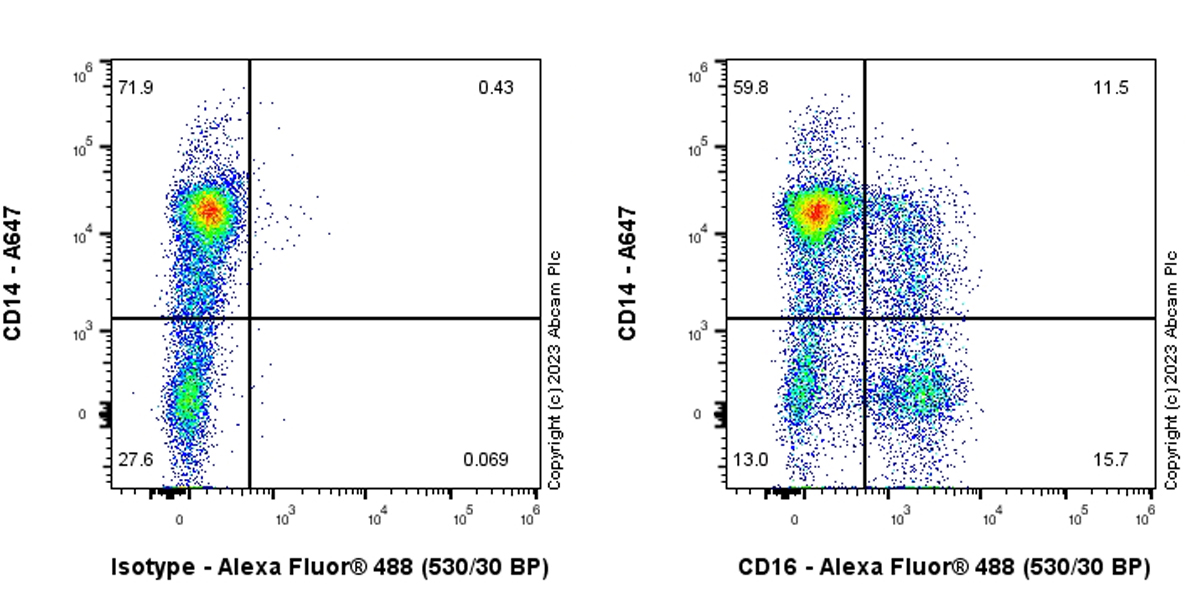

Flow cytometric analysis of 2% paraformaldehyde fixed 0.1% Tween-20 permeabilized human PBMC (human peripheral blood mononuclear cell) cells labelling CD16 with ab308605 at 1/1000 dilution (0.1 ug)/Right compared with a Mouse monoclonal IgG isotype control/ Left. A Goat anti-Mouse IgG (Alexa Fluor® 488, ab150113) at 1/5000 dilution was used as the secondary antibody. Cells were stained with anti-CD14 conjugated to A647. Fixed with 2% PFA for 10 min followed by intracellularly staining with mouse IgG or ab308605.
- Flow Cyt (Intra)
Supplier Data
Flow Cytometry (Intracellular) - Anti-CD16 antibody [SP175] - Mouse IgG2a (Chimeric) (AB308605)

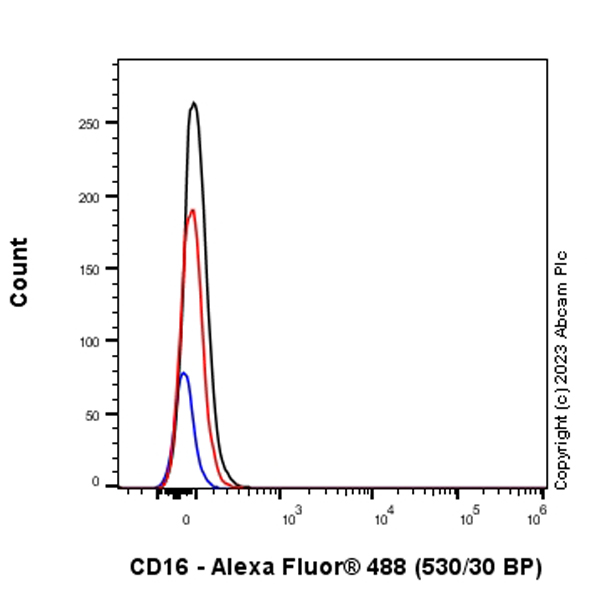

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized Raji (human Burkitt's lymphoma B lymphocyte) cells labelling CD16 with ab308605 at 1/1000 dilution (0.1 ug)/ (Red) compared with a mouse monoclonal IgG isotype control / Left and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti-Mouse IgG (Alexa Fluor® 488, ab150113) at 1/5000 dilution was used as the secondary antibody. Negative control : Raji. (PMID : 11207281).
Reactivity data
You may be interested in:
Why is this recommended?
We recommend this product because it’s often used in the same experiment or related research.
We advise that you always check the datasheet to ensure it fits your experiments, or contact ourtechnical teamfor help.
Product details
Properties and storage information
Form
Purification technique
Storage buffer
Shipped at conditions
Appropriate short-term storage duration
Appropriate short-term storage conditions
Appropriate long-term storage conditions
Aliquoting information
Storage information
Supplementary information
This supplementary information is collated from multiple sources and compiled automatically.
Biological function summary
This receptor plays a significant role in immune system regulation by contributing to the activation of immune effector cells. CD16 is not part of a larger complex but it operates in concert with CD3 proteins to trigger intracellular signaling pathways upon engagement with its ligand. Its function is important for the antibody-dependent clearance of infected or malignant cells from the body representing an essential linkage between innate and adaptive immunity.
Pathways
Signaling involving CD16 is integrated into the immune response mechanisms that include the Fc gamma receptor-mediated phagocytosis pathway. This pathway involves interactions with IgG antibodies and complements the activity of other Fc gamma receptors such as CD32 and CD64. Through these interactions CD16 enhances phagocytic activity and stimulates the secretion of cytokines and chemokines important for orchestrating an effective immune response.
Product protocols
- Visit the General protocols
- Visit the Troubleshooting
Target data
Product promise
Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
