Rabbit Recombinant Monoclonal KLRB1 antibody. Suitable for ICC/IF, Flow Cyt and reacts with Human samples. Cited in 1 publication.

Be the first to review this product! Submit a review

Images

Flow Cytometry - Anti-CD161 antibody [EPR23831-120] (AB259916), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-CD161 antibody [EPR23831-120] (AB259916), expandable thumbnail
  • Flow Cytometry - Anti-CD161 antibody [EPR23831-120] (AB259916), expandable thumbnail
  • Flow Cytometry - Anti-CD161 antibody [EPR23831-120] (AB259916), expandable thumbnail

Publications

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

Preservative: 0.01% Sodium azide
Constituents: 59.94% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
ICC/IFIPFlow CytWBIHC-P
Human
Tested
Not recommended
Tested
Not recommended
Not recommended
Mouse
Not recommended
Not recommended
Not recommended
Not recommended
Not recommended
Rat
Not recommended
Not recommended
Not recommended
Not recommended
Not recommended

Tested
Tested

Species
Human
Dilution info
1/50
Notes

-

Not recommended
Not recommended

Species
Mouse, Rat
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Human, Mouse, Rat
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/500
Notes

-

Not recommended
Not recommended

Species
Mouse, Rat
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Human, Mouse, Rat
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Human, Mouse, Rat
Dilution info
-
Notes

-

Target data

Function

Plays an inhibitory role on natural killer (NK) cells cytotoxicity. Activation results in specific acid sphingomyelinase/SMPD1 stimulation with subsequent marked elevation of intracellular ceramide. Activation also leads to AKT1/PKB and RPS6KA1/RSK1 kinases stimulation as well as markedly enhanced T-cell proliferation induced by anti-CD3. Acts as a lectin that binds to the terminal carbohydrate Gal-alpha(1,3)Gal epitope as well as to the N-acetyllactosamine epitope. Binds also to CLEC2D/LLT1 as a ligand and inhibits NK cell-mediated cytotoxicity as well as interferon-gamma secretion in target cells.

Alternative names

CD161, CLEC5B, NKRP1A, KLRB1, Killer cell lectin-like receptor subfamily B member 1, C-type lectin domain family 5 member B, HNKR-P1a, Natural killer cell surface protein P1A, NKR-P1A

Recommended products

Rabbit Recombinant Monoclonal KLRB1 antibody. Suitable for ICC/IF, Flow Cyt and reacts with Human samples. Cited in 1 publication.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR23831-120
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

CD161 also known as NKRP1A or KLRB1 is a type II transmembrane protein expressed primarily on natural killer (NK) cells and subsets of T cells. Weighing approximately 30-40 kDa CD161 functions as a C-type lectin receptor involved in the immune response. Its expression can be detected in various tissues including the liver and spleen. Researchers utilize tools such as mouse CD161 PE as well as CD161 APC antibodies for study of its cell surface expression and role in immune modulation.

Biological function summary

CD161 plays a role in immune system regulation by mediating NK cell and T cell activity. It does not operate as part of a complex but interacts with other cellular receptors to modulate immune responses. For example it serves as an inhibitory receptor often through engagement with its ligand LLT1 to temper immune responses and prevent overactivation. This balance is key to maintaining immune homeostasis and facilitates pathogen clearance while avoiding excessive tissue damage.

Pathways

CD161 is involved in the immune checkpoint pathways and is linked to inflammatory response signaling. These pathways play an important role in the immune system's ability to discern self from non-self determining the intensity and character of the body's defense mechanisms. Other proteins such as CTLA-4 and PD-1 also function within these pathways contributing to the regulation of immune cell activity and preventing autoimmunity.

Associated diseases and disorders

CD161 is associated with inflammatory diseases and cancer. Its involvement in immune checkpoints implicates it in conditions such as autoimmune diseases where it may fail to properly regulate immune activity including multiple sclerosis. In cancer CD161 expression on T cells has been examined in the context of its inhibitory role potentially modulating the immune system's ability to target tumor cells effectively. In these scenarios its interaction with LLT1 and other immune checkpoint proteins influences the disease course and therapeutic outcomes.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

4 product images

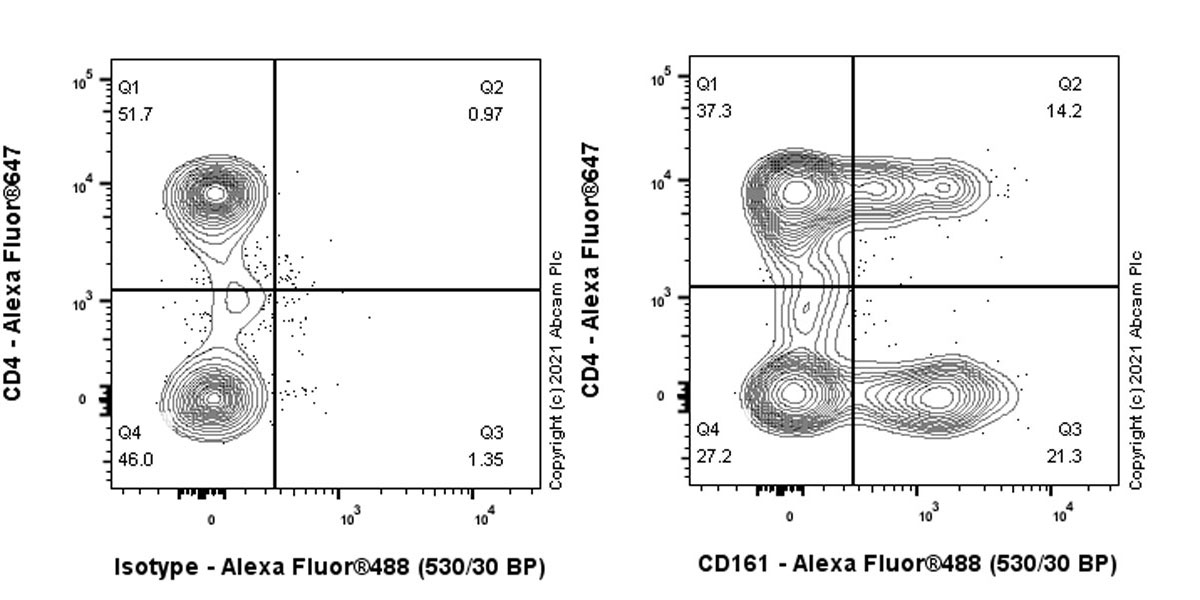

  • Flow Cytometry - Anti-CD161 antibody [EPR23831-120] (ab259916), expandable thumbnail

    Flow Cytometry - Anti-CD161 antibody [EPR23831-120] (ab259916)

    Flow cytometric analysis of human peripheral blood mononuclear cell (PBMC) cells labelling CD161 with ab259916 at 1/500 dilution/ Right compared with a Rabbit monoclonal IgG isotype control (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Left. Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution was used as the secondary antibody.

    Cells were stained with rabbit IgG or ab259916. Then stained with anti-CD4 conjugated to Alexa Fluor® 647.

    Gated on viable cells.

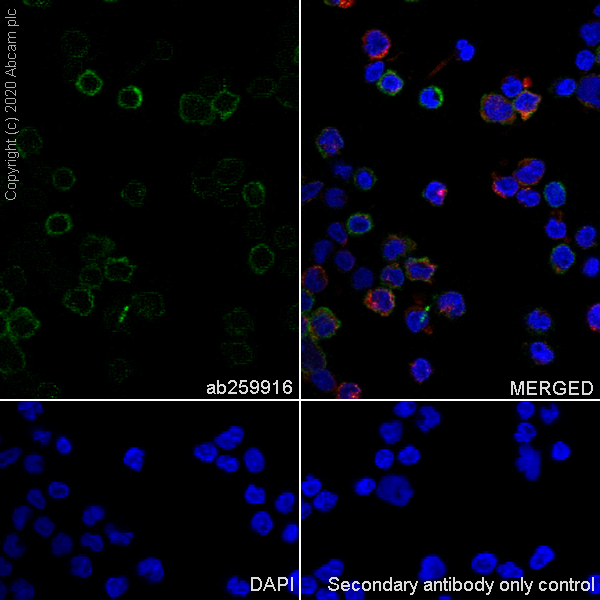

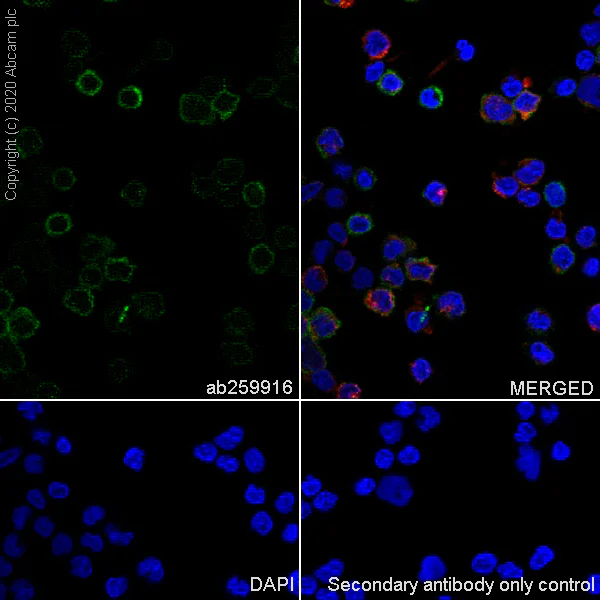

  • Immunocytochemistry/ Immunofluorescence - Anti-CD161 antibody [EPR23831-120] (ab259916), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-CD161 antibody [EPR23831-120] (ab259916)

    Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized human PBMC cells labelling CD161 with ab259916 at 1/50 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution (Green). Confocal image showing cytoplasmic staining in subsets of human PBMC cells. Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Red). The nuclear counterstain was DAPI (Blue).

    Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) at 1/1000 dilution.

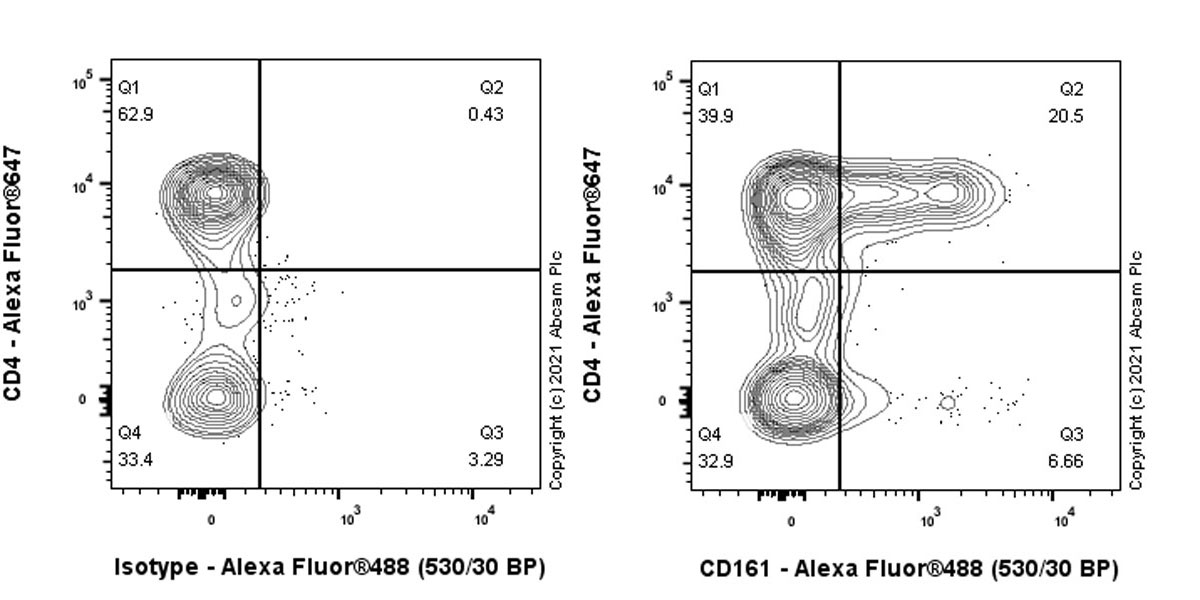

  • Flow Cytometry - Anti-CD161 antibody [EPR23831-120] (ab259916), expandable thumbnail

    Flow Cytometry - Anti-CD161 antibody [EPR23831-120] (ab259916)

    Flow cytometric analysis of human peripheral blood mononuclear cell (PBMC) cells labelling CD161 with ab259916 at 1/500 dilution/ Right compared with a Rabbit monoclonal IgG isotype control (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Left. Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution was used as the secondary antibody.

    Cells were stained with rabbit IgG or ab259916. Then stained with anti-CD4 conjugated to Alexa Fluor® 647 and anti-CD56 conjugated to BV421.

    Gated on viable CD4(-) population.

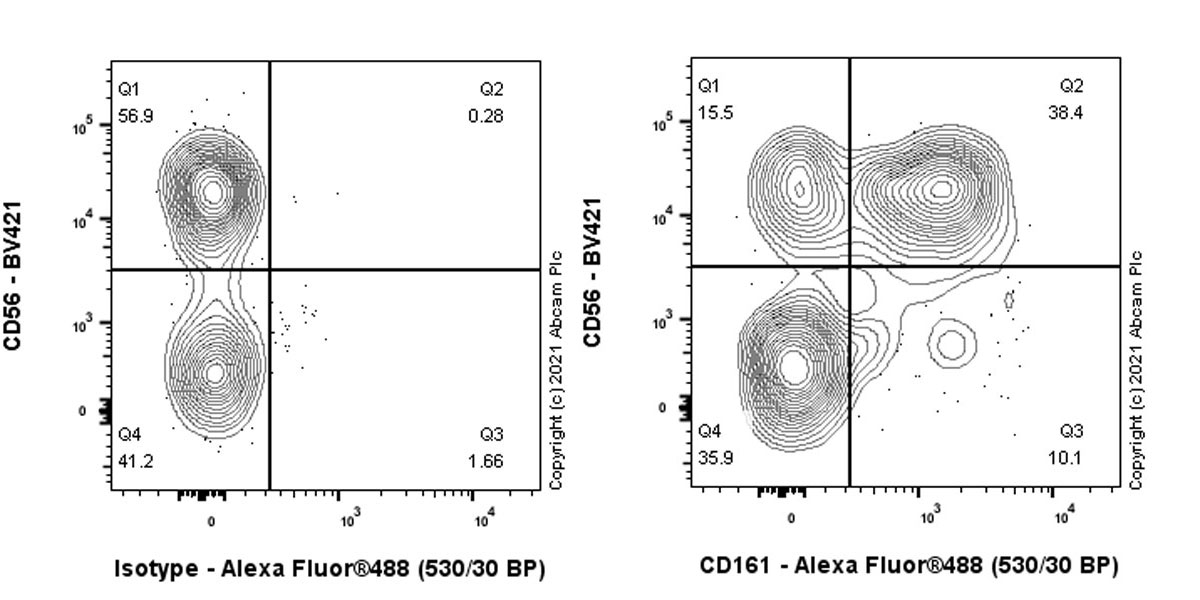

  • Flow Cytometry - Anti-CD161 antibody [EPR23831-120] (ab259916), expandable thumbnail

    Flow Cytometry - Anti-CD161 antibody [EPR23831-120] (ab259916)

    Flow cytometric analysis of human peripheral blood mononuclear cell (PBMC) cells labelling CD161 with ab259916 at 1/500 dilution/ Right compared with a Rabbit monoclonal IgG isotype control (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Left. Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution was used as the secondary antibody.

    Cells were stained with rabbit IgG or ab259916. Then stained with anti-CD4 conjugated to Alexa Fluor® 647 and anti-CD56 conjugated to BV421.

    Gated on viable CD56(-) population.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
