Anti-CD166 antibody [EPR2759(2)]
- RabMAb
- Recombinant
- KO Validated
- What is this?
4
(3 Reviews)
|
(30 Publications)
Anti-CD166 antibody [EPR2759(2)] (ab109215) is a rabbit monoclonal antibody detecting CD166 in Western Blot, Flow Cytometry, IP, IHC-P, ICC/IF. Suitable for Human, Mouse, Rat.
- KO validated for confirmed specificity
- Biophysical QC for unrivalled batch-batch consistency
- Over 20 publications
View Alternative Names
CD166, MEMD, ALCAM, CD166 antigen, Activated leukocyte cell adhesion molecule
- IHC-P
Unknown
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD166 antibody [EPR2759(2)] (AB109215)
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human prostatic adenocarcinoma tissue labelling CD166 with unpurified ab109215 at 1/100.
Perform heat mediated antigen retrieval before commencing with IHC staining protocol.
- IHC-P
Unknown
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD166 antibody [EPR2759(2)] (AB109215)
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human liver tissue labelling CD166 with unpurified ab109215 at 1/100.
Perform heat mediated antigen retrieval before commencing with IHC staining protocol.
- Flow Cyt
Lab

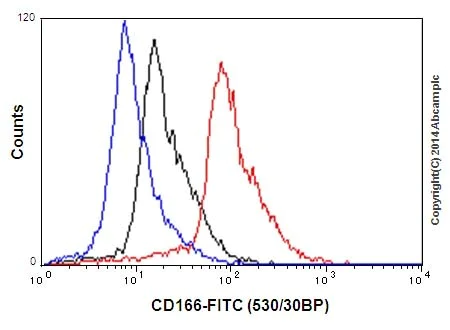

Flow Cytometry - Anti-CD166 antibody [EPR2759(2)] (AB109215)
Flow Cytometry analysis of HuT-78 cells labelling CD166 with purified ab109215 at 1/90 (red). Cells were fixed with 2% paraformaldehyde. A FITC-conjugated goat anti-rabbit IgG (1/150) was used as the secondary antibody. Black - Isotype control, rabbit monoclonal IgG. Blue - Unlabelled control, cells without incubation with primary and secondary antibodies.
- ICC/IF
Lab
Immunocytochemistry/ Immunofluorescence - Anti-CD166 antibody [EPR2759(2)] (AB109215)
Immunocytochemistry/Immunofluorescence analysis of THP-1 (human monocytic leukemia cell line) cells labelling CD166 (green) with purified ab109215 at 1/250. Cells were fixed with 100% methanol. ab150077, Alexa Fluor® 488-conjugated goat anti-rabbit IgG (1/1000) was used as the secondary antibody. DAPI (blue) was used as a nuclear counterstain.
Secondary Only Control : PBS was used instead of the primary antibody as the negative control.
- IHC-P
Lab
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD166 antibody [EPR2759(2)] (AB109215)
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human liver tissue labelling CD166 with purified ab109215 at 1/50. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. A prediluted HRP-polymer conjugated anti-rabbit IgG was used as the secondary antibody. Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.
- IP
Lab

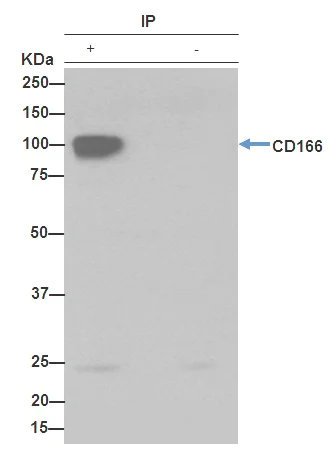

Immunoprecipitation - Anti-CD166 antibody [EPR2759(2)] (AB109215)
ab109215 (purified) at 1/30 immunoprecipitating CD166 in SH-SY5Y (human neuroblastoma cell line from bone marrow) cell lysate (Lane 1). Lane 2 - PBS. For western blotting, a HRP-conjugated anti-rabbit IgG, specific to the non-reduced form of IgG was used as the secondary antibody (1/1500).
Blocking buffer and concentration : 5% NFDM/TBST.
Diluting buffer and concentration : 5% NFDM /TBST.
All lanes:
Immunoprecipitation - Anti-CD166 antibody [EPR2759(2)] (ab109215)
Predicted band size: 65 kDa
Observed band size: 100-105 kDa
false
- WB
Lab

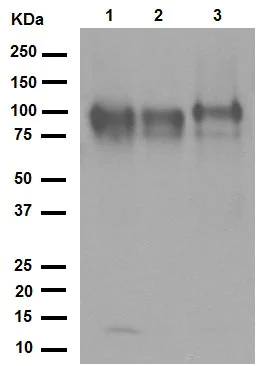

Western blot - Anti-CD166 antibody [EPR2759(2)] (AB109215)
Blocking buffer and concentration : 5% NFDM/TBST.
Diluting buffer and concentration : 5% NFDM /TBST.
All lanes:
Western blot - Anti-CD166 antibody [EPR2759(2)] (ab109215) at 1/10000 dilution
Lane 1:
SH-SY5Y (human neuroblastoma cell line from bone marrow) cell lysate at 20 µg
Lane 2:
HuT-78 cell lysate at 20 µg
Lane 3:
HT-1080 (human fibrosarcoma cell line) cell lysate at 20 µg
Secondary
All lanes:
Peroxidase conjugated goat anti-rabbit IgG (H+L) at 1/1000 dilution
Predicted band size: 65 kDa
Observed band size: 100-105 kDa
false
- WB
Lab
Western blot - Anti-CD166 antibody [EPR2759(2)] (AB109215)
Lane 1 : Wild-type HAP1 whole cell lysate (20 μg)
Lane 2 : CD166 knockout HAP1 whole cell lysate (20 μg)
Lane 3 : HeLa whole cell lysate (20 μg)
Lane 4 : SH-SY5Y whole cell lysate (20 μg)
Lanes 1 - 4 : Merged signal (red and green). Green - ab109215 observed at 100 kDa. Red - loading control, ab9484, observed at 37 kDa.
ab109215 was shown to specifically react with CD166 in wild-type HAP1 cells as signal was lost in CD166 knockout cells. Wild-type and CD166 knockout samples were subjected to SDS-PAGE. ab109215 and ab9484 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye® 800CW) preabsorbed ab216772 and Goat anti-Rabbit IgG H&L (IRDye® 680RD) preabsorbed ab216777 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.
All lanes:
Western blot - Anti-CD166 antibody [EPR2759(2)] (ab109215)
Predicted band size: 65 kDa
false
- WB
Unknown

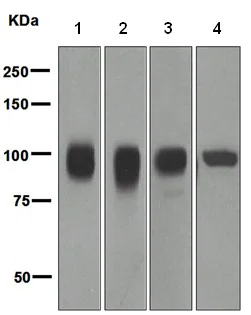

Western blot - Anti-CD166 antibody [EPR2759(2)] (AB109215)
All lanes:
Western blot - Anti-CD166 antibody [EPR2759(2)] (ab109215) at 1/1000 dilution
Lane 1:
SH-SY5Y (human neuroblastoma cell line from bone marrow) cell lysate at 10 µg
Lane 2:
HuT-78 cell lysate at 10 µg
Lane 3:
HT1080 (human fibrosarcoma cell line) cell lysate at 10 µg
Lane 4:
Daudi (human Burkitt's lymphoma cell line) cell lysate at 10 µg
Secondary
All lanes:
HRP labelled goat anti-rabbit at 1/2000 dilution
Predicted band size: 65 kDa
Observed band size: 100-105 kDa
false
- WB
Lab

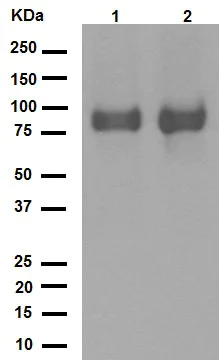

Western blot - Anti-CD166 antibody [EPR2759(2)] (AB109215)
Blocking buffer and concentration : 5% NFDM/TBST.
Diluting buffer and concentration : 5% NFDM /TBST.
All lanes:
Western blot - Anti-CD166 antibody [EPR2759(2)] (ab109215) at 1/10000 dilution
Lane 1:
Mouse brain tissue lysate at 20 µg
Lane 2:
Rat brain tissue lysate at 20 µg
Secondary
All lanes:
Peroxidase conjugated goat anti-rabbit IgG (H+L) at 1/1000 dilution
Predicted band size: 166 kDa,52 kDa,65 kDa
Observed band size: 100-105 kDa,68 kDa
false
Related conjugates and formulations (10)
-
578 PE
PE Anti-CD166 antibody [EPR2759(2)]
-
Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free
-
519 Alexa Fluor® 488
Alexa Fluor® 488 Anti-CD166 antibody [EPR2759(2)]
-
HRP Anti-CD166 antibody [EPR2759(2)]
-
565 Alexa Fluor® 555
Alexa Fluor® 555 Anti-CD166 antibody [EPR2759(2)]
-
617 Alexa Fluor® 594
Alexa Fluor® 594 Anti-CD166 antibody [EPR2759(2)]
-
660 APC
APC Anti-CD166 antibody [EPR2759(2)]
-
665 Alexa Fluor® 647
Alexa Fluor® 647 Anti-CD166 antibody [EPR2759(2)]
-
603 Alexa Fluor® 568
Alexa Fluor® 568 Anti-CD166 antibody [EPR2759(2)]
-
775 Alexa Fluor® 750
Alexa Fluor® 750 Anti-CD166 antibody [EPR2759(2)]
Reactivity data
Product details
What is this antibody validated in?
Anti-CD166 antibody [EPR2759(2)] (ab109215) is a rabbit recombinant monoclonal antibody and is validated for use in Western Blot (WB), Flow Cytometry (Flow Cyt), Immunoprecipitation (IP), Immunohistochemistry (IHC-P), Immunocytochemistry/immunofluorescence (ICC/IF) in Human, Mouse, Rat samples.
What is the molecular weight of CD166?
Anti-CD166 [EPR2759(2)] (ab109215) specifically detects a band for CD166 (UniProt: Q13740) at a molecular weight of 65kDa.
Trusted by the scientific community
Anti-CD166 [EPR2759(2)] (ab109215) was first used in a scientific publication in 2012 and has been cited over 20 times in peer-reviewed journals.
Trial sizes available!
Test your antibody or perform pre-screening before committing to a larger quantity. Sold in 10µl. Discover our selection of trial-size antibodies.
Specificity confirmed
The specificity of Anti-CD166 antibody [EPR2759(2)] (ab109215) has been confirmed by Western blot testing in ALCAM Knockout HAP1 cells.
Other related products
We have a range of other formats of antibody clone [EPR2759(2)] also available for your convenience: ab109215, HRP - ab196846, Alexa Fluor® 488 - ab197543, Carrier free - ab206127, PE - ab219139, APC - ab310812, Alexa Fluor® 647 - ab311107, Alexa Fluor® 594 - ab311726, Alexa Fluor® 568 - ab313003, Alexa Fluor® 555 - ab313207, Alexa Fluor® 750 - ab320934
Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.
What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:
- - High batch-to-batch consistency and reproducibility
- - Improved sensitivity and specificity
- - Long-term security of supply
- - Animal-free batch production
For more information, read more on recombinant antibodies.
Properties and storage information
Form
Purification technique
Storage buffer
Shipped at conditions
Appropriate short-term storage duration
Appropriate short-term storage conditions
Appropriate long-term storage conditions
Aliquoting information
Storage information
Supplementary information
This supplementary information is collated from multiple sources and compiled automatically.
Biological function summary
CD166 mediates cell-cell adhesion and plays roles in neuronal development. It participates in the formation of synaptic junctions and affects neuronal differentiation. CD166 is also a component of cell signaling complexes influencing cell proliferation and migration. In addition it controls interactions between T-cells and dendritic cells impacting immune response. Its interactions with other adhesion molecules contribute to cellular communication and tissue integrity.
Pathways
CD166 functions within signaling pathways related to cell adhesion and migration. It is involved in the Wnt signaling pathway and its interactions regulate cell polarity and morphogenesis. CD166 interacts closely with proteins such as CD6 and Catenins impacting cellular signaling and the organization of the cytoskeleton. These pathways affect processes like embryonic development and immune cell function.
