Rabbit Recombinant Monoclonal CD166 antibody. Carrier free. Suitable for IHC-P, IP, Flow Cyt, WB, ICC/IF and reacts with Human, Mouse, Rat samples. Cited in 1 publication.

Be the first to review this product! Submit a review

Images

Flow Cytometry - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (AB206127), expandable thumbnail
  • Immunoprecipitation - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (AB206127), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (AB206127), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (AB206127), expandable thumbnail
  • Western blot - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (AB206127), expandable thumbnail

Publications

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Constituents: PBS

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IHC-PIPFlow CytWBICC/IF
Human
Tested
Tested
Tested
Tested
Tested
Mouse
Expected
Expected
Expected
Tested
Expected
Rat
Expected
Expected
Expected
Tested
Expected

Tested
Tested

Species
Human
Dilution info
-
Notes

Perform heat-mediated antigen retrieval before commencing with IHC staining protocol.

Expected
Expected

Species
Mouse, Rat
Dilution info
Use at an assay dependent concentration.
Notes

-

Tested
Tested

Species
Human
Dilution info
-
Notes

-

Expected
Expected

Species
Mouse, Rat
Dilution info
Use at an assay dependent concentration.
Notes

-

Tested
Tested

Species
Human
Dilution info
-
Notes

ab199376 - Rabbit monoclonal IgG, is suitable for use as an isotype control with this antibody.

Expected
Expected

Species
Mouse, Rat
Dilution info
Use at an assay dependent concentration.
Notes

-

Tested
Tested

Species
Human
Dilution info
-
Notes

Please check the parent abID, Anti-CD166 antibody [EPR2759(2)] ab109215, for more information on dilutions.

Species
Mouse
Dilution info
-
Notes

Please check the parent abID, Anti-CD166 antibody [EPR2759(2)] ab109215, for more information on dilutions.

Species
Rat
Dilution info
-
Notes

Please check the parent abID, Anti-CD166 antibody [EPR2759(2)] ab109215, for more information on dilutions.

Tested
Tested

Species
Human
Dilution info
-
Notes

-

Expected
Expected

Species
Mouse, Rat
Dilution info
Use at an assay dependent concentration.
Notes

-

Associated Products

Select an associated product type

3 products for Alternative Product

6 products for Alternative Version

Target data

Function

Cell adhesion molecule that mediates both heterotypic cell-cell contacts via its interaction with CD6, as well as homotypic cell-cell contacts (PubMed:15048703, PubMed:15496415, PubMed:16352806, PubMed:23169771, PubMed:24945728, PubMed:7760007). Promotes T-cell activation and proliferation via its interactions with CD6 (PubMed:15048703, PubMed:16352806, PubMed:24945728). Contributes to the formation and maturation of the immunological synapse via its interactions with CD6 (PubMed:15294938, PubMed:16352806). Mediates homotypic interactions with cells that express ALCAM (PubMed:15496415, PubMed:16352806). Acts as a ligand for the LILRB4 receptor, enhancing LILRB4-mediated inhibition of T cell proliferation (PubMed:29263213). Required for normal hematopoietic stem cell engraftment in the bone marrow (PubMed:24740813). Mediates attachment of dendritic cells onto endothelial cells via homotypic interaction (PubMed:23169771). Inhibits endothelial cell migration and promotes endothelial tube formation via homotypic interactions (PubMed:15496415, PubMed:23169771). Required for normal organization of the lymph vessel network. Required for normal hematopoietic stem cell engraftment in the bone marrow. Plays a role in hematopoiesis; required for normal numbers of hematopoietic stem cells in bone marrow. Promotes in vitro osteoblast proliferation and differentiation (By similarity). Promotes neurite extension, axon growth and axon guidance; axons grow preferentially on surfaces that contain ALCAM. Mediates outgrowth and pathfinding for retinal ganglion cell axons (By similarity). Isoform 3. Inhibits activities of membrane-bound isoforms by competing for the same interaction partners. Inhibits cell attachment via homotypic interactions. Promotes endothelial cell migration. Inhibits endothelial cell tube formation.

Alternative names

CD166, MEMD, ALCAM, CD166 antigen, Activated leukocyte cell adhesion molecule

Recommended products

Rabbit Recombinant Monoclonal CD166 antibody. Carrier free. Suitable for IHC-P, IP, Flow Cyt, WB, ICC/IF and reacts with Human, Mouse, Rat samples. Cited in 1 publication.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Carrier free
Yes
Clone number
EPR2759(2)
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze

Notes

ab206127 is the carrier-free version of Anti-CD166 antibody [EPR2759(2)] ab109215.

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. The carrier-free buffer and high concentration allow for increased conjugation efficiency.

This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

CD166 also known as ALCAM (activated leukocyte cell adhesion molecule) is a cell surface glycoprotein with a mass of approximately 105 kDa. This protein is widely expressed on various cell types including activated T-cells keratinocytes neurons and endothelial cells. In the immune system CD166 has roles in T-cell activation and migration. It contains five extracellular immunoglobulin-like domains which facilitate cell-cell interactions. Researchers often regard ALCAM-Z as an alternative form sharing structural elements with CD166 protein.

Biological function summary

CD166 mediates cell-cell adhesion and plays roles in neuronal development. It participates in the formation of synaptic junctions and affects neuronal differentiation. CD166 is also a component of cell signaling complexes influencing cell proliferation and migration. In addition it controls interactions between T-cells and dendritic cells impacting immune response. Its interactions with other adhesion molecules contribute to cellular communication and tissue integrity.

Pathways

CD166 functions within signaling pathways related to cell adhesion and migration. It is involved in the Wnt signaling pathway and its interactions regulate cell polarity and morphogenesis. CD166 interacts closely with proteins such as CD6 and Catenins impacting cellular signaling and the organization of the cytoskeleton. These pathways affect processes like embryonic development and immune cell function.

Associated diseases and disorders

CD166 has implications in cancer and autoimmune diseases. Its dysregulation links to cancer metastasis where altered expression facilitates tumor invasion and spread. CD166 also relates to autoimmune diseases through its role in T-cell activation potentially contributing to conditions like multiple sclerosis. The interaction between CD166 and CD6 influences immune cell activation and may offer therapeutic targets for modulating immune responses in these disorders.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

8 product images

  • Flow Cytometry - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (ab206127), expandable thumbnail

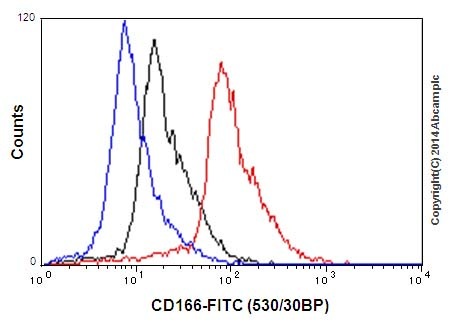

    Flow Cytometry - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (ab206127)

    Flow Cytometry analysis of HuT-78 cells labelling CD166 with purified Anti-CD166 antibody [EPR2759(2)] ab109215 at 1/90 (red). Cells were fixed with 2% paraformaldehyde. A FITC-conjugated goat anti-rabbit IgG (1/150) was used as the secondary antibody. Black - Isotype control, rabbit monoclonal IgG. Blue - Unlabelled control, cells without incubation with primary and secondary antibodies.

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD166 antibody [EPR2759(2)] ab109215).

  • Immunoprecipitation - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (ab206127), expandable thumbnail

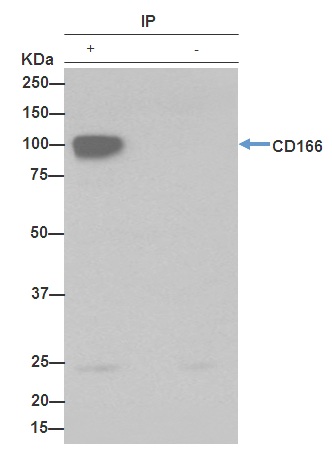

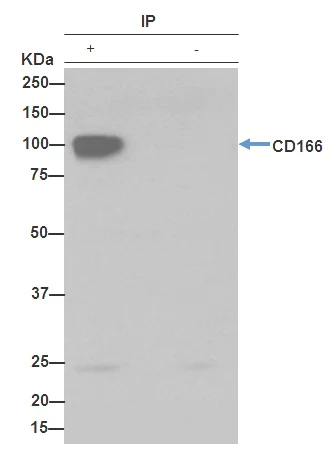

    Immunoprecipitation - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (ab206127)

    Anti-CD166 antibody [EPR2759(2)] ab109215 (purified) at 1/30 immunoprecipitating CD166 in SH-SY5Y (human neuroblastoma cell line from bone marrow) cell lysate (Lane 1). Lane 2 - PBS. For western blotting, a HRP-conjugated anti-rabbit IgG, specific to the non-reduced form of IgG was used as the secondary antibody (1/1500).

    Blocking buffer and concentration: 5% NFDM/TBST.

    Diluting buffer and concentration: 5% NFDM /TBST.

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD166 antibody [EPR2759(2)] ab109215).

    All lanes: Immunoprecipitation - Anti-CD166 antibody [EPR2759(2)] (Anti-CD166 antibody [EPR2759(2)] ab109215)

    Predicted band size: 65 kDa

    Observed band size: 100-105 kDa

  • Immunocytochemistry/ Immunofluorescence - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (ab206127), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (ab206127)

    Immunocytochemistry/Immunofluorescence analysis of THP-1 (human monocytic leukemia cell line) cells labelling CD166 (green) with purified Anti-CD166 antibody [EPR2759(2)] ab109215 at 1/250. Cells were fixed with 100% methanol. Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077, Alexa Fluor® 488-conjugated goat anti-rabbit IgG (1/1000) was used as the secondary antibody. DAPI (blue) was used as a nuclear counterstain.

    Secondary Only Control: PBS was used instead of the primary antibody as the negative control.

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD166 antibody [EPR2759(2)] ab109215).

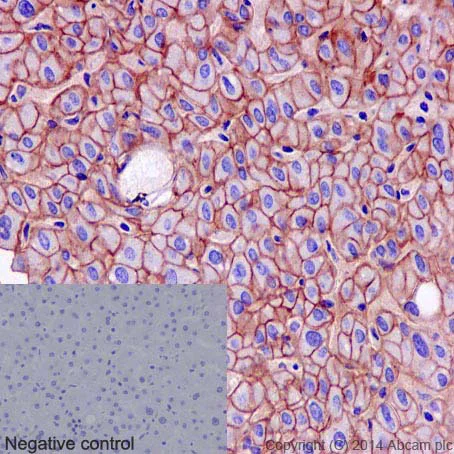

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (ab206127), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (ab206127)

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human liver tissue labelling CD166 with purified Anti-CD166 antibody [EPR2759(2)] ab109215 at 1/50. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. A prediluted HRP-polymer conjugated anti-rabbit IgG was used as the secondary antibody. Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD166 antibody [EPR2759(2)] ab109215).

  • Western blot - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (ab206127), expandable thumbnail

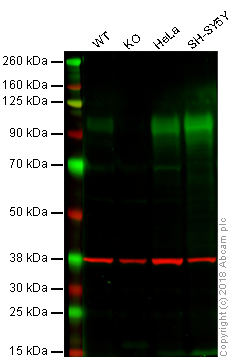

    Western blot - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (ab206127)

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD166 antibody [EPR2759(2)] ab109215).

    Lane 1: Wild-type HAP1 whole cell lysate (20 μg)
    Lane 2: CD166 knockout HAP1 whole cell lysate (20 μg)
    Lane 3: HeLa whole cell lysate (20 μg)
    Lane 4: SH-SY5Y whole cell lysate (20 μg)

    Lanes 1 - 4: Merged signal (red and green). Green - Anti-CD166 antibody [EPR2759(2)] ab109215 observed at 100 kDa. Red - loading control, Anti-GAPDH antibody [mAbcam 9484] - Loading Control ab9484, observed at 37 kDa.

    Anti-CD166 antibody [EPR2759(2)] ab109215 was shown to specifically react with CD166 in wild-type HAP1 cells as signal was lost in CD166 knockout cells. Wild-type and CD166 knockout samples were subjected to SDS-PAGE. Anti-CD166 antibody [EPR2759(2)] ab109215 and Anti-GAPDH antibody [mAbcam 9484] - Loading Control ab9484 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye® 800CW) preabsorbed Goat anti-Mouse IgG H&L (IRDye® 800CW) preadsorbed ab216772 and Goat anti-Rabbit IgG H&L (IRDye® 680RD) preabsorbed Goat Anti-Rabbit IgG H&L (IRDye® 680RD) preadsorbed ab216777 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

    All lanes: Western blot - Anti-CD166 antibody [EPR2759(2)] (Anti-CD166 antibody [EPR2759(2)] ab109215)

    Predicted band size: 65 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (ab206127), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (ab206127)

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human liver tissue labelling CD166 with unpurified Anti-CD166 antibody [EPR2759(2)] ab109215 at 1/100.

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD166 antibody [EPR2759(2)] ab109215).

    Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (ab206127), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (ab206127)

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human prostatic adenocarcinoma tissue labelling CD166 with unpurified Anti-CD166 antibody [EPR2759(2)] ab109215 at 1/100.

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD166 antibody [EPR2759(2)] ab109215).

    Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

  • Western blot - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (ab206127), expandable thumbnail

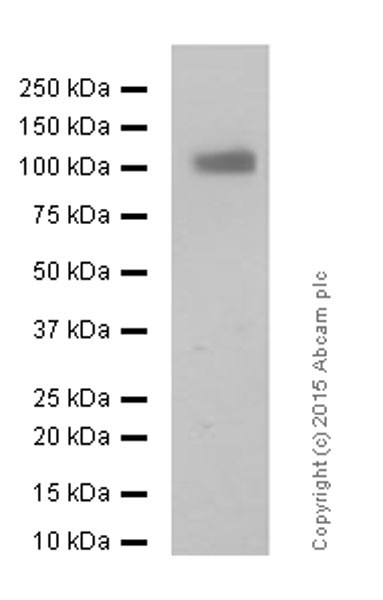

    Western blot - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (ab206127)

    Blocking buffer and concentration: 5% NFDM/TBST

    Diluting buffer and concentration: 5% NFDM/TBST

    All lanes: Western blot - Anti-CD166 antibody [EPR2759(2)] - BSA and Azide free (ab206127)

    All lanes: SH-SY5Y (human neuroblastoma) whole cell lysate at 10 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051)

    Predicted band size: 65 kDa

    Observed band size: 100-105 kDa

    Exposure time: 1min
