AB212077

Anti-CD226 antibody [EPR20710]

RabMAb
Recombinant
20ul selling size
What is this?

Be the first to review this product! Submit a review

(2 Publications)

Rabbit Recombinant Monoclonal CD226 antibody. Suitable for IP, WB, ICC/IF, IHC-P and reacts with Mouse samples. Cited in 2 publications.

View Alternative Names

CD226, Pta1, Cd226, CD226 antigen, Platelet and T-cell activation antigen 1

5 Images

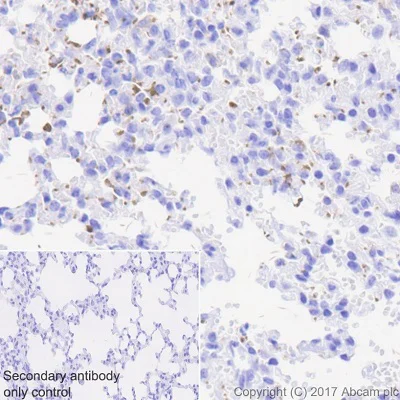

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD226 antibody [EPR20710] (AB212077)

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD226 antibody [EPR20710] (AB212077)

Immunohistochemical analysis of paraffin-embedded mouse lung tissue labeling CD226 with ab212077 at 1/2000 dilution followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Positive staining on platelets of mouse lung is observed (PMID : 15693793). Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Immunocytochemistry/ Immunofluorescence - Anti-CD226 antibody [EPR20710] (AB212077)

ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-CD226 antibody [EPR20710] (AB212077)

Immunofluorescent analysis of 4% paraformaldehyde-fixed 0.1% Triton X-100 permeabilized EL4.IL-2 (mouse lymphoma T lymphocyte cell line) cells labeling CD226 with ab212077 at 1/100 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488)(ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing membranous staining on EL4.IL-2 cells.

The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) (ab195889)) at 1/200 dilution (red).

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution.

IHC-P

Supplier Data

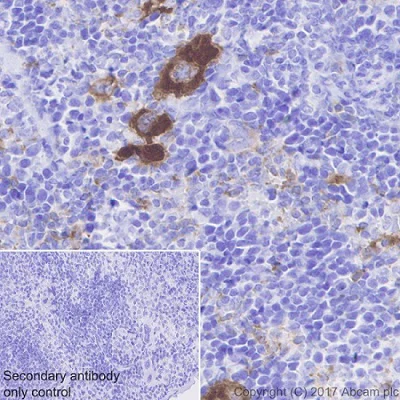

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD226 antibody [EPR20710] (AB212077)

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue labeling CD226 with ab212077 at 1/2000 dilution followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Cytoplasmic staining on megakaryocytes and platelets of mouse spleen is observed (PMID : 15693793). Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Supplier Data

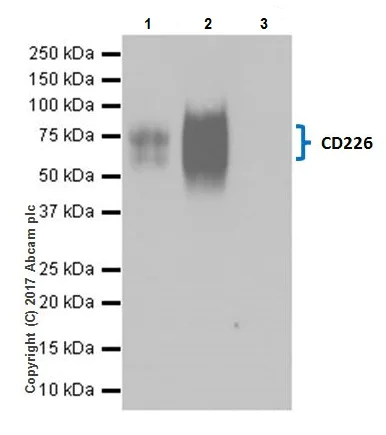

Immunoprecipitation - Anti-CD226 antibody [EPR20710] (AB212077)

CD226 was immunoprecipitated from 0.35 mg of mouse spleen lysate with ab212077 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab212077 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10,000 dilution

Lane 1 : Mouse spleen lysate 10 μg (Input).

Lane 2 : ab212077 IP in mouse spleen lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab212077 in mouse spleen lysate

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 5 seconds.

All lanes:

Immunoprecipitation - Anti-CD226 antibody [EPR20710] (ab212077)

Predicted band size: 39 kDa

Observed band size: 65 kDa

true

Supplier Data

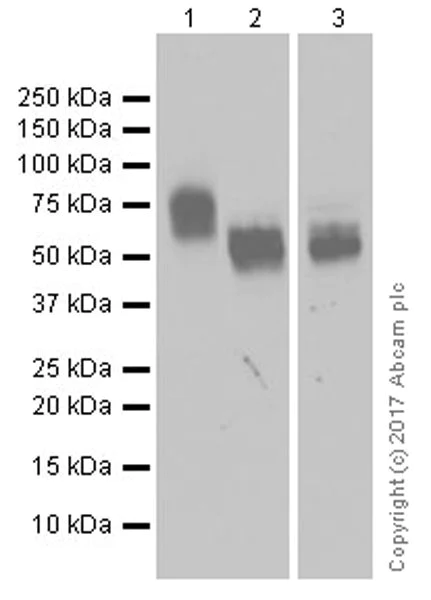

Western blot - Anti-CD226 antibody [EPR20710] (AB212077)

Blocking/Dilution buffer : 5% NFDM/TBST.

Exposure time : Lanes 1-2 : 1 minute; Lane 3 : 3 minutes.

The different molecular weights (~65kDa) observed in different tissues or cell lines may be due to different level of CD226 glycosylation (PMID : 8673704).

All lanes:

Western blot - Anti-CD226 antibody [EPR20710] (ab212077) at 1/1000 dilution

Lane 1:

Mouse spleen tissue lysate at 20 µg

Lane 2:

EL4.IL-2 (mouse lymphoma T lymphocyte cell line) whole cell lysate at 20 µg

Lane 3:

YAC-1 (mouse Moloney murine leukemia virus induced lymphoma lymphoblast cell line) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution

Predicted band size: 39 kDa

Observed band size: 65 kDa

true

Carrier free

Anti-CD226 antibody [EPR20710] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR20710

Isotype

IgG

Carrier free

Reacts with

Mouse

Applications

IP, ICC/IF, WB, IHC-P

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Mouse": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "1/30", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/100", "ICCIF-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/2000", "IHCP-species-notes": " Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol." } } }

style

left-column

Product details

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

CD226 also known as DNAM-1 (DNAX Accessory Molecule-1) is a transmembrane protein expressed on the surface of various immune cells such as T cells natural killer (NK) cells and some B cells. The protein has a molecular weight of approximately 65 kDa. CD226 is part of the Ig superfamily and plays a role in the adhesion and signaling processes of immune cells. It interacts with its ligands CD112 (PVRL2) and CD155 (PVR) on target cells facilitating immune synapse formation and cytotoxic activity.

Biological function summary

CD226 is involved in immune cell activation and receptor-mediated signaling. It aids the recognition and destruction of target cells by NK cells and cytotoxic T lymphocytes through its interaction with ligand-expressing cells. CD226 does not work alone but functions as part of a complex system of co-stimulatory and inhibitory receptors balancing immune responses. Its cooperation with receptors such as CD96 and TIGIT (T cell immunoreceptor with Ig and ITIM domains) modulates the activity of immune effector cells.

Pathways

CD226 takes part in immune signaling pathways that regulate cell-mediated cytotoxicity and inflammation. It is an important component of the immune checkpoint axis interacting closely with proteins like CD96 and TIGIT within these pathways. This interaction helps determine the fate of immune responses influencing the progression or resolution of inflammatory and autoimmune conditions. CD226 plays a role in the NK cell-mediated cytotoxicity pathway and the adaptive immune response.

CD226 has been linked to autoimmune diseases such as multiple sclerosis and type 1 diabetes. Abnormal expression or function of CD226 can influence the pathogenesis of these conditions often through interactions with related proteins like TIGIT impacting immune tolerance and effector cell function. CD226's involvement in regulating immune responses highlights its importance as a potential therapeutic target in managing autoimmune and other immune-related disorders.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Cell surface receptor that plays an important role in the immune system, particularly in intercellular adhesion, lymphocyte signaling, cytotoxicity and lymphokine secretion mediated by cytotoxic T-cells and NK cells (PubMed : 19029379, PubMed : 24658051, PubMed : 26552706). Functions as a costimulatory receptor upon recognition of target cells, such as virus-infected or tumor cells. Upon binding to its ligands PVR/CD155 or NECTIN2/CD112 on target cells, promotes the cytotoxic activity of NK cells and CTLs, enhancing their ability to kill these cells (PubMed : 30591568). Mechanistically, phosphorylation by Src kinases such as LYN of FYN, enables binding to adapter GRB2, leading to activation of VAV1, PI3K and PLCG1. Promotes also activation of kinases ERK and AKT, as well as calcium fluxes (By similarity).

See full target information Cd226

style

left-column

Publications (2)

Recent publications for all applications. Explore the full list and refine your search

Translational cancer research 13:4846-4865 PubMed39430819

2024

Construction of a prognostic model with exosome biogenesis- and release-related genes and identification of RAB27B in immune infiltration of pancreatic cancer.

Applications

Unspecified application

Species

Unspecified reactive species

Tian-Yu Li,Cheng Qin,Bang-Bo Zhao,Ze-Ru Li,Yuan-Yang Wang,Yu-Tong Zhao,Wei-Bin Wang

Immunity 53:805-823.e15 PubMed33053330

2020

CD155 on Tumor Cells Drives Resistance to Immunotherapy by Inducing the Degradation of the Activating Receptor CD226 in CD8 T Cells.

Applications

Unspecified application

Species

Unspecified reactive species

Matthias Braun,Amelia Roman Aguilera,Ashmitha Sundarrajan,Dillon Corvino,Kimberley Stannard,Sophie Krumeich,Indrajit Das,Luize G Lima,Lizeth G Meza Guzman,Kunlun Li,Rui Li,Nazhifah Salim,Maria Villancanas Jorge,Sunyoung Ham,Gabrielle Kelly,Frank Vari,Ailin Lepletier,Ashwini Raghavendra,Sally Pearson,Jason Madore,Sebastien Jacquelin,Maike Effern,Brodie Quine,Lambros T Koufariotis,Mika Casey,Kyohei Nakamura,Eun Y Seo,Michael Hölzel,Matthias Geyer,Glen Kristiansen,Touraj Taheri,Elizabeth Ahern,Brett G M Hughes,James S Wilmott,Georgina V Long,Richard A Scolyer,Martin D Batstone,Jennifer Landsberg,Dimo Dietrich,Oltin T Pop,Lukas Flatz,William C Dougall,André Veillette,Sandra E Nicholson,Andreas Möller,Robert J Johnston,Ludovic Martinet,Mark J Smyth,Tobias Bald

View all publications

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
