AB251537

Anti-CD226 antibody [EPR20710] - BSA and Azide free

RabMAb
Recombinant
What is this?

Be the first to review this product! Submit a review

(1 Publication)

Rabbit Recombinant Monoclonal CD226 antibody. Carrier free. Suitable for ICC/IF, IP, WB, IHC-P and reacts with Mouse samples. Cited in 1 publication.

View Alternative Names

CD226, Pta1, Cd226, CD226 antigen, Platelet and T-cell activation antigen 1

5 Images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD226 antibody [EPR20710] - BSA and Azide free (AB251537)

IHC-P

Supplier Data

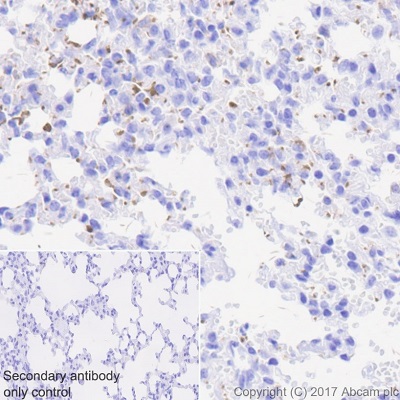

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD226 antibody [EPR20710] - BSA and Azide free (AB251537)

This data was developed using ab212077, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded mouse lung tissue labeling CD226 with ab212077 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP), Ready to use. Positive staining on platelets of mouse lung is observed (PMID : 15693793). Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP), Ready to use.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Immunocytochemistry/ Immunofluorescence - Anti-CD226 antibody [EPR20710] - BSA and Azide free (AB251537)

ICC/IF

Supplier Data

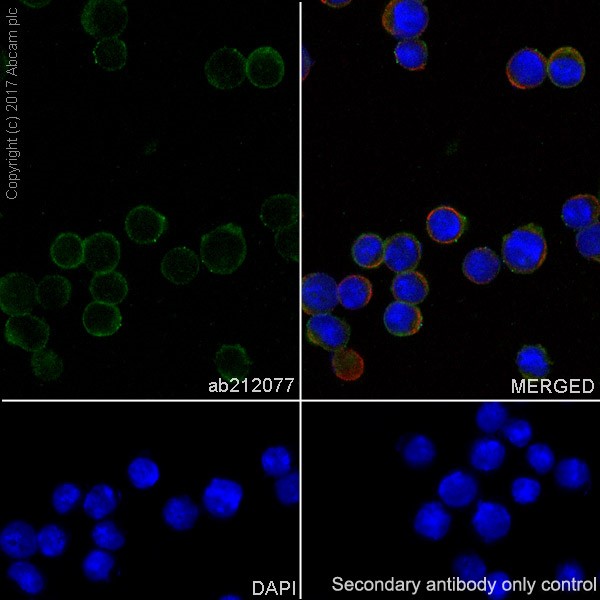

Immunocytochemistry/ Immunofluorescence - Anti-CD226 antibody [EPR20710] - BSA and Azide free (AB251537)

This data was developed using ab212077, the same antibody clone in a different buffer formulation.

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized EL4.IL-2 (mouse lymphoma T lymphocyte cell line) cells labeling CD226 with ab212077 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488)(ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing membranous staining on EL4.IL-2 cells.

The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) (ab195889)) at 1/200 dilution (red).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution.

IHC-P

Supplier Data

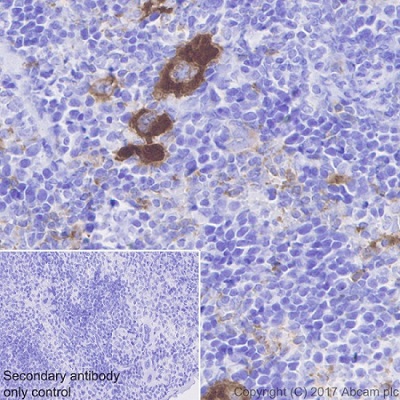

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD226 antibody [EPR20710] - BSA and Azide free (AB251537)

This data was developed using ab212077, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue labeling CD226 with ab212077 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP), Ready to use. Cytoplasmic staining on megakaryocytes and platelets of mouse spleen is observed (PMID : 15693793). Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP), Ready to use

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Supplier Data

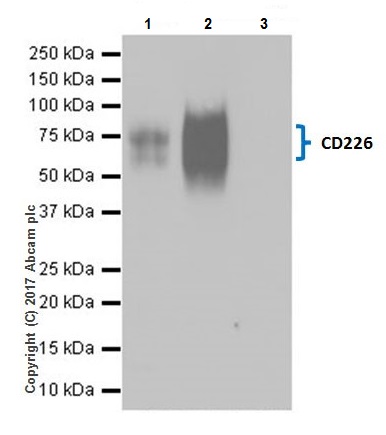

Immunoprecipitation - Anti-CD226 antibody [EPR20710] - BSA and Azide free (AB251537)

This data was developed using ab212077, the same antibody clone in a different buffer formulation.

CD226 was immunoprecipitated from 0.35 mg of mouse spleen lysate with ab212077 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab212077 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10,000 dilution

Lane 1 : Mouse spleen lysate 10 μg (Input).

Lane 2 : ab212077 IP in mouse spleen lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab212077 in mouse spleen lysate

Blocking and dilution buffer : 5% NFDM/TBST.

Exposure time : 5 seconds.

All lanes:

Immunoprecipitation - Anti-CD226 antibody [EPR20710] (<a href='/en-us/products/primary-antibodies/cd226-antibody-epr20710-ab212077'>ab212077</a>)

Predicted band size: 39 kDa

Observed band size: 65 kDa

true

Supplier Data

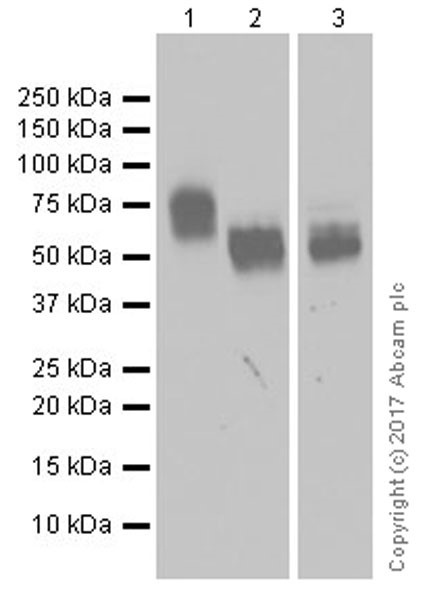

Western blot - Anti-CD226 antibody [EPR20710] - BSA and Azide free (AB251537)

This data was developed using ab212077, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer : 5% NFDM/TBST.

Exposure times : Lanes 1-2 : 1 minute; Lane 3 : 3 minutes.

The different molecular weights (~65kDa) observed in different tissues or cell lines may be due to different level of CD226 glycosylation (PMID : 8673704).

All lanes:

Western blot - Anti-CD226 antibody [EPR20710] (<a href='/en-us/products/primary-antibodies/cd226-antibody-epr20710-ab212077'>ab212077</a>) at 1/1000 dilution

Lane 1:

Mouse spleen tissue lysate at 20 µg

Lane 2:

EL4.IL-2 (mouse lymphoma T lymphocyte cell line) whole cell lysate at 20 µg

Lane 3:

YAC-1 (mouse Moloney murine leukemia virus induced lymphoma lymphoblast cell line) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution

Predicted band size: 39 kDa

Observed band size: 65 kDa

true

Unconjugated

Anti-CD226 antibody [EPR20710]

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR20710

Isotype

IgG

Carrier free

Yes

Reacts with

Mouse

Applications

WB, IP, ICC/IF, IHC-P

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Mouse": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" } } }

style

left-column

Product details

ab251537 is the carrier-free version of ab212077.

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar^® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar^® is a trademark of Fluidigm Canada Inc.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Constituents: PBS

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

Do Not Freeze

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

CD226 also known as DNAM-1 (DNAX Accessory Molecule-1) is a transmembrane protein expressed on the surface of various immune cells such as T cells natural killer (NK) cells and some B cells. The protein has a molecular weight of approximately 65 kDa. CD226 is part of the Ig superfamily and plays a role in the adhesion and signaling processes of immune cells. It interacts with its ligands CD112 (PVRL2) and CD155 (PVR) on target cells facilitating immune synapse formation and cytotoxic activity.

Biological function summary

CD226 is involved in immune cell activation and receptor-mediated signaling. It aids the recognition and destruction of target cells by NK cells and cytotoxic T lymphocytes through its interaction with ligand-expressing cells. CD226 does not work alone but functions as part of a complex system of co-stimulatory and inhibitory receptors balancing immune responses. Its cooperation with receptors such as CD96 and TIGIT (T cell immunoreceptor with Ig and ITIM domains) modulates the activity of immune effector cells.

Pathways

CD226 takes part in immune signaling pathways that regulate cell-mediated cytotoxicity and inflammation. It is an important component of the immune checkpoint axis interacting closely with proteins like CD96 and TIGIT within these pathways. This interaction helps determine the fate of immune responses influencing the progression or resolution of inflammatory and autoimmune conditions. CD226 plays a role in the NK cell-mediated cytotoxicity pathway and the adaptive immune response.

CD226 has been linked to autoimmune diseases such as multiple sclerosis and type 1 diabetes. Abnormal expression or function of CD226 can influence the pathogenesis of these conditions often through interactions with related proteins like TIGIT impacting immune tolerance and effector cell function. CD226's involvement in regulating immune responses highlights its importance as a potential therapeutic target in managing autoimmune and other immune-related disorders.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Cell surface receptor that plays an important role in the immune system, particularly in intercellular adhesion, lymphocyte signaling, cytotoxicity and lymphokine secretion mediated by cytotoxic T-cells and NK cells (PubMed : 19029379, PubMed : 24658051, PubMed : 26552706). Functions as a costimulatory receptor upon recognition of target cells, such as virus-infected or tumor cells. Upon binding to its ligands PVR/CD155 or NECTIN2/CD112 on target cells, promotes the cytotoxic activity of NK cells and CTLs, enhancing their ability to kill these cells (PubMed : 30591568). Mechanistically, phosphorylation by Src kinases such as LYN of FYN, enables binding to adapter GRB2, leading to activation of VAV1, PI3K and PLCG1. Promotes also activation of kinases ERK and AKT, as well as calcium fluxes (By similarity).

See full target information Cd226

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Oncology letters 18:545-552 PubMed31289526

2019

Lymphoepithelioma-like gastric carcinoma treated with partial gastrectomy: Two case reports.

Applications

Unspecified application

Species

Unspecified reactive species

Huihua Cao,Jun Xie,Yongxiang Qian,Yugang Wu,Zhaoqing Tang

View all publications
