Anti-CD3 antibody [SP162] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 antibody [SP162] - BSA and Azide free (AB245731)

Immunohistochemical analysis of formalin-fixed, paraffin-embedded human tonsil tissue labeling CD3 with ab135372 at a 1/150 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and sodium azide (ab135372).

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-CD3 antibody [SP162] - BSA and Azide free (AB245731)

Immunohistochemical analysis of formalin-fixed, paraffin-embedded Human tonsil tissue labelling CD3 with ab135372 at 1/150 dilution.This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, and sodium azide (ab135372)

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-CD3 antibody [SP162] - BSA and Azide free (AB245731)

Immunocytochemistry/ Immunofluorescence analysis of Jurkat (human T cell leukemia T lymphocyte) cells labeling CD3 with purified ab135372 at 1/10 (10 μg/ml). Cells were fixed in 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. Cells were counterstained with ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) 1/200 (2.5 μg/ml). Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) was used as the secondary antibody at 1/1000 (2 μg/ml) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab135372).

• Flow Cyt (Intra)

Unknown

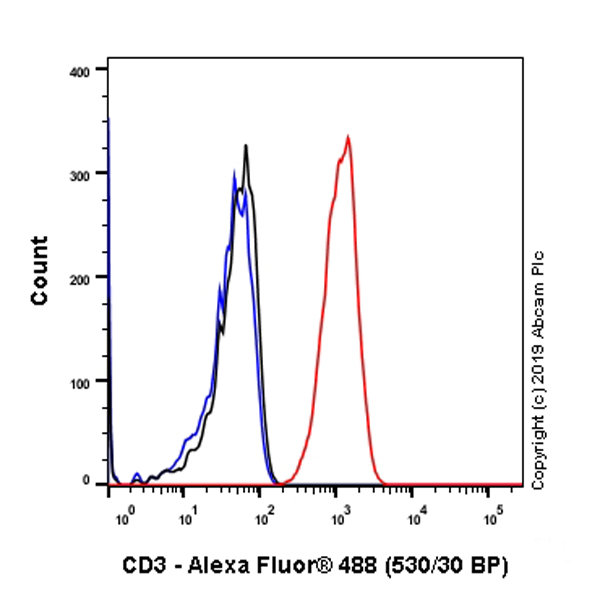

Flow Cytometry (Intracellular) - Anti-CD3 antibody [SP162] - BSA and Azide free (AB245731)

Intracellular Flow Cytometry analysis of Jurkat (Human T cell leukemia T lymphocyte) cells labeling CD3 with purified ab135372 at 1/200 dilution (0.60μg/ml) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) secondary antibody was used at 1/2000 dilution. Isotype control - Rabbit monoclonal IgG (ab172730) / Black. Unlabeled control - Unlabelled cells / blue. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab135372).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 antibody [SP162] - BSA and Azide free (AB245731)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab135372).

Immunohistochemical analysis of formalin fixed paraffin embedded Human tonsil labelling CD3 with ab135372 at a dilution of 1/300. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with a OptiView DAB IHC Detection Kit. Heat mediated antigen retrieval was performed with DISCOVERY cell conditioning solution (CC1) 100°C, pH8.5 for 32mins.

ab135372 anti CD3 antibody SP162 was incubated for 16mins at 37°C. Sections were counterstained with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control.

Customers are encouraged to optimise antigen retrieval conditions, antibody concentration, incubation times and temperature for best results in their own IHC assay workflow (automated and manual)

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-CD3 antibody [SP162] - BSA and Azide free (AB245731)

Immunocytochemistry/ Immunofluorescence analysis of EL4.IL-2 ( mouse lymphoma T lymphocyte) cells labeling CD3 with purified ab135372 at 1/10 (10 μg/ml). Cells were fixed in 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. Cells were counterstained with ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) 1/200 (2.5 μg/ml). Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) was used as the secondary antibody at 1/1000 (2 μg/ml) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab135372).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-CD3 antibody [SP162] - BSA and Azide free (AB245731)

Intracellular Flow Cytometry analysis of Mouse Splenocyte cells labeling CD3 with purified ab135372 at 1/20 dilution (5.95μg/ml) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488, ab150081) secondary antibody was used at 1/2000 dilution. Isotype control - Rabbit monoclonal IgG (ab172730) / Black. Unlabeled control - Unlabelled cells / blue. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab135372).
