Anti-CD3 antibody [SP162] - Low endotoxin, Azide free

7 product images

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 antibody [SP162] - Low endotoxin, Azide free (ab246799)

  Immunohistochemical analysis of formalin-fixed, paraffin-embedded human tonsil tissue labeling CD3 with Anti-CD3 antibody [SP162] ab135372 at a 1/150 dilution.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and sodium azide (Anti-CD3 antibody [SP162] ab135372).

•

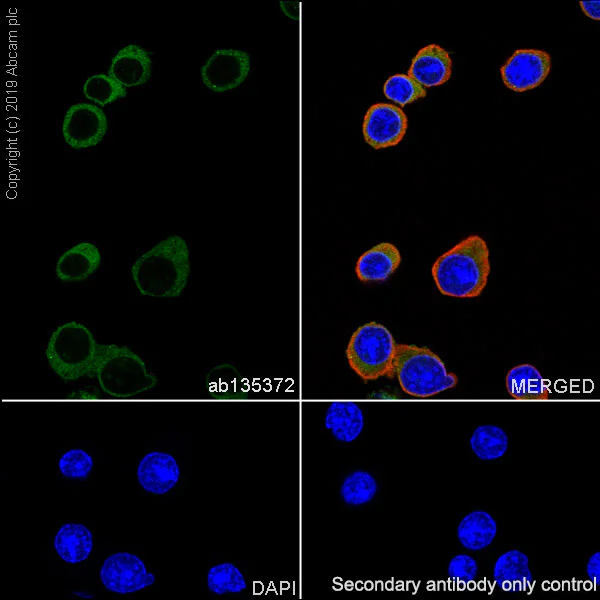

  Immunocytochemistry/ Immunofluorescence - Anti-CD3 antibody [SP162] - Low endotoxin, Azide free (ab246799)

  Immunocytochemistry/ Immunofluorescence analysis of Jurkat (human T cell leukemia T lymphocyte) cells labeling CD3 with purified Anti-CD3 antibody [SP162] ab135372 at 1/10 (10 μg/ml). Cells were fixed in 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) 1/200 (2.5 μg/ml). Goat anti rabbit IgG (Alexa Fluor^® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1/1000 (2 μg/ml) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and sodium azide (Anti-CD3 antibody [SP162] ab135372).

•

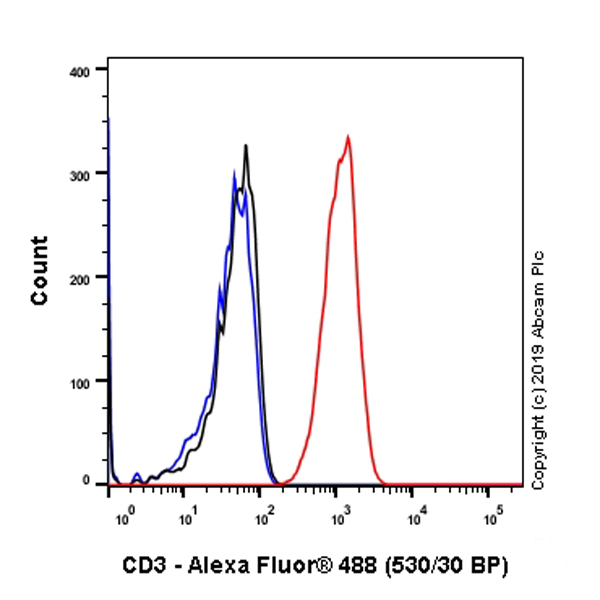

  Flow Cytometry (Intracellular) - Anti-CD3 antibody [SP162] - Low endotoxin, Azide free (ab246799)

  Intracellular Flow Cytometry analysis of Jurkat (Human T cell leukemia T lymphocyte) cells labeling CD3 with purified Anti-CD3 antibody [SP162] ab135372 at 1/200 dilution (0.60μg/ml) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^®488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody was used at 1/2000 dilution. Isotype control - Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Black. Unlabeled control - Unlabelled cells / blue.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and sodium azide (Anti-CD3 antibody [SP162] ab135372).

•

  Immunocytochemistry/ Immunofluorescence - Anti-CD3 antibody [SP162] - Low endotoxin, Azide free (ab246799)

  Immunocytochemistry/ Immunofluorescence analysis of EL4.IL-2 (mouse lymphoma T lymphocyte) cells labeling CD3 with purified Anti-CD3 antibody [SP162] ab135372 at 1/10 (10 μg/ml). Cells were fixed in 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) 1/200 (2.5 μg/ml). Goat anti rabbit IgG (Alexa Fluor^® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1/1000 (2 μg/ml) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and sodium azide (Anti-CD3 antibody [SP162] ab135372).

•

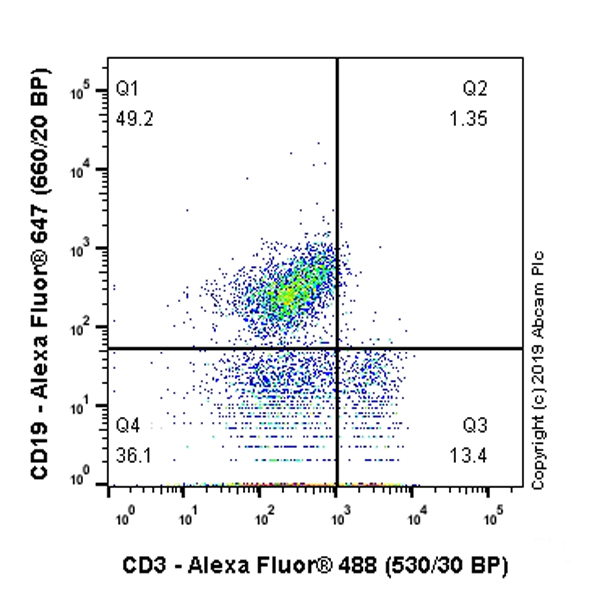

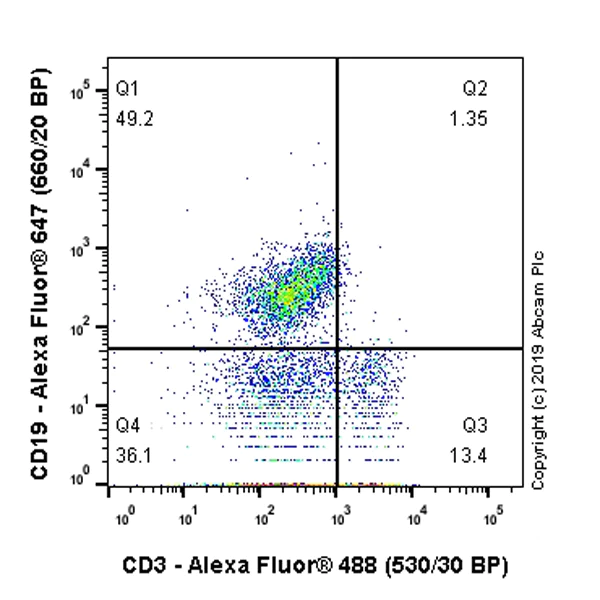

  Flow Cytometry (Intracellular) - Anti-CD3 antibody [SP162] - Low endotoxin, Azide free (ab246799)

  Intracellular Flow Cytometry analysis of Mouse Splenocyte cells labeling CD3 with purified Anti-CD3 antibody [SP162] ab135372 at 1/20 dilution (5.95μg/ml) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^®488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) secondary antibody was used at 1/2000 dilution. Isotype control - Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Black. Unlabeled control - Unlabelled cells / blue.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and sodium azide (Anti-CD3 antibody [SP162] ab135372).

•

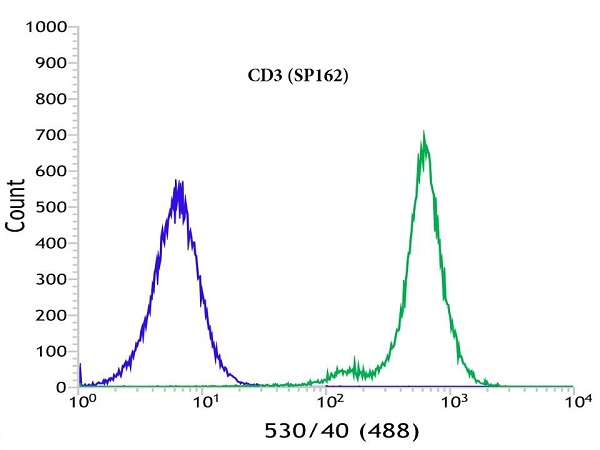

  Flow Cytometry (Intracellular) - Anti-CD3 antibody [SP162] - Low endotoxin, Azide free (ab246799)

  Intracellular flow cytometric analysis of rabbit anti-CD3 (SP162) antibody Anti-CD3 antibody [SP162] ab135372 (1/150)in Jurkat (Human T cell leukemia cell line from peripheral blood) cells (green) compared to negative control of rabbit IgG (blue).


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and sodium azide (Anti-CD3 antibody [SP162] ab135372).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 antibody [SP162] - Low endotoxin, Azide free (ab246799)

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD3 antibody [SP162] ab135372).

  Immunohistochemical analysis of formalin fixed paraffin embedded Human tonsil labelling CD3 with Anti-CD3 antibody [SP162] ab135372 at a dilution of 1/300. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with a OptiView DAB IHC Detection Kit. Heat mediated antigen retrieval was performed with DISCOVERY cell conditioning solution (CC1) 100°C, pH8.5 for 32mins.

  Anti-CD3 antibody [SP162] ab135372 anti CD3 antibody SP162 was incubated for 16mins at 37°C. Sections were counterstained with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control.

  Customers are encouraged to optimise antigen retrieval conditions, antibody concentration, incubation times and temperature for best results in their own IHC assay workflow (automated and manual)
