Anti-CD3 epsilon antibody [LE-CD3 #3/4] (ab313799)

Mouse Recombinant Monoclonal CD3E antibody. Suitable for WB, IHC-P and reacts with Human, Mouse, Rat samples.

Be the first to review this product! Submit a review

Images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 epsilon antibody [LE-CD3 #3/4] (AB313799), expandable thumbnail

Key facts

Isotype: IgG1
Host species: Mouse
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Abcam Recommends

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	WB	IHC-P	Flow Cyt (Intra)
Human	Tested	Tested	Not recommended
Mouse	Tested	Tested	Not recommended
Rat	Tested	Tested	Not recommended

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/1000	Notes -
Species Mouse	Dilution info 1/1000	Notes -
Species Rat	Dilution info 1/1000	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/100	Notes Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.
Species Mouse	Dilution info 1/100	Notes Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.
Species Rat	Dilution info 1/100	Notes Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human, Mouse, Rat	Dilution info -	Notes -

Associated Products

Select an associated product type

1 product for Alternative Version

Target data

See full target information CD3E

Function

Part of the TCR-CD3 complex present on T-lymphocyte cell surface that plays an essential role in adaptive immune response. When antigen presenting cells (APCs) activate T-cell receptor (TCR), TCR-mediated signals are transmitted across the cell membrane by the CD3 chains CD3D, CD3E, CD3G and CD3Z. All CD3 chains contain immunoreceptor tyrosine-based activation motifs (ITAMs) in their cytoplasmic domain. Upon TCR engagement, these motifs become phosphorylated by Src family protein tyrosine kinases LCK and FYN, resulting in the activation of downstream signaling pathways (PubMed:2470098). In addition of this role of signal transduction in T-cell activation, CD3E plays an essential role in correct T-cell development. Initiates the TCR-CD3 complex assembly by forming the two heterodimers CD3D/CD3E and CD3G/CD3E. Participates also in internalization and cell surface down-regulation of TCR-CD3 complexes via endocytosis sequences present in CD3E cytosolic region (PubMed:10384095, PubMed:26507128). In addition to its role as a TCR coreceptor, it serves as a receptor for ITPRIPL1. Ligand recognition inhibits T-cell activation by promoting interaction with NCK1, which prevents CD3E-ZAP70 interaction and blocks the ERK-NFkB signaling cascade and calcium influx (PubMed:38614099).

Alternative names

CD3e, T3E, CD3E, T-cell surface glycoprotein CD3 epsilon chain, T-cell surface antigen T3/Leu-4 epsilon chain

Recommended products

Mouse Recombinant Monoclonal CD3E antibody. Suitable for WB, IHC-P and reacts with Human, Mouse, Rat samples.

Key facts

Isotype: IgG1
Host species: Mouse
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal
Immunogen: The exact immunogen used to generate this antibody is proprietary information.
Clone number: LE-CD3 #3/4
Purification technique: Affinity purification Protein A
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage duration: 1-2 weeks
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: -20°C
Aliquoting information: Upon delivery aliquot
Storage information: Avoid freeze / thaw cycle

Notes

This antibody clone is manufactured by Abcam. If you require a custom buffer formulation or conjugation for your experiments, please contact orders@abcam.com

This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

8 product images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 epsilon antibody [LE-CD3 #3/4] (ab313799)
Immunohistochemical analysis of paraffin-embedded rat cerebrum tissue labeling CD3 epsilon with ab313799 at 1/100 (9.09 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Negative control: no staining on rat cerebrum. The section was incubated with ab313799 for 30 mins at room temperature, followed by anti-mouse IgG1 antibody (Rabbit monoclonal [M1gG51-4] Anti-Mouse IgG1 H&L ab125913) for 8 mins during the LeicaDS9800 kit staining procedure. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 epsilon antibody [LE-CD3 #3/4] (ab313799)
Immunohistochemical analysis of paraffin-embedded mouse cerebrum tissue labeling CD3 epsilon with ab313799 at 1/100 (9.09 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Negative control: no staining on mouse cerebrum. The section was incubated with ab313799 for 30 mins at room temperature, followed by anti-mouse IgG1 antibody (Rabbit monoclonal [M1gG51-4] Anti-Mouse IgG1 H&L ab125913) for 8 mins during the LeicaDS9800 kit staining procedure. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 epsilon antibody [LE-CD3 #3/4] (ab313799)
Immunohistochemical analysis of paraffin-embedded human cerebrum tissue labeling CD3 epsilon with ab313799 at 1/100 (9.09 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Negative control: no staining on human cerebrum. The section was incubated with ab313799 for 30 mins at room temperature, followed by anti-mouse IgG1 antibody (Rabbit monoclonal [M1gG51-4] Anti-Mouse IgG1 H&L ab125913) for 8 mins during the LeicaDS9800 kit staining procedure. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 epsilon antibody [LE-CD3 #3/4] (ab313799)
Immunohistochemical analysis of paraffin-embedded rat spleen tissue labeling CD3 epsilon with ab313799 at 1/100 (9.09 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on rat spleen. The section was incubated with ab313799 for 30 mins at room temperature, followed by anti-mouse IgG1 antibody (Rabbit monoclonal [M1gG51-4] Anti-Mouse IgG1 H&L ab125913) for 8 mins during the LeicaDS9800 kit staining procedure. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 epsilon antibody [LE-CD3 #3/4] (ab313799)
Immunohistochemical analysis of paraffin-embedded mouse spleen tissue labeling CD3 epsilon with ab313799 at 1/100 (9.09 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on mouse spleen. The section was incubated with ab313799 for 30 mins at room temperature, followed by anti-mouse IgG1 antibody (Rabbit monoclonal [M1gG51-4] Anti-Mouse IgG1 H&L ab125913) for 8 mins during the LeicaDS9800 kit staining procedure. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 epsilon antibody [LE-CD3 #3/4] (ab313799)
Immunohistochemical analysis of paraffin-embedded human tonsil tissue labeling CD3 epsilon with ab313799 at 1/100 (9.09 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on human tonsil. The section was incubated with ab313799 for 30 mins at room temperature, followed by anti-mouse IgG1 antibody (Rabbit monoclonal [M1gG51-4] Anti-Mouse IgG1 H&L ab125913) for 8 mins during the LeicaDS9800 kit staining procedure. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins.

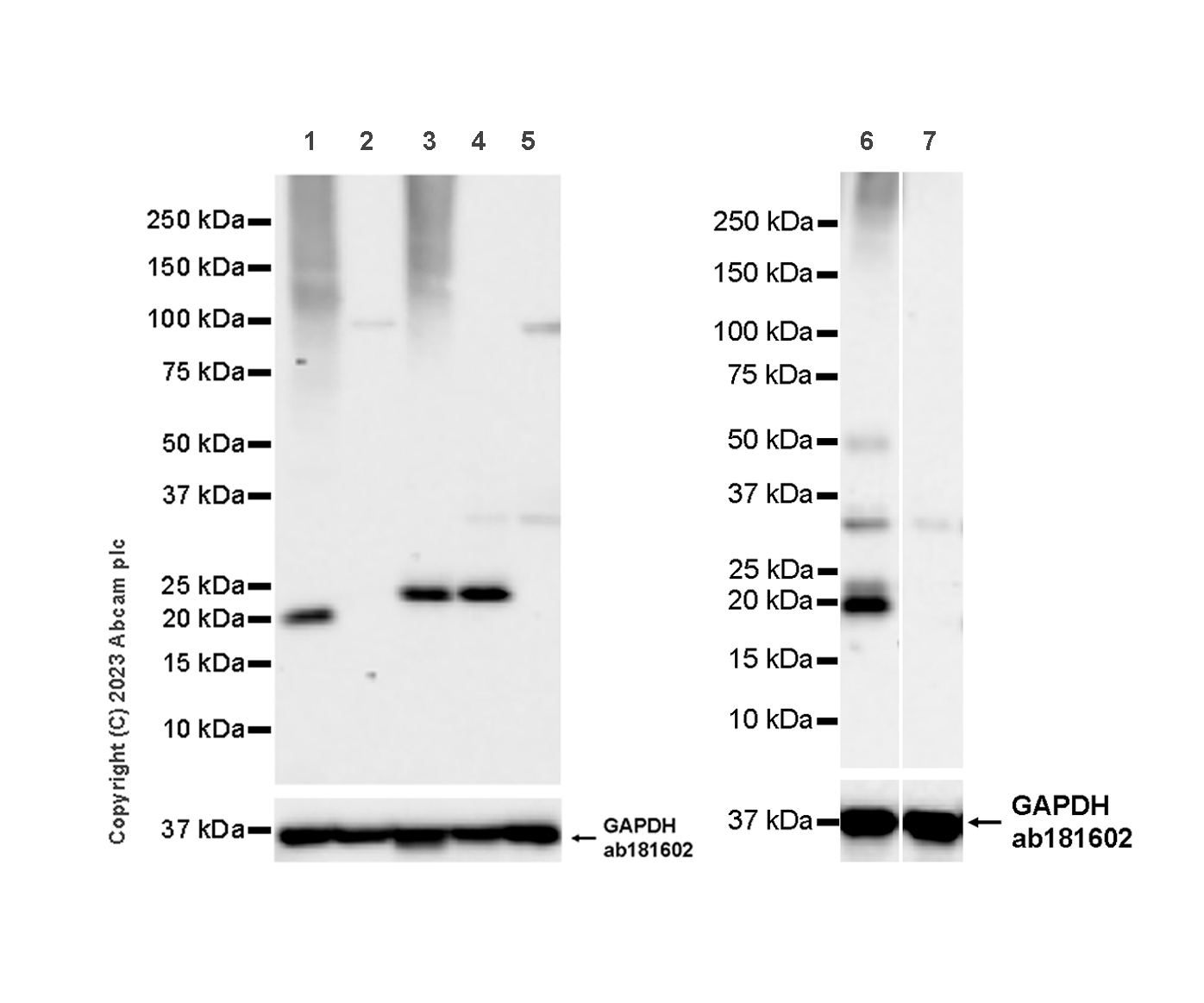

Western blot - Anti-CD3 epsilon antibody [LE-CD3 #3/4] (ab313799)
Blocking and diluting buffer and concentration: 5% NFDM/TBST
Negative control: Human cerebellum, Rat cerebral cortex, Mouse cerebral cortex
Exposure time: Line 1-5: 59 seconds; Line 6-7: 125 seconds.
In Western blot, anti-GAPDH antibody (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) loading control staining at 1/200000 dilution.
All lanes: Western blot - Anti-CD3 epsilon antibody [LE-CD3 #3/4] (ab313799) at 1/1000 dilution
Lane 1: Human lymphma lysate at 20 µg
Lane 2: Human cerebellum lysate at 20 µg
Lane 3: Rat thymus lysate at 20 µg
Lane 4: Rat lymph node lysate at 20 µg
Lane 5: Rat cerebral cortex lysate at 20 µg
Lane 6: Mouse thymus lysate at 20 µg
Lane 7: Mouse cerebral cortex lysate at 20 µg
Secondary
All lanes: Peroxidase-Conjugated Goat anti-Mouse IgG (H+L) at 1/10000 dilution
Observed band size: 23 kDa

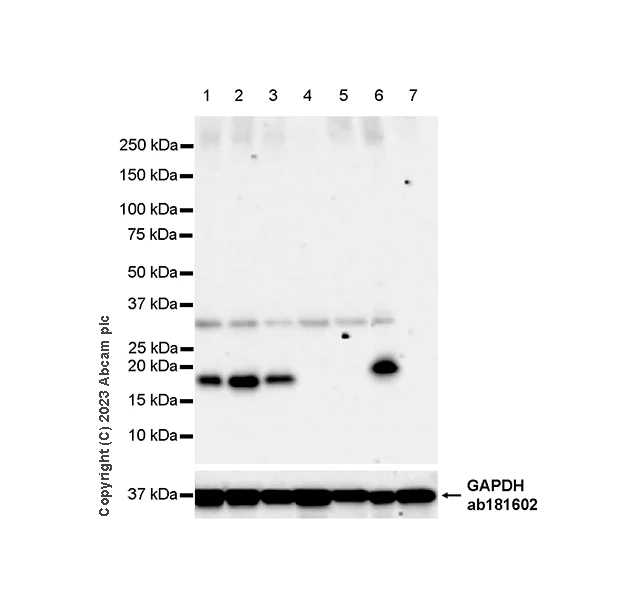

Western blot - Anti-CD3 epsilon antibody [LE-CD3 #3/4] (ab313799)
Blocking and diluting buffer and concentration: 5% NFDM/TBST
Negative control: Raji, PC-3, NIH/3T3
Exposure time: 125 seconds.
In Western blot, anti-GAPDH antibody (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) loading control staining at 1/200000 dilution.
All lanes: Western blot - Anti-CD3 epsilon antibody [LE-CD3 #3/4] (ab313799) at 1/1000 dilution
Lane 1: Jurkat (human T cell leukemia T lymphocyte from peripheral blood) whole cell lysate at 20 µg
Lane 2: MOLT-4 (human lymphoblastic leukemia T lymphoblast) whole cell lysate at 20 µg
Lane 3: HuT-78 (human Sezary syndrome cutaneous T lymphocyte) whole cell lysate at 20 µg
Lane 4: Raji (human Burkitts lymphoma B lymphocyte) whole cell lysate at 20 µg
Lane 5: PC-3 (human prostate adenocarcinoma epithelial cell) whole cell lysate at 20 µg
Lane 6: EL4.IL-2 (mouse lymphoma T lymphocyte) whole cell lysate at 20 µg
Lane 7: NIH/3T3 (mouse embryonic fibroblast) whole cell lysate at 20 µg
Secondary
All lanes: Peroxidase-Conjugated Goat anti-Mouse IgG (H+L) at 1/10000 dilution
Observed band size: 23 kDa
Exposure time: 125s
