Anti-CD3 epsilon antibody [SP7] - BSA and Azide free

27 product images

•

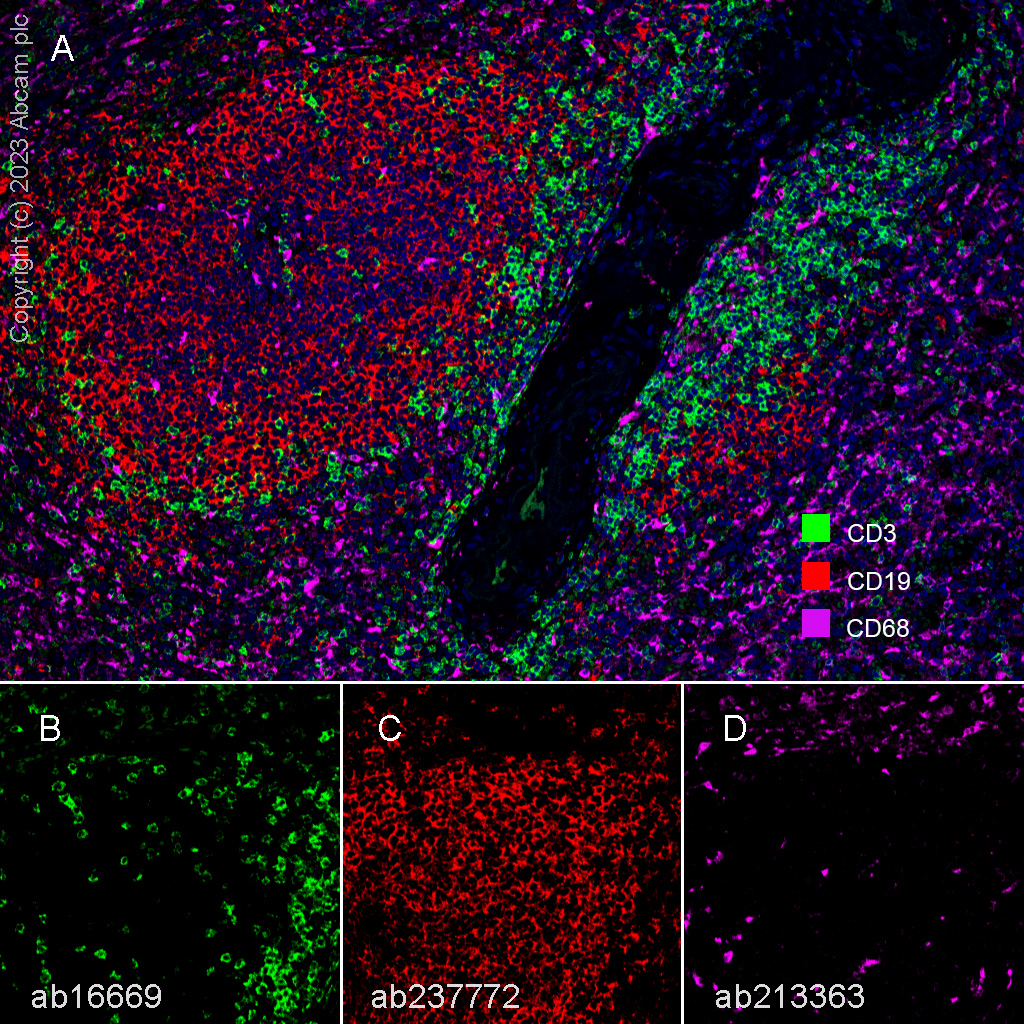

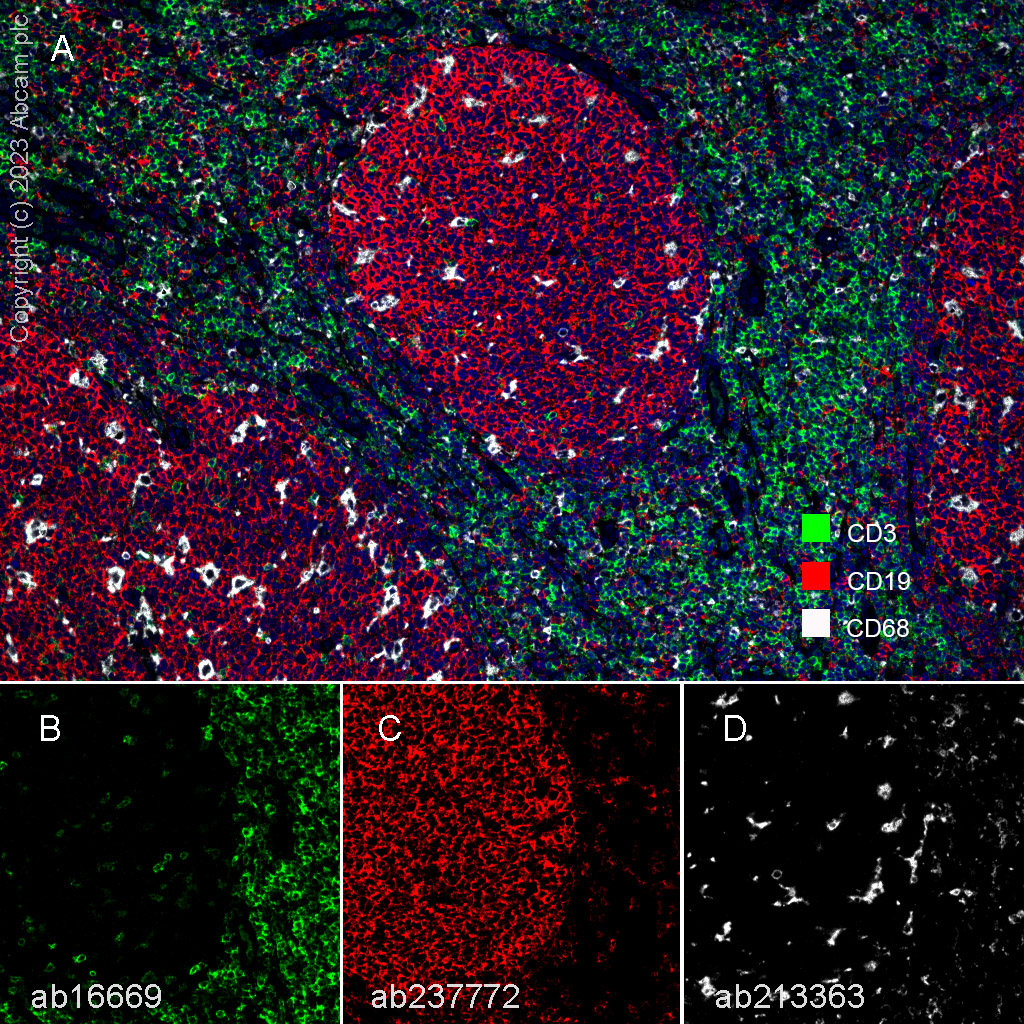

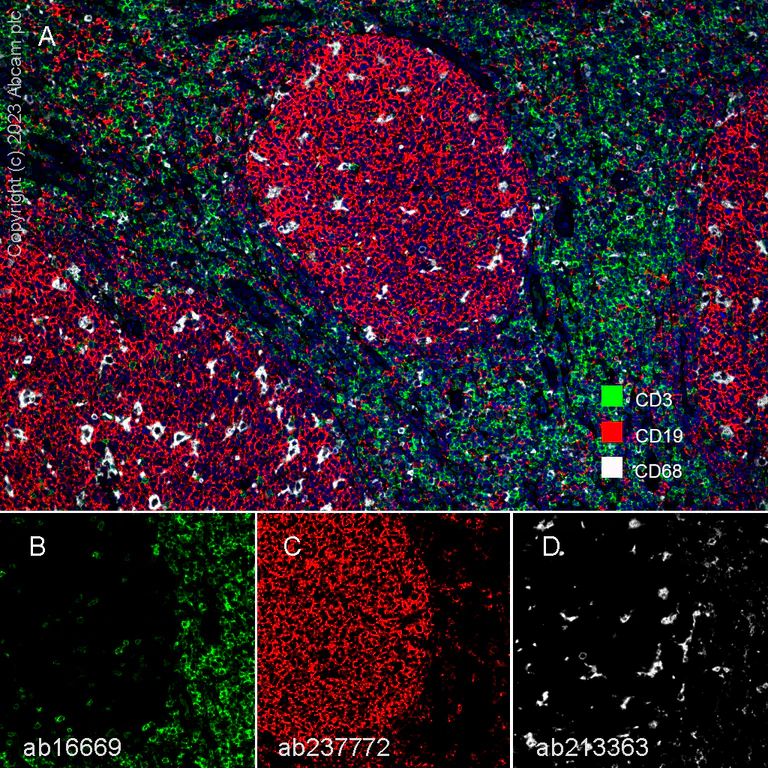

  Multiplex immunohistochemistry - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.
  Panel A: merged staining of anti-CD68 (magenta; Opal™690), anti-CD3 epsilon (green; Opal™520) and anti-CD19 (red; Opal™570) on Formalin/PFA-fixed paraffin-embedded sections of human spleen. Secondary antibody was Opal Polymer HRP Ms + Rb, and couterstaining was with DAPI.
  Panel B: anti-CD3 epsilon stained on T cells with Anti-CD3 epsilon antibody [SP7] ab16669 at 1/500 dilution
  Panel C: anti-CD19 stained on B cells with Anti-CD19 antibody [SP291] - BSA and Azide free ab237772 at 1/5000 dilution
  Panel D: anti-CD68 stained on macrophages with Anti-CD68 antibody [EPR20545] ab213363 1/500 dilution
  The section was incubated in three rounds of staining: in the order of Anti-CD68 antibody [EPR20545] ab213363 and Anti-CD3 epsilon antibody [SP7] ab16669 for 30 mins, then Anti-CD19 antibody [SP291] - BSA and Azide free ab237772 for 10 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.
  The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

•

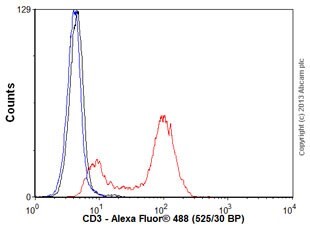

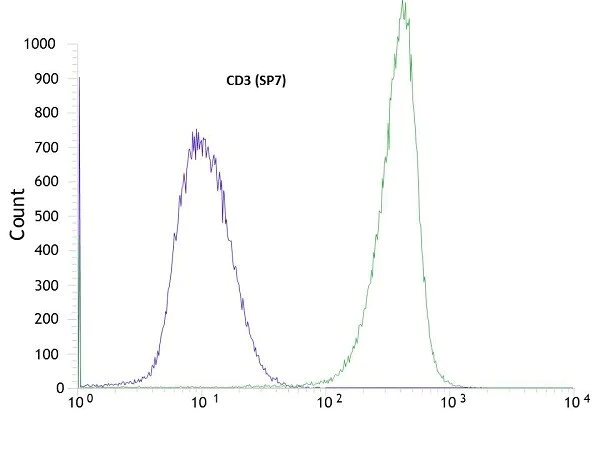

  Flow Cytometry (Intracellular) - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.


  Human peripheral blood lymphocytes stained with Anti-CD3 epsilon antibody [SP7] ab16669 (red line). Human whole blood was processed using a modified protocol based on Chow et al, 2005 (PMID: 16080188). In brief, human whole blood was fixed in 4% formaldehyde (methanol-free) for 10 min at 22°C. Red blood cells were then lyzed by the addition of Triton X-100 (final concentration - 0.1%) for 15 min at 37°C. For experimentation, cells were treated with 50% methanol (-20°C) for 15 min at 4°C. Cells were then incubated with the antibody (Anti-CD3 epsilon antibody [SP7] ab16669, 1/1000 dilution) for 30 min at 4°C. The secondary antibody used was Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution for 30 min at 4°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >30,000 total events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. Gating strategy - peripheral blood lymphocytes.

•

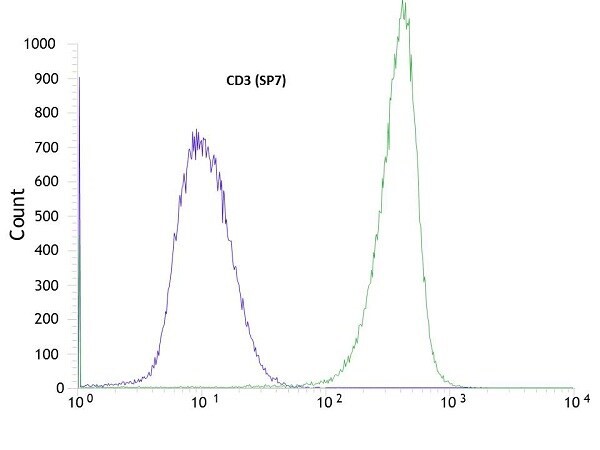

  Flow Cytometry (Intracellular) - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.


  Flow cytometric analysis of rabbit anti-CD3 epsilon (SP7) antibody Anti-CD3 epsilon antibody [SP7] ab16669 (1/100) in Jurkats cells (green) compare to negative control of rabbit IgG (blue).

•

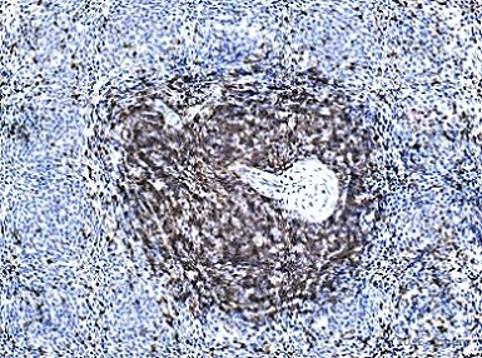

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.


  IHC image of CD3 epsilon staining in a formalin fixed, paraffin embedded normal rat spleen tissue section, performed on a Leica Bond™ system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with Anti-CD3 epsilon antibody [SP7] ab16669 at 1/100 dilution for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

•

  Western blot - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.


  Lanes 1 - 6: Merged signal (red and green). Green – Anti-CD3 epsilon antibody [SP7] ab16669 observed at 23 kDa. Red - loading control, Anti-GAPDH antibody [6C5] - Loading Control ab8245, observed at 37 kDa.

  This blot was produced using a 4-12% Bis-tris gel under the MES buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using Licor blocking buffer before being incubated with Anti-CD3 epsilon antibody [SP7] ab16669 and Anti-GAPDH antibody [6C5] - Loading Control ab8245 (loading control) overnight at 4°C. Antibody binding was detected using Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) at a 1:10000 dilution for 1hr at room temperature and then imaged.

  All lanes: Western blot - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228) at 1/25 dilution

  Lane 1: THP1 whole cell lysate (-ve control) at 15 µg

  Lane 2: Raji whole cell lysate (-ve control) at 15 µg

  Lane 3: Jurkat whole cell lysate at 15 µg

  Lane 4: Human Thymus tissue lysate at 15 µg

  Lane 5: Mouse Thymus tissue lysate at 15 µg

  Lane 6: Rat Thymus tissue lysate at 15 µg

  Secondary

  All lanes: Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) at 1/10000 dilution

  Developed using the ECL technique.

  Predicted band size: 19 kDa

  Observed band size: 23 kDa

•

  This image is courtesy of a customer review submitted by Ying Li.

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.


  Anti-CD3 epsilon antibody [SP7] ab16669 staining CD3 epsilon in Mouse Epidydimal fat pad tissue sections by Immunohistochemistry (Formalin/PFA-fixed paraffin embedded sections). Tissue sections were fixed with formaldehyde, blocked with 5% serum for 4 hours at 25°C and permeabilized with Triton X-100. Samples were incubated with primary antibody (1/100 in PBST with BSA and goat serum) for 4°C at 12 hours. An Alexa Fluor® 568 goat anti-rabbit IgG (H + L) cross adsorbed was used as the secondary antibody.

•

  Multiplex immunohistochemistry - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.


  Fluorescence multiplex immunohistochemical analysis of normal human tonsil tissue (formalin-fixed paraffin-embedded section).

  Merged staining of anti-PD1 (Anti-PD1 antibody [CAL20] ab237728; orange; Opal™520), anti-PDL1 (Anti-PD-L1 antibody [CAL10] ab237726; green; Opal™540), anti-CD68 (Anti-CD68 antibody [SP251] ab192847; yellow; Opal™570), anti-CD3 epsilon (Anti-CD3 epsilon antibody [SP7] ab16669; red; Opal™620), anti-Ki67 (Anti-Ki67 antibody [SP6] ab16667; light blue; Opal™650) and anti-PanCK (Anti-pan Cytokeratin antibody [C-11] ab7753; grey; Opal™690).

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 7-color automation IHC kit (NEL821001KT, Akoya Biosciences®).

  The section was incubated in six rounds of staining; in the order of Anti-PD1 antibody [CAL20] ab237728 (1/500 dilution), Anti-PD-L1 antibody [CAL10] ab237726 (1/500 dilution), Anti-CD68 antibody [SP251] ab192847 (1/300 dilution), Anti-CD3 epsilon antibody [SP7] ab16669 (1/300 dilution), Anti-Ki67 antibody [SP6] ab16667 (1/200 dilution) and Anti-pan Cytokeratin antibody [C-11] ab7753 (1/200 dilution); each using a separate fluorescent tyramide signal amplification system.

  Sodium citrate antigen retrieval (Leica ER1, pH6.0, 30 minutes) was used in between rounds of tyramide signal amplification to remove the antibody from the previous round, to avoid any cross-reactivity.

  DAPI (dark blue) was used as a nuclear counter stain.

  Microscopy and pseudocoloring of individual Opal™ dyes was performed using a Vectra Polaris.

•

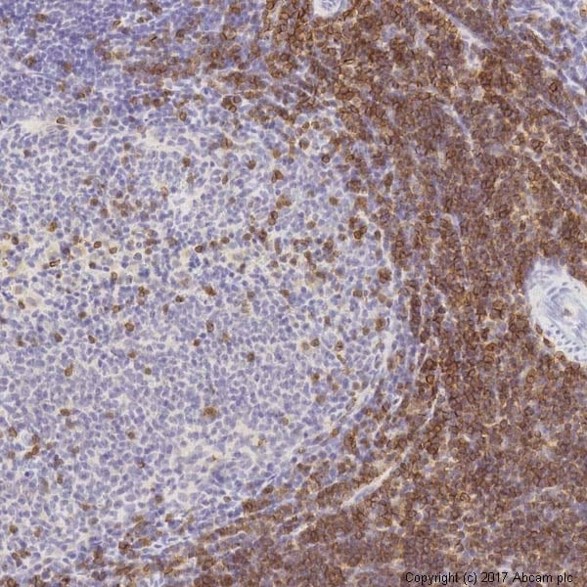

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.


  IHC image of CD3 epsilon staining in a formalin fixed, paraffin embedded normal human tonsil tissue section*, performed on a Leica Bond™ system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with Anti-CD3 epsilon antibody [SP7] ab16669 at 1/100 dilution for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

  *Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.


  IHC image of CD3 epsilon staining in mouse lymph node formalin fixed paraffin embedded tissue section, performed on a Leica Bond™ system using the standard protocol B. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with Anti-CD3 epsilon antibody [SP7] ab16669 at 1/100 dilution for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

•

  This image is courtesy of a customer review submitted by Carl Hobbs

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.


  Immunohistochemical analysis of Formaldehyde fixed, paraffin-embedded rat spleen tissue sections labelling CD3 epsilon with Anti-CD3 epsilon antibody [SP7] ab16669 at a dilution of 1/100. Biotin conjugated Goat Anti-Rabbit IgG at 1/300 dilution was used as the secondary antibody. Antigen retrieval was heat mediated using citric acid.

•

  Image from Graff JN et al.,Oncotarget 7(33), 52810 - 52817. Fig 2,; doi: 10.18632/oncotarget.10547. Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/3.0/.

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.


  IHC using multi-spectral imaging on human lymph node (A-C) obtained from men with mCRPC. A) H+E staining and B) single-color images (plus nuclear stain; DAPI) of CD3 epsilon (Anti-CD3 epsilon antibody [SP7] ab16669), CD8 (Anti-CD8 alpha antibody [SP16] ab101500), CD163, PD-L1, cytokeratin (CK), DAPI and C) merged. H+E stating at 20X magnification; multi-spectral images 200X magnification.

•

  This image is courtesy of a customer review submitted by Dr Mal Niladri.

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.


  Anti-CD3 epsilon antibody [SP7] ab16669 staining rat infarcted heart tissue by Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections).

  Myocardial infarction was produced in a rat model following the ligation of the left anterior descending (LAD) coronary artery. Tissue was harvested 6 w following infarct, fixed with Histochoice for 72 hr, paraffin sectioned and the slide was then baked prior to CD3 epsilon staining. Anti-CD3 epsilon antibody [SP7] ab16669 at 1/200 was incubated overnight at 4°C. The image was taken with a confocal laser scanning microscope and shows cells giving strong inmmunofluorescence staining for CD3 epsilon antigen (green), indicating presence of cells of T-lymphocytes origin in the infarct zone of the heart tissue, counterstained nuclei with DAPI (blue). Note, CD3 epsilon tended to be present in nests of 2-5 cells that were non-uniformly distributed in the infarct zone. In addition, the image shows that the CD3 epsilon localization is predominantly membrane based and to a certain extent intracytoplasmic.

•

  Image from Moussion C et al., PLoS One. 2008 Oct 6;3(10):e3331. Fig 2.; doi:10.1371/journal.pone.0003331; October 6, 2008, PLoS ONE 3(10): e3331.

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.


  Immunohistochemical analysis of Human tonsil tissue, staining CD3 epsilon (green) with Anti-CD3 epsilon antibody [SP7] ab16669.

  Antigen retrieval was performed by heat mediation in citrate buffer (pH 6) and blocked with 5% goat serum and 5% BSA for 1 hour at room temperature. Samples were incubated with primary antibody (1/100) overnight at 4°C. A Cy3®-conjugated anti-rabbit IgG was used as the secondary antibody.

•

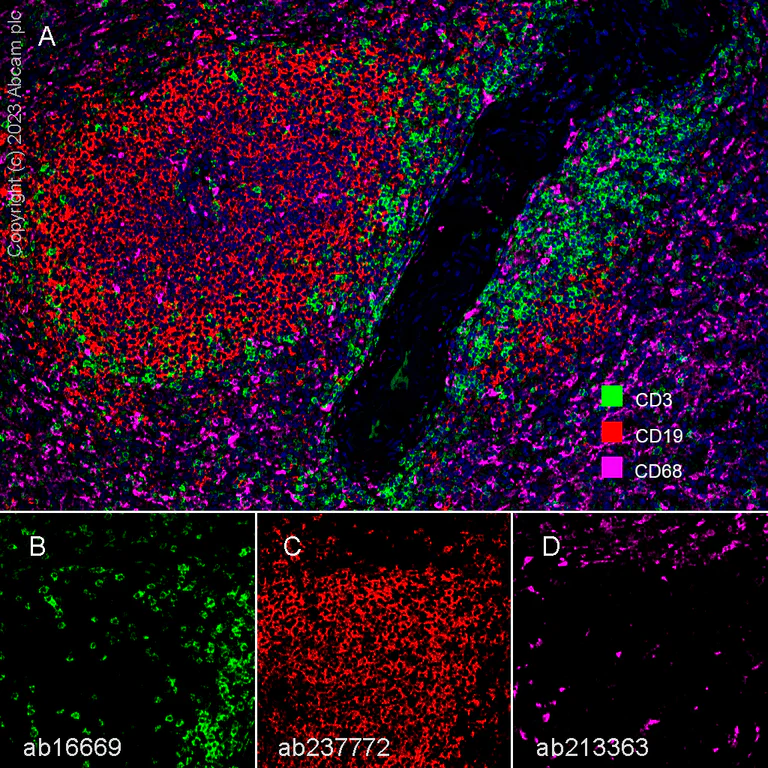

  Multiplex immunohistochemistry - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.

  Panel A: merged staining of anti-CD68 (gray; Opal™690), anti-CD3 epsilon (green; Opal™520) and anti-CD19 (red; Opal™570) on Formalin/PFA-fixed paraffin-embedded sections of human tonsil. Secondary antibody was Opal Polymer HRP Ms + Rb, and counterstaining was with DAPI.

  Panel B: anti-CD3 epsilon stained on T cells with Anti-CD3 epsilon antibody [SP7] ab16669 at 1/500 dilution
  Panel C: anti-CD19 stained on B cells with Anti-CD19 antibody [SP291] - BSA and Azide free ab237772 at 1/5000 dilution
  Panel D: anti-CD68 stained on macrophages with Anti-CD68 antibody [EPR20545] ab213363 1/500 dilution

  The section was incubated in three rounds of staining: in the order of Anti-CD68 antibody [EPR20545] ab213363 and Anti-CD3 epsilon antibody [SP7] ab16669 for 30 mins, then Anti-CD19 antibody [SP291] - BSA and Azide free ab237772 for 10 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

•

  Multiplex immunohistochemistry - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

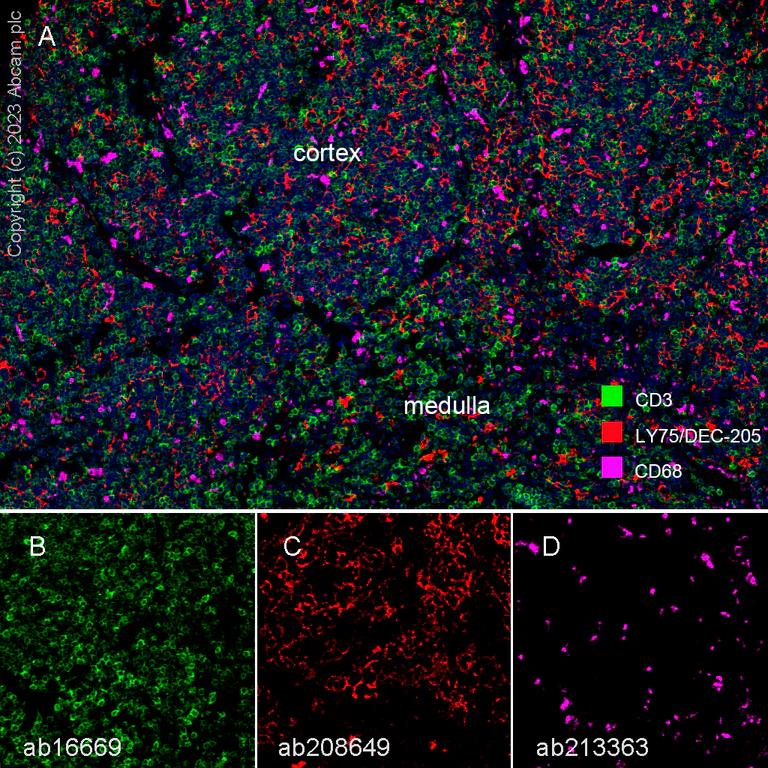

  CD3 epsilon Multiplex immunohistochemistry staining of Human thymus using rabbit Anti-CD3 epsilon antibody

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.


  Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Human thymus tissue labeling CD3 epsilon with Anti-CD3 epsilon antibody [SP7] ab16669 at 1/500 dilution, LY75/DEC-205 with Anti-LY75/DEC-205 antibody [EPR5233] - BSA and Azide free ab208649 at 1/15000, and CD68 with Anti-CD68 antibody [EPR20545] ab213363 at 1/500 dilution.

  Panel A: merged staining of anti-CD68 (magenta; Opal™690), anti-CD3 epsilon (green; Opal™520) and anti-LY75/DEC-205 (red; Opal™570) on human thymus.
  Panel B: anti-CD3 epsilon stained on T cells.
  Panel C: anti-LY75/DEC-205 stained on thymic cortical epithelium and dendritic cells.
  Panel D: anti-CD68 stained on macrophages.

  Sections  were treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins before antibody incubation. The section was incubated in three rounds of staining: in the order of Anti-CD68 antibody [EPR20545] ab213363, Anti-CD3 epsilon antibody [SP7] ab16669, and Anti-LY75/DEC-205 antibody [EPR5233] - BSA and Azide free ab208649 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

  DAPI was used as a nuclear counterstain.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

•

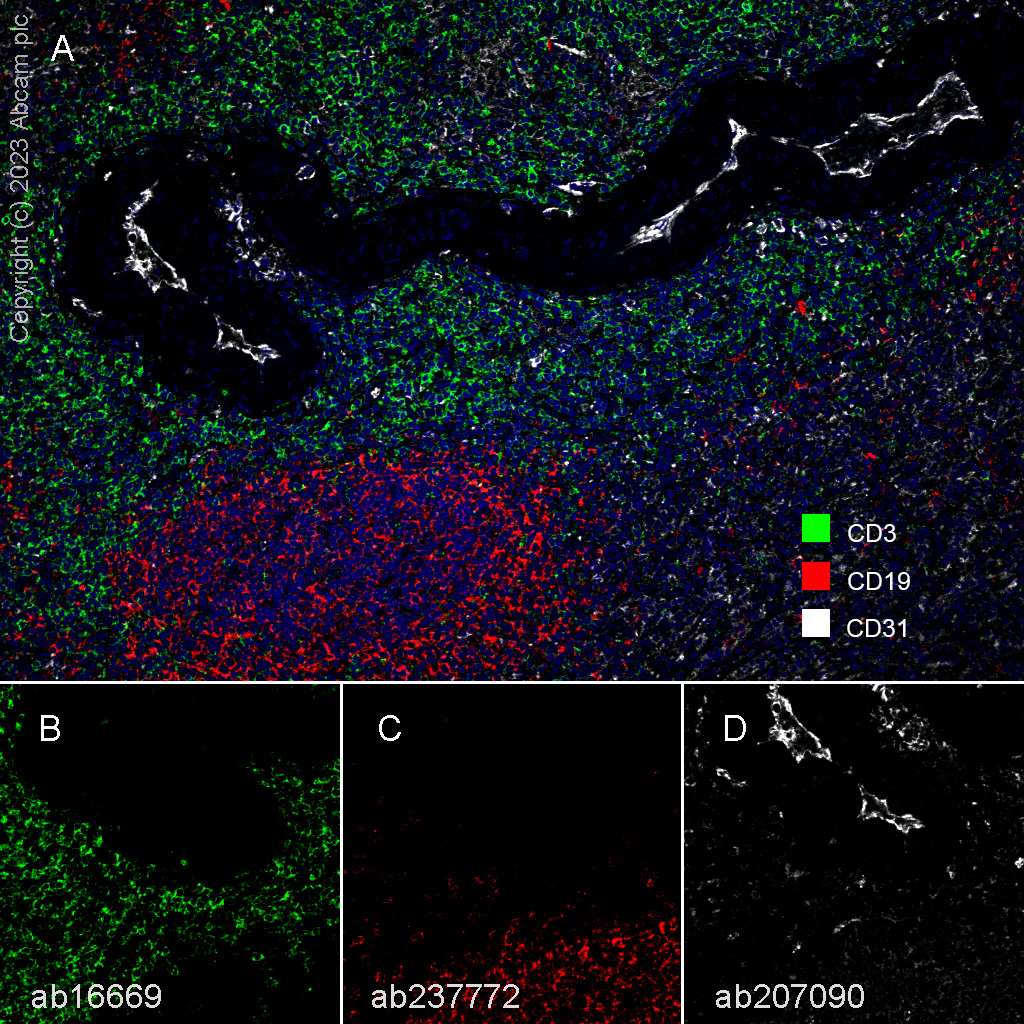

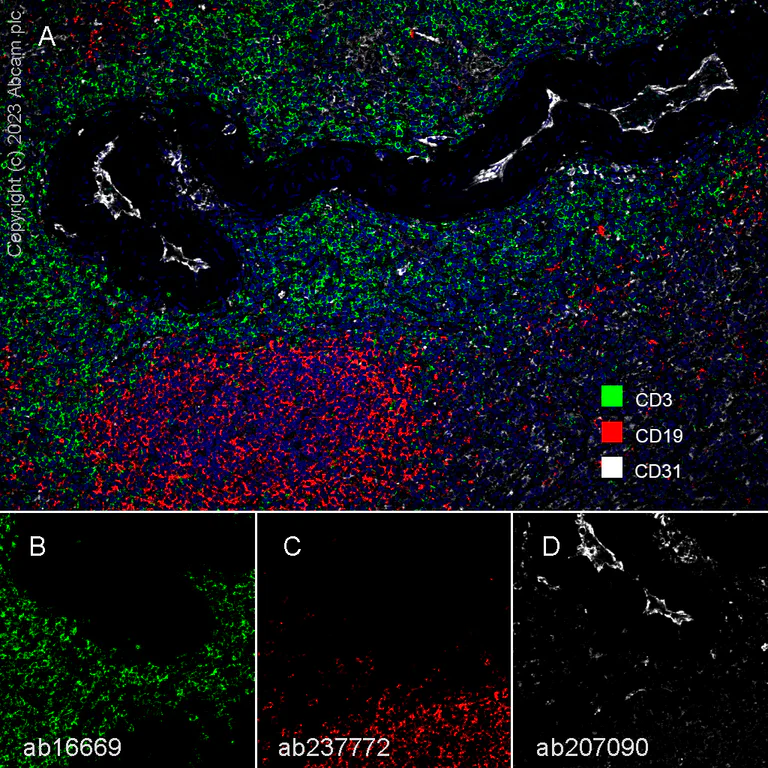

  Multiplex immunohistochemistry - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.

  Panel A: merged staining of anti-CD31 (gray; Opal™690), anti-CD3 epsilon (green; Opal™520) and anti-CD19 (red; Opal™570) on Formalin/PFA-fixed paraffin-embedded sections of human spleen. Secondary antibody was Opal Polymer HRP Ms + Rb, nuclear counterstain was DAPI.
  Panel B: anti-CD3 epsilon stained on T cells with Anti-CD3 epsilon antibody [SP7] ab16669 at 1/500 dilution
  Panel C: anti-CD19 stained on B cells with Anti-CD19 antibody [SP291] - BSA and Azide free ab237772 at 1/5000 dilution
  Panel D: anti-CD31 stained on endothelial cells with Anti-CD31 antibody [EPR3094] - BSA and Azide free ab207090 at 1/500 dilution
  The section was incubated in three rounds of staining: in the order of Anti-CD31 antibody [EPR3094] - BSA and Azide free ab207090 and Anti-CD3 epsilon antibody [SP7] ab16669 for 30 mins, then Anti-CD19 antibody [SP291] - BSA and Azide free ab237772 for 10 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.
  The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

•

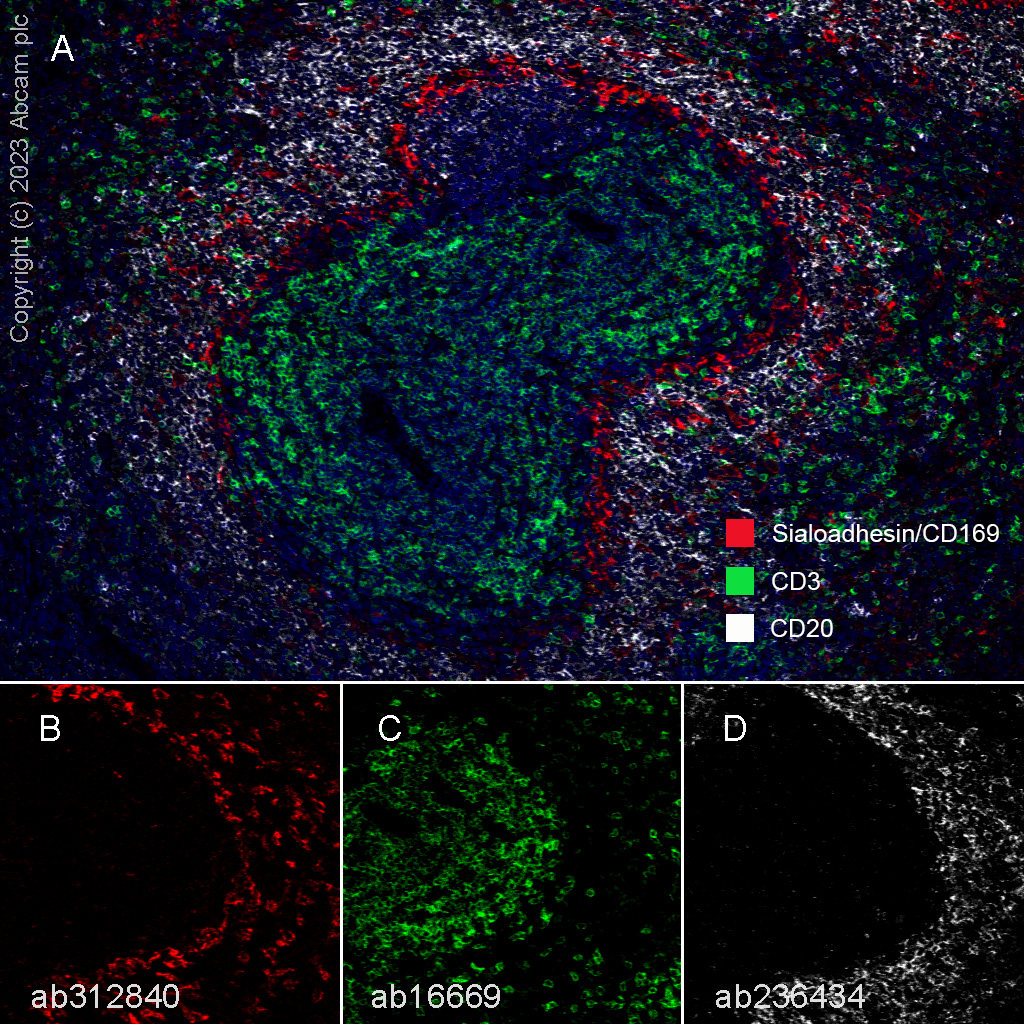

  Multiplex immunohistochemistry - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

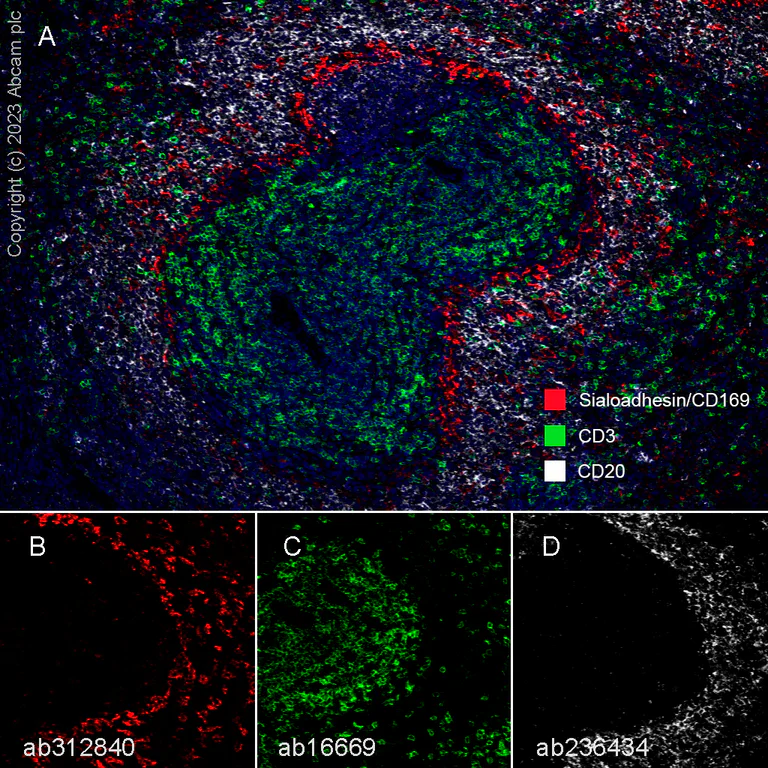

  CD3 epsilon Multiplex immunohistochemistry staining of Rat spleen using rabbit Anti-CD3 epsilon antibody

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.

  Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Rat spleen tissue labeling Sialoadhesin/CD169, CD3 epsilon and CD20 with Anti-Sialoadhesin/CD169 antibody [EPR27102-11] ab312840 at 1/100 dilution, Anti-CD3 epsilon antibody [SP7] ab16669 at 1:150 dilution and Anti-CD20 antibody [SP32] - BSA and Azide free ab236434 at 1:5000 dilution.

  Panel A: merged staining of anti-Sialoadhesin/CD169 (red; Opal™690), anti-CD3 epsilon (green; Opal™520) and anti-CD20 (gray; Opal™570) on rat spleen.
  Panel B: anti-Sialoadhesin/CD169 stained on macrophages.
  Panel C: anti-CD3 epsilon stained on T cells.
  Panel D: anti-CD20 stained on B cells.

  The section was incubated in three rounds of staining: in the order of Anti-Sialoadhesin/CD169 antibody [EPR27102-11] ab312840, Anti-CD3 epsilon antibody [SP7] ab16669, and Anti-CD20 antibody [SP32] - BSA and Azide free ab236434 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

•

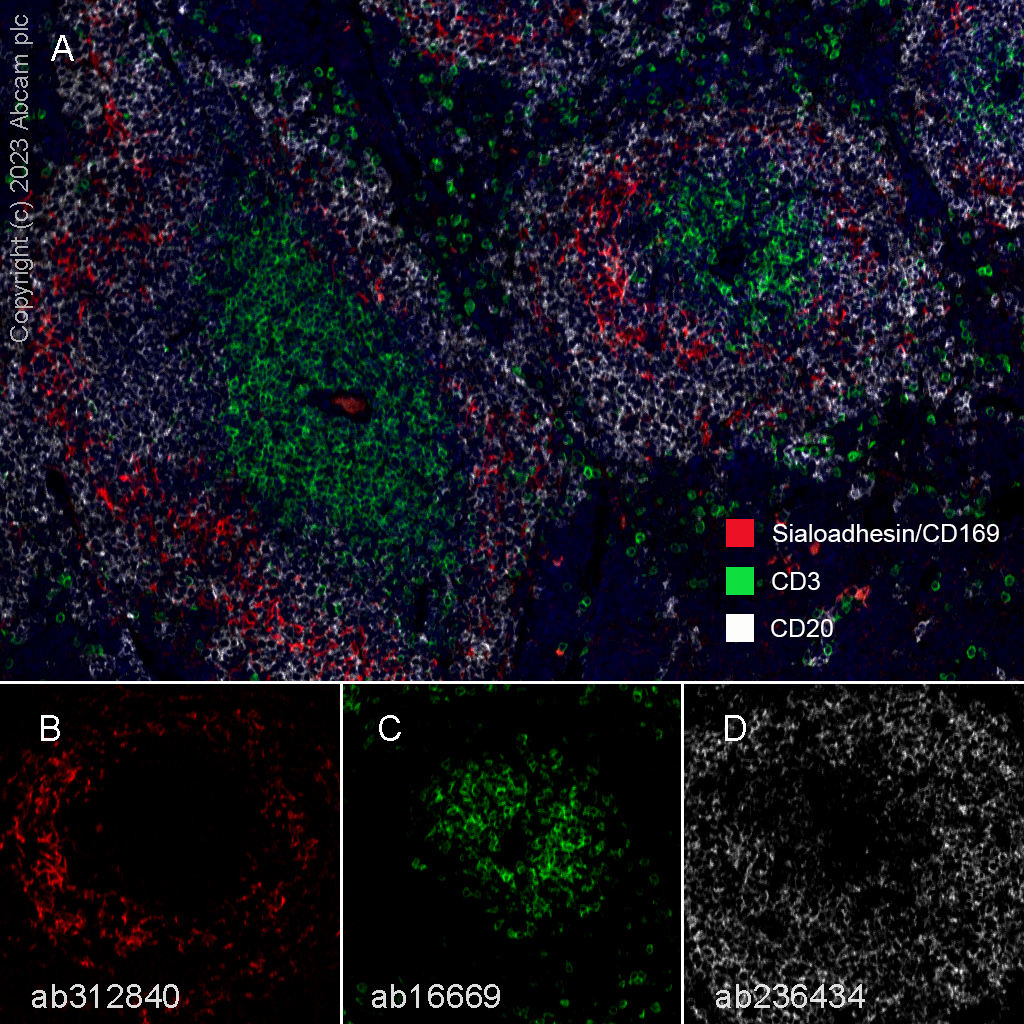

  Multiplex immunohistochemistry - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  CD3 epsilon Multiplex immunohistochemistry staining of Mouse spleen using rabbit Anti-CD3 epsilon antibody

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.

  Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Mouse spleen tissue labeling Sialoadhesin/CD169, CD3 epsilon and CD20 with Anti-Sialoadhesin/CD169 antibody [EPR27102-11] ab312840 at 1/100 dilution, Anti-CD3 epsilon antibody [SP7] ab16669 at 1:150 dilution and Anti-CD20 antibody [SP32] - BSA and Azide free ab236434 at 1:5000 dilution.

  Panel A: merged staining of anti-Sialoadhesin/CD169 (red; Opal™690), anti-CD3 epsilon (green; Opal™520) and anti-CD20 (gray; Opal™570) on mouse spleen.
  Panel B: anti-Sialoadhesin/CD169 stained on macrophages.
  Panel C: anti-CD3 epsilon stained on T cells.
  Panel D: anti-CD20 stained on B cells.

  The section was incubated in three rounds of staining: in the order of Anti-Sialoadhesin/CD169 antibody [EPR27102-11] ab312840, Anti-CD3 epsilon antibody [SP7] ab16669, and Anti-CD20 antibody [SP32] - BSA and Azide free ab236434 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

•

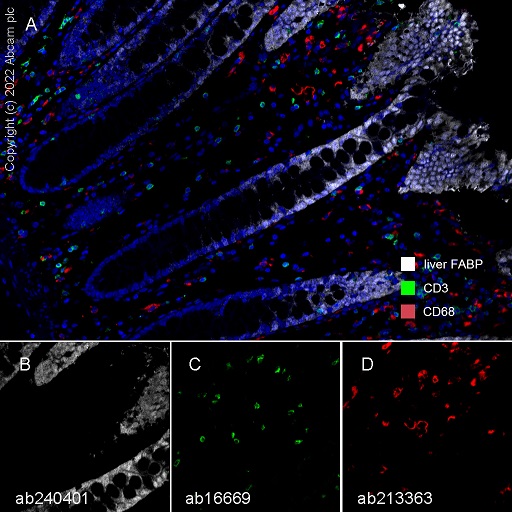

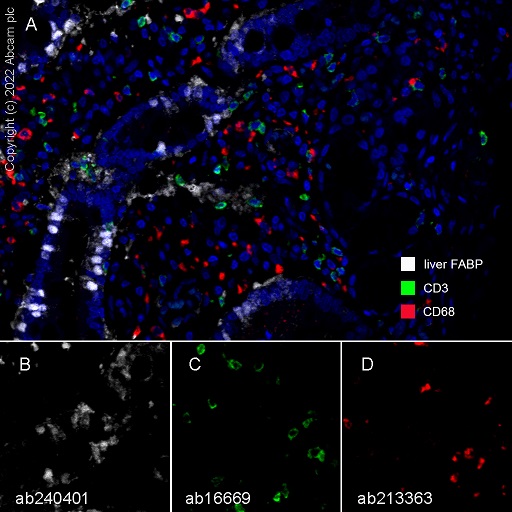

  Multiplex immunohistochemistry - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  CD3 epsilon Multiplex immunohistochemistry staining of Human colon tissue using rabbit Anti-CD3 epsilon antibody

  Fluorescence multiplex immunohistochemical analysis of the human colon (Formalin/PFA-fixed paraffin-embedded sections). Panel A: merged staining of anti-liver FABP (Anti-liver FABP antibody [EPR20464] - BSA and Azide free ab240401 gray; Opal™690), anti-CD3 epsilon (Anti-CD3 epsilon antibody [SP7] ab16669 green; Opal™520) and anti-CD68 (Anti-CD68 antibody [EPR20545] ab213363 red; Opal™570) on human colon. Panel B: anti-liver FABP stained on enterocytes. Panel C: anti-CD3 epsilon stained on T cells. Panel D: anti-CD68 stained on macrophages. Opal Polymer HRP Ms + Rb was used as a secondary antibody. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal™ 4-color kit. The section was incubated in three rounds of staining: in the order of Anti-liver FABP antibody [EPR20464] - BSA and Azide free ab240401 (1/8000 dilution), Anti-CD3 epsilon antibody [SP7] ab16669 (1/150 dilution) and Anti-CD68 antibody [EPR20545] ab213363 (1/500 dilution) for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0 epitope retrieval solution2) for 20 mins. DAPI (blue) was used as a nuclear counter stain. Image acquisition was performed with Leica SP8 confocal microscope.

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.

•

  Multiplex immunohistochemistry - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  CD3 epsilon Multiplex immunohistochemistry staining of Human duodenum tissue using rabbit Anti-CD3 epsilon antibody

  Fluorescence multiplex immunohistochemical analysis of the human duodenum (Formalin/PFA-fixed paraffin-embedded sections). Panel A: merged staining of anti-liver FABP (Anti-liver FABP antibody [EPR20464] - BSA and Azide free ab240401 gray; Opal™690), anti-CD3 epsilon (Anti-CD3 epsilon antibody [SP7] ab16669 green; Opal™520) and anti-CD68 (Anti-CD68 antibody [EPR20545] ab213363 red; Opal™570) on human duodenum. Panel B: anti-liver FABP stained on enterocytes. Panel C: anti-CD3 epsilon stained on T cells. Panel D: anti-CD68 stained on macrophages. Opal Polymer HRP Ms + Rb was used as a secondary antibody. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal™ 4-color kit. The section was incubated in three rounds of staining: in the order of Anti-liver FABP antibody [EPR20464] - BSA and Azide free ab240401 (1/8000 dilution), Anti-CD3 epsilon antibody [SP7] ab16669 (1/150 dilution) and Anti-CD68 antibody [EPR20545] ab213363 (1/500 dilution) for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0 epitope retrieval solution2) for 20 mins. DAPI (blue) was used as a nuclear counter stain. Image acquisition was performed with Leica SP8 confocal microscope.

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.

•

  Multiplex immunohistochemistry - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  CD3 epsilon Multiplex immunohistochemistry staining of Human colon using rabbit Anti-CD3 epsilon antibody

  This data was developed using Anti-TCR delta antibody [EPR27043-16] ab313573, the same antibody clone in a different buffer formulation.


  Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded human spleen tissue staining TCR delta with Anti-TCR delta antibody [EPR27043-16] ab313573 at a 1/500 dilution, Anti-CD3 epsilon antibody [SP7] ab16669 anti-CD3 used at 1/100 dilution and Anti-CD19 antibody [SP291] - C-terminal ab227688 anti-CD19 used at a 1/100 dilution.

  Panel A: merged staining of anti-TCR delta (green; Opal^™520), anti-CD3 (magenta; Opal^™570) and anti-CD19 (yellow; Opal^™690) on human colon.

  Panel B: anti-TCR delta staining immune cells in human colon.

  Panel C: anti-CD3 staining T lymphocytes in human colon.

  Panel D: anti-CD19 staining B lymphocytes in human colon.

  Nuclear DNA was labeled with DAPI (shown in blue).

  The section was incubated in three rounds of staining: in the order of Anti-TCR delta antibody [EPR27043-16] ab313573, Anti-CD3 epsilon antibody [SP7] ab16669 and Anti-CD19 antibody [SP291] - C-terminal ab227688 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

  The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal^™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

  Nuclear counter stain with DAPI.

  Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins..

•

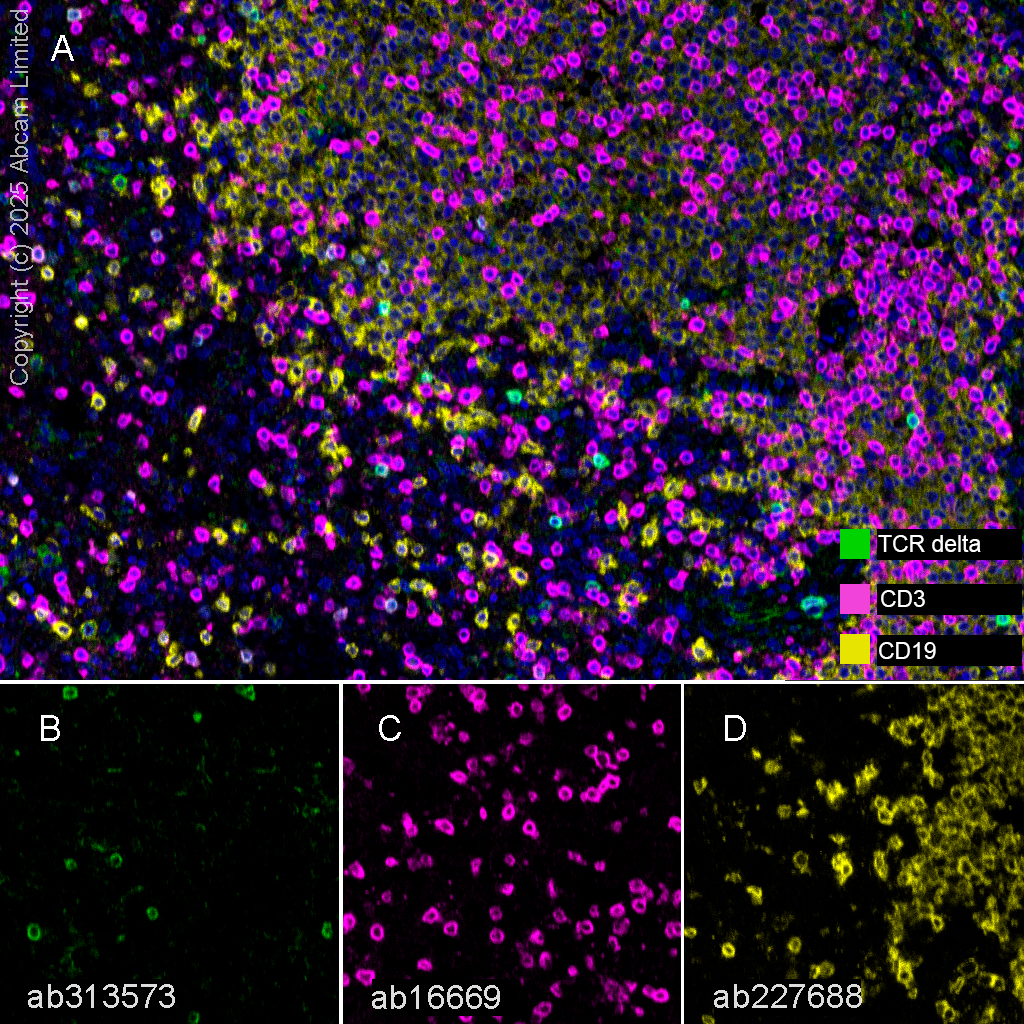

  Multiplex immunohistochemistry - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  CD3 epsilon Multiplex immunohistochemistry staining of Human spleen using rabbit Anti-CD3 epsilon antibody

  This data was developed using Anti-TCR delta antibody [EPR27043-16] ab313573, the same antibody clone in a different buffer formulation.


  Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded human spleen tissue staining TCR delta with Anti-TCR delta antibody [EPR27043-16] ab313573 at a 1/500 dilution, Anti-CD3 epsilon antibody [SP7] ab16669 anti-CD3 used at 1/100 dilution and Anti-CD19 antibody [SP291] - C-terminal ab227688 anti-CD19 used at a 1/100 dilution.

  Panel A: merged staining of anti-TCR delta (green; Opal^™520), anti-CD3 (magenta; Opal^™570) and anti-CD19 (yellow; Opal^™690) on human spleen.

  Panel B: anti-TCR delta staining immune cells in human spleen.

  Panel C: anti-CD3 staining T lymphocytes in human spleen.

  Panel D: anti-CD19 staining B lymphocytes in human spleen.

  Nuclear DNA was labeled with DAPI (shown in blue).

  The section was incubated in three rounds of staining: in the order of Anti-TCR delta antibody [EPR27043-16] ab313573, Anti-CD3 epsilon antibody [SP7] ab16669 and Anti-CD19 antibody [SP291] - C-terminal ab227688 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

  The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal^™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

  Nuclear counter stain with DAPI.

  Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins.

•

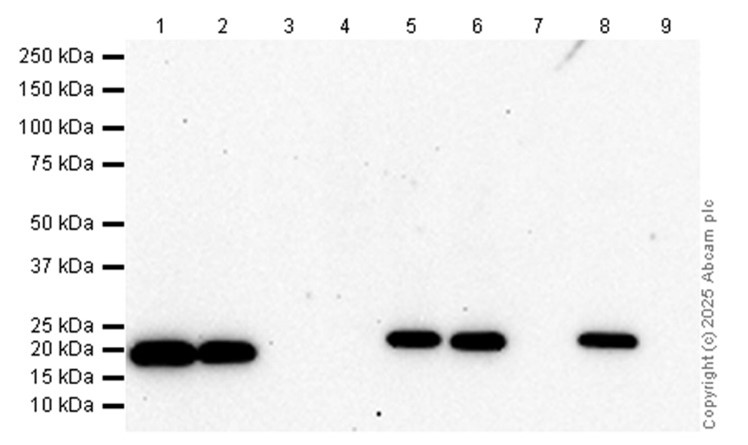

  Western blot - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.


  Negative control: U-937, Raji, brain.

  All lanes: Western blot - Anti-CD3 epsilon antibody [SP7] (Anti-CD3 epsilon antibody [SP7] ab16669) at 1/1000 dilution

  Lane 1: Jurkat (Human T cell leukemia T lymphocyte) whole cell lysate at 20 µg

  Lane 2: MOLT-4 (Human lymphoblastic leukemia T lymphoblast) whole cell lysate at 20 µg

  Lane 3: U-937 (Human histiocytic lymphoma monocyte) whole cell lysate at 20 µg

  Lane 4: Raji (Human Burkitt's lymphoma B lymphocyte) whole cell lysate at 20 µg

  Lane 5: EL4.IL-2 (mouse lymphoma T lymphocyte) whole cell lysate at 20 µg

  Lane 6: Mouse thymus lysate at 20 µg

  Lane 7: Mouse brain lysate at 20 µg

  Lane 8: Rat thymus lysate at 20 µg

  Lane 9: Rat brain lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Observed band size: 23 kDa

  Exposure time: 180s

•

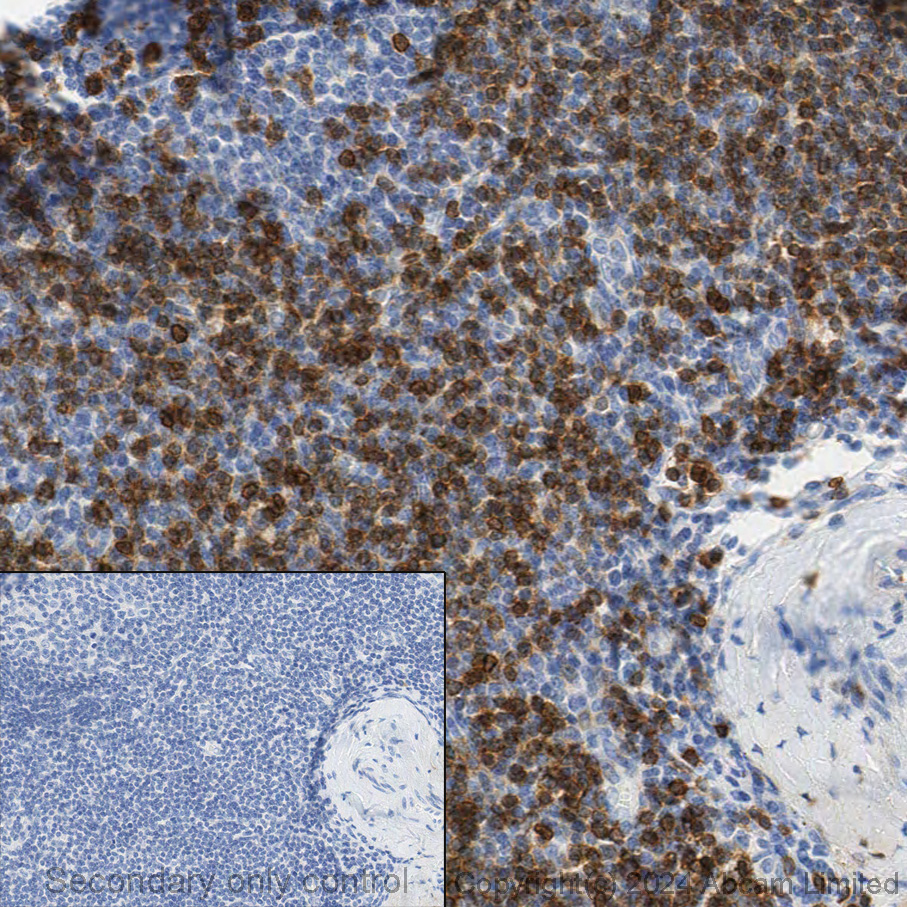

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  Immunohistochemical analysis of formalin fixed paraffin embedded human tonsil labelling CD3 with ab205228 at a concentration of 0.01µg/ml. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with a OptiView DAB IHC Detection Kit. Heat mediated antigen retrieval was performed with DISCOVERY cell conditioning solution (CC1) 100°C, pH8.5 for 32mins.

  ab205228 Anti-CD3 antibody [SP7] was incubated for 16mins at 37°C. Sections were counterstained with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control.

  Customers are encouraged to optimise antigen retrieval conditions, antibody concentration, incubation times and temperature for best results in their own IHC assay workflow (automated and manual).

•

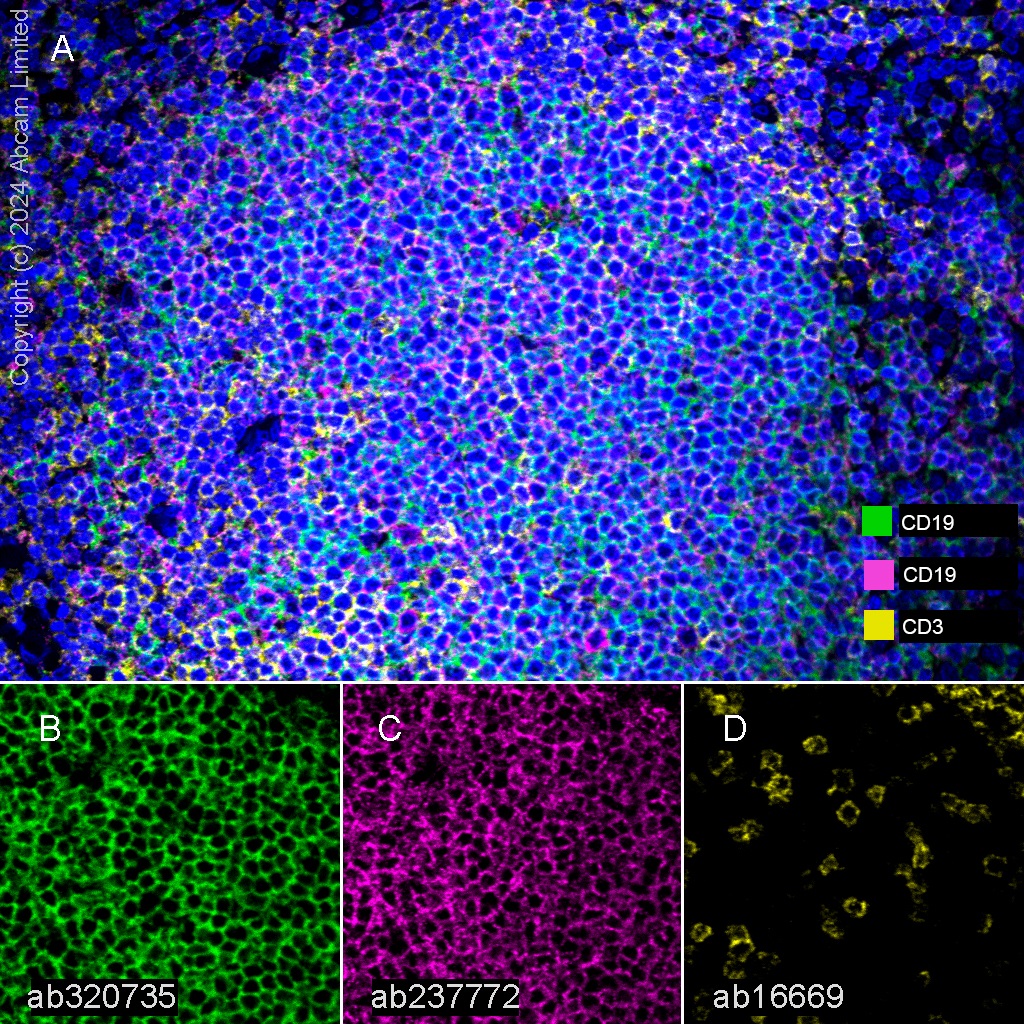

  Multiplex immunohistochemistry - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.


  Panel A: merged staining of anti-CD19 (green; Opal™520), anti-CD19 (magenta; Opal™570) and anti-CD3 (yellow; Opal™690) on human tonsil.
  Panel B: anti-CD19 staining the B lymphocytes in human tonsil.
  Panel C: anti-CD19 staining the B lymphocytes in human tonsil.
  Panel D: anti-CD3 staining the T lymphocytes in human tonsil.
  Nuclear DNA was labeled with DAPI (shown in blue).
  The section was incubated in three rounds of staining: in the order of Anti-CD19 antibody [EPR28949-559] ab320735 at 1/2000 dilution, Anti-CD19 antibody [SP291] - BSA and Azide free ab237772 at 1/5000 dilution and Anti-CD3 epsilon antibody [SP7] ab16669 at 1/150 dilution for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. The secondary used was Opal Polymer HRP Ms + Rb. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.
  The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.
•

  Multiplex immunohistochemistry - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.


  Panel A: merged staining of anti-CD19 (green; Opal™520), anti-CD19 (magenta; Opal™570) and anti-CD3 (yellow; Opal™690) on human Hodgkin's lymphoma.
  Panel B: anti-CD19 staining the B lymphocytes in human Hodgkin's lymphoma.
  Panel C: anti-CD19 staining the B lymphocytes in human Hodgkin's lymphoma.
  Panel D: anti-CD3 staining the T lymphocytes in human Hodgkin's lymphoma.
  Nuclear DNA was labeled with DAPI (shown in blue).
  The section was incubated in three rounds of staining: in the order of Anti-CD19 antibody [EPR28949-559] ab320735 at 1/2000 dilution, Anti-CD19 antibody [SP291] - BSA and Azide free ab237772 at 1/5000 dilution and Anti-CD3 epsilon antibody [SP7] ab16669 at 1/150 dilution for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. The secondary used was Opal Polymer HRP Ms + Rb. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.
  The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.
•

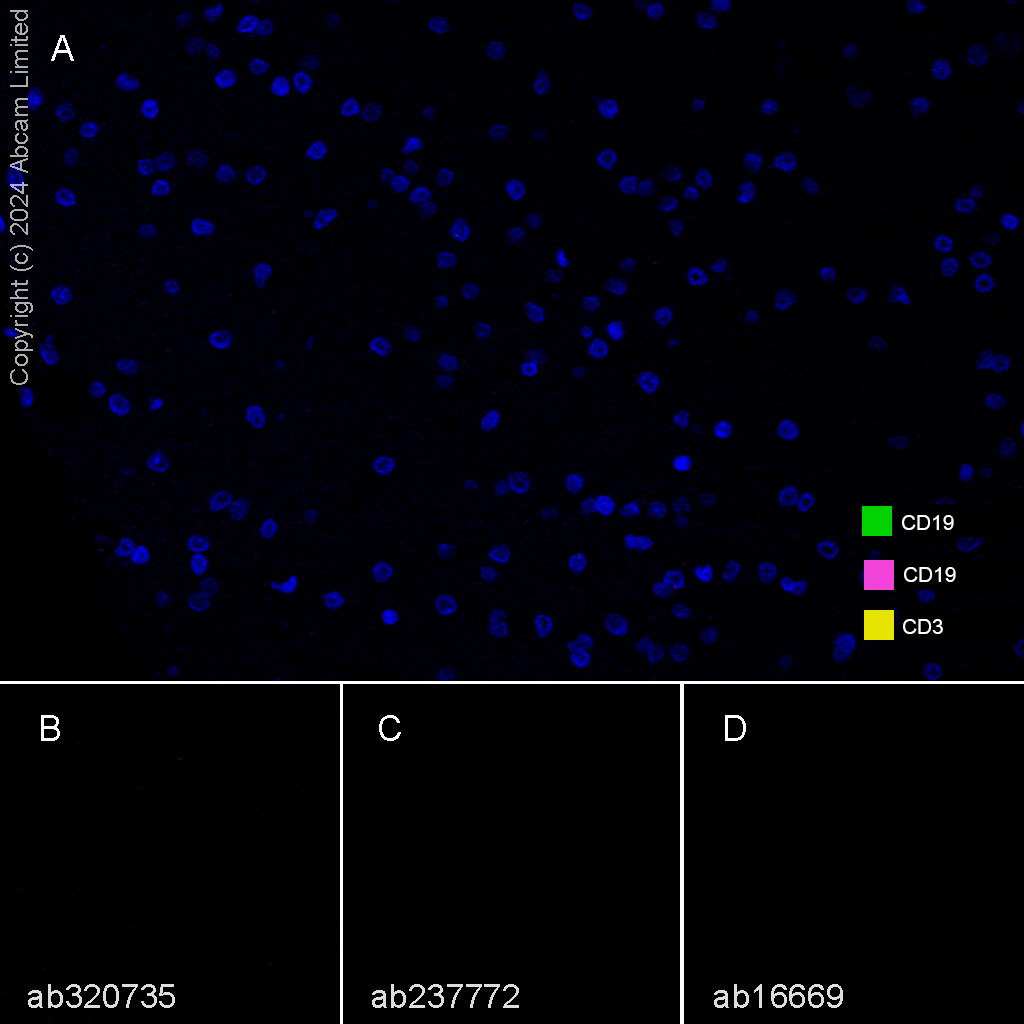

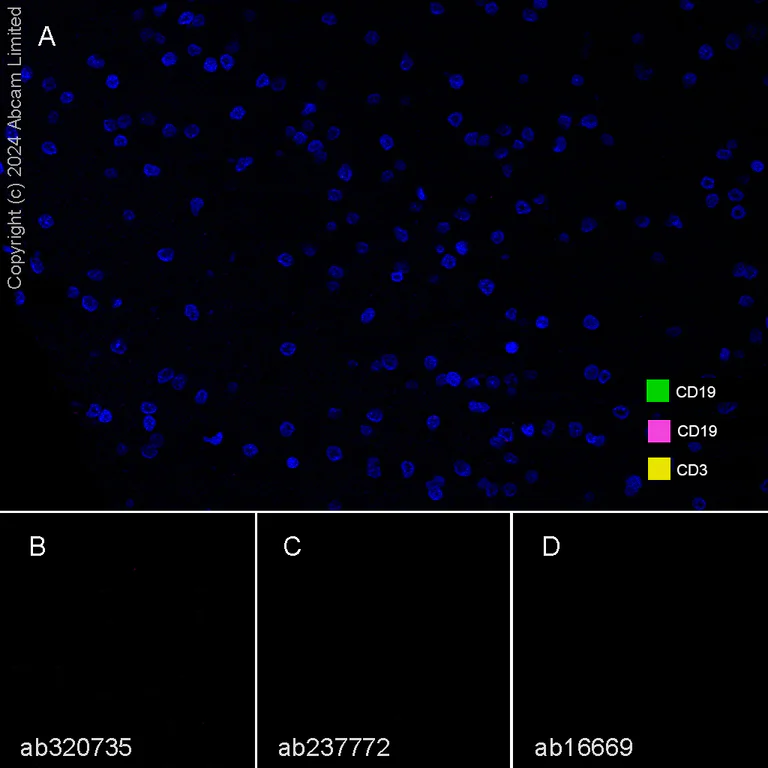

  Multiplex immunohistochemistry - Anti-CD3 epsilon antibody [SP7] - BSA and Azide free (ab205228)

  This data was developed using Anti-CD3 epsilon antibody [SP7] ab16669, the same antibody clone in a different buffer formulation.


  Panel A: merged staining of anti-CD19 (green; Opal™520), anti-CD19 (green; Opal™570) and anti-CD3 (yellow; Opal™690) on human cerebrum.
  Panel B: anti-CD19 showed no staining in human cerebrum.
  Panel C: anti-CD19 showed no staining in human cerebrum.
  Panel D: anti-CD3 showed no staining in human cerebrum.
  Nuclear DNA was labeled with DAPI (shown in blue).
  The section was incubated in three rounds of staining: in the order of Anti-CD19 antibody [EPR28949-559] ab320735 at 1/2000 dilution, Anti-CD19 antibody [SP291] - BSA and Azide free ab237772 at 1/5000 dilution and Anti-CD3 epsilon antibody [SP7] ab16669 at 1/150 dilution for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. The secondary used was Opal Polymer HRP Ms + Rb. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.
  The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.
