Anti-CD3 zeta (phospho Y83) antibody [EP776(2)Y] - BSA and Azide free

• Flow Cyt (Intra)

Lab

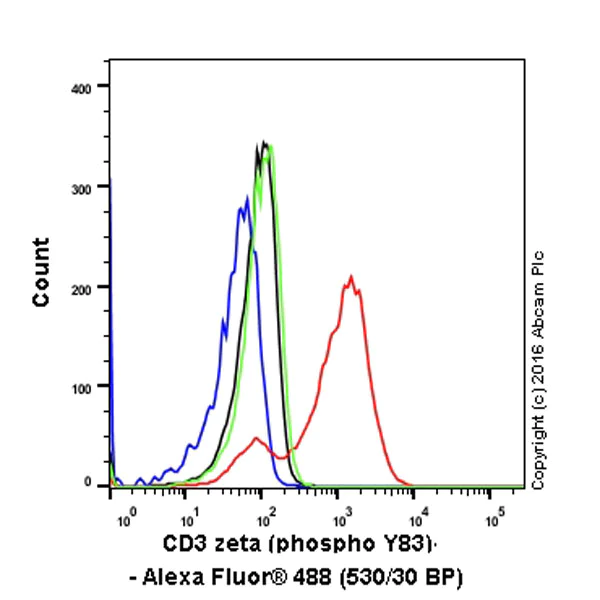

Flow Cytometry (Intracellular) - Anti-CD3 zeta (phospho Y83) antibody [EP776(2)Y] - BSA and Azide free (AB238955)

Flow Cytometry analysis of Jurkat (human acute T cell leukemia) treated (Red)/untreated (Green) with 1mM pervanadate for 4 hours with purified ab68236 at 1/250 dilution. The secondary antibody was Goat anti rabbit IgG (Alexa Fluor^® 488) at 1/2000 dilution. A Rabbit monoclonal IgG (Black) was used as the isotype control and cells without incubation with primary antibody and secondary antibody (Blue) were used as unlabeled control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab68236).

• ICC/IF

Supplier Data

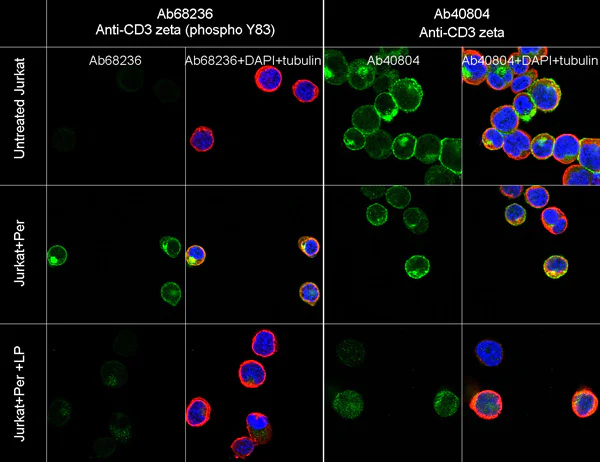

Immunocytochemistry/ Immunofluorescence - Anti-CD3 zeta (phospho Y83) antibody [EP776(2)Y] - BSA and Azide free (AB238955)

Immunocytochemistry/Immunofluorescence analysis of Jurkat cells (untreated, Per treated and Per+LP treated) labelling CD3 zeta (phospho Y83) with ab68236 (left) and CD3 zeta with ab40804 (right) both at a dilution of 1/200. Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/1000) was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain. ab7291, a mouse anti-tubulin (1/1000) and ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/1000) were also used.

The image shows increased cytoplamic staining after Pervanadate (1 mM, 30 min) treatment on Jurkat cells. The LP treatment decreased the cytoplasmic staining caused by Pervanadate.

ab40804 was used as a Pan control for ab68236. The results showed cytoplamic staining on untreated, pervanadate (1 mM, 30 min) treated and Per+LP treated Jurkat cells.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab68236).

• IP

Lab

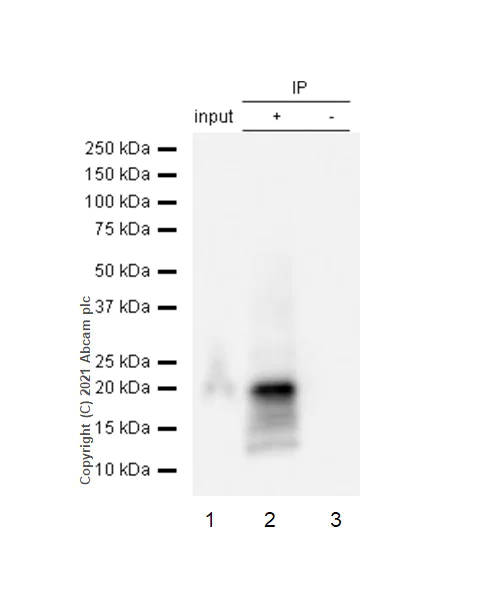

Immunoprecipitation - Anti-CD3 zeta (phospho Y83) antibody [EP776(2)Y] - BSA and Azide free (AB238955)

This data was developed using ab68236, the same antibody clone in a different buffer formulation.

CD3 zeta was immunoprecipitated from 0.35 mg Jurkat (Human T cell leukemia T lymphocyte) treated with pervandate (50mM 5min) whole cell lysate 10 μg with ab68236 at 1/30 dilution (2μg) . VeriBlot for IP Detection Reagent (HRP)(ab131366) was used at 1/5000 dilution.

Lane 1 : Jurkat (Human T cell leukemia T lymphocyte) treated with pervandate (50mM 5min) whole cell lysate 10 μg

Lane 2 : ab68236 IP in Jurkat treated with pervandate (50mM 5min) whole cell lysate

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab68236 in Jurkat treated with pervandate (50mM 5min) whole cell lysate

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

All lanes:

Immunoprecipitation - Anti-CD3 zeta (phospho Y83) antibody [EP776(2)Y] (<a href='/en-us/products/primary-antibodies/cd3-zeta-phospho-y83-antibody-ep7762y-ab68236'>ab68236</a>)

Predicted band size: 19 kDa

Observed band size: 18-22 kDa

false

• Dot

Unknown

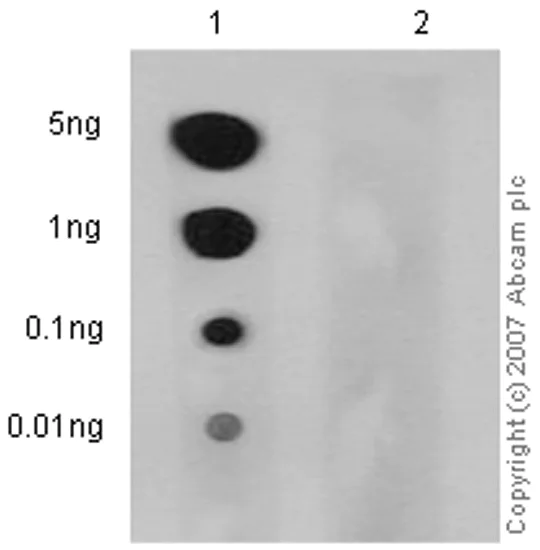

Dot Blot - Anti-CD3 zeta (phospho Y83) antibody [EP776(2)Y] - BSA and Azide free (AB238955)

Dot blot analysis of CD3 zeta (pY83) phospho peptide (lane 1) and CD3 zeta non-phospho peptide (lane 2) labelling CD3 zeta (phospho Y83) with ab68236 at a dilution of 1/1000. A peroxidase-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/2500).

Blocking and dilution buffer : 5% NFDM/TBST.

Exposure time : 3 minutes.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab68236).
