Rabbit Recombinant Monoclonal CD31 antibody. Carrier free. Suitable for IHC-P, WB, Flow Cyt (Intra) and reacts with Human samples. Cited in 1 publication.

Be the first to review this product! Submit a review

Images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (AB226157), expandable thumbnail
  • Flow Cytometry (Intracellular) - Anti-CD31 antibody [EP3095] - BSA and Azide free (AB226157), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (AB226157), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (AB226157), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (AB226157), expandable thumbnail

Publications

Key facts

Isotype

IgG

Host species

Rabbit

Storage buffer

pH: 7.2 - 7.4
Constituents: PBS

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IHC-PIPWBICC/IFFlow Cyt (Intra)
Human
Tested
Not recommended
Expected
Not recommended
Tested

Tested
Tested

Species

Human

Dilution info

-

Notes

The ideal fixation time will depend on the size of the tissue block and the type of tissue, but fixation between 18–24h is suitable for most samples.

Positive Control: Hu tonsil tissue

Perform heat-mediated antigen retrieval before commencing with IHC staining protocol.

Not recommended
Not recommended

Species

Human

Dilution info

-

Notes

-

Expected
Expected

Species

Human

Dilution info

-

Notes

Treat samples with PNGase F or phosphatase to confirm the specificity of bands if necessary.

The observed band size of CD31 may not the same as predicted MWs in WB due to the different forms and modifications of CD31.

Hu Isoform 1-6: 79-83 kDa (predicted)

Observed band size is around 130 kDa

Positive Control: HUVEC and Jurkat cell lysates (ab7899); Human spleen and kidney tissue lysate.

Negative Control: NIH/3T3 whole cell lysate (ab7179).

Not recommended
Not recommended

Species

Human

Dilution info

-

Notes

-

Tested
Tested

Species

Human

Dilution info

-

Notes

ab172730 - Rabbit monoclonal IgG, is suitable for use as an isotype control with this antibody.

Associated Products

Select an associated product type

15 products for Alternative Product

9 products for Alternative Version

Target data

Function

Cell adhesion molecule which is required for leukocyte transendothelial migration (TEM) under most inflammatory conditions (PubMed:19342684, PubMed:17580308). Tyr-690 plays a critical role in TEM and is required for efficient trafficking of PECAM1 to and from the lateral border recycling compartment (LBRC) and is also essential for the LBRC membrane to be targeted around migrating leukocytes (PubMed:19342684). Trans-homophilic interaction may play a role in endothelial cell-cell adhesion via cell junctions (PubMed:27958302). Heterophilic interaction with CD177 plays a role in transendothelial migration of neutrophils (PubMed:17580308). Homophilic ligation of PECAM1 prevents macrophage-mediated phagocytosis of neighboring viable leukocytes by transmitting a detachment signal (PubMed:12110892). Promotes macrophage-mediated phagocytosis of apoptotic leukocytes by tethering them to the phagocytic cells; PECAM1-mediated detachment signal appears to be disabled in apoptotic leukocytes (PubMed:12110892). Modulates bradykinin receptor BDKRB2 activation (PubMed:18672896). Regulates bradykinin- and hyperosmotic shock-induced ERK1/2 activation in endothelial cells (PubMed:18672896). Induces susceptibility to atherosclerosis (By similarity).Isoform Delta15Does not protect against apoptosis.

Alternative names

Platelet endothelial cell adhesion molecule, PECAM-1, EndoCAM, GPIIA', PECA1, PECAM1

Recommended products

Rabbit Recombinant Monoclonal CD31 antibody. Carrier free. Suitable for IHC-P, WB, Flow Cyt (Intra) and reacts with Human samples. Cited in 1 publication.

Alternative names

Platelet endothelial cell adhesion molecule, PECAM-1, EndoCAM, GPIIA', PECA1, PECAM1

Key facts

Isotype

IgG

Form

Liquid

Clonality

Monoclonal

Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Carrier free

Yes

Clone number

EP3095

Purification technique

Affinity purification Protein A

Specificity

This antibody gave positive results in mouse and rat tissue staining via IHC-P, but we have had difficulties obtaining consistent positive results in WB with mouse and rat samples. Thus, at this time we unfortunately cannot guarantee this antibody to recognize mouse and rat CD31, and optimization may be necessary when working with these species.

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate long-term storage conditions

+4°C

Storage information

Do Not Freeze

Notes

ab226157 is the carrier-free version of Anti-CD31 antibody [EP3095] ab134168.

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. The carrier-free buffer and high concentration allow for increased conjugation efficiency.

This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

9 product images

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157)

    Immunohistochemical analysis of paraffin-embedded Human uterus tissue, staining CD31 using Anti-CD31 antibody [EP3095] ab134168 at a 1/250 dilution. Note membrane staining of endothelial cells.

    Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD31 antibody [EP3095] ab134168).

  • Flow Cytometry (Intracellular) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157), expandable thumbnail

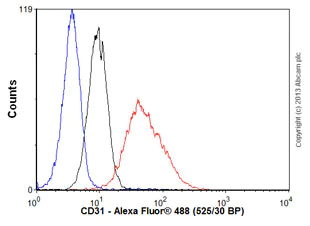

    Flow Cytometry (Intracellular) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157)

    Overlay histogram showing Jurkat cells stained with Anti-CD31 antibody [EP3095] ab134168 (red line). The cells were fixed with 80% methanol (5 min)/ and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (Anti-CD31 antibody [EP3095] ab134168, 1/1000 dilution) for 30 min at 22°C. The secondary antibody used was Alexa Fluor® 488 goat anti-rabbit IgG (H&L) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1μg/1x106 cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD31 antibody [EP3095] ab134168).

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157)

    Immunohistochemical analysis of paraffin-embedded Human tonsil tissue, staining CD31 using Anti-CD31 antibody [EP3095] ab134168 at a 1/250 dilution. Note membrane staining of endothelial cells.

    Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD31 antibody [EP3095] ab134168).

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157)

    Immunohistochemical analysis of paraffin embedded normal Human spleen vessels tissue using Anti-CD31 antibody [EP3095] ab134168 showing +ve staining.

    Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD31 antibody [EP3095] ab134168).

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157)

    Immunohistochemical analysis of paraffin embedded Human Breast carcinoma vessels tissue using Anti-CD31 antibody [EP3095] ab134168 showing +ve staining.

    Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD31 antibody [EP3095] ab134168).

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157)

    Immunohistochemical analysis of paraffin embedded Human Clear cell carcinoma of kidney tissue using Anti-CD31 antibody [EP3095] ab134168 showing +ve staining.

    Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD31 antibody [EP3095] ab134168).

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157)

    Immunohistochemical analysis of paraffin embedded normal Human lung tissue using Anti-CD31 antibody [EP3095] ab134168 showing +ve staining.

    Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CD31 antibody [EP3095] ab134168).

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157)

    CD31 immunohistochemistry staining of human lung using rabbit anti-CD31 antibody

    This data was developed using the same antibody clone in a different buffer formulation (Anti-CD31 antibody [EPR17259] ab182981).

    Immunohistochemical analysis of formalin fixed paraffin embedded human lung labelling CD31 with Anti-CD31 antibody [EPR17259] ab182981 at a concentration of 0.35 µg/ml. The immunostaining was performed on a Leica Biosystems BOND® RX instrument with a Bond™ Polymer Refine Detection kit. Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution 2) for 20 mins.ab182981Anti-CD31 antibody was incubated for 30 mins at room temperature. Sections were counterstained with Hematoxylin. Image inset shows absence of staining in secondary antibody only control.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD31 antibody [EP3095] - BSA and Azide free (ab226157)

    CD31 immunohistochemistry staining of human lung using rabbit anti-CD31 antibody

    This data was developed using the same antibody clone in a different buffer formulation (Anti-CD31 antibody [EPR17259] ab182981).

    Immunohistochemical analysis of formalin fixed paraffin embedded human lung labelling CD31 with Anti-CD31 antibody [EPR17259] ab182981 at a concentration of 0.52 µg/ml. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with an OptiView DAB IHC Detection Kit. Heat mediated antigen retrieval was conducted for 32 mins at 100°C with ULTRA cell conditioning solution (CC1, pH 8.5). ab182981Anti-CD31 antibody was incubated at 37°C for 16 mins. Sections were counterstained with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
