AB284663

Anti-CD31 antibody [MEC 13.3] - BSA and Azide free

Be the first to review this product! Submit a review

|

(0 Publication)

Rat Recombinant Monoclonal CD31 antibody. Carrier free. Suitable for ICC/IF, Flow Cyt and reacts with Mouse samples.
2 Images
Immunocytochemistry/ Immunofluorescence - Anti-CD31 antibody [MEC 13.3] - BSA and Azide free (AB284663)
  • ICC/IF

Unknown

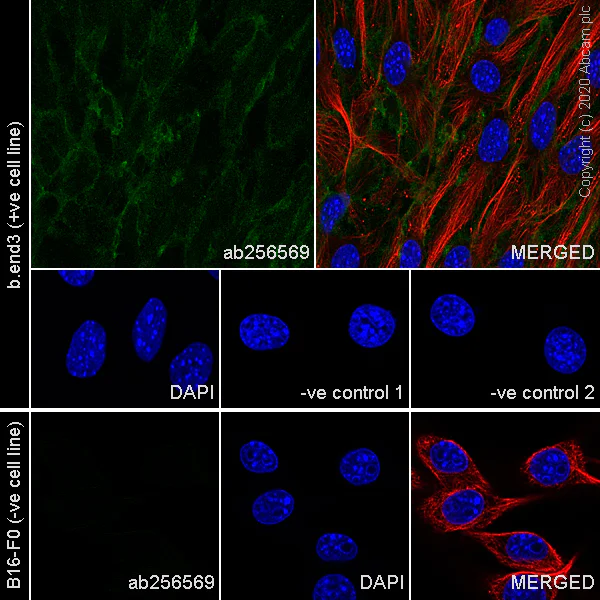

Immunocytochemistry/ Immunofluorescence - Anti-CD31 antibody [MEC 13.3] - BSA and Azide free (AB284663)

This data was developed using ab256569, the same antibody clone in a different buffer formulation.Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized b.end3 and B16-F0(-) cells labelling CD31 with ab256569 at 1/50 dilution (21.16µg/ml), followed by ab150157 Goat Anti-rat IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution (2µg/ml) (Green). Confocal image showing membranous and cytoplasmic staining in b.end3 cells.

Negative control : B16-F0 (PMID : 8082649).

ab179513 Anti-beta Tubulin rabbit monoclonal antibody was used to counterstain tubulin at 1/200 dilution (2.5µg/ml), followed by ab150080 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) at a 1/500 dilution (4µg/ml) (Red). The nuclear counterstain was DAPI (Blue).

Negative control 1 : ab256569 at a 1/50 dilution (21.16µg/ml) followed by ab150080 at a 1/500 dilution (4µg/ml).

Negative control 2 : ab179513 at 1/200 dilution (2.5µg/ml) followed by ab150157 at a 1/1000 dilution (2µg/ml).

Flow Cytometry - Anti-CD31 antibody [MEC 13.3] - BSA and Azide free (AB284663)
  • Flow Cyt

Unknown

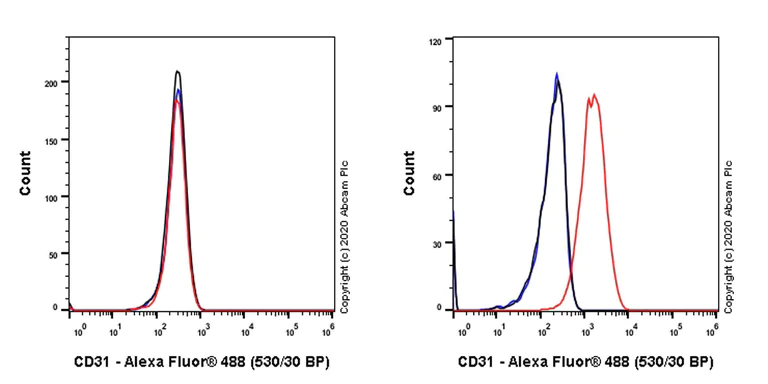

Flow Cytometry - Anti-CD31 antibody [MEC 13.3] - BSA and Azide free (AB284663)

This data was developed using ab256569, the same antibody clone in a different buffer formulation.Flow cytometric analysis of B16-F0 (mouse melanoma epithelial cell-like) (Left panel) / bEnd.3 (mouse brain endothelioma) (Right panel) cells labelling CD31 with ab256569 at 1/1000 dilution (1.058µg/ml) (Red) compared with a rat monoclonal IgG (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). Goat F(ab)2 Anti-rat IgG Fc (Alexa Fluor® 488, ab150161) at 1/2000 dilution was used as the secondary antibody.

Negative control : B16-F0 (PMID : 8082649).

Gated on viable cells.

Key facts

Host species

Rat

Clonality

Monoclonal

Clone number

MEC 13.3

Isotype

IgG2a

Carrier free

Yes

Reacts with

Mouse

Applications

Flow Cyt, ICC/IF

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Complementary Products

Assay Kits

AB204527

Mouse CD31 ELISA Kit (PECAM1)

Recombinant|SimpleStep

Sandwich ELISA - Mouse CD31 ELISA Kit (PECAM1) (AB204527)

  • 0
  • 0
Sample Prep & Detection Kits

AB269900

PE/Atto 594 Conjugation Kit - Lightning-Link®

Schematic Diagram - PE/Atto 594 Conjugation Kit - Lightning-Link® (AB269900)

  • 0
  • 0
Sample Prep & Detection Kits

AB186922

Biotin Gold Conjugate (40nm, 10 OD)

Functional Studies - Biotin Gold Conjugate (40nm, 10 OD) (AB186922)

  • 0
  • 0
Primary Antibodies

AB24982

Cy5 ® Anti-CD45.1 antibody [A20]

  • 0
  • 0
Primary Antibodies

AB124964

Anti-alpha smooth muscle Actin antibody [EPR5368]

BOND RX™ Validated|RabMAb|Recombinant|KO Validated|20ul selling size

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-alpha smooth muscle Actin antibody [EPR5368] (AB124964)

  • 5
  • 19
Primary Antibodies

AB252149

Alexa Fluor® 488 Anti-CD4 antibody [EPR20122]

RabMAb|Recombinant

Flow Cytometry - Alexa Fluor® 488 Anti-CD4 antibody [EPR20122] (AB252149)

  • 0
  • 0
Primary Antibodies

AB237365

Alexa Fluor® 647 Anti-CD8 alpha antibody [EPR21769]

BOND RX™ Validated|RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-CD8 alpha antibody [EPR21769] (AB237365)

  • 0
  • 0
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "IHCFr" : {"fullname" : "Immunohistochemistry (Frozen sections)", "shortname":"IHC-Fr"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "" }, "Mouse": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p>Use 0.3M glycine to quench autofluorescence caused by aldehydes.Positive Control: HUVEC cells</p>", "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "<p></p>" }, "Rat": { "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "" } } }
style
left-column

Product details

ab284663 is the carrier-free version of ab256569

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Want a custom formulation?
This antibody clone is manufactured by Abcam. If you require a custom buffer formulation or conjugation for your experiments, please contact orders@abcam.com

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Ion exchange chromatography
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze
style
left-column
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Cell adhesion molecule which is required for leukocyte transendothelial migration (TEM) under most inflammatory conditions (By similarity). Tyr-679 plays a critical role in TEM and is required for efficient trafficking of PECAM1 to and from the lateral border recycling compartment (LBRC) and is also essential for the LBRC membrane to be targeted around migrating leukocytes (By similarity). Trans-homophilic interaction may play a role in endothelial cell-cell adhesion via cell junctions (By similarity). Heterophilic interaction with CD177 plays a role in transendothelial migration of neutrophils (By similarity). Homophilic ligation of PECAM1 prevents macrophage-mediated phagocytosis of neighboring viable leukocytes by transmitting a detachment signal (By similarity). Promotes macrophage-mediated phagocytosis of apoptotic leukocytes by tethering them to the phagocytic cells; PECAM1-mediated detachment signal appears to be disabled in apoptotic leukocytes (By similarity). Modulates bradykinin receptor BDKRB2 activation (By similarity). Regulates bradykinin- and hyperosmotic shock-induced ERK1/2 activation in endothelial cells (By similarity). Induces susceptibility to atherosclerosis (PubMed : 19048083).
See full target information Pecam1

Alternative Names

CD31, Pecam, Pecam-1, Pecam1, Platelet endothelial cell adhesion molecule, PECAM-1
style
left-column
style
left-column
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
