Anti-CD38 antibody [EPR4106] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD38 antibody [EPR4106] - BSA and Azide free (AB226034)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human endometrial adenocarcinoma tissue labelling CD38 with unpurified ab108403 at a dilution of 1/100.

Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (ab108403).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD38 antibody [EPR4106] - BSA and Azide free (AB226034)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human lymph node tissue labelling CD38 with unpurified ab108403.

Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (ab108403).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD38 antibody [EPR4106] - BSA and Azide free (AB226034)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human tonsil tissue labelling CD38 with unpurified ab108403 at a dilution of 1/100.

Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (ab108403).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD38 antibody [EPR4106] - BSA and Azide free (AB226034)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of normal human colon tissue labelling CD38 with unpurified ab108403.

Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (ab108403).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD38 antibody [EPR4106] - BSA and Azide free (AB226034)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human skeletal muscle tissue labelling CD38 with purified ab108403 at 1/500. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (ab108403).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD38 antibody [EPR4106] - BSA and Azide free (AB226034)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human tonsil tissue labelling CD38 with purified ab108403 at 1/500. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (ab108403).

• WB

Lab

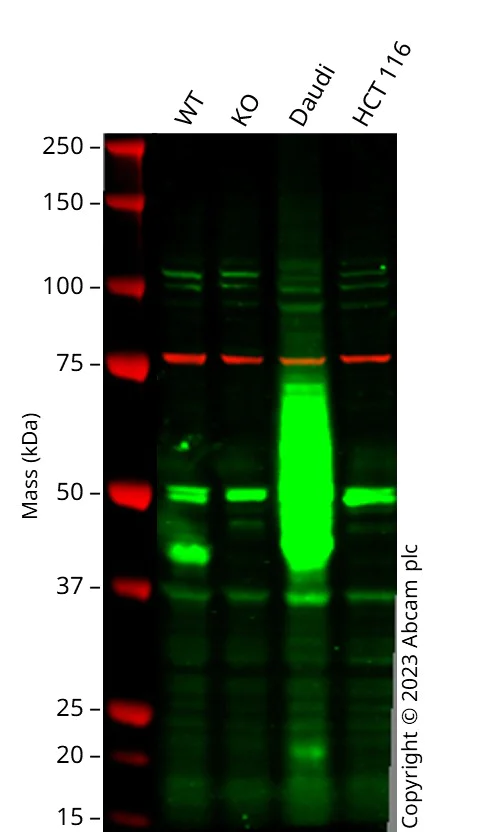

Western blot - Anti-CD38 antibody [EPR4106] - BSA and Azide free (AB226034)

This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (ab108403). Anti-CD38 antibody [EPR4106] staining at 1/2000 dilution, shown in green; Mouse anti-CANX [CANX/1543] (ab238078) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab108403 was shown to bind specifically to CD38. A band was observed at 42 kDa in wild-type A549 cell lysates with no signal observed at this size in CD38 knockout cell line. To generate this image, wild-type and CD38 knockout A549 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

All lanes:

Western blot - Anti-CD38 antibody [EPR4106] (<a href='/en-us/products/primary-antibodies/cd38-antibody-epr4106-ab108403'>ab108403</a>) at 1/2000 dilution

Lane 1:

Wild-type A549 cell lysate at 20 µg

Lane 2:

Western blot - Human CD38 knockout A549 cell line (<a href='/en-us/products/cell-lines/human-cd38-knockout-a549-cell-line-ab289025'>ab289025</a>)

Lane 2:

CD38 knockout A549 cell lysate at 20 µg

Lane 3:

Daudi cell lysate at 20 µg

Lane 4:

HCT 116 cell lysate at 20 µg

Secondary

All lanes:

Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

Predicted band size: 34 kDa

Observed band size: 42 kDa

false

• OI-RD Scanning

Unknown

OI-RD Scanning - Anti-CD38 antibody [EPR4106] - BSA and Azide free (AB226034)

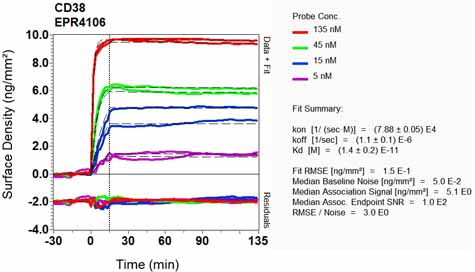

We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody. Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.
