Rabbit Recombinant Monoclonal CD3d antibody. Carrier free. Suitable for IHC-P, ICC/IF, Flow Cyt, WB and reacts with Human samples.

Be the first to review this product! Submit a review

Images

Flow Cytometry - Anti-CD3D antibody [EP4426] - BSA and Azide free (AB226073), expandable thumbnail
  • Western blot - Anti-CD3D antibody [EP4426] - BSA and Azide free (AB226073), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-CD3D antibody [EP4426] - BSA and Azide free (AB226073), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3D antibody [EP4426] - BSA and Azide free (AB226073), expandable thumbnail

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Constituents: 100% PBS

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IHC-PICC/IFFlow CytWB
Human
Tested
Tested
Tested
Tested

Tested
Tested

Species
Human
Dilution info
-
Notes

Perform heat-mediated antigen retrieval via the pressure cooker method before commencing with IHC staining protocol.

Tested
Tested

Species
Human
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
-
Notes

-

Associated Products

Select an associated product type

7 products for Alternative Version

2 products for Alternative Product

Target data

Function

Part of the TCR-CD3 complex present on T-lymphocyte cell surface that plays an essential role in adaptive immune response. When antigen presenting cells (APCs) activate T-cell receptor (TCR), TCR-mediated signals are transmitted across the cell membrane by the CD3 chains CD3D, CD3E, CD3G and CD3Z. All CD3 chains contain immunoreceptor tyrosine-based activation motifs (ITAMs) in their cytoplasmic domain. Upon TCR engagement, these motifs become phosphorylated by Src family protein tyrosine kinases LCK and FYN, resulting in the activation of downstream signaling pathways (PubMed:2470098). In addition of this role of signal transduction in T-cell activation, CD3D plays an essential role in thymocyte differentiation. Indeed, participates in correct intracellular TCR-CD3 complex assembly and surface expression. In absence of a functional TCR-CD3 complex, thymocytes are unable to differentiate properly. Interacts with CD4 and CD8 and thus serves to establish a functional link between the TCR and coreceptors CD4 and CD8, which is needed for activation and positive selection of CD4 or CD8 T-cells (PubMed:12215456).

Alternative names

CD3d, T3D, CD3D, T-cell surface glycoprotein CD3 delta chain, T-cell receptor T3 delta chain

Recommended products

Rabbit Recombinant Monoclonal CD3d antibody. Carrier free. Suitable for IHC-P, ICC/IF, Flow Cyt, WB and reacts with Human samples.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Carrier free
Yes
Clone number
EP4426
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze

Notes

ab226073 is the carrier-free version of Anti-CD3D antibody [EP4426] ab109531.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. The carrier-free buffer and high concentration allow for increased conjugation efficiency.

This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

4 product images

  • Flow Cytometry - Anti-CD3D antibody [EP4426] - BSA and Azide free (ab226073), expandable thumbnail

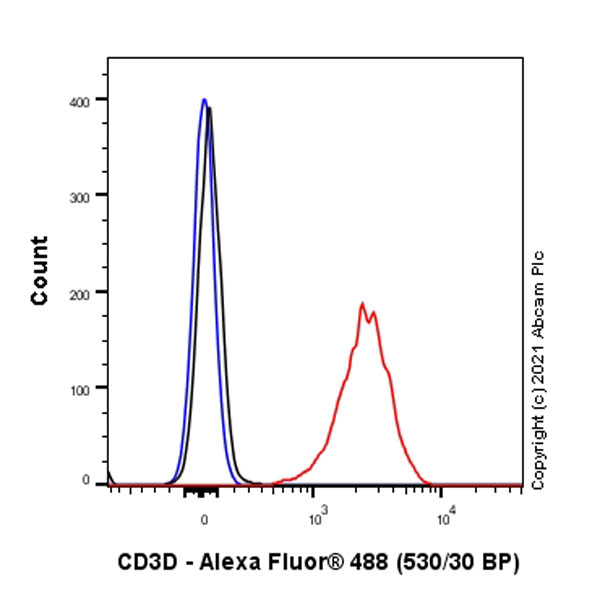

    Flow Cytometry - Anti-CD3D antibody [EP4426] - BSA and Azide free (ab226073)

    This data was developed using ab226073, the same antibody clone in a different buffer formulation.
    Flow Cytometry analysis of Jurkat (Human T cell leukemia T lymphocyte) cells labelling CD3D with Purified ab226073 at 1:20 dilution (5 μg/ml) (Red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) secondary antibody was used at 1:2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabelled control - Cell without incubation with primary antibody and secondary antibody (Blue).

  • Western blot - Anti-CD3D antibody [EP4426] - BSA and Azide free (ab226073), expandable thumbnail

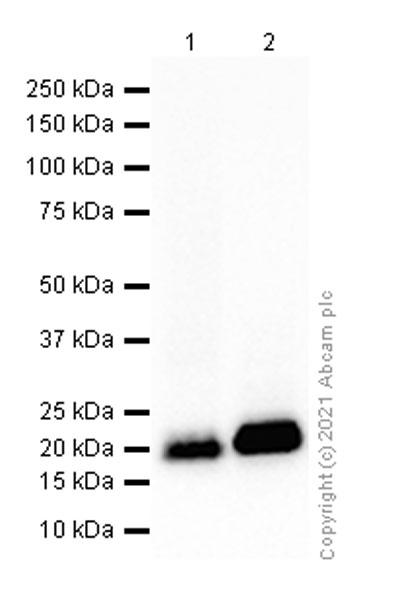

    Western blot - Anti-CD3D antibody [EP4426] - BSA and Azide free (ab226073)

    All lanes: Western blot - Anti-CD3D antibody [EP4426] (Anti-CD3D antibody [EP4426] ab109531) at 1/1000 dilution

    Lane 1: Jurkat (Human T cell leukemia T lymphocyte) whole cell lysate

    Lane 2: HuT-78 (Human Sezary syndrome cutaneous T lymphocyte) whole cell lysate

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

    Predicted band size: 19 kDa

  • Immunocytochemistry/ Immunofluorescence - Anti-CD3D antibody [EP4426] - BSA and Azide free (ab226073), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-CD3D antibody [EP4426] - BSA and Azide free (ab226073)

    This data was developed using ab226073, the same antibody clone in a different buffer formulation.
    Immunocytochemistry analysis of Jurkat (Human T cell leukemia T lymphocyte) cells labeling CD3D with Purified ab226073 at 1:50 dilution (2.6 μg/ml). Cells were fixed in 100% Methanol and permeabilized with 0.1% tritonX-100. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) 1:200 (2.5 μg/ml). Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1:1000 (2 μg/ml) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3D antibody [EP4426] - BSA and Azide free (ab226073), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3D antibody [EP4426] - BSA and Azide free (ab226073)

    This data was developed using Anti-CD3D antibody [EP4426] ab109531, the same antibody clone in a different buffer formulation.
    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human tonsil tissue sections labeling CD3D with Purified Anti-CD3D antibody [EP4426] ab109531 at 1:100 dilution (1.3 μg/ml). Heat mediated antigen retrieval was performed using Heat mediated antigen retrieval using Bond™ Epitope Retrieval Solution 1 (pH 6.0) . Tissue was counterstained with Hematoxylin. Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101) secondary antibody was used at 1:0 dilution. PBS instead of the primary antibody was used as the negative control.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
