AB213362

Anti-CD3D antibody [EPR20544]

Be the first to review this product! Submit a review

|

(4 Publications)

Rabbit Recombinant Monoclonal CD3d antibody. Suitable for IP, Flow Cyt, WB, IHC-Fr, IHC-P and reacts with Mouse samples. Cited in 4 publications.

View Alternative Names

CD3d, T3d, Cd3d, T-cell surface glycoprotein CD3 delta chain, T-cell receptor T3 delta chain

6 Images
Immunohistochemistry (Frozen sections) - Anti-CD3D antibody [EPR20544] (AB213362)
  • IHC-Fr

Supplier Data

Immunohistochemistry (Frozen sections) - Anti-CD3D antibody [EPR20544] (AB213362)

Immunohistochemical analysis of 4% paraformaldehyde-fixed 0.2% Triton X-100 permeabilized frozen mouse spleen tissue labeling CD3D with ab213362 at 1/100 dilution followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green).

Cytoplasmic and membranous staining on mouse splenic periarterial lymphatic sheath is observed.

The nuclear counterstain is DAPI (blue).

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) at 1/1000 dilution.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3D antibody [EPR20544] (AB213362)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3D antibody [EPR20544] (AB213362)

Immunohistochemical analysis of paraffin-embedded mouse thymus tissue labeling CD3D with ab213362 at 1/2000 dilution followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Cytoplasmic and membranous staining on T cells of mouse thymus medulla is observed.

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Flow Cytometry - Anti-CD3D antibody [EPR20544] (AB213362)
  • Flow Cyt

Supplier Data

Flow Cytometry - Anti-CD3D antibody [EPR20544] (AB213362)

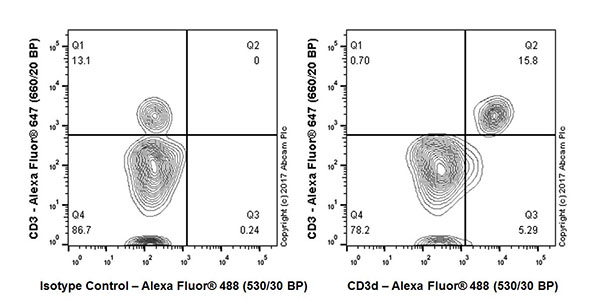

Flow cytometric analysis of mouse spleen cells labeling CD3D with ab213362 at 1/600 dilution (right panel) compared with a rabbit monoclonal IgG isotype control (ab172730) (left panel). Goat anti rabbit IgG (Alexa Fluor® 488) at 1/2000 dilution was used as the secondary antibody.

Firstly cells surface was stained with anti-mouse CD3 Alexa Fluor 647 (Y axis) then cells were fixed with 4% PFA followed by intracellular staining with ab213362. The same population of cells were stained by both : anti-mouse CD3 and anti-mouse CD3D (ab213362) antibodies.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3D antibody [EPR20544] (AB213362)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3D antibody [EPR20544] (AB213362)

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue labeling CD3D with ab213362 at 1/2000 dilution followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Cytoplasmic staining on T cells of mouse splenic periarterial lymphatic sheath is observed.

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Immunoprecipitation - Anti-CD3D antibody [EPR20544] (AB213362)
  • IP

Supplier Data

Immunoprecipitation - Anti-CD3D antibody [EPR20544] (AB213362)

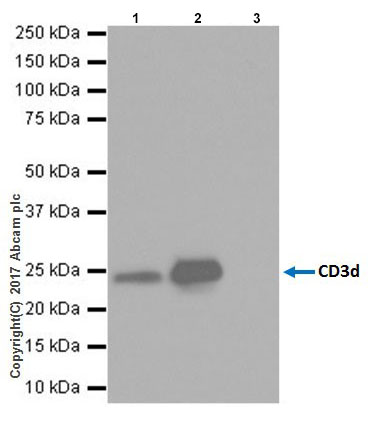

CD3D was immunoprecipitated from 0.35 mg of mouse thymus lysate with ab213362 at 1/30 dilution.

Western blot was performed from the immunoprecipitate using ab213362 at 1/1000 dilution.

VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10,000 dilution.

Lane 1 : Mouse thymus lysate, 10 μg (Input).

Lane 2 : ab213362 IP in mouse thymus lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab213362 in mouse thymus lysate .

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 10 seconds.

All lanes:

Immunoprecipitation - Anti-CD3D antibody [EPR20544] (ab213362)

Predicted band size: 19 kDa

Observed band size: 24 kDa

false

Western blot - Anti-CD3D antibody [EPR20544] (AB213362)
  • WB

Supplier Data

Western blot - Anti-CD3D antibody [EPR20544] (AB213362)

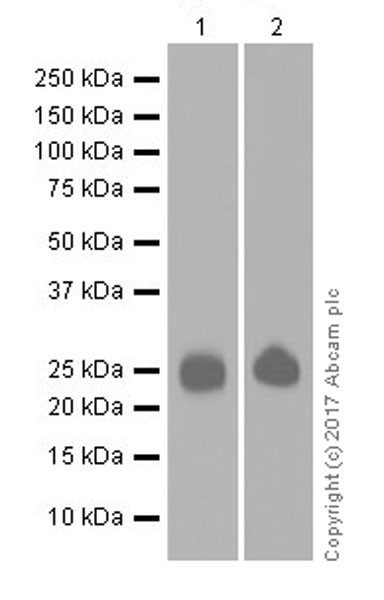

Blocking/Dilution buffer : 5% NFDM/TBST.

Exposure time : Lane 1 : 15 seconds; Lane 2 : 3 minutes.

All lanes:

Western blot - Anti-CD3D antibody [EPR20544] (ab213362) at 1/1000 dilution

Lane 1:

Mouse thymus tissue lysate at 20 µg

Lane 2:

Mouse lymph node tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 19 kDa

Observed band size: 24 kDa

false

  • Carrier free

    Anti-CD3D antibody [EPR20544] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR20544

Isotype

IgG

Carrier free

No

Reacts with

Mouse

Applications

WB, IHC-Fr, IP, Flow Cyt, IHC-P

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Alternative Products

Primary Antibodies

AB198935

Alexa Fluor® 488 Anti-CD3D antibody [EP4426]

RabMAb|Recombinant

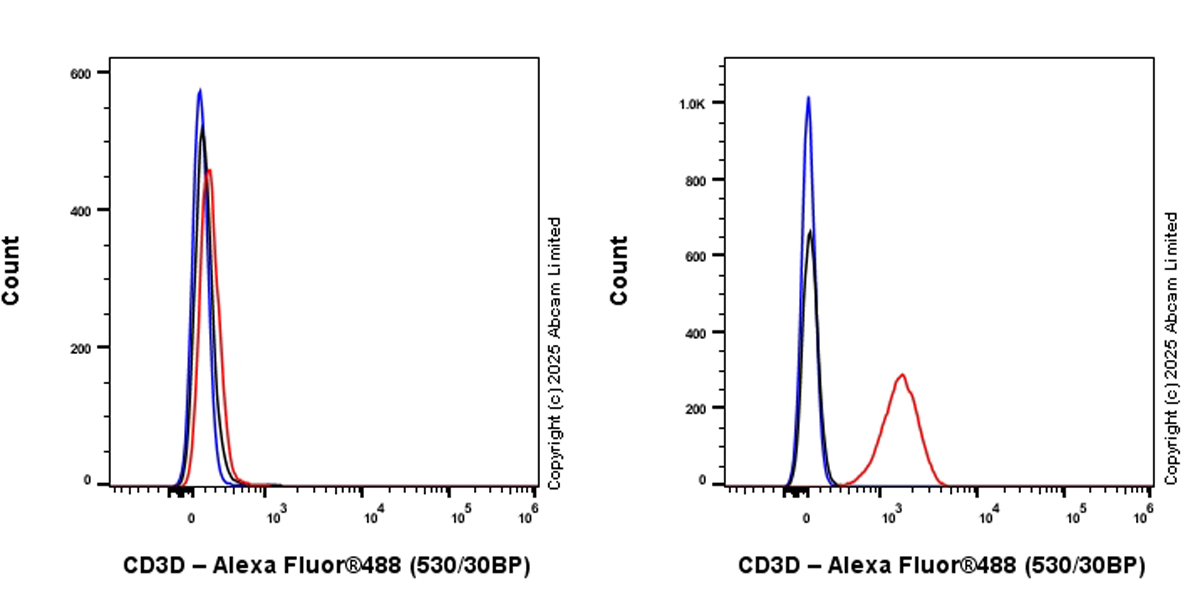

Flow Cytometry (Intracellular) - Alexa Fluor® 488 Anti-CD3D antibody [EP4426] (AB198935)

  • 0
  • 0
Primary Antibodies

AB109531

Anti-CD3D antibody [EP4426]

RabMAb|Recombinant|20ul selling size

Immunocytochemistry/ Immunofluorescence - Anti-CD3D antibody [EP4426] (AB109531)

  • 5
  • 1
Primary Antibodies

AB215040

Anti-CD3D antibody [EP4426] - Low endotoxin, Azide free

RabMAb|Recombinant

Immunocytochemistry/ Immunofluorescence - Anti-CD3D antibody [EP4426] - Low endotoxin, Azide free (AB215040)

  • 0
  • 0
Primary Antibodies

AB226073

Anti-CD3D antibody [EP4426] - BSA and Azide free

RabMAb|Recombinant

Immunocytochemistry/ Immunofluorescence - Anti-CD3D antibody [EP4426] - BSA and Azide free (AB226073)

  • 0
  • 0
Primary Antibodies

AB103573

Anti-CD3D antibody

Immunocytochemistry/ Immunofluorescence - Anti-CD3D antibody (AB103573)

  • 0
  • 0
Primary Antibodies

AB198937

Alexa Fluor® 647 Anti-CD3D antibody [EP4426]

RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-CD3D antibody [EP4426] (AB198937)

  • 0
  • 0
Primary Antibodies

AB208514

Alexa Fluor® 555 Anti-CD3D antibody [EP4426]

BOND RX™ Validated|RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 555 Anti-CD3D antibody [EP4426] (AB208514)

  • 4
  • 2

Complementary Products

Primary Antibodies

AB16669

Anti-CD3 epsilon antibody [SP7]

BOND RX™ Validated|RabMAb|Advanced Validation|Recombinant|Lab Essentials|20ul selling size

Multiplex immunohistochemistry - Anti-CD3 epsilon antibody [SP7] (AB16669)

  • 4
  • 80
Primary Antibodies

AB134096

Anti-CD3G antibody [EPR4517]

RabMAb|Recombinant|20ul selling size

Flow Cytometry (Intracellular) - Anti-CD3G antibody [EPR4517] (AB134096)

  • 5
  • 1
Primary Antibodies

AB183685

Anti-CD4 antibody [EPR19514]

RabMAb|Recombinant|Lab Essentials|20ul selling size

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] (AB183685)

  • 5
  • 21
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCFr" : {"fullname" : "Immunohistochemistry (Frozen sections)", "shortname":"IHC-Fr"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Mouse": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "1/30", "IP-species-notes": "<p></p>", "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "1/600", "FlowCyt-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "<p></p>", "IHCFr-species-checked": "testedAndGuaranteed", "IHCFr-species-dilution-info": "1/100", "IHCFr-species-notes": "<p>Antigen retrieval: Heated citrate solution (10mM citrate pH 6.0 + 0.05% Tween-20).</p>", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/2000", "IHCP-species-notes": "<p></p>" } } }
style
left-column

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle
style
left-column
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Part of the TCR-CD3 complex present on T-lymphocyte cell surface that plays an essential role in adaptive immune response. When antigen presenting cells (APCs) activate T-cell receptor (TCR), TCR-mediated signals are transmitted across the cell membrane by the CD3 chains CD3D, CD3E, CD3G and CD247/CD3Z. All CD3 chains contain immunoreceptor tyrosine-based activation motifs (ITAMs) in their cytoplasmic domain. Upon TCR engagement, these motifs become phosphorylated by Src family protein tyrosine kinases LCK and FYN, resulting in the activation of downstream signaling pathways. In addition of this role of signal transduction in T-cell activation, CD3D plays an essential role in thymocyte differentiation. Indeed, participates in correct intracellular TCR-CD3 complex assembly and surface expression. In absence of a functional TCR-CD3 complex, thymocytes are unable to differentiate properly (PubMed : 10935641). Interacts with CD4 and CD8 and thus serves to establish a functional link between the TCR and coreceptors CD4 and CD8, which is needed for activation and positive selection of CD4 or CD8 T-cells.
See full target information Cd3d
style
left-column

Publications (4)

Recent publications for all applications. Explore the full list and refine your search

iScience 28:113101 PubMed40746991

2025

TRIM13 prevents cardiomyocyte injury by affecting apoptosis through interacting with CD3D in myocardial infarction.

Applications

Unspecified application

Species

Unspecified reactive species

Feipeng Wu,Xiandong Zheng,Qiyan Wu,Liju Hong,Lei Yue,Rui Yang,Dandan Chen,Youjun Zhou

Advanced science (Weinheim, Baden-Wurttemberg, Germany) 12:e2406684 PubMed39465672

2024

Tertiary Lymphoid Structure in Dental Pulp: The Role in Combating Bacterial Infections.

Applications

Unspecified application

Species

Unspecified reactive species

Ruiqi Li,Fan Gu,Linlin Peng,Tingting Huan,Zhuo Zhou,Yaling Song,Jinmei He,Kaili Ye,Yao Sun,Tiejun Li,Miao He,Zhuan Bian,Wei Yin

Frontiers in cardiovascular medicine 9:936287 PubMed35837612

2022

Deciphering the Intercellular Communication Between Immune Cells and Altered Vascular Smooth Muscle Cell Phenotypes in Aortic Aneurysm From Single-Cell Transcriptome Data.

Applications

Unspecified application

Species

Unspecified reactive species

Genmao Cao,Zhengchao Lu,Ruiyuan Gu,Xuezhen Xuan,Ruijing Zhang,Jie Hu,Honglin Dong

Science advances 7: PubMed34380620

2021

Protein detection in blood with single-molecule imaging.

Applications

Unspecified application

Species

Unspecified reactive species

Chih-Ping Mao,Shih-Chin Wang,Yu-Pin Su,Ssu-Hsueh Tseng,Liangmei He,Annie A Wu,Richard B S Roden,Jie Xiao,Chien-Fu Hung
