Anti-CD3G antibody [EPR4517] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3G antibody [EPR4517] - BSA and Azide free (AB229282)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human colon (lymphocytes) tissue labelling CD3G with unpurified ab134096.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab134096).

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-CD3G antibody [EPR4517] - BSA and Azide free (AB229282)

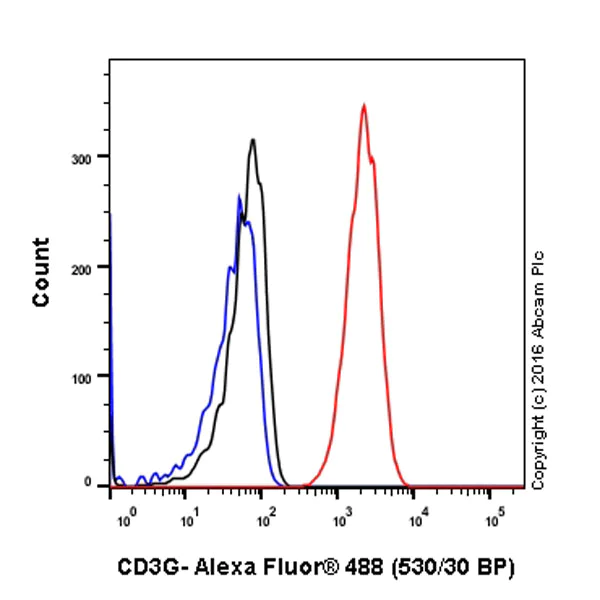

Intracellular Flow Cytometry analysis of Jurkat (human acute T cell leukemia) cells labeling CD3G with purified ab134096 at 1/70 dilution (10ug/mL) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^�488) (1/2000 dilution) was used as the secondary antibody. Rabbit monoclonal IgG (Black) was used as the isotype control, cells without incubation with primary antibody and secondary antibody (Blue) was used as the unlabeled control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab134096).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3G antibody [EPR4517] - BSA and Azide free (AB229282)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human tonsil tissue labelling CD3G with purified ab134096 at 1/1000. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. A prediluted HRP-polymer conjugated anti-rabbit IgG was used as the secondary antibody. Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab134096).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-CD3G antibody [EPR4517] - BSA and Azide free (AB229282)

Immunocytochemistry/Immunofluorescence analysis of Jurkat cells labelling CD3G with purified ab134096 at 1/1000. Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. An Alexa Fluor^® 555-conjugated goat anti-rabbit IgG (1/500) was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain.

Control : primary antibody (1/1000) and secondary antibody, ab150113, an Alexa Fluor^® 488-conjugated goat anti-mouse IgG (1/500).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab134096).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3G antibody [EPR4517] - BSA and Azide free (AB229282)

Immunohistochemistry (Formalin/PFA-fixed parffin-embedded sections) analysis of human brain tissue. Unpurified ab32362 shows negative staining.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab134096).

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3G antibody [EPR4517] - BSA and Azide free (AB229282)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human tonsil tissue labelling CD3G with unpurified ab134096.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab134096).

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3G antibody [EPR4517] - BSA and Azide free (AB229282)

Immunohistochemistry (Formalin/PFA-fixed parffin-embedded sections) analysis of human skeletal muscle tissue. Unpurified ab32362 shows negative staining.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab134096).

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

• IP

Lab

Immunoprecipitation - Anti-CD3G antibody [EPR4517] - BSA and Azide free (AB229282)

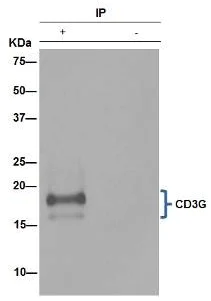

ab134096 (purified) at 1/40 immunoprecipitating CD3G in Jurkat cell lysate (Lane 1). Lane 2 - PBS. For western blotting, a HRP-conjugated anti-rabbit IgG, specific to the non-reduced form of IgG was used as the secondary antibody (1/1500).

Blocking buffer and concentration : 5% NFDM/TBST.

Diluting buffer and concentration : 5% NFDM /TBST.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab134096).

All lanes:

Immunoprecipitation - Anti-CD3G antibody [EPR4517] (<a href='/en-us/products/primary-antibodies/cd3g-antibody-epr4517-ab134096'>ab134096</a>)

Predicted band size: 20 kDa

Observed band size: 18-28 kDa

false

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD3G antibody [EPR4517] - BSA and Azide free (AB229282)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of mouse spleen tissue labelling CD3G with unpurified ab134096.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab134096).

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.
