Anti-CD4 antibody [EPR19514]

18 product images

•

  Verified customer

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] (ab183685)

  Formaldehyde-fixed, non-permeabilized mouse colon tissue stained for CD4 with ab183685 (30 mins at a 1/500 dilution) in immunohistochemical analysis. A Rabbit polyclonal HRP conjugate was used as the secondary.


  Heat mediated antigen retrieval buffer/enzyme used: pH 9.0 EDTA.

  Blocking step: 1% Protein Block ab64226 for 10 mins at RT.

•

  Anugraha Rajagopalan

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] (ab183685)

  Formalin-fixed, 0.2% Triton-X permeabilized mouse Eo771 mammary tumor tissue stained for CD4 with ab183685 (18 hours, 4°C at a 1/1000 dilution) in immunohistochemical analysis. A Goat anti Rabbit IgG (H&L) polyclonal AlexaFluor^®488 conjugate was used as the secondary (green).


  Heat mediated antigen retrieval buffer/enzyme used: Citrate buffer.

  Blocking step: 4% BSA for 1 hour at 25°C.

•

  Zohar Gavish

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] (ab183685)

  Formaldehyde-fixed, non-permeabilized mouse spleen tissue stained for CD4 with ab183685 (30mins at a 1/1000 dilution) in immunohistochemical analysis. A Goat polyclonal HRP conjugate was used as the secondary.


  Heat mediated antigen retrieval buffer/enzyme used: Leica ER2 solution.

•

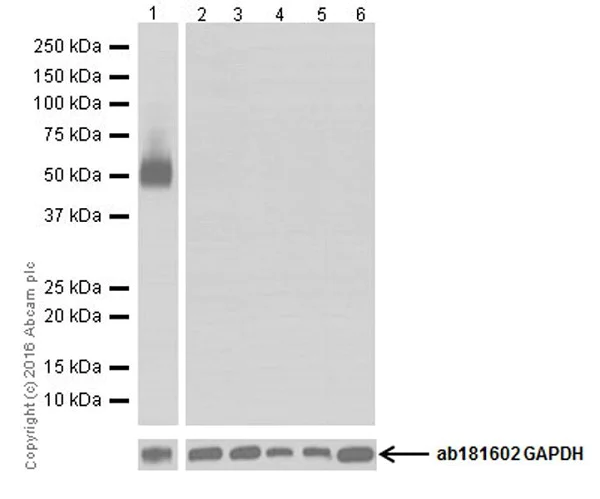

  Western blot - Anti-CD4 antibody [EPR19514] (ab183685)

  The expression profile observed is consistent with what has been described in the literature (PMID: 2155425).


  Blocking/Dilution buffer: 5% NFDM/TBST.

  Exposure time: Lane 1:3 seconds; Lanes 2,3,4,5 and 6:30 seconds

  All lanes: Western blot - Anti-CD4 antibody [EPR19514] (ab183685) at 1/2000 dilution

  Lane 1: Mouse thymus lysate at 20 µg

  Lane 2: Mouse liver tissue lysate at 20 µg

  Lane 3: Mouse brain tissue lysate at 20 µg

  Lane 4: Mouse kidney tissue lysate at 20 µg

  Lane 5: Raw264.7 (mouse abelson murine leukemia virus-induced tumor) whole cell lysate at 20 µg

  Lane 6: NIH/3T3 (mouse embryo) whole cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Predicted band size: 51 kDa

  Observed band size: 51 kDa

•

  Immunohistochemistry (Frozen sections) - Anti-CD4 antibody [EPR19514] (ab183685)

  IHC image of CD4 staining in a section of frozen normal Mouse Spleen.


  The section was fixed using 10% formaldehyde in 1XPBS for 10 minutes. No antigen retrieval step was performed prior to staining. Non-specific protein-protein interactions were then blocked in TBS containing 0.025% (v/v) Triton X-100, 0.3M glycine and 1% (w/v) BSA for 1h at room temperature. The section was then incubated overnight at +4°C in TBS containing 0.025% (v/v) Triton X-100 and 1% (w/v) BSA with ab183685 (Rabbit monoclonal [EPR19514] to CD4) at 1/200 and Anti-CD22 antibody [OX97] ab243840 at 1μg/ml, to show the distinct staining of B cells and T cells. The section was then incubated with Goat Anti-Rat IgG H&L (Alexa Fluor® 488) preadsorbed ab150165 (Goat Anti-Rat IgG H&L (Alexa Fluor® 488) preabsorbed, (Shown in green) 1/1000) and Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) ab150080 (Goat Anti-Rabbit IgG H&L (Alexa Fluor®594) (Shown in red) 1/1000) for 1 hour at room temperature. The secondary-only control insert image is taken from an identical assay without primary antibody. DAPI was used to stain the cell nuclei (blue). The section was then mounted using Fluoromount®.

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  For IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antibody concentrations and incubation times.

•

  Immunohistochemistry (Frozen sections) - Anti-CD4 antibody [EPR19514] (ab183685)

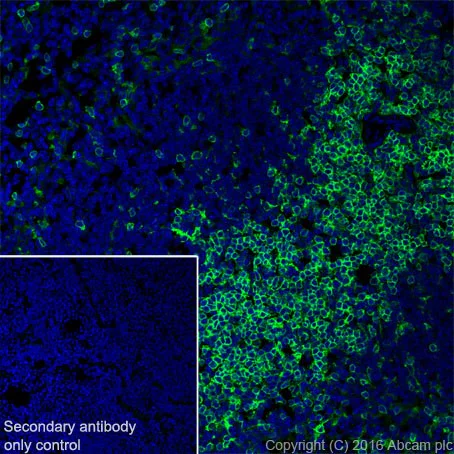

  Immunohistochemical analysis of 4% paraformaldehyde-fixed, 0.2% Triton X-100 permeabilized frozen Mouse spleen tissue labeling CD4 with ab183685 at 1/500 dilution, followed by Goat Anti-Rabbit IgG (Alexa Fluor^® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution (green).


  The result showed membrane staining on mouse spleen.

  The nuclear counterstain is DAPI (blue).

  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 at 1/1000 dilution.

  Antigen retrieval: Heated citrate solution (10mM citrate pH 6.0 + 0.05% Tween-20).

•

  Verified customer

  Immunohistochemistry (Frozen sections) - Anti-CD4 antibody [EPR19514] (ab183685)

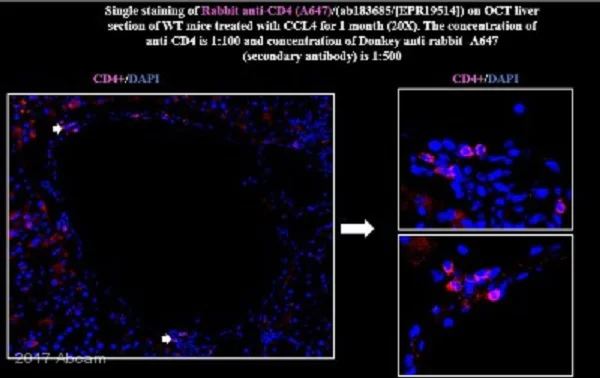

  Paraformaldehyde-fixed, 0.1% Tween 0.3% Triton in PBS permeabilized mouse liver tissue stained for CD4 with ab183685 (12 hours, 4°C at a 1/100 dilution) in immunohistochemical analysis. A Donkey anti Rabbit IgG (H+L) AlexaFluor^®647 was used as the secondary at a 1/500 dilution (red).


  Blocking step: 1% BSA for 12 hours at 4°C.

•

  Herr Dr. Markus Kipp

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] (ab183685)

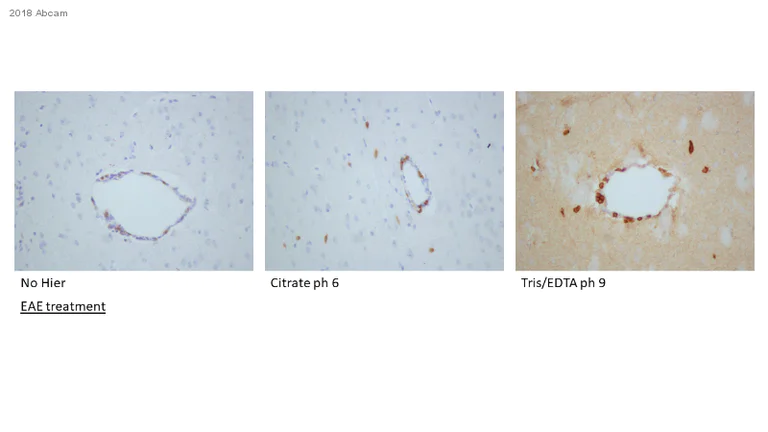

  Formaldehyde-fixed, non-permeabilized mouse brain tissue stained for CD4 with ab183685 (14 hours, 4°C at a 1/1000 dilution) in immunohistochemical analysis. A Goat anti Rabbit IgG monoclonal HRP conjugate was used as the secondary at a 1/200 dilution.


  Blocking step: 5% normal goat serum for 1 hour at 26°C.

  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

•

  Verified customer

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] (ab183685)

  Formaldehyde-fixed, paraffin-embedded mouse lung tissue stained for CD4 with ab183685 (18 hours, 4°C at a 1/1000 dilution) in immunohistochemical analysis. A Goat anti Rabbit IgG polyclonal HRP conjugate was used as the secondary at a 1/250 dilution (red).


  Heat mediated antigen retrieval buffer/enzyme used: Citrate buffer pH 6.0.

  Blocking step: 10% serum for 1 hour at 25°C.

•

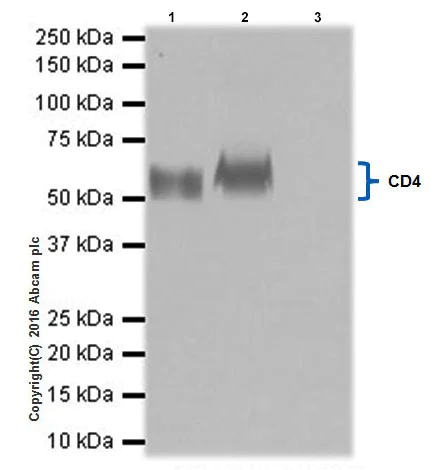

  Immunoprecipitation - Anti-CD4 antibody [EPR19514] (ab183685)

  CD4 was immunoprecipitated from 1mg of Mouse thymus whole cell lysate with ab183685 at 1/40 dilution.


  Western blot was performed from the immunoprecipitate using ab183685 at 1/1000 dilution.

  VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366), was used for detection at 1/10000 dilution.

  Lane 1: Mouse thymus whole cell lysate, 10μg (Input).

  Lane 2: ab183685 IP in Mouse thymus whole cell lysate.

  Lane 3: Rabbit IgG,monoclonal [EPR25A] - Isotype Control (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab183685 in Mouse thymus whole cell lysate.

  Blocking and dilution buffer and concentration: 5% NFDM/TBST.

  Exposure time: 5 seconds.

  All lanes: Immunoprecipitation - Anti-CD4 antibody [EPR19514] (ab183685)

  Predicted band size: 51 kDa

•

  This image is courtesy of an anonymous customer review.

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] (ab183685)

  Formaldehyde-fixed, paraffin-embedded mouse thymus tissue stained for CD4 using ab183685 at 1/500 dilution in immunohistochemical analysis.

•

  Verified customer

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] (ab183685)

  Formaldehyde-fixed, 3% hydrogen peroxide permeabilized B16F10 (melanoma) syngeneic mouse tumor tissue stained for CD4 with ab183685 (36mins, 37°C at a 1/1000 dilution) in immunohistochemical analysis. A Goat anti Rabbit IgG polyclonal HRP conjugate was used as the secondary.


  Heat mediated antigen retrieval buffer/enzyme used: Tris/EDTA.

•

  Verified customer

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] (ab183685)

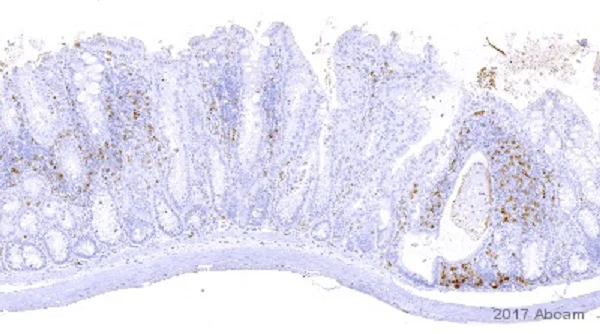

  Formaldehyde-fixed mouse colon, chronic mucosal inflammation tissue stained for CD4 with ab183685 (90 mins at a 1/1000 dilution) in immunohistochemical analysis. A Goat polyclonal biotin conjugate was used as the secondary.


  Heat mediated antigen retrieval buffer/enzyme used: High pH CC1.

  Blocking step: 1% BSA for 40 mins at 24°C.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] (ab183685)

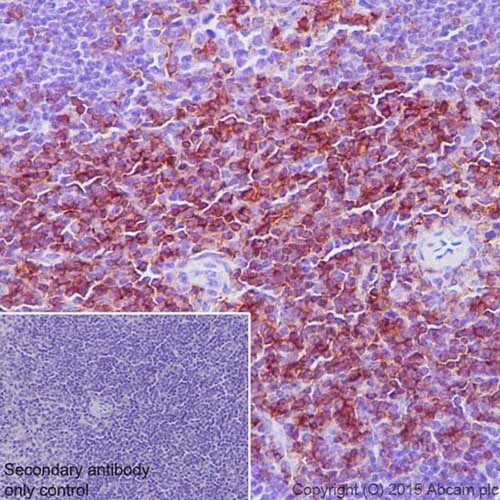

  Immunohistochemical analysis of paraffin-embedded Mouse spleen tissue labeling CD4 with ab183685 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.
  Membrane staining on T cells is observed.
  Counter stained with Hematoxylin.

  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ab97051 at 1/500 dilution.
  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.


•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] (ab183685)

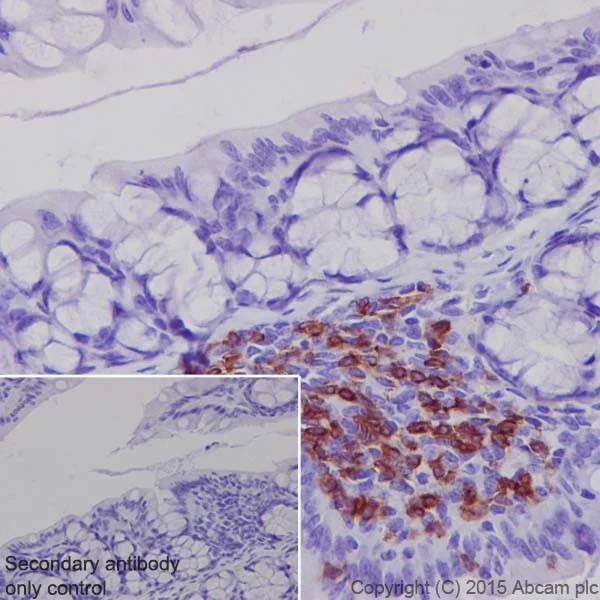

  Immunohistochemical analysis of paraffin-embedded Mouse colon tissue labeling CD4 with ab183685 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.
  Membrane staining on lymphocytes and negative on epithelium cells of mouse colon is observed.
  Counter stained with Hematoxylin.

  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ab97051 at 1/500 dilution.
  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.


•

  This image is courtesy of an anonymous customer review.

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] (ab183685)

  10% NBF-fixed, paraffin-embedded mouse spleen tissue stained for CD4 using ab183685 at 1/2000 dilution in immunohistochemical analysis, followed by Goat anti-Rabbit IgG Alexa Fluor^® 647.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] (ab183685)

  Immunohistochemical analysis of paraffin-embedded Mouse cerebrum tissue labeling CD4 with ab183685 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.


  Negative on mouse cerebrum.

  Counter stained with Hematoxylin.

  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ab97051 at 1/500 dilution.

  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

•

  This image is courtesy of a customer review submitted by Mr. Carl Hobbs.

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] (ab183685)

  Formaldehyde-fixed, paraffin-embedded mouse spleen tissue stained for CD4 using ab183685 at 1/2000 dilution in immunohistochemical analysis, followed by Goat anti Rabbit IgG Biotin.
