Anti-CD4 antibody [EPR19514] - Low endotoxin, Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] - Low endotoxin, Azide free (AB221775)

Immunohistochemical analysis of paraffin-embedded Mouse colon tissue labeling CD4 with ab183685 at 1/1000 dilution followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Membrane staining on lymphocytes and negative on epithelium cells of mouse colon is observed.

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is ab97051 at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS BSA glycerol and sodium azide (ab183685).

Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] - Low endotoxin, Azide free (AB221775)

This IHC data was generated using the same anti-CD4 antibody clone EPR19514 in a different buffer formulation (cat# ab183685).

Immunohistochemical analysis of paraffin-embedded Mouse spleen tissue labeling CD4 with ab183685 at 1/1000 dilution followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Membrane staining on T cells is observed.

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is ab97051 at 1/500 dilution.

Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] - Low endotoxin, Azide free (AB221775)

Immunohistochemical analysis of paraffin-embedded Mouse cerebrum tissue labeling CD4 with ab183685 at 1/1000 dilution followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Negative on mouse cerebrum.

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is ab97051 at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS BSA glycerol and sodium azide (ab183685).

Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

AbReview57043****

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] - Low endotoxin, Azide free (AB221775)

10% NBF-fixed paraffin-embedded mouse spleen tissue stained for CD4 using ab183685 at 1/2000 dilution in immunohistochemical analysis followed by Goat anti-Rabbit IgG Alexa Fluor^® 647.

This data was developed using the same antibody clone in a different buffer formulation containing PBS BSA glycerol and sodium azide (ab183685).

Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

This image is courtesy of an anonymous Abreview.

• IHC-Fr

Supplier Data

Immunohistochemistry (Frozen sections) - Anti-CD4 antibody [EPR19514] - Low endotoxin, Azide free (AB221775)

This IHC data was generated using the same anti-CD4 antibody clone EPR19514 in a different buffer formulation (cat# ab183685).

Immunohistochemical analysis of 4% paraformaldehyde-fixed 0.2% Triton X-100 permeabilized frozen Mouse spleen tissue labeling CD4 with ab183685 at 1/500 dilution followed by Goat Anti-Rabbit IgG (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green).

The result showed membrane staining on mouse spleen.

The nuclear counterstain is DAPI (blue).

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is ab150077 at 1/1000 dilution.

• IHC-P

AbReview64045****

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR19514] - Low endotoxin, Azide free (AB221775)

Formaldehyde-fixed paraffin-embedded mouse thymus tissue stained for CD4 using ab183685 at 1/500 dilution in immunohistochemical analysis.

This data was developed using the same antibody clone in a different buffer formulation containing PBS BSA glycerol and sodium azide (ab183685).

Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

This image is courtesy of an anonymous Abreview.

• IP

Supplier Data

Immunoprecipitation - Anti-CD4 antibody [EPR19514] - Low endotoxin, Azide free (AB221775)

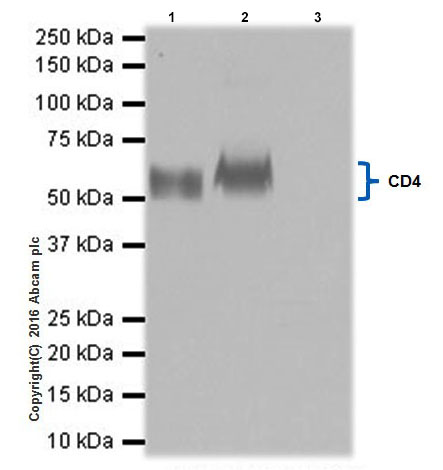

CD4 was immunoprecipitated from 1mg of Mouse thymus whole cell lysate with ab183685 at 1/40 dilution.

Western blot was performed from the immunoprecipitate using ab183685 at 1/1000 dilution.

VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.

Lane 1 : Mouse thymus whole cell lysate, 10μg (Input).

Lane 2 : ab183685 IP in Mouse thymus whole cell lysate.

Lane 3 : Rabbit IgG,monoclonal [EPR25A] - Isotype Control (ab172730) instead of ab183685 in Mouse thymus whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 5 seconds.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab183685).

All lanes:

Immunoprecipitation - Anti-CD4 antibody [EPR19514] (<a href='/en-us/products/primary-antibodies/cd4-antibody-epr19514-ab183685'>ab183685</a>)

Predicted band size: 51 kDa
