Anti-CD41 antibody [M148]

2 product images

•

  Flow Cytometry - Anti-CD41 antibody [M148] (ab11024)

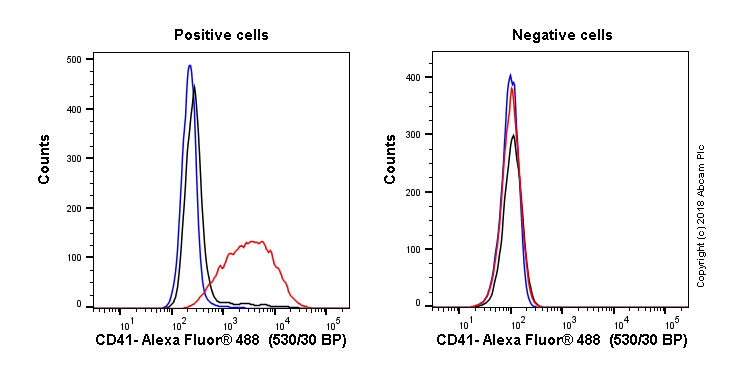

  Overlay histograms showing left HEL92.1.7 cells and right Jurkat cells stained with ab11024 (red line). The cells were incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab11024) (1x10⁶ in 100μl at 0.1μg/ml) for 30 min on ice.


  The secondary antibody Goat anti-mouse IgG H&L (Alexa Fluor ^® 488, pre-adsorbed) (Donkey Anti-Sheep IgG H&L (Alexa Fluor® 488) ab150177)was used at 1/2000 dilution for 30 min at 4°C. Isotype control antibody (black line) was mouse IgG1κ (Mouse IgG1, kappa monoclonal [15-6E10A7] - Isotype Control ab170190) used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

  Acquisition of >5,000 events were collected using a 50 mW Blue laser (488nm) and 530/30 bandpass filter. Events were gated on viable single cells.

•

  Flow Cytometry - Anti-CD41 antibody [M148] (ab11024)

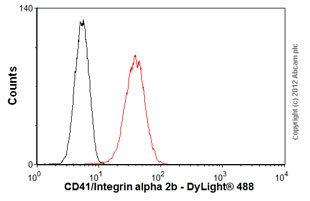

  Overlay histogram showing HL60 cells stained with ab11024 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab11024, 1μg/1x10⁶ cells) for 30 min at 22°C. The secondary antibody used was DyLight^® 488 goat anti-mouse IgG (H+L) (Goat Anti-Mouse IgG H&L (DyLight® 488) preadsorbed ab96879) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (Mouse IgG1, Kappa Monoclonal [B11/6] - Isotype Control ab91353, 2μg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive result in 80% methanol (5 min) fixed HL60 cells used under the same conditions.

  Please note that Abcam do not have any data for use of this antibody on non-fixed cells. We welcome any customer feedback.
