Anti-CD42b antibody [SP219] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD42b antibody [SP219] - BSA and Azide free (AB240268)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human bone marrow tissue sections labeling CD42b with ab183345 at 1/100 dilution (1.94 μg/ml). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 6.0, epitope retrieval solution 1) for 10mins. Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) was used as the secondary antibody. Hematoxylin was used as a counterstain. Positive staining on the megakaryocytes in the human bone marrow, performed on a Leica Biosystems BOND™ RX instrument.
The section was incubated with ab183345 for 10 mins at room temperature. This image was generated using ab183345, the same clone, but with a different buffer formulation.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD42b antibody [SP219] - BSA and Azide free (AB240268)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human spleen tissue sections labeling CD42b with ab183345 at 1/100 dilution (1.94 μg/ml). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 6.0, epitope retrieval solution 1) for 10mins. Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) was used as the secondary antibody. Hematoxylin was used as a counterstain. Positive staining on platelets in the human spleen, performed on a Leica Biosystems BOND™ RX instrument.
The section was incubated with ab183345 for 10 mins at room temperature. This image was generated using ab183345, the same clone, but with a different buffer formulation.

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-CD42b antibody [SP219] - BSA and Azide free (AB240268)

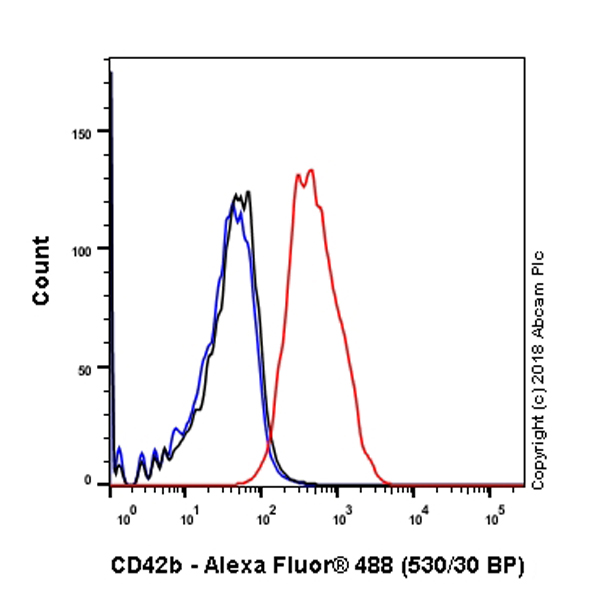

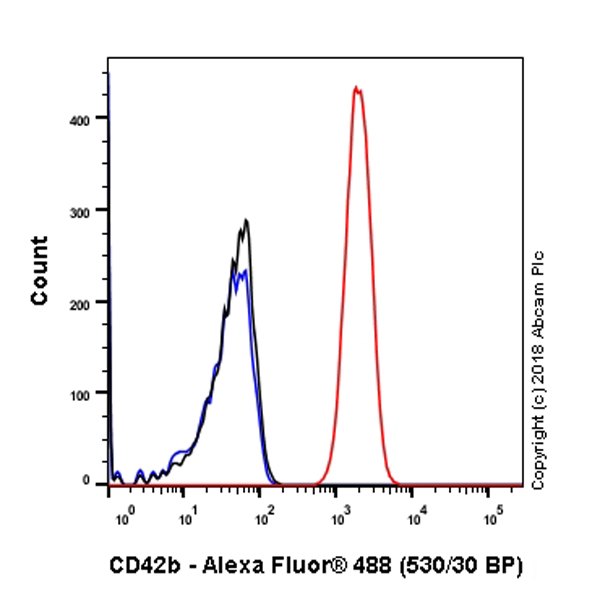

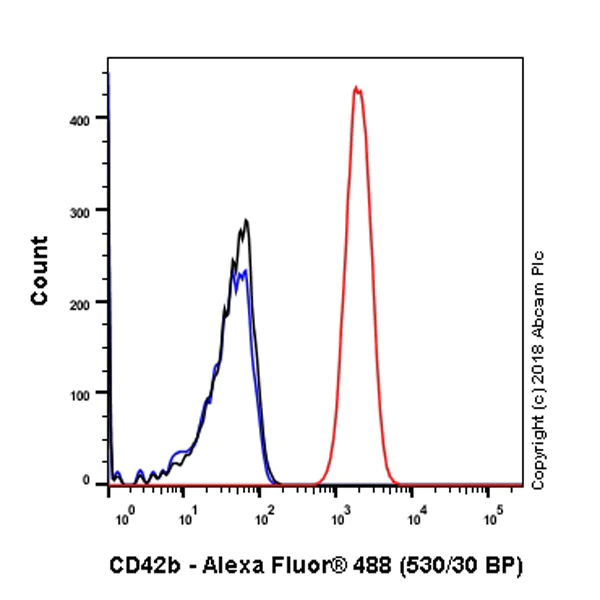

Intracellular Flow Cytometry analysis of HEL (human bone marrow erythroleukemia) labeling CD42b with purified ab183345 at 1/20 dilution (9.7μg/ml) (red). Cells were fixed with 4% paraformaldehyde and permeabilized with 90% methanol. Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) at 1/2000 dilution was used as a secondary antibody. Isotypecontrol - Rabbit monoclonal IgG (ab172730) (black). Unlableled control - Unlabeled cells (blue).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and sodium azide (ab183345).

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-CD42b antibody [SP219] - BSA and Azide free (AB240268)

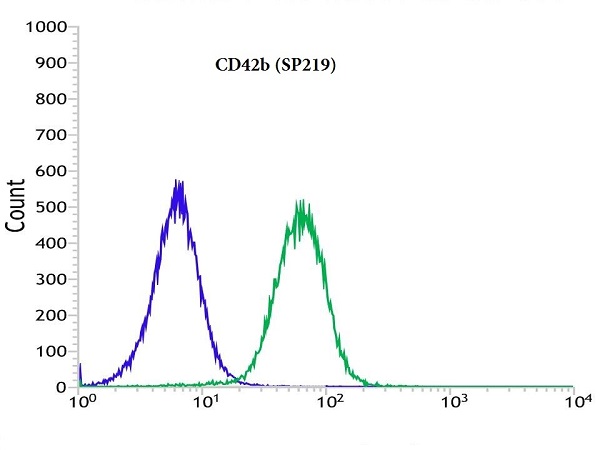

Intracellular flow cytometric analysis of rabbit anti-CD42b (SP219) antibody using ab183345 (diluted 1/400) in Jurkat cells (green) compared to negative control of rabbit IgG (blue).

This data was developed using the same antibody clone in a different buffer formulation containing PBS,BSA and sodium azide (ab183345).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD42b antibody [SP219] - BSA and Azide free (AB240268)

This data was developed using ab183345, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of formalin fixed paraffin embedded human spleen labelling CD42b with ab183345 at a concentration of 1 μg/ml. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with a OptiView DAB IHC Detection Kit. The heat-mediated antigen retrieval was conducted with at 100 °C, pH 8.5 for 32 mins. ab183345 Anti-CD42b antibody [SP219] was incubated for 16 mins, at 37 °C. Sections were counterstained with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control. Customers are encouraged to optimise antigen retrieval conditions, antibody concentration, incubation times and temperature for best results in their own IHC assay workflow (automated and manual).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD42b antibody [SP219] - BSA and Azide free (AB240268)

Immunohistochemical analysis of paraffin embedded human bone marrow tissue labeling CD42b with ab183345 at 1/100 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and sodium azide (ab183345).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD42b antibody [SP219] - BSA and Azide free (AB240268)

Immunohistochemical analysis of paraffin embedded human spleen tissue labeling CD42b with ab183345 at 1/100 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and sodium azide (ab183345).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-CD42b antibody [SP219] - BSA and Azide free (AB240268)

Intracellular Flow Cytometry analysis of mouse splenocytes cell labeling CD42b with purified ab183345 at 1/20 dilution (9.7μg/ml) (red). Cells were fixed with 4% paraformaldehyde and permeabilized with 90% methanol. Goat anti rabbit IgG (Alexa Fluor^® 488, ab150081) at 1/2000 dilution was used as a secondary antibody. Isotypecontrol - Rabbit monoclonal IgG (ab172730) (black). Unlableled control - Unlabeled cells (blue).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and sodium azide (ab183345).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD42b antibody [SP219] - BSA and Azide free (AB240268)

This data was developed using ab183345, the same antibody clone in a different buffer formulation. Immunohistochemical analysis of paraffin-embedded (A) Spleen tissue from wild-type C57BL/6JGpt mice, (B) Spleen tissue from CD42b knockout mice staining with ab183345 at 1/500 dilution and ready-to-use Goat Anti-Rabbit IgG H&L (HRP) secondary. Counterstaining with hematoxylin. Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins. Positive staining on (A) Spleen tissue from wild-type C57BL/6JGpt mice and no staining on (B) Spleen tissue from CD42b knockout mice. The section was incubated with ab183345 for 10 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND™ RX instrument. The tissue samples were kindly provided by GemPharmatech. C57BL/6JGpt wildtype mice and CD42b-KO homozygous mice (Strain ID : T028631).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD42b antibody [SP219] - BSA and Azide free (AB240268)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Mouse spleen tissue sections labeling CD42b with ab183345 at 1/100 dilution (1.94 μg/ml). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 6.0, epitope retrieval solution 1) for 10mins. Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) was used as the secondary antibody. Hematoxylin was used as a counterstain. Positive staining on platelets and megakaryocytes in the mouse spleen, performed on a Leica Biosystems BOND™ RX instrument.
The section was incubated with ab183345 for 10 mins at room temperature. This image was generated using ab183345, the same clone, but with a different buffer formulation.

• IHC-Fr

Unknown

Immunohistochemistry (Frozen sections) - Anti-CD42b antibody [SP219] - BSA and Azide free (AB240268)

Immunohistochemistry (Frozen) analysis of mouse spleen tissue section labeling CD42b with purified ab183345 at 1/100 (1.9 μg/ml). Sections were fixed in 4% paraformaldehyde and permeabilized with 0.2% Triton X-100. Antigen retrieval was heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20). Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) was used as the secondary antibody at 1/1000 (2 μg/ml) dilution. DAPI was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and sodium azide (ab183345).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD42b antibody [SP219] - BSA and Azide free (AB240268)

This data was developed using ab183345, the same antibody clone in a different buffer formulation. Immunohistochemical analysis of paraffin-embedded (A) Bone marrow tissue from wild-type C57BL/6JGpt mice (B) Bone marrow tissue from CD42b knockout mice staining with ab183345 at 1/500 dilution and ready-to-use Goat Anti-Rabbit IgG H&L (HRP) secondary. Counterstaining with hematoxylin. Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins. Positive staining on (A) Bone marrow tissue from wild-type C57BL/6JGpt mice and no staining on (B) Bone marrow tissue from CD42b knockout mice. The section was incubated with ab183345 for 10 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND™ RX instrument. The tissue samples were kindly provided by GemPharmatech. C57BL/6JGpt wildtype mice and CD42b-KO homozygous mice (Strain ID : T028631).
