Anti-CD66b antibody [EPR27440-29] - BSA and Azide free

• Flow Cyt (Intra)

Supplier Data

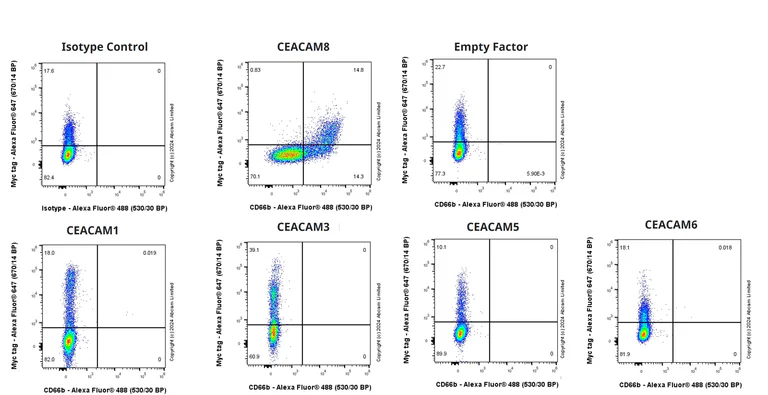

Flow Cytometry (Intracellular) - Anti-CD66b antibody [EPR27440-29] - BSA and Azide free (AB325956)

This data was developed using ab322980, the same antibody clone in a different buffer formulation.

Flow cytometric analysis of 2% paraformaldehyde fixed 0.1% Tween-20 permeabilized Isotype (Upper Left) / 293T (human embryonic kidney epithelial cell) transfected with an CEACAM8 expression vector containing a myc-His-tag® (Upper Middle) / 293T cells transfected with an empty expression vector containing a myc-His-tag® (Upper Right) / 293T cells transfected with homologous human CEACAM expression vector (CEACAM1 CEACAM3 CEACAM5 CEACAM6 ) containing a myc-His-tag® (Lower) cells labelling CD66b with ab322980 at 1/500 dilution (0.1ug) / Right compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control.

Goat Anti-Rabbit IgG (Alexa Fluor® 488 ab150081) at 1/5000 dilution was used as the secondary antibody.

• Flow Cyt

Supplier Data

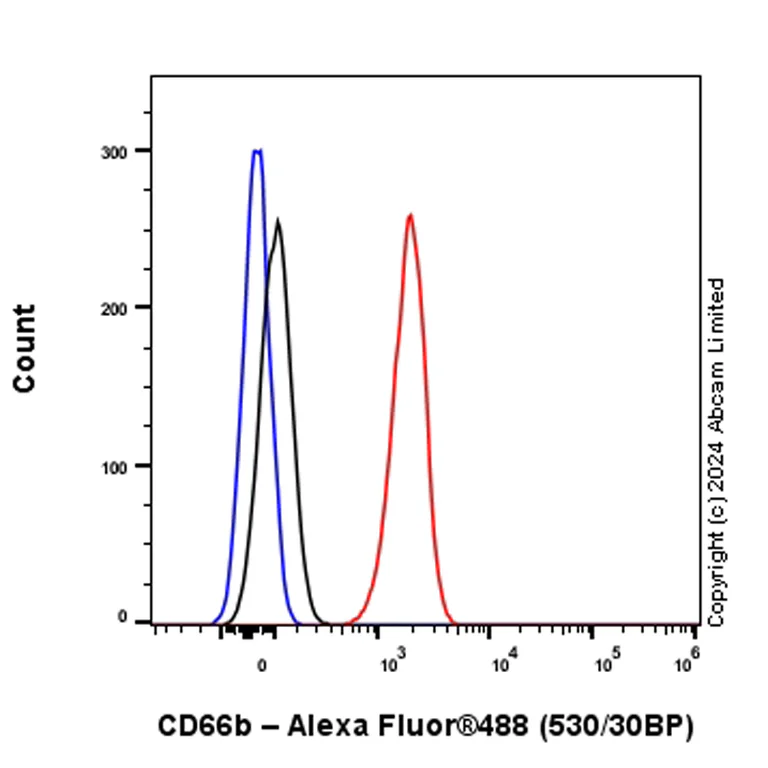

Flow Cytometry - Anti-CD66b antibody [EPR27440-29] - BSA and Azide free (AB325956)

This data was developed using ab322980, the same antibody clone in a different buffer formulation.

Flow cytometric analysis of Human purified neutrophils labelling CD66b with ab322980 at 1/5000 dilution (0.01 ug)/Red compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

Goat Anti-Rabbit IgG (Alexa Fluor® 488 ab150081) at 1/5000 dilution was used as the secondary antibody.

Gated on viable cells.

• Flow Cyt

Supplier Data

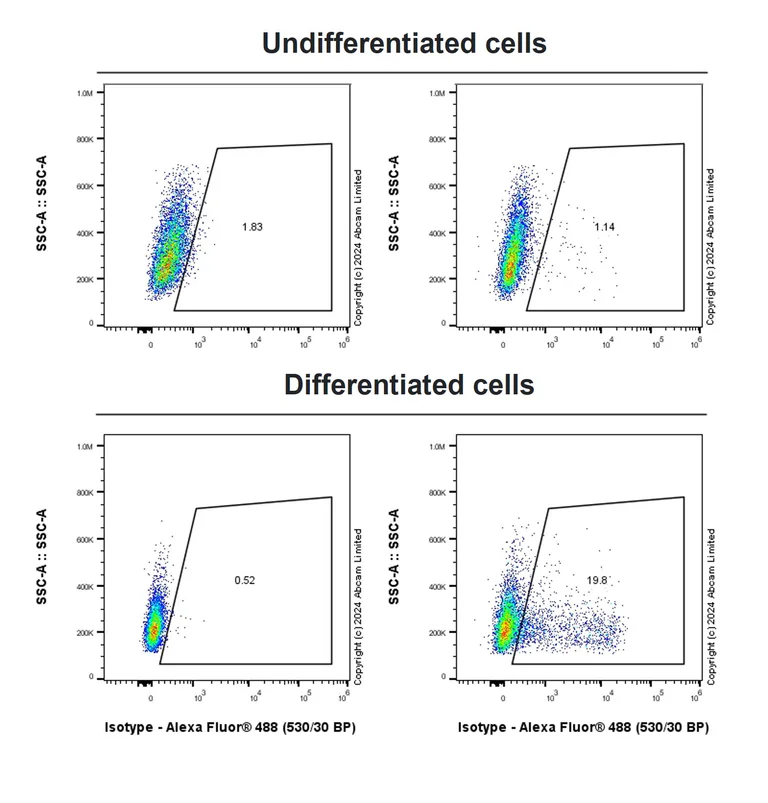

Flow Cytometry - Anti-CD66b antibody [EPR27440-29] - BSA and Azide free (AB325956)

This data was developed using ab322980, the same antibody clone in a different buffer formulation.

Flow cytometric analysis of HL-60 (human acute promyelocytic leukemia promyeloblast) undifferentiated cells (Upper left and right) / HL-60 cells differentiated with 1.25% DMSO for 5 days (Lower left and right) cells labelling CD66b with ab322980 at 1/500 dilution (0.1ug) / Right compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

Goat Anti-Rabbit IgG (Alexa Fluor® 488 ab150081) at 1/5000 dilution was used as the secondary antibody.

Gated on viable cells.

• ICC/IF

Supplier Data

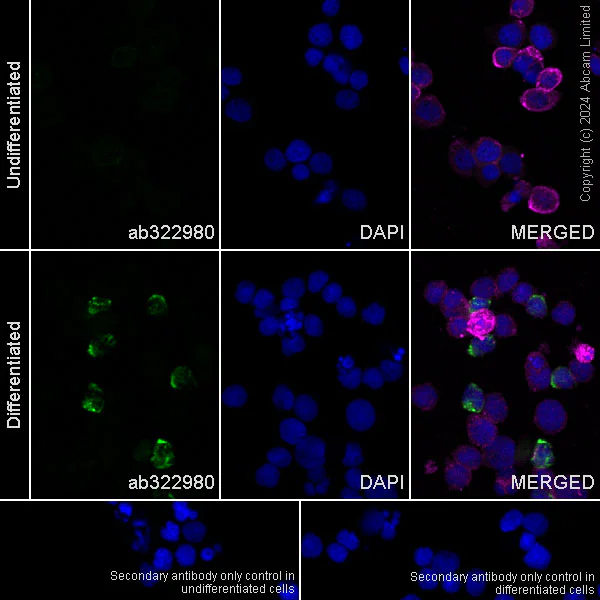

Immunocytochemistry/ Immunofluorescence - Anti-CD66b antibody [EPR27440-29] - BSA and Azide free (AB325956)

This data was developed using ab322980, the same antibody clone in a different buffer formulation.

Immunofluorescent analysis of 4% Paraformaldehyde-fixed 0.1% TritonX-100 permeabilized HL-60 (human acute promyelocytic leukemia promyeloblast) cells labelling CD66b with ab322980 at 1/50 (10.24 ug/ml) dilution followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2ug/ml) dilution (Green).

Confocal image showing increased cytoplasmic staining in differentiated HL-60 cells (treatment with DMSO (1.25%) for 5 days shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems TCS SP8).

ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution (Magenta).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2ug/ml) dilution.
