Anti-CD68 antibody [EPR20545] - Mouse IgG1 (Chimeric) - BSA and Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD68 antibody [EPR20545] - Mouse IgG1 (Chimeric) - BSA and Azide free (AB283338)

This data was developed using ab283316 the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human liver carcinoma tissue labeling CD68 with ab283316 at 1/5000 (0.212 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on the stroma cells in the human liver carcinoma. The section was incubated with ab283316 for 30 mins at room temperature and followed by mouse specific IgG antibody (ab125913) for 8 mins. The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval with Citrate buffer (pH 6.0, epitope retrieval solution 1) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD68 antibody [EPR20545] - Mouse IgG1 (Chimeric) - BSA and Azide free (AB283338)

This data was developed using ab283316 the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human tonsil tissue labeling CD68 with ab283316 at 1/5000 (0.212 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on the macrophages in human tonsil. The section was incubated with ab283316 for 30 mins at room temperature and followed by mouse specific IgG antibody (ab125913) for 8 mins. The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval with Citrate buffer (pH 6.0, epitope retrieval solution 1) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD68 antibody [EPR20545] - Mouse IgG1 (Chimeric) - BSA and Azide free (AB283338)

This data was developed using ab283316 the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human liver tissue labeling CD68 with ab283316 at 1/5000 (0.212 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on the Kuffer cells in the human liver. The section was incubated with ab283316 for 30 mins at room temperature and followed by mouse specific IgG antibody (ab125913) for 8 mins. The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval with Citrate buffer (pH 6.0, epitope retrieval solution 1) for 20 mins.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-CD68 antibody [EPR20545] - Mouse IgG1 (Chimeric) - BSA and Azide free (AB283338)

This data was developed using ab283316 the same antibody clone in a different buffer formulation.Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized THP-1 cells labelling CD68 with ab283316 at 1/50 (21.24 ug/ml) dilution, followed by ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green). Confocal image showing cytoplasmic staining in THP-1 cell line. ab179513 Anti-beta Tubulin rabbit monoclonal antibody was used to counterstain tubulin at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150117 Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-CD68 antibody [EPR20545] - Mouse IgG1 (Chimeric) - BSA and Azide free (AB283338)

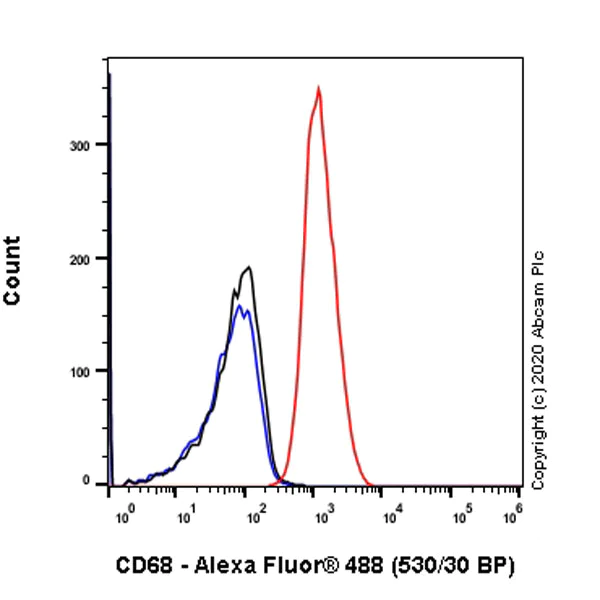

This data was developed using ab283316 the same antibody clone in a different buffer formulation.Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized THP-1 (Human monocytic leukemia monocyte) cells labelling CD68 with ab283316 at 1/1000 dilution (0.1ug) (Red) compared with a Mouse monoclonal IgG (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti mouse IgG (Alexa Fluor® 488, ab150113) at 1/2000 dilution was used as the secondary antibody.

• WB

Lab

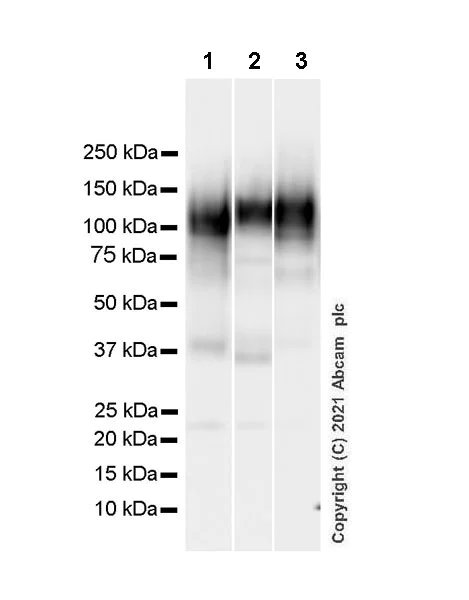

Western blot - Anti-CD68 antibody [EPR20545] - Mouse IgG1 (Chimeric) - BSA and Azide free (AB283338)

This data was developed using ab283316, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST

The observed molecular weight is consistent with the literature (PMID : 18405323, 11739566, 16710801).

Exposure time : Lane 1-2 : 59 seconds

Lane 3 : 37 seconds.

All lanes:

Western blot - Anti-CD68 antibody [EPR20545] - Mouse IgG1 (Chimeric) (<a href='/en-us/products/primary-antibodies/cd68-antibody-epr20545-mouse-igg1-chimeric-ab283316'>ab283316</a>) at 1/1000 dilution

Lane 1:

Human tonsil tissue lysate at 20 µg

Lane 2:

Human liver tissue lysate at 20 µg

Lane 3:

THP-1 (human monocytic leukemia monocyte), whole cell lysate at 20 µg

Secondary

All lanes:

Peroxidase-Conjugated Goat anti-Mouse IgG (H+L) at 1/5000 dilution

Predicted band size: 37 kDa

Observed band size: 110 kDa
