Anti-CD70 antibody [BU69] - BSA and Azide free

• IHC-Fr

Supplier Data

Immunohistochemistry (Frozen sections) - Anti-CD70 antibody [BU69] - BSA and Azide free (AB269573)

This image was produced using the same antibody clone but in a different formulation ab77868, PBS and sodium azide.

IHC image of CD70 staining in a section of frozen human kidney RCC performed on a Leica BOND™ system using the standard protocol. The section was fixed in 10% paraformaldehyde (10 min) prior to staining. The section was incubated with ab77868, 5ugml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

• Flow Cyt

Supplier Data

Flow Cytometry - Anti-CD70 antibody [BU69] - BSA and Azide free (AB269573)

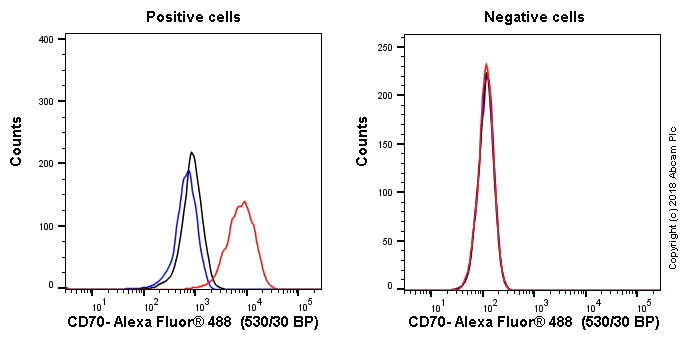

Overlay histograms showing left Raji and right SHSY5Y cells stained with ab77868 (red line). The cells were incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab77868) (1x10⁶ in 100μl at 1 μg/ml) for 30 min on ice.

The secondary antibody Goat anti-mouse IgG H&L (Alexa Fluor ^® 488, pre-adsorbed) (ab150177) was used at 1/2000 dilution for 30 min at 4°C. Isotype control antibody (black line) was mouse IgG1κ (ab170190) used at the same concentration and conditions as the primary antibody. Unlabeled sample (blue line) was also used as a control.

Acquisition of >5,000 events were collected using a 50 mW Blue laser (488nm) and 530/30 bandpass filter. Events were gated on viable single cells.

This image was produced using the same antibody clone but in a different formulation ab77868, PBS and sodium azide.

• IHC-Fr

Supplier Data

Immunohistochemistry (Frozen sections) - Anti-CD70 antibody [BU69] - BSA and Azide free (AB269573)

This image was produced using the same antibody clone but in a different formulation ab77868, PBS and sodium azide.

Negative tissue image. IHC image of CD70 staining in a section of frozen human prostate carcinoma performed on a Leica BONDTM system using the standard protocol. The section was fixed in 10% paraformaldehyde (10 min) prior to staining. The section was incubated with ab77868, 5ugml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

• IHC-Fr

Supplier Data

Immunohistochemistry (Frozen sections) - Anti-CD70 antibody [BU69] - BSA and Azide free (AB269573)

This image was produced using the same antibody clone but in a different formulation ab77868, PBS and sodium azide.

IHC image of CD70 staining in human tonsil frozen tissue section, fixed in 10% paraformaldehyde (10 min). Staining was performed on a Leica Bond system using the standard protocol F. The section was then incubated with ab77868, 5μg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.
