Anti-CD73 antibody [EPR6114] - Low endotoxin, Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD73 antibody [EPR6114] - Low endotoxin, Azide free (AB227113)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human lung carcinoma tissue sections labeling CD73 with Purified ab133582 at 1 : 2000 dilution (1.12 µg/ml). Heat mediated antigen retrieval was performed using ab93684 (Tris/EDTA buffer, pH 9.0). ImmunoHistoProbe one step HRP Polymer (ready to use)was used. Negative control : PBS instead of the primary antibody. Hematoxylin was used as a counterstain.This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab133582).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD73 antibody [EPR6114] - Low endotoxin, Azide free (AB227113)

This IHC data was generated using the same anti-CD73 antibody clone EPR6114 in a different buffer formulation (cat# ab133582).

Immunohistochemical analysis of paraffin-embedded Human tonsil tissue labelling CD73 with ab133582 at 1/100 dilution.

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

• WB

Lab

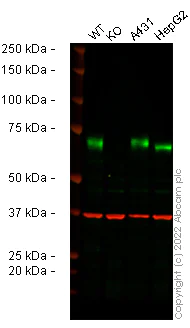

Western blot - Anti-CD73 antibody [EPR6114] - Low endotoxin, Azide free (AB227113)

False colour image of Western blot : Anti-CD73 antibody [EPR6114] staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (ab8245) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab133582 was shown to bind specifically to CD73. A band was observed at 70 kDa in wild-type A-375 cell lysates with no signal observed at this size in NT5E knockout cell line ab281591 (knockout cell lysate ab282943). To generate this image, wild-type and NT5E knockout A-375 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in fluorescent western blot (TBS-based) blocking solution before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (ab216776) at 1/20000 dilution.

All lanes:

Western blot - Anti-CD73 antibody [EPR6114] (<a href='/en-us/products/primary-antibodies/cd73-antibody-epr6114-ab133582'>ab133582</a>) at 1/1000 dilution

Lane 1:

Wild-type A-375 cell lysate at 20 µg

Lane 2:

NT5E knockout A-375 cell lysate at 20 µg

Lane 3:

A431 cell lysate at 20 µg

Lane 4:

HepG2 cell lysate at 20 µg

Secondary

Lanes 1 - 4:

Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/20000 dilution

Lanes 1 - 4:

Western blot - Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-mouse-igg-h-l-irdye-680rd-preadsorbed-ab216776'>ab216776</a>) at 1/20000 dilution

Observed band size: 70 kDa
