Anti-CD98 antibody [EPR27111-83] - BSA and Azide free (ab303511)

Rabbit Recombinant Monoclonal CD98 antibody. Carrier free. Suitable for WB, IHC-P, IHC-Fr, ICC/IF, Flow Cyt, IP and reacts with Mouse samples.

Be the first to review this product! Submit a review

Images

Western blot - Anti-CD98 antibody [EPR27111-83] - BSA and Azide free (AB303511), expandable thumbnail

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Constituents: 100% PBS
Form: Liquid
Clonality: Monoclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	WB	IHC-P	IHC-Fr	ICC/IF	Flow Cyt	IP
Human	Not recommended	Not recommended	Not recommended	Not recommended	Not recommended	Not recommended
Mouse	Tested	Tested	Tested	Tested	Tested	Tested
Rat	Not recommended	Not recommended	Not recommended	Not recommended	Not recommended	Not recommended

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info -	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human, Rat	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info -	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human	Dilution info -	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Rat	Dilution info -	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info -	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human, Rat	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info -	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human, Rat	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info -	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human, Rat	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info -	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Rat, Human	Dilution info -	Notes -

Associated Products

Select an associated product type

1 product for Alternative Version

Target data

See full target information Slc3a2

Function

Acts as a chaperone that facilitates biogenesis and trafficking of functional transporters heterodimers to the plasma membrane. Forms heterodimer with SLC7 family transporters (SLC7A5, SLC7A6, SLC7A7, SLC7A8, SLC7A10 and SLC7A11), a group of amino-acid antiporters (PubMed:10574970, PubMed:10734121, PubMed:11011012, PubMed:9915839). Heterodimers function as amino acids exchangers, the specificity of the substrate depending on the SLC7A subunit. Heterodimers SLC3A2/SLC7A6 or SLC3A2/SLC7A7 mediate the uptake of dibasic amino acids. Heterodimer SLC3A2/SLC7A11 functions as an antiporter by mediating the exchange of extracellular anionic L-cystine and intracellular L-glutamate across the cellular plasma membrane (By similarity). SLC3A2/SLC7A10 translocates small neutral L- and D-amino acids across the plasma membrane (By similarity). SLC3A2/SLC75 or SLC3A2/SLC7A8 translocates neutral amino acids with broad specificity, thyroid hormones and L-DOPA. SLC3A2 is essential for plasma membrane localization, stability, and the transport activity of SLC7A5 and SLC7A8. When associated with LAPTM4B, the heterodimer SLC7A5 is recruited to lysosomes to promote leucine uptake into these organelles, and thereby mediates mTORC1 activation. Modulates integrin-related signaling and is essential for integrin-dependent cell spreading, migration and tumor progression (By similarity).

Alternative names

CD98, Mdu1, Slc3a2, Amino acid transporter heavy chain SLC3A2, 4F2 cell-surface antigen heavy chain, Solute carrier family 3 member 2, 4F2hc

Recommended products

Rabbit Recombinant Monoclonal CD98 antibody. Carrier free. Suitable for WB, IHC-P, IHC-Fr, ICC/IF, Flow Cyt, IP and reacts with Mouse samples.

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Constituents: 100% PBS
Form: Liquid
Clonality: Monoclonal
Immunogen: The exact immunogen used to generate this antibody is proprietary information.
Carrier free: Yes
Clone number: EPR27111-83
Purification technique: Affinity purification Protein A
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: +4°C
Storage information: Do Not Freeze

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. The carrier-free buffer and high concentration allow for increased conjugation efficiency.

This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

This product is compatible with the Maxpar^® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar^® is a trademark of Fluidigm Canada Inc.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

CD98 also known as CD98hc CD98 protein or LAT1/CD98 is a type II membrane protein often found in association with the heavy chains of amino acid transporters like LAT1. It has a molecular mass of approximately 85-100 kDa. CD98 is widely expressed in numerous tissues including the liver kidney and various tumors. It plays an important role in cellular processes by facilitating the transport of amino acids across plasma membranes which is essential for maintaining cellular homeostasis and proliferation.

Biological function summary

CD98 forms a complex with light chains of the heterodimeric amino acid transporters such as LAT1 and LAT2. This interaction enhances the uptake of neutral amino acids into cells. CD98 also interacts with integrins influencing cell adhesion and migration which are critical for cellular signaling and response. Through these interactions CD98 impacts not only cell survival and growth but also immune responses and angiogenesis.

Pathways

CD98 is a vital component of the mTOR signaling pathway influencing cell growth and proliferation. It also plays a part in the integrin signaling pathway which regulates cell adhesion and migration. In these pathways CD98 works closely with proteins like FG1 and mTORC1. These relationships enable it to modulate cellular responses to nutritional availability and mechanical cues from the environment.

Associated diseases and disorders

CD98 expression and function have links to cancer and autoimmune diseases. High expression levels of CD98 are observed in various cancers such as lymphomas where it correlates with increased tumor growth and poor prognosis. In autoimmune disorders like rheumatoid arthritis CD98 influences immune cell activation and migration. Proteins such as CP1 and FG1 interact with CD98 contributing to disease pathology by affecting cellular and immune responses.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

12 product images

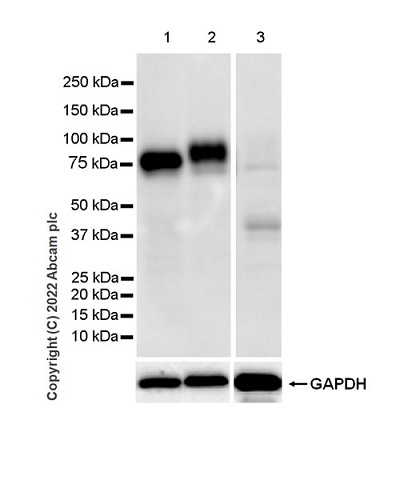

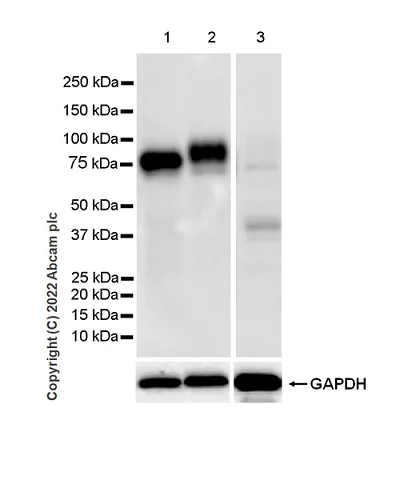

Western blot - Anti-CD98 antibody [EPR27111-83] - BSA and Azide free (ab303511)
This data was developed using Anti-CD98 antibody [EPR27111-83] ab303510, the same antibody clone in a different buffer formulation.
Blocking and dilution buffer and concentration: 5% NFDM/TBST.
Low expression: skeletal muscle (human protein atlas database)
The molecular weight observed is consistent with what has been described in the literature (PMID: 18625289, 26611634).
This blot was developed using a high sensitivity ECL substrate. The high-sensitivity ECL substrate used allows for the detection of proteins in the mid-femtogram range.
The slight variation of MW observed between the different samples is due to the different glycosylation.
All lanes: Western blot - Anti-CD98 antibody [EPR27111-83] (Anti-CD98 antibody [EPR27111-83] ab303510) at 1/1000 dilution
Lane 1: Mouse kidney tissue lysate at 20 µg
Lane 2: Mouse placenta tissue lysate at 20 µg
Lane 3: Mouse skeletal muscle tissue lysate at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Developed using the ECL technique.
Observed band size: 75-100 kDa
Exposure time: 26s
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD98 antibody [EPR27111-83] - BSA and Azide free (ab303511)
This data was developed using Anti-CD98 antibody [EPR27111-83] ab303510, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded mouse breast cancer tissue labeling CD98 with Anti-CD98 antibody [EPR27111-83] ab303510 at 1/1000 dilution (0.494 μg/mL), followed by a ready to use LeicaDS9800 (BOND^™ Polymer Refine Detection). Positive staining was observed on mouse breast cancer. The section was incubated with Anti-CD98 antibody [EPR27111-83] ab303510 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 dilution (BOND^™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins was used.

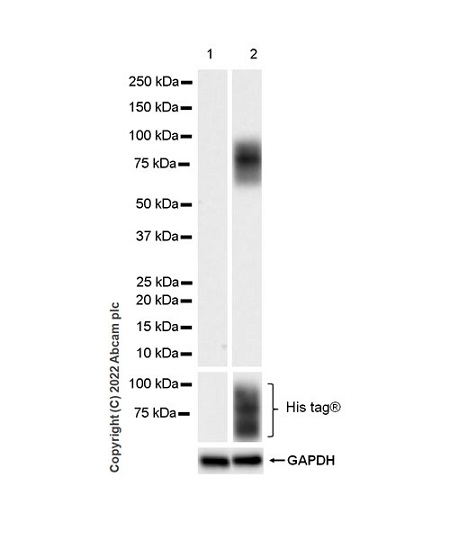

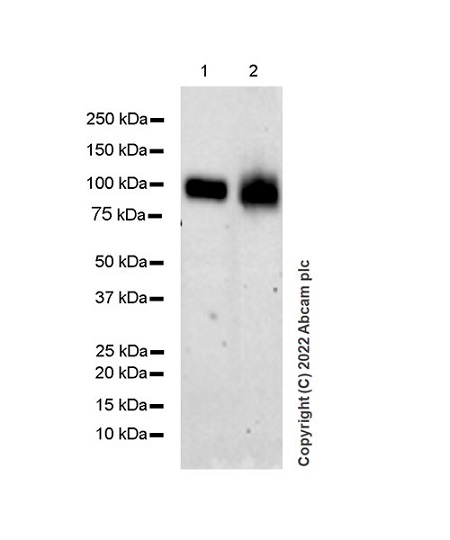

Western blot - Anti-CD98 antibody [EPR27111-83] - BSA and Azide free (ab303511)
This data was developed using Anti-CD98 antibody [EPR27111-83] ab303510, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer and concentration: 5% NFDM/TBST.
All lanes: Western blot - Anti-CD98 antibody [EPR27111-83] (Anti-CD98 antibody [EPR27111-83] ab303510) at 1/1000 dilution
Lane 1: HEK-293T cells transfected with an empty vector containing a his tag, whole cell lysate at 20 µg
Lane 2: HEK-293T cells transfected with a mouse CD98 expression vector containing a his tag, whole cell lysate at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Observed band size: 75-100 kDa
Exposure time: 10s

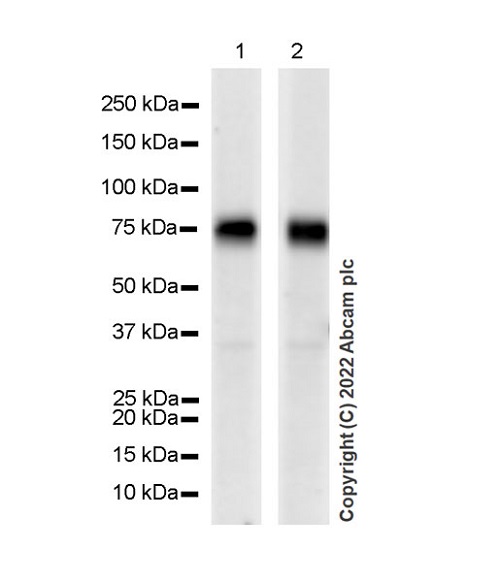

Western blot - Anti-CD98 antibody [EPR27111-83] - BSA and Azide free (ab303511)
This data was developed using Anti-CD98 antibody [EPR27111-83] ab303510, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer and concentration: 5% NFDM/TBST.

The slight variation of MW observed between the different samples is due to the different glycosylation.
All lanes: Western blot - Anti-CD98 antibody [EPR27111-83] (Anti-CD98 antibody [EPR27111-83] ab303510) at 1/1000 dilution
Lane 1: NIH/3T3 (mouse embryonic fibroblast), whole cell lysate at 20 µg
Lane 2: 3T3-L1 (mouse embryonic fibroblast), whole cell lysate at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Observed band size: 75-100 kDa
Exposure time: 92s
Western blot - Anti-CD98 antibody [EPR27111-83] - BSA and Azide free (ab303511)
This data was developed using Anti-CD98 antibody [EPR27111-83] ab303510, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer and concentration: 5% NFDM/TBST.

The slight variation of MW observed between the different samples is due to the different glycosylation.
All lanes: Western blot - Anti-CD98 antibody [EPR27111-83] (Anti-CD98 antibody [EPR27111-83] ab303510) at 1/1000 dilution
Lane 1: HC11 (mouse mammary gland epithelial cell), whole cell lysate at 20 µg
Lane 2: ES-D3 (mouse blastocyst-derived embryonic stem cell), whole cell lysate at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Observed band size: 75-100 kDa
Exposure time: 180s

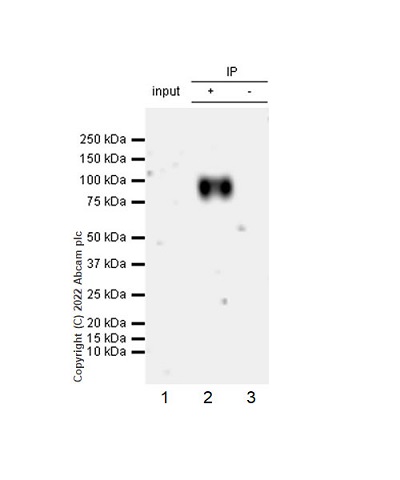

Immunoprecipitation - Anti-CD98 antibody [EPR27111-83] - BSA and Azide free (ab303511)
This data was developed using Anti-CD98 antibody [EPR27111-83] ab303510, the same antibody clone in a different buffer formulation.

CD98 was immunoprecipitated from 0.35 mg 3T3-L1 (mouse embryonic fibroblast) whole cell lysate with Anti-CD98 antibody [EPR27111-83] ab303510 at 1/30 dilution (2 µg in 0.35 mg lysates). Western blot was performed on the immunoprecipitate using Anti-CD98 antibody [EPR27111-83] ab303510 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.

Lane 1: 3T3-L1(mouse embryonic fibroblast) whole cell lysate 10 μg (Inset)

Lane 2: Anti-CD98 antibody [EPR27111-83] ab303510 IP in 3T3-L1whole cell lysate

Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of Anti-CD98 antibody [EPR27111-83] ab303510 in 3T3-L1 whole cell lysate

Blocking and dilution buffer and concentration: 5% NFDM/TBST.

Exposure time: 180 seconds.

Observed MW (kDa): 75-100
All lanes: Immunoprecipitation - Anti-CD98 antibody [EPR27111-83] (Anti-CD98 antibody [EPR27111-83] ab303510) at 1/30 dilution
All lanes: 3T3-L1 (mouse embryonic fibroblast) whole cell lysate at 10 µg
Secondary
All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution
Exposure time: 180s
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD98 antibody [EPR27111-83] - BSA and Azide free (ab303511)
This data was developed using Anti-CD98 antibody [EPR27111-83] ab303510, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded mouse skeletal muscle tissue labeling CD98 with Anti-CD98 antibody [EPR27111-83] ab303510 at 1/1000 dilution (0.494 µg/mL), followed by a ready to use LeicaDS9800 (BOND™ Polymer Refine Detection). Negative control: no staining is observed on mouse skeletal muscle. The section was incubated with Anti-CD98 antibody [EPR27111-83] ab303510 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 dilution (BOND™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins was used.
Immunohistochemistry (Frozen sections) - Anti-CD98 antibody [EPR27111-83] - BSA and Azide free (ab303511)
This data was developed using Anti-CD98 antibody [EPR27111-83] ab303510, the same antibody clone in a different buffer formulation.Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Mouse kidney (fresh) tissue labeling CD98 with Anti-CD98 antibody [EPR27111-83] ab303510 at 1/500 (0.988 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution (Green). Confocal image showing positive staining in proximal tubules of mouse kidney tissue. The nuclear counterstain was DAPI (Blue). The section was incubated with Anti-CD98 antibody [EPR27111-83] ab303510 for 60mins at room temperature. The section was then mounted using Fluoromount®.The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbedat 1/1000 2 ug/mL dilution.

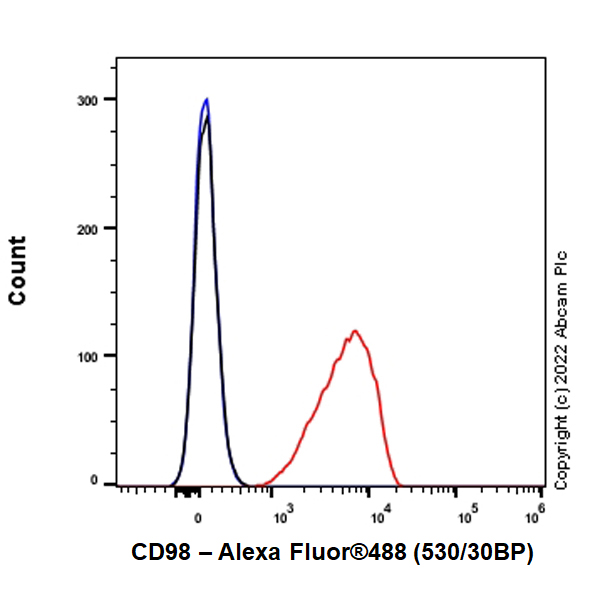

Flow Cytometry - Anti-CD98 antibody [EPR27111-83] - BSA and Azide free (ab303511)
This data was developed using Anti-CD98 antibody [EPR27111-83] ab303510, the same antibody clone in a different buffer formulation.

Flow cytometric analysis of / fixed / permeabilized NIH/3T3 (mouse embryonic fibroblast) cells labelling CD98 with Anti-CD98 antibody [EPR27111-83] ab303510 at 1/500 dilution (0.1μg) (Red) (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).

A Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/2000 dilution was used as the secondary antibody.

Gated on viable cells.

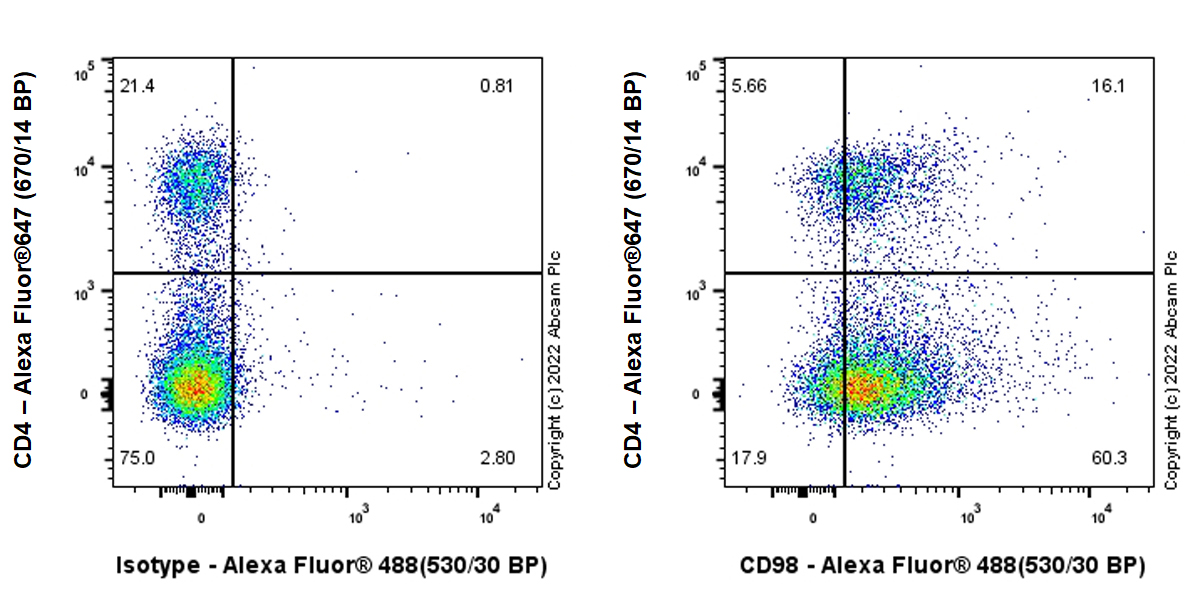

Flow Cytometry - Anti-CD98 antibody [EPR27111-83] - BSA and Azide free (ab303511)
This data was developed using Anti-CD98 antibody [EPR27111-83] ab303510, the same antibody clone in a different buffer formulation.

Flow cytometric analysis of / fixed / permeabilized Mouse splenocytes cells labelling CD98 with Anti-CD98 antibody [EPR27111-83] ab303510 at 1/500 dilution (0.1μg)/ Right (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).

A Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/2000 dilution was used as the secondary antibody.

Gated on viable cells. Cells were stained with rabbit IgG or Anti-CD98 antibody [EPR27111-83] ab303510. Then stained with anti-CD4 conjugated to Alexa Fluor® 647.
Immunocytochemistry/ Immunofluorescence - Anti-CD98 antibody [EPR27111-83] - BSA and Azide free (ab303511)
This data was developed using Anti-CD98 antibody [EPR27111-83] ab303510, the same antibody clone in a different buffer formulation. Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized NIH/3T3 (mouse embryonic fibroblast) cells labelling CD98 with Anti-CD98 antibody [EPR27111-83] ab303510 at 1/50 (9.88 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing cytoplasmic and membranous staining in NIH/3T3 cell line.Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). is observed. Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/ml dilution.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD98 antibody [EPR27111-83] - BSA and Azide free (ab303511)
This data was developed using Anti-CD98 antibody [EPR27111-83] ab303510, the same antibody clone in a different buffer formulation.Immunohistochemical analysis of paraffin-embedded Mouse kidney tissue labeling CD98 with Anti-CD98 antibody [EPR27111-83] ab303510 at 1/1000 (0.494 ug/ml) followed by a ready to use LeicaDS9800 (Bond Polymer Refine Detection) was used. Positive staining on mouse kidney. The section was incubated with Anti-CD98 antibody [EPR27111-83] ab303510 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin. Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond Polymer Refine Detection).Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
