Anti-Cdk2 antibody [SP80]

• IHC-P

Unknown

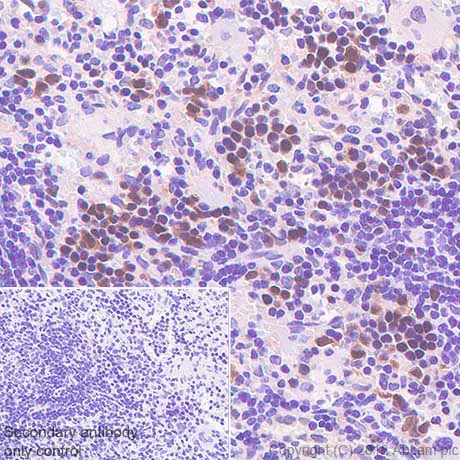

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cdk2 antibody [SP80] (AB101682)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human tonsil tissue sections labeling Cdk2 with ab101682 at 1/50 dilution (2.20 μg/ml). Heat mediated antigen retrieval with Citrate buffer (pH 6.0, epitope retrieval solution 1) for 10mins. Goat Anti-Rabbit & Mouse IgG (HRP) was used as the secondary antibody. Hematoxylin was used as a counterstain. Mainly nuclear staining on the human tonsil, performed on a Leica Biosystems BOND™ RX instrument.
The section was incubated with ab101682 for 30 mins at room temperature.

• IHC-P

Unknown

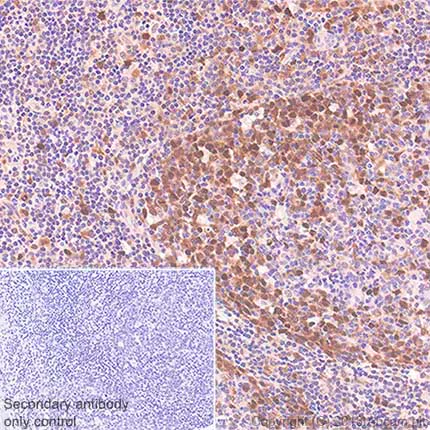

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cdk2 antibody [SP80] (AB101682)

Immunohistochemical analysis of Cdk2 expression in formalin-fixed, paraffin-embedded Human tonsil using ab101682 at 1/100 dilution.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cdk2 antibody [SP80] (AB101682)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Mouse spleen tissue sections labeling Cdk2 with ab101682 at 1/50 dilution (2.20 μg/ml). Heat mediated antigen retrieval with Citrate buffer (pH 6.0, epitope retrieval solution 1) for 10mins. Goat Anti-Rabbit & Mouse IgG (HRP) was used as the secondary antibody. Hematoxylin was used as a counterstain. Mainly nuclear staining on the mouse spleen, performed on a Leica Biosystems BOND™ RX instrument.
The section was incubated with ab101682 for 30 mins at room temperature.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cdk2 antibody [SP80] (AB101682)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Rat spleen tissue sections labeling Cdk2 with ab101682 at 1/50 dilution (2.20 μg/ml). Heat mediated antigen retrieval with Citrate buffer (pH 6.0, epitope retrieval solution 1) for 10mins. Goat Anti-Rabbit & Mouse IgG (HRP) was used as the secondary antibody. Hematoxylin was used as a counterstain. Mainly nuclear staining on the rat spleen, performed on a Leica Biosystems BOND™ RX instrument.
The section was incubated with ab101682 for 30 mins at room temperature.

• WB

Lab

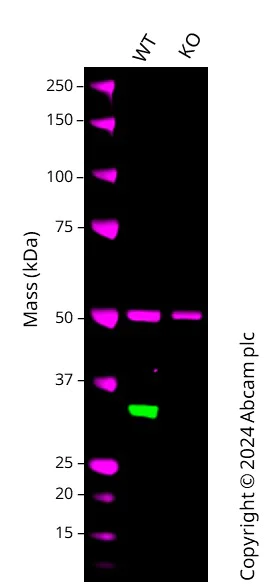

Western blot - Anti-Cdk2 antibody [SP80] (AB101682)

Western blot : Anti-CDK2 antibody [SP80] (ab101682) staining at 1/200 dilution, shown in green; Mouse anti-Alpha Tubulin [DM1A] (ab7291) loading control staining at 1/20000 dilution, shown in magenta. In Western blot, ab101682 was shown to bind specifically to CDK2. A band was observed at 34 kDa in wild-type MCF7 cell lysates with no signal observed at this size in CDK2 knockout cell line ab282628. To generate this image, wild-type and CDK2 knockout MCF7 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

All lanes:

Western blot - Anti-Cdk2 antibody [SP80] (ab101682) at 1/200 dilution

Lane 1:

Wild-type MCF7 cell lysate at 20 µg

Lane 2:

CDK2 knockout MCF7 cell lysate at 20 µg

Lane 2:

Western blot - Human CDK2 knockout (hetero) MCF7 cell line (ab282628)

Secondary

All lanes:

Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

false

• WB

Unknown

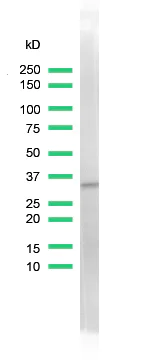

Western blot - Anti-Cdk2 antibody [SP80] (AB101682)

All lanes:

Western blot - Anti-Cdk2 antibody [SP80] (ab101682) at 1/100 dilution

All lanes:

lysate prepared from HeLa cells

Predicted band size: 34 kDa

Observed band size: 33 kDa

false
