Anti-CDKN2A/p14ARF antibody [EPR17878] - BSA and Azide free

• Flow Cyt (Intra)

Supplier Data

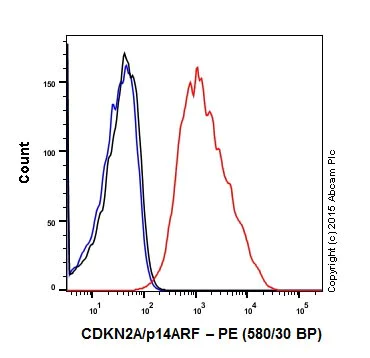

Flow Cytometry (Intracellular) - Anti-CDKN2A/p14ARF antibody [EPR17878] - BSA and Azide free (AB224273)

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed HeLa (Human epithelial cell line from cervix adenocarcinoma) cells transfected with CDKN2A/p14ARF-GFP labeling CDKN2A/p14ARF with ab185620 at 1/120 dilution (red) compared with a Rabbit IgG,monoclonal [EPR25A] - Isotype Control (ab172730) (black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti Rabbit IgG (PE) at 1/150 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab185620).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-CDKN2A/p14ARF antibody [EPR17878] - BSA and Azide free (AB224273)

This ICC data was generated using the same anti-CDKN2A/p14ARF antibody clone [EPR17878] in a different buffer formulation (cat# ab185620).

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa (human cervix adenocarcinoma) cells transfected with CDKN2A/p14ARF or empty vector, labeling CDKN2A/p14ARF with ab185620 at 1/250 dilution, followed by Goat Anti-Rabbit IgG (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution

The nuclear counterstain is DAPI (blue).

Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1/1000 dilution and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed (ab150120) at 1/1000 dilution (red).

The negative controls are as follows : -

-ve control 1 : ab185620 at 1/250 dilution followed by ab150120 at 1/1000 dilution.

-ve control 2 : ab7291 at 1/1000 dilution followed by ab150077 at 1/1000 dilution.

• IP

Supplier Data

Immunoprecipitation - Anti-CDKN2A/p14ARF antibody [EPR17878] - BSA and Azide free (AB224273)

CDKN2A/p14ARF was immunoprecipitated from 1mg of CDKN2A/p14ARF transfected HeLa (Human epithelial cells from cervix adenocarcinoma) whole cell lysate with ab185620 at 1/80 dilution.

Western blot was performed from the immunoprecipitate using ab185620 at 1/1000 dilution.

VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.

Lane 1 : CDKN2A/p14ARF transfected HeLa whole cell lysate, 10μg (Input).

Lane 2 : ab185620 IP in CDKN2A/p14ARF transfected HeLa whole cell lysate.

Lane 3 : Rabbit IgG,monoclonal[EPR25A] - Isotype Control (ab172730) instead of ab185620 in CDKN2A/p14ARF transfected HeLa whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 1 second.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab185620).

All lanes:

Immunoprecipitation - Anti-CDKN2A/p14ARF antibody [EPR17878] (<a href='/en-us/products/primary-antibodies/cdkn2a-p14arf-antibody-epr17878-ab185620'>ab185620</a>)

Predicted band size: 14 kDa

false

• WB

Lab

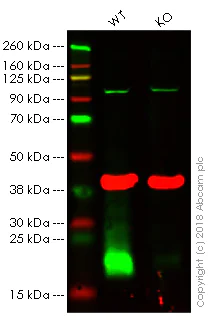

Western blot - Anti-CDKN2A/p14ARF antibody [EPR17878] - BSA and Azide free (AB224273)

Lanes 1 - 2 : Merged signal (red and green). Green - ab185620 observed at 14 kDa. Red - loading control, ab9484, observed at 37 kDa.

ab185620 was shown to specifically react with CDKN2A/p14ARF in wild-type HeLa cells as signal was lost in CDKN2A knockout cells. Wild-type and CDKN2A knockout samples were subjected to SDS-PAGE. ab185620 and ab9484 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab185620).

All lanes:

Western blot - Anti-CDKN2A/p14ARF antibody [EPR17878] (<a href='/en-us/products/primary-antibodies/cdkn2a-p14arf-antibody-epr17878-ab185620'>ab185620</a>) at 1/1000 dilution

Lane 1:

Wild-type HeLa whole cell lysate at 20 µg

Lane 2:

CDKN2A knockout HeLa whole cell lysate at 20 µg

Predicted band size: 14 kDa

false
