Anti-CDON / Cdo antibody [EPR29370-544] - BSA and Azide free

• WB

Supplier Data

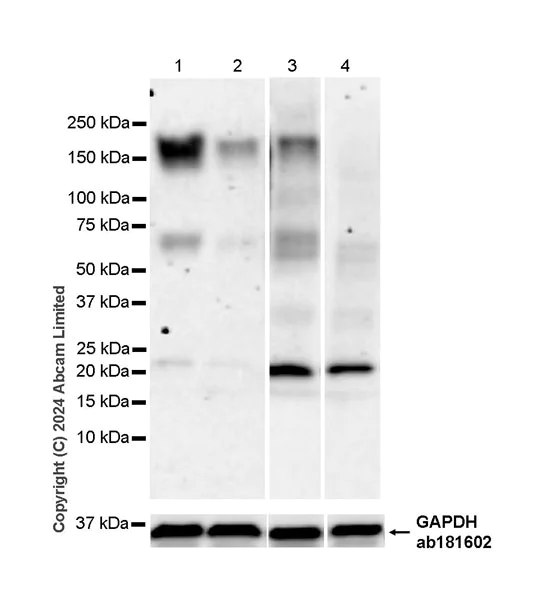

Western blot - Anti-CDON / Cdo antibody [EPR29370-544] - BSA and Azide free (AB324832)

This data was developed using ab322463, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Low expression : LNCaP (PMID : 21849809).

The expression profile/ molecular weight observed is consistent with what has been described in the literature (PMID : 33028094, PMID : 21802063).

The lanes 3-4 were developed using a high-sensitivity ECL substrate, allowing for the detection of proteins in the mid-femtogram range.

The identity of the lower MW band at approximately 20 kDa is unknown.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-CDON / Cdo antibody [EPR29370-544] (ab322463) at 1/1000 dilution

Lane 1:

MG-63 (human osteosarcoma fibroblast) transfected with scrambled siRNA control whole cell lysate at 20 µg

Lane 2:

MG-63 transfected with siRNA specifically targeting CDON / Cdo whole cell lysate at 20 µg

Lane 3:

SK-N-BE(2) (human neuroblastoma neuroblast) whole cell lysate at 20 µg

Lane 4:

LNCaP (human prostate carcinoma epithelial cell) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

true

Exposure time: 180s

• WB

Supplier Data

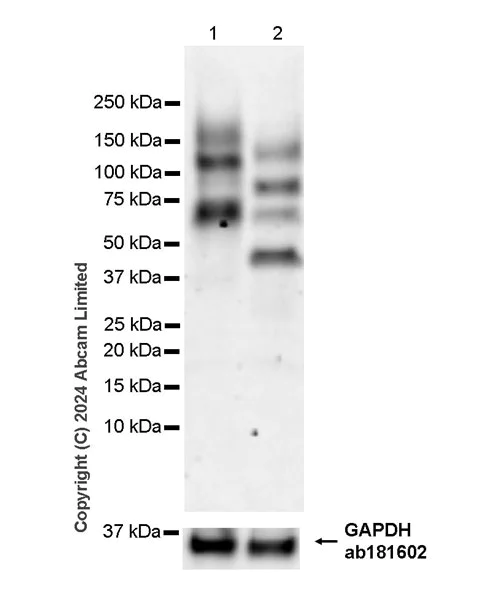

Western blot - Anti-CDON / Cdo antibody [EPR29370-544] - BSA and Azide free (AB324832)

This data was developed using ab322463, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

CDON / Cdo is a glycoprotein of approximately 70-170 kDa and detected as a 40-140 kDa band after treated with Peptide : N-glycosidase F (PNGase F).

The expression profile/ molecular weight observed is consistent with what has been described in the literature (PMID : 33028094, PMID : 21802063).

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-CDON / Cdo antibody [EPR29370-544] (ab322463) at 1/1000 dilution

Lane 1:

Untreated MG-63 (human osteosarcoma fibroblast) whole cell lysate at 20 µg

Lane 2:

MG-63 whole cell lysate treated with Peptide: N-glycosidase F (PNGase F) at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

false

Exposure time: 180s

• WB

Supplier Data

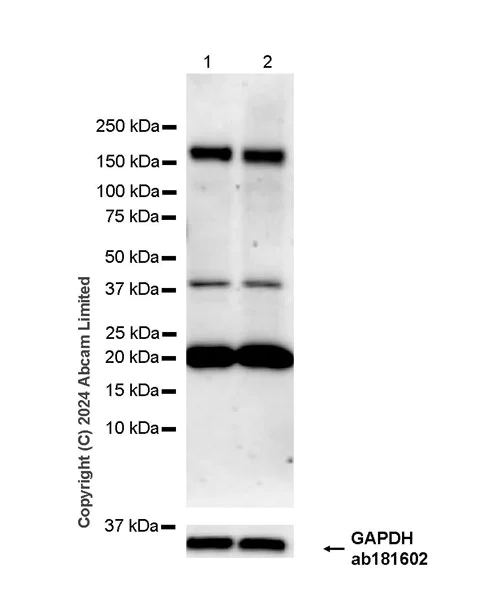

Western blot - Anti-CDON / Cdo antibody [EPR29370-544] - BSA and Azide free (AB324832)

This data was developed using ab322463, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

The identity of the lower MW bands at approximately 20 kDa and 37 kDa are unknown.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-CDON / Cdo antibody [EPR29370-544] (ab322463) at 1/1000 dilution

Lane 1:

Human skeletal muscle tissue lysate at 20 µg

Lane 2:

Human hippocampus tissue lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

false

Exposure time: 180s
