Anti-CDX2 antibody [SP54]

6 product images

•

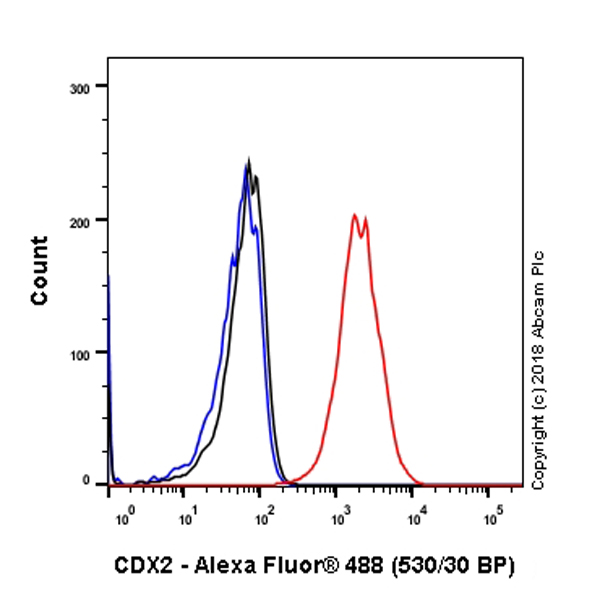

  Flow Cytometry (Intracellular) - Anti-CDX2 antibody [SP54] (ab101532)

  Flow cytometry analysis of Caco-2 (human colorectal adenocarcinoma epithelial cell) labeling CDX2 with purified ab101532 at 1/200 dilution (0.56 μg/ml) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. Goat anti rabbit IgG (Alexa Fluor^® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution was used as a secondary antibody. Isotype control -Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (black). Unlableled control -Unlabelled cells (blue).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CDX2 antibody [SP54] (ab101532)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human colon carcinoma tissue sections labeling CDX2 with ab101532 at 1/100 dilution (1.11 μg/ml). Heat mediated antigen retrieval with Citrate buffer (pH 6.0, epitope retrieval solution 1) for 20 mins. Goat Anti-Rabbit & Mouse IgG (HRP) was used as the secondary antibody. Hematoxylin was used as a counterstain. Positive staining on the human colon carcinoma, performed on a Leica Biosystems BOND™ RX instrument.
  The section was incubated with ab101532 for 30 mins at room temperature.

•

  Immunocytochemistry/ Immunofluorescence - Anti-CDX2 antibody [SP54] (ab101532)

  Immunocytochemistry/ Immunofluorescence analysis of Caco-2 (human colorectal adenocarcinoma epithelial cell) cells labeling CDX2 with purified ab101532 at 1/50 (2.22 μg/ml). Cells were fixed in 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) 1/200 (2.5 μg/ml). Goat anti rabbit IgG (Alexa Fluor^® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1/1000 (2 μg/ml) dilution. DAPI was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

•

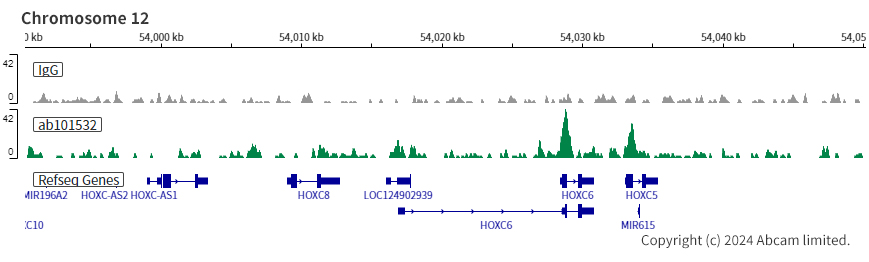

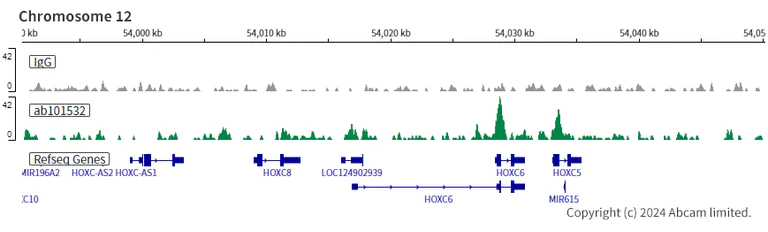

  ChIC/CUT&RUN sequencing - Anti-CDX2 antibody [SP54] (ab101532)

  ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10⁵ Caco-2 (human colorectal adenocarcinoma epithelial cell) cells and 5 µg of ab101532 [SP54]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 is also shown.

  The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.

•

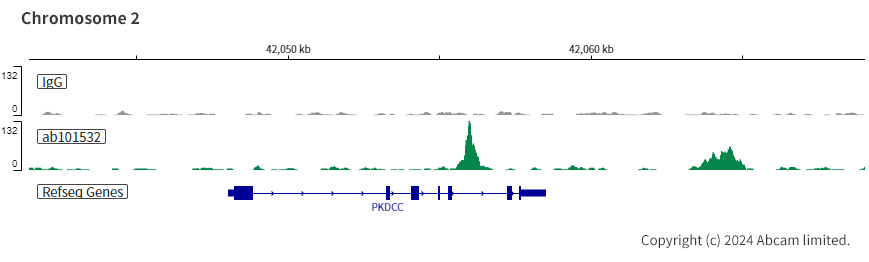

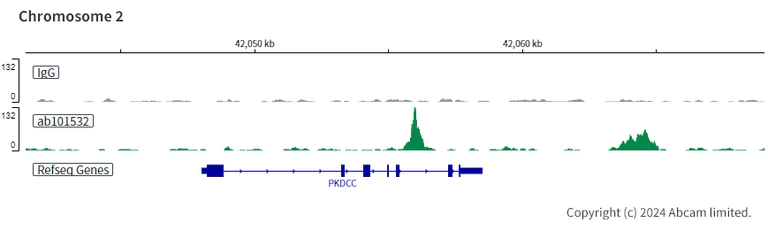

  ChIC/CUT&RUN sequencing - Anti-CDX2 antibody [SP54] (ab101532)

  ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10⁵ Caco-2 (human colorectal adenocarcinoma epithelial cell) cells and 5 µg of ab101532 [SP54]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 is also shown.

  The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.

•

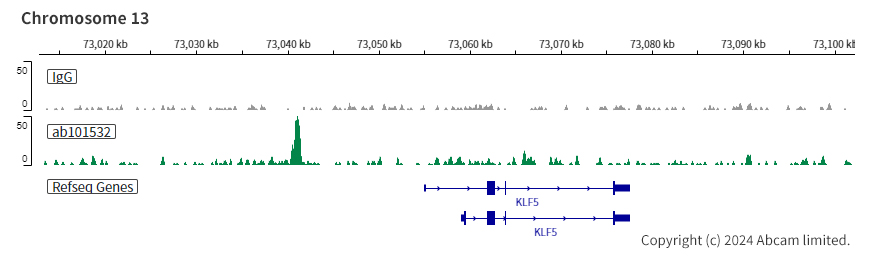

  ChIC/CUT&RUN sequencing - Anti-CDX2 antibody [SP54] (ab101532)

  ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10⁵ Caco-2 (human colorectal adenocarcinoma epithelial cell) cells and 5 µg of ab101532 [SP54]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 is also shown.

  The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.
