Anti-CGBP antibody [EPR19199] - BSA and Azide free

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-CGBP antibody [EPR19199] - BSA and Azide free (AB242431)

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed 293T (Human epithelial cell line from embryonic kidney) cells labeling CGBPwith ab198977 at 1/150 dilution (red) compared with a Rabbit IgG,monoclonal [EPR25A] - Isotype control (ab172730) (black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (blue). Goat anti Rabbit IgG (FITC) at 1/500 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab198977).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-CGBP antibody [EPR19199] - BSA and Azide free (AB242431)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa (Human epithelial cell line from cervix adenocarcinoma) cells labeling CGBP with ab198977 at 1/250 dilution, followed by Goat Anti-Rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green).

Confocal image showing nuclear staining on HeLa cell line.

The nuclear counterstain is DAPI (blue).

Tubulin is detected with Anti-alpha Tubulin-Loading Control (ab7291) at 1/1000 dilution and Goat Anti-Mouse IgG (AlexaFluor®594) preadsorbed (ab150120) at 1/1000 dilution (red).

The negative controls are as follows : -

-ve control 1 : ab198977 at 1/250 dilution followed by ab150120 at 1/1000 dilution.

-ve control 2 : ab7291 at 1/1000 dilution followed by ab150077 at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab198977).

• IP

Supplier Data

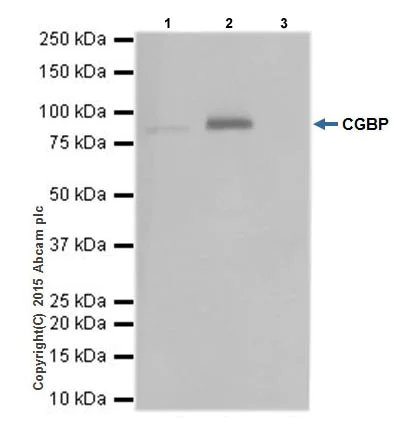

Immunoprecipitation - Anti-CGBP antibody [EPR19199] - BSA and Azide free (AB242431)

CGBP was immunoprecipitated from 1mg of HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate with ab198977 at 1/40 dilution.

Western blot was performed from the immunoprecipitate using ab198977 at 1/1000 dilution.

VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.

Lane 1 : HeLa whole cell lysate, 10μg (Input).

Lane 2 : ab198977 IP in HeLa whole cell lysate.

Lane 3 : Rabbit IgG,monoclonal [EPR25A] -Isotype Control (ab172730) instead of ab198977 in HeLa whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 1 second.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab198977)

All lanes:

Immunoprecipitation - Anti-CGBP antibody [EPR19199] - ChIP Grade (<a href='/en-us/products/primary-antibodies/cgbp-antibody-epr19199-chip-grade-ab198977'>ab198977</a>)

Predicted band size: 76 kDa

false

• ChIP

Unknown

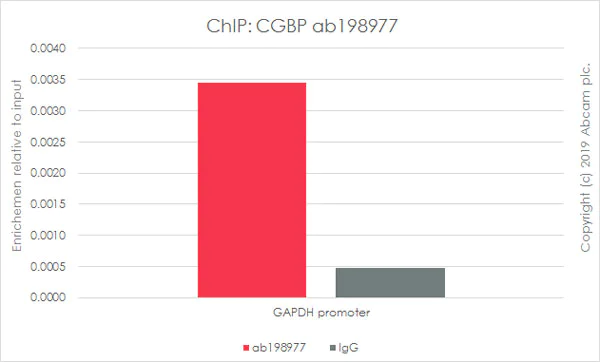

ChIP - Anti-CGBP antibody [EPR19199] - BSA and Azide free (AB242431)

Chromatin was prepared from HeLa cells according to the Abcam Dual X-ChIP protocol*. Cells were fixed with EGS for 30 minutes, then formaldehyde for 10 minutes.
The ChIP was performed with 25 μg of chromatin, 5 μg of ab198977 (red), and 20 μl of Protein A/G sepharose beads. 5 μg of rabbit normal IgG was added to the beads control (gray). The immunoprecipitated DNA was quantified by real time PCR (Sybr green approach).
Primers and probes are located in the first kb of the transcribed region.
*http : //www.abcam.com/resources?keywords=X%20ChIP%20protocol
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab198977).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CGBP antibody [EPR19199] - BSA and Azide free (AB242431)

Immunohistochemical analysis of paraffin-embedded Mouse cerebrum tissue labeling CGBP with ab198977 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Nuclear staining on mouse cerebrum tissue is observed.

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab198977).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-CGBP antibody [EPR19199] - BSA and Azide free (AB242431)

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed NIH/3T3 cells labeling CGBPwith ab198977 at 1/150 dilution (red) compared with a Rabbit IgG,monoclonal-Isotype control (ab172730) (black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (blue). Goat anti Rabbit IgG (FITC) at a dilution of 1/500 was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab198977).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-CGBP antibody [EPR19199] - BSA and Azide free (AB242431)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized NIH/3T3 (Mouse embryonic fibroblast cell line) cells labeling CGBP with ab198977 at 1/250 dilution, followed by Goat Anti-Rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green).

Confocal image showing nuclear staining on NIH/3T3 cell line.

The nuclear counterstain is DAPI (blue).

Tubulin is detected Anti-alpha Tubulin antibody - Loading Control (ab7291) at 1/1000 dilution and Goat Anti-Mouse IgG (AlexaFluor®594) preadsorbed (ab150120) at 1/1000 dilution (red).

The negative controls are as follows : -

-ve control 1 : ab198977 at 1/250 dilution followed by ab150120 at 1/1000 dilution.

-ve control 2 : ab7291 at 1/1000 dilution followed by ab150077 at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab198977).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CGBP antibody [EPR19199] - BSA and Azide free (AB242431)

Immunohistochemical analysis of paraffin-embedded Rat cerebellum tissue labeling CGBP with ab198977 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Nuclear staining on rat cerebellum tissue is observed.

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab198977).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• WB

Supplier Data

Western blot - Anti-CGBP antibody [EPR19199] - BSA and Azide free (AB242431)

Blocking buffer : 5% NFDM/TBST.

Dilution buffer : 1% BSA/TBST.

This data is from our collaborator Hengyu-Fan's lab (Life Sciences Institute Zhejiang University).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab198977).

All lanes:

Western blot - Anti-CGBP antibody [EPR19199] - ChIP Grade (<a href='/en-us/products/primary-antibodies/cgbp-antibody-epr19199-chip-grade-ab198977'>ab198977</a>) at 1/500 dilution

Lane 1:

WT HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate

Lane 2:

CFP1(CGBP) KO HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate

Secondary

All lanes:

Goat anti-Rabbit IgG (H+L), HRP at 1/5000 dilution

Predicted band size: 76 kDa

Observed band size: 76 kDa

false

Exposure time: 15s
