Anti-CHD1L antibody [EPR14515(2)] - BSA and Azide free

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-CHD1L antibody [EPR14515(2)] - BSA and Azide free (AB240342)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa (Human epithelial cells from cervix adenocarcinoma) cells labeling CHD1L with ab197019 at 1/500 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/500 dilution (green). Nuclear and weakly cytoplasm staining on HeLa cell line was observed. The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution (red).
The negative controls are as follows :
-ve control 1 : ab197019 at 1/500 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution.
-ve control 2 : ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab197019).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CHD1L antibody [EPR14515(2)] - BSA and Azide free (AB240342)

Immunohistochemical analysis of paraffin-embedded Human hepatocellular carcinoma tissue labeling CHD1L with ab197019 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) secondary antibody at 1/500 dilution. Nuclear and weakly cytoplasm staining on Human hepatocellular carcinoma tissue is observed. Counter stained with Hematoxylin.

Negative control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab197019).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-CHD1L antibody [EPR14515(2)] - BSA and Azide free (AB240342)

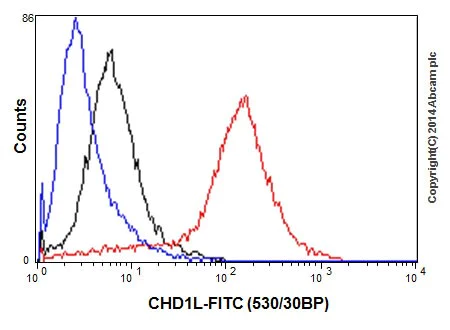

Intracellular flow cytometric analysis of HeLa (Human epithelial cells from cervix adenocarcinoma) cells labeling CHD1L with ab197019 at 1/520 dilution (red) compared with a rabbit monoclonal IgG isotype control (black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti rabbit IgG (FITC) at 1/150 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab197019).

• IP

Supplier Data

Immunoprecipitation - Anti-CHD1L antibody [EPR14515(2)] - BSA and Azide free (AB240342)

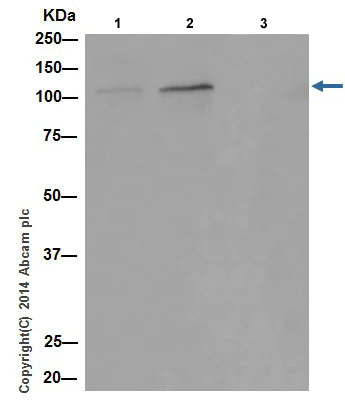

CHD1L was immunoprecipitated from 293 (Human embryonic kidney) whole cell extract with ab197019 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab197019 at 1/1000 dilution. Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG, was used as secondary antibody at 1/1500 dilution. Lane 1 : 293 whole cell extract (Input) 10 µg. Lane 2 : ab197019 IP in 293 whole cell extract. Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab197019 in 293 whole cell extract.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab197019).

All lanes:

Immunoprecipitation - Anti-CHD1L antibody [EPR14515(2)] (<a href='/en-us/products/primary-antibodies/chd1l-antibody-epr145152-ab197019'>ab197019</a>)

Predicted band size: 101 kDa

false

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CHD1L antibody [EPR14515(2)] - BSA and Azide free (AB240342)

Immunohistochemical analysis of paraffin-embedded mouse liver tissue labeling CHD1L with ab197019 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) secondary antibody at 1/500 dilution. Nuclear and weakly cytoplasm staining on mouse liver tissue is observed. Counter stained with Hematoxylin.

Negative control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab197019).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
