AB248756

Anti-CHM antibody [EPR7142] - BSA and Azide free

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal CHM antibody. Carrier free. Suitable for ICC/IF, WB and reacts with Human samples.

View Alternative Names

REP1, TCD, CHM, Rab proteins geranylgeranyltransferase component A 1, Choroideremia protein, Rab escort protein 1, TCD protein, REP-1

2 Images

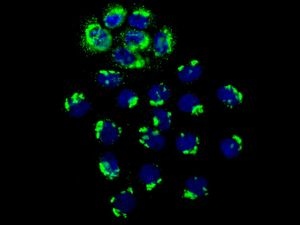

Immunocytochemistry/ Immunofluorescence - Anti-CHM antibody [EPR7142] - BSA and Azide free (AB248756)
  • ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-CHM antibody [EPR7142] - BSA and Azide free (AB248756)

This data was developed using ab134964, the same antibody clone in a different buffer formulation.Immunofluorescence analysis of CHM in A431 cells, using ab134964 at a dilution of 1/250.

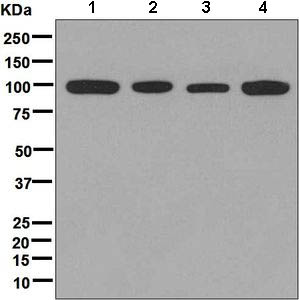

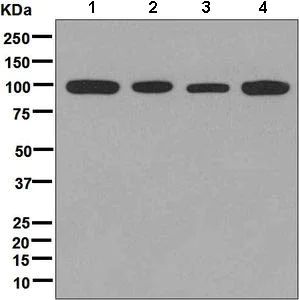

Western blot - Anti-CHM antibody [EPR7142] - BSA and Azide free (AB248756)
  • WB

Unknown

Western blot - Anti-CHM antibody [EPR7142] - BSA and Azide free (AB248756)

This data was developed using ab134964, the same antibody clone in a different buffer formulation.

All lanes:

Western blot - Anti-CHM antibody [EPR7142] (<a href='/en-us/products/primary-antibodies/chm-antibody-epr7142-ab134964'>ab134964</a>) at 1/1000 dilution

Lane 1:

HeLa cell lysate at 10 µg

Lane 2:

Y79 cell lysate at 10 µg

Lane 3:

A431 cell lysate at 10 µg

Lane 4:

293T cell lysate at 10 µg

Secondary

All lanes:

HRP labelled goat anti-rabbit at 1/2000 dilution

Predicted band size: 73 kDa

Observed band size: 95 kDa

false

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR7142

Isotype

IgG

Carrier free

Yes

Reacts with

Human

Applications

ICC/IF, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" }, "Mouse": { "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Rat": { "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" } } }
style
left-column

Product details

ab248756 is the carrier-free version of ab134964.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

The CHM gene encodes for the Rab escort protein-1 (REP-1) which plays an essential role in the prenylation of Rab proteins a type of small GTPases involved in vesicle trafficking. The protein has a molecular mass of approximately 90 kDa. CHM is expressed in multiple tissues including the retina and nervous system. The alternate names for this protein include component of choroideremia and TCD which reflects its connection to cellular trafficking and transport processes.
Biological function summary

CHM is integral to the prenylation process which is important for anchoring Rab proteins to cellular membranes. Rab escort protein-1 acts within the Rab geranylgeranyltransferase complex facilitating the transfer of lipid groups to Rab proteins. This modification is necessary for proper Rab function affecting intracellular vesicle trafficking and membrane dynamics. CHM's biological actions are critical to cellular processes such as endocytosis exocytosis and autophagy.

Pathways

The CHM protein influences key cellular pathways such as the intracellular vesicle transport pathway and the autophagy pathway. Within these pathways CHM closely interacts with Rab proteins including Rab1 and Rab27 that are important in regulating vesicle movement within cells. The association of CHM with these pathways highlights its role in maintaining cellular transport and recycling mechanisms.

CHM is strongly linked to choroideremia a genetic disorder leading to progressive vision loss. Mutations in the CHM gene disrupt the normal function of REP-1 affecting the prenylation of Rab proteins and impairing cellular processes in the retina. Additionally CHM mutations can have implications in disorders related to X-linked inheritance. Research also connects CHM with pathogenic proteins like Rab27 linked to granule release disorders highlighting the impact of its malfunction in disease development.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Substrate-binding subunit of the Rab geranylgeranyltransferase (GGTase) complex. Binds unprenylated Rab proteins and presents the substrate peptide to the catalytic component B composed of RABGGTA and RABGGTB, and remains bound to it after the geranylgeranyl transfer reaction. The component A is thought to be regenerated by transferring its prenylated Rab back to the donor membrane. Besides, a pre-formed complex consisting of CHM and the Rab GGTase dimer (RGGT or component B) can bind to and prenylate Rab proteins; this alternative pathway is proposed to be the predominant pathway for Rab protein geranylgeranylation.
See full target information CHM
