Anti-CLEC9A antibody [EPR22324]

• Flow Cyt

Supplier Data

Flow Cytometry - Anti-CLEC9A antibody [EPR22324] (AB223188)

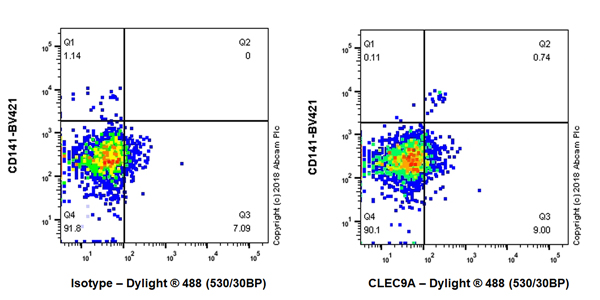

Flow cytometric analysis of Human peripheral blood mononuclear cell (PBMC) cells labeling CLEC9A with ab223188 at 1/50 dilution. Cells were stained with Rabbit monoclonal IgG (ab172730) (Left) or ab223188 (Right). Then stained with Alexa Fluor^® 647-conjugated anti-CD3, PE conjugated anti-HLA-DR and BV421 conjugated anti-CD141. Data shown was firstly gated out lymphocytes, then gated on viable CD3(-) HLA-DR (+) APC cells.

CLEC9A is selectively expressed on CD141+DC cells (Q2, ~0.05% in PBMC) and expression pattern was described in literature. (PMID : 20479116).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CLEC9A antibody [EPR22324] (AB223188)

Immunohistochemical analysis of paraffin-embedded human gastric cancer tissue labeling CLEC9A with ab223188 at 1/1000 dilution, followed Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Positive staining on dendritic cells (arrows) of human gastric cancer (PMID : 18408006; PMID : 20479116) is observed. Counterstained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CLEC9A antibody [EPR22324] (AB223188)

Immunohistochemical analysis of paraffin-embedded human thyoma tissue labeling CLEC9A with ab223188 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Membranous staining on dendritic cells of human thymoma (PMID : 18408006; PMID : 20479116) is observed. Counterstained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• Flow Cyt

Supplier Data

Flow Cytometry - Anti-CLEC9A antibody [EPR22324] (AB223188)

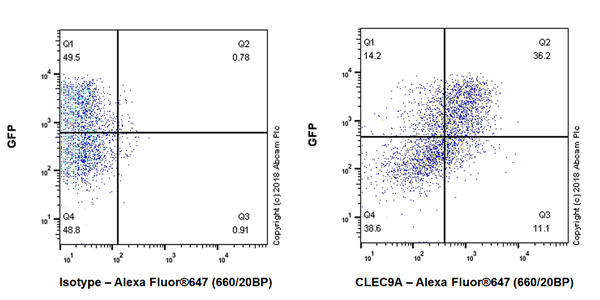

Flow cytometric analysis of HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) transfected with GFP-tagged CLEC9A overexpression construct, labeling CLEC9A with ab223188 at 1/500 dilution (Right) compared with a Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) (Left). Goat anti rabbit IgG (Alexa Fluor^® 647, ab150079) was used as the secondary antibody at 1/2000 dilution. Gated on viable cells.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CLEC9A antibody [EPR22324] (AB223188)

Immunohistochemical analysis of paraffin-embedded human tonsil tissue labeling CLEC9A with ab223188 at 1/1000 dilution, followed by Rabbit specific IHC polymer detection kit HRP/DAB Ready to use (ab209101). Positive staining on dendritic cells of human tonsil (PMID : 18408006; PMID : 20479116) is observed. Counterstained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Rabbit specific IHC polymer detection kit HRP/DAB Ready to use (ab209101).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
