Anti-CLIC1 antibody [EPR22907-50] - BSA and Azide free

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-CLIC1 antibody [EPR22907-50] - BSA and Azide free (AB256514)

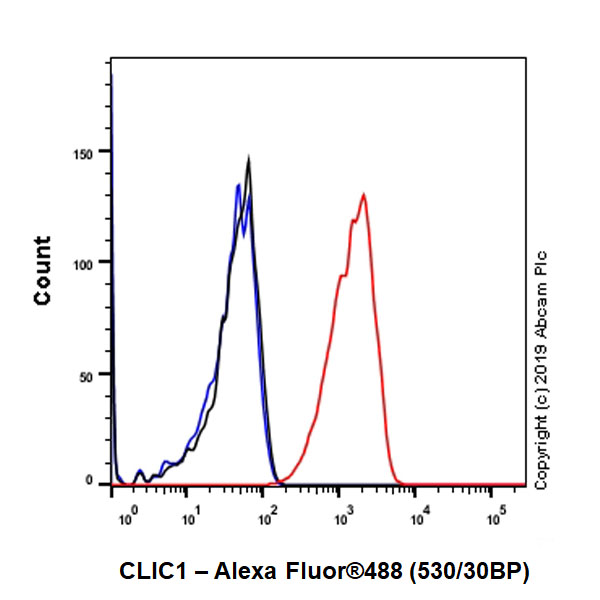

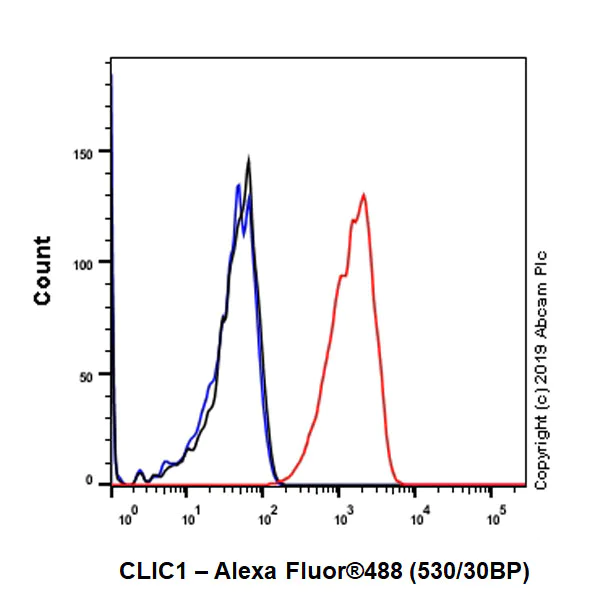

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol-permeabilized K-562 (Human chronic myelogenous leukemia lymphoblast) cells labelling CLIC1 with ab229917 at 1/500 dilution (0.1μg) (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor^®488, ab150077) at 1/2000 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab229917).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-CLIC1 antibody [EPR22907-50] - BSA and Azide free (AB256514)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized K562 (human chronic myelogenous leukemia lymphoblast) cells labelling CLIC1 with at 1/100 dilution, followed by ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary antibody at 1/1000 dilution (Green). Confocal image showing membranous staining in K-562 cell line. ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) was used to counterstain tubulin at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab229917).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-CLIC1 antibody [EPR22907-50] - BSA and Azide free (AB256514)

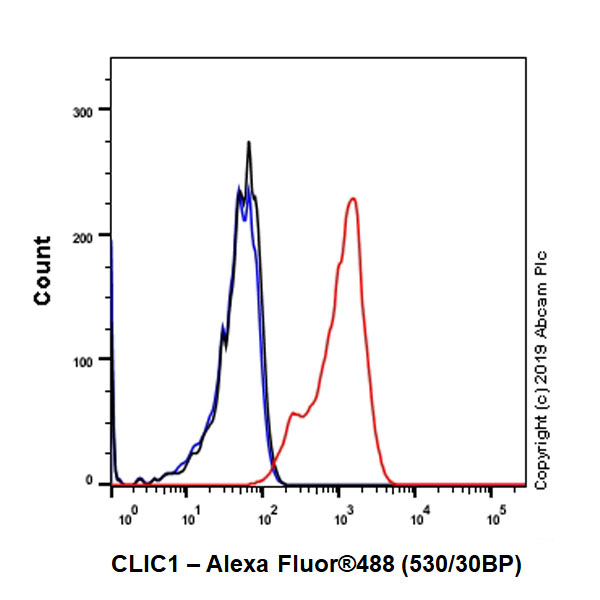

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol-permeabilized C2C12 (Mouse myoblasts myoblast) cells labelling CLIC1 with ab229917 at 1/500 dilution (0.1μg) (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor^®488, ab150077) at 1/2000 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab229917).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-CLIC1 antibody [EPR22907-50] - BSA and Azide free (AB256514)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized C2C12 (mouse myoblasts myoblast) cells labelling CLIC1 with at 1/100 dilution, followed by ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary antibody at 1/1000 dilution (Green). Confocal image showing cytoplasmic and membranous staining in C2C12 cell line. ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) was used to counterstain tubulin at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab229917).

• IP

Unknown

Immunoprecipitation - Anti-CLIC1 antibody [EPR22907-50] - BSA and Azide free (AB256514)

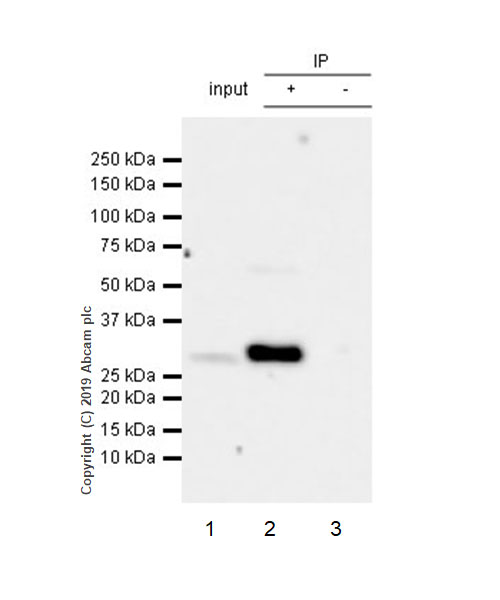

CLIC1 was immunoprecipitated from 0.35mg Mouse placenta lysate with ab229917 at 1/30 dilution (2μg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab229917 at 1/1000 dilution (0.5 μg/ml). VeriBlot for IP Detection Reagent (HRP) (ab131366) was used as the secondary antibody at 1/5000 dilution.

Lane 1 : Mouse placenta lysate 10μg

Lane 2 : ab229917 IP in Mouse placenta lysate

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab229917 in Mouse placenta lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 30 seconds.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab229917).

All lanes:

Immunoprecipitation - Anti-CLIC1 antibody [EPR22907-50] (<a href='/en-us/products/primary-antibodies/clic1-antibody-epr22907-50-ab229917'>ab229917</a>)

Predicted band size: 26 kDa

Observed band size: 27 kDa
