Anti-Collagen VI antibody [EPR17072] - Low endotoxin, Azide free

• WB

Unknown

Western blot - Anti-Collagen VI antibody [EPR17072] - Low endotoxin, Azide free (AB229450)

Lanes 1 - 3 : Merged signal (red and green). Green - ab182744 observed at 109 kDa. Red - loading control, ab9484, observed at 37 kDa.

ab182744 was shown to recognize Collagen VI in wild-type HEK293 cells as signal was lost at the expected MW in COL6A1 knockout cells. Additional cross-reactive bands were observed in the wild-type and knockout cells. Wild-type and COL6A1 knockout samples were subjected to SDS-PAGE. ab182744 and ab9484 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at 1/2000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab182744).

All lanes:

Western blot - Anti-Collagen VI antibody [EPR17072] (<a href='/en-us/products/primary-antibodies/collagen-vi-antibody-epr17072-ab182744'>ab182744</a>)

Lane 1:

Wild-type HEK293 whole cell lysate at 20 µg

Lane 2:

COL6A1 knockout HEK293 whole cell lysate at 20 µg

Lane 3:

Human Skeletal Muscle whole cell lysate at 20 µg

Predicted band size: 105 kDa,109 kDa

false

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Collagen VI antibody [EPR17072] - Low endotoxin, Azide free (AB229450)

Immunohistochemical analysis of paraffin-embedded Human liver tissue labeling Collagen VI with ab182744 at 1/250 dilution followed by prediluted HRP Polymer for Rabbit/Mouse IgG. Positive staining around sinusoidal endothelial basement membranes is observed. Counter stained with Hematoxylin.

Negative control : Using PBS instead of primary ab secondary ab is prediluted HRP Polymer for Rabbit/Mouse IgG.

This data was developed using the same antibody clone in a different buffer formulation containing PBS BSA glycerol and sodium azide (ab182744).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-Collagen VI antibody [EPR17072] - Low endotoxin, Azide free (AB229450)

This ICC/IF data was generated using the same anti-Collagen VI antibody clone EPR17072 in a different buffer formulation (cat# ab182744).

Immunofluorescent analysis of 4% paraformaldehyde-fixed 0.1% Triton X-100 permeabilized HeLa (Human epithelial cells from cervix adenocarcinoma) cells labeling Collagen VI with ab182744 at 1/200 dilution followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/400 dilution (green). Cytoplasm staining on HeLa cell line is observed. The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/500 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution (red).

The negative controls are as follows : -

-ve control1 - ab182744 at 1/200 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution.
-ve control 2 - ab7291 (anti-Tubulin mouse mAb) at 1/500 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/400 dilution.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Collagen VI antibody [EPR17072] - Low endotoxin, Azide free (AB229450)

Immunohistochemical analysis of paraffin-embedded Rat stomach tissue labeling Collagen VI with ab182744 at 1/250 dilution followed by prediluted HRP Polymer for Rabbit/Mouse IgG. Positive staining around Rat gastric epithelial basement membranes is observed. Counter stained with Hematoxylin.

Negative control : Using PBS instead of primary ab secondary ab is prediluted HRP Polymer for Rabbit/Mouse IgG.

This data was developed using the same antibody clone in a different buffer formulation containing PBS BSA glycerol and sodium azide (ab182744).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Collagen VI antibody [EPR17072] - Low endotoxin, Azide free (AB229450)

This IHC data was generated using the same anti-Collagen VI antibody clone EPR17072 in a different buffer formulation (cat# ab182744).

Immunohistochemical analysis of paraffin-embedded Human cardiac muscle tissue labeling Collagen VI with ab182744 at 1/250 dilution followed by prediluted HRP Polymer for Rabbit/Mouse IgG. Positive staining on Human cardiac sarcolemma and interstitium is observed. Counter stained with Hematoxylin.

Negative control : Using PBS instead of primary ab secondary ab is prediluted HRP Polymer for Rabbit/Mouse IgG.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Collagen VI antibody [EPR17072] - Low endotoxin, Azide free (AB229450)

Immunohistochemical analysis of paraffin-embedded Mouse kidney tissue labeling Collagen VI with ab182744 at 1/250 dilution followed by prediluted HRP Polymer for Rabbit/Mouse IgG. Positive staining around basement membranes of Mouse renal tubules is observed. Counter stained with Hematoxylin.

Negative control : Using PBS instead of primary ab secondary ab is prediluted HRP Polymer for Rabbit/Mouse IgG.

This data was developed using the same antibody clone in a different buffer formulation containing PBS BSA glycerol and sodium azide (ab182744).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• WB

Lab

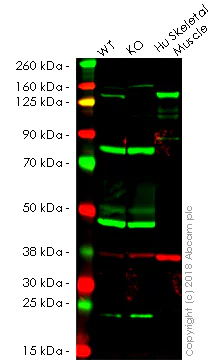

Western blot - Anti-Collagen VI antibody [EPR17072] - Low endotoxin, Azide free (AB229450)

This data was developed using the same antibody clone in a different buffer formulation (ab182744).

Lanes 1-3 : Merged signal (red and green). Green - ab182744 observed at 136 kDa. Red - loading control ab8245 observed at 36 kDa.

ab182744 Anti-Collagen VI antibody [EPR17072] was shown to specifically react with Collagen VI antibody in wild-type HEK293T cells. Loss of signal was observed when knockout cell line ab265060 (knockout cell lysate ab256879) was used. Wild-type and Collagen VI antibody knockout samples were subjected to SDS-PAGE. ab182744 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated at room temperature for 2. 5 hours at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Collagen VI antibody [EPR17072] (<a href='/en-us/products/primary-antibodies/collagen-vi-antibody-epr17072-ab182744'>ab182744</a>) at 1/1000 dilution

Lane 1:

Wild-type HEK293T cell lysate at 20 µg

Lane 2:

COL6A1 knockout HEK293T cell lysate at 20 µg

Lane 2:

Western blot - Human COL6A1 knockout HEK-293T cell line (<a href='/en-us/products/cell-lines/human-col6a1-knockout-hek-293t-cell-line-ab265060'>ab265060</a>)

Lane 3:

Human skeletal muscle tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/10000 dilution

Predicted band size: 109 kDa

Observed band size: 136 kDa
