Anti-Connexin 43 / GJA1 antibody [EPR22955-101] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Connexin 43 / GJA1 antibody [EPR22955-101] - BSA and Azide free (AB259276)

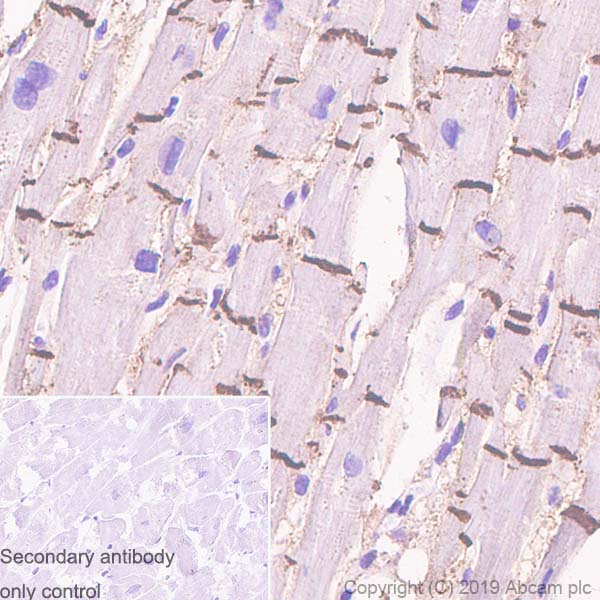

Immunohistochemical analysis of paraffin-embedded Human cardiac muscle tissue labeling Connexin 43 / GJA1 with ab235585 at 1/500 dilution (1.01 ug/ml) followed by a ready to use Goat Anti-Rabbit & Mouse IgG (HRP). Positive staining on human myocardial intercalated disc. The section was incubated with ab235585 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Goat Anti-Rabbit & Mouse IgG (HRP).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab235585).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Connexin 43 / GJA1 antibody [EPR22955-101] - BSA and Azide free (AB259276)

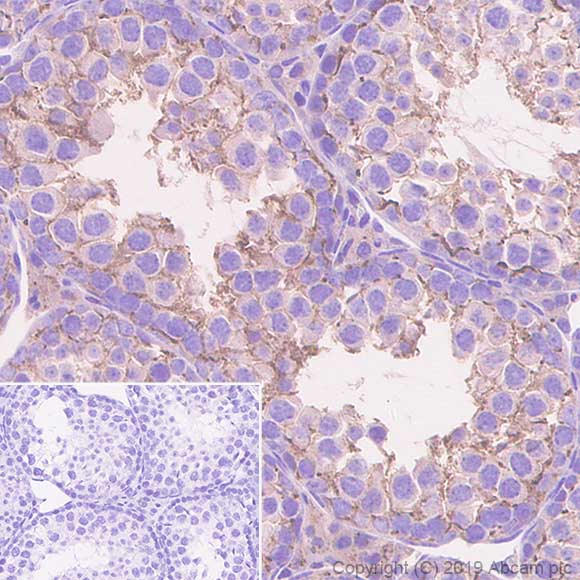

Immunohistochemical analysis of paraffin-embedded mouse testis tissue labeling Connexin 43 / GJA1 with ab235585 at 1/1000 dilution (0.507 μg/ml) followed by a ready to use Goat Anti-Rabbit & Mouse IgG (HRP). Membranous staining on mouse testis is observed. The section was incubated with ab235585 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^®RX instrument. Counterstained with hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Goat Anti-Rabbit & Mouse IgG (HRP).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab235585).

• IHC-Fr

Unknown

Immunohistochemistry (Frozen sections) - Anti-Connexin 43 / GJA1 antibody [EPR22955-101] - BSA and Azide free (AB259276)

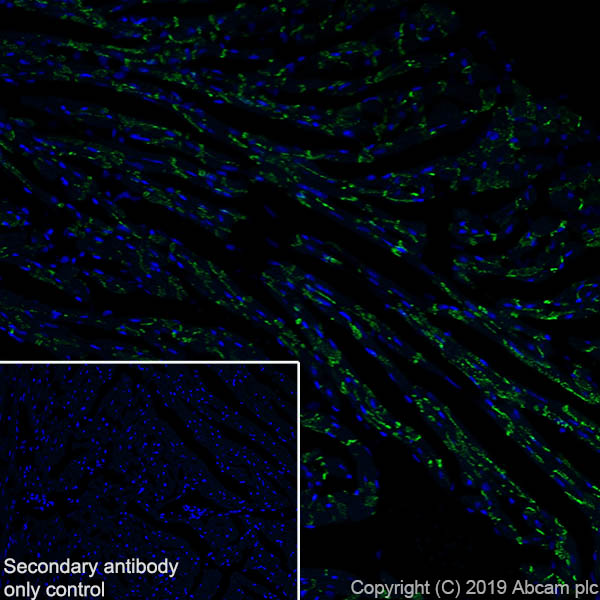

4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen section of rat cardiac muscle tissue labeling Connexin 43 / GJA1 using ab235585 at 1/250 dilution, followed by ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary at 1/1000 dilution (green). The nuclear counterstain is DAPI (blue). Positive staining on intercalated discs of rat cardiac muscle (PMID : 18678643) is observed.

Secondary antibody only control : Used PBS instead of primary antibody, followed by ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary at 1/1000 dilution.

Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab235585).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Connexin 43 / GJA1 antibody [EPR22955-101] - BSA and Azide free (AB259276)

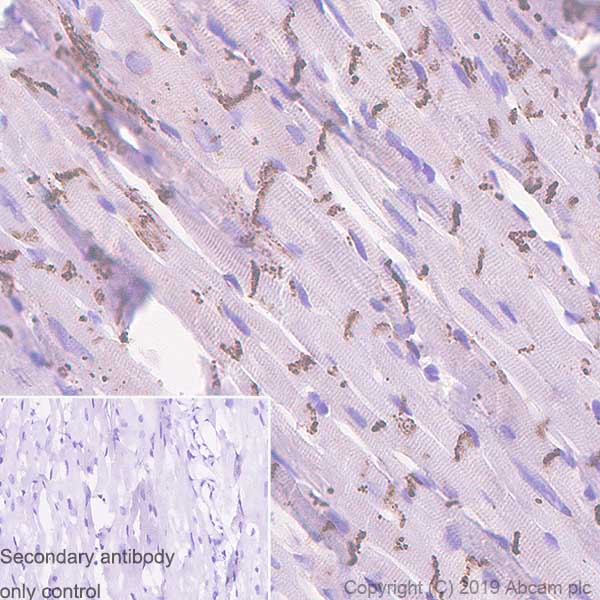

Immunohistochemical analysis of paraffin-embedded rat cardiac muscle tissue labeling Connexin 43 / GJA1 with ab235585 at 1/1000 dilution (0.507 μg/ml) followed by a ready to use Goat Anti-Rabbit & Mouse IgG (HRP). Positive staining on rat myocardial intercalated disc is observed. The section was incubated with ab235585 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Goat Anti-Rabbit & Mouse IgG (HRP).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab235585).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Connexin 43 / GJA1 antibody [EPR22955-101] - BSA and Azide free (AB259276)

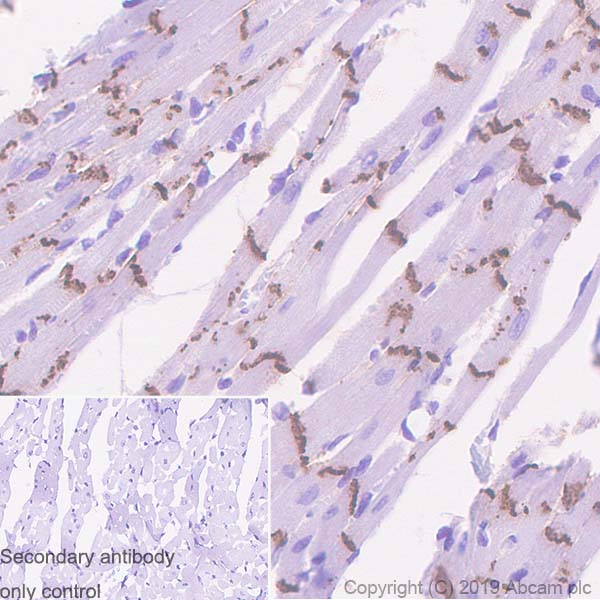

Immunohistochemical analysis of paraffin-embedded mouse cardiac muscle tissue labeling Connexin 43 / GJA1 with ab235585 at 1/1000 dilution (0.507 μg/ml) followed by a ready to use Goat Anti-Rabbit & Mouse IgG (HRP). Positive staining on mouse myocardial intercalated disc (PMID : 30228305) is observed. The section was incubated with ab235585 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^®RX instrument. Counterstained with hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Goat Anti-Rabbit & Mouse IgG (HRP).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab235585).

• IHC-Fr

Unknown

Immunohistochemistry (Frozen sections) - Anti-Connexin 43 / GJA1 antibody [EPR22955-101] - BSA and Azide free (AB259276)

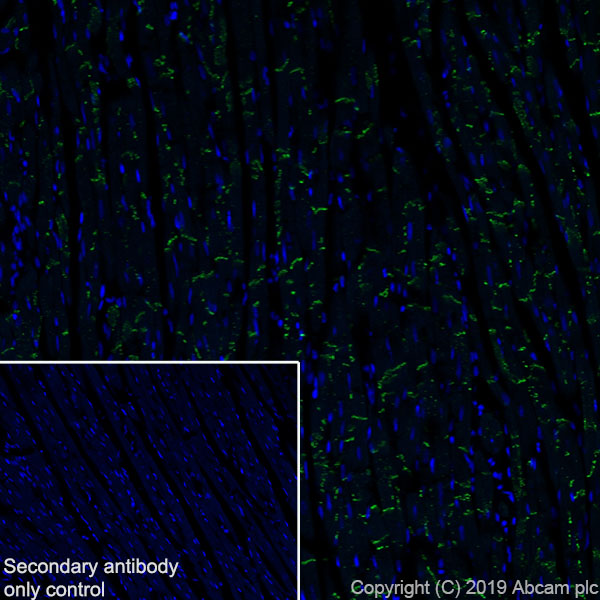

4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen section of mouse cardiac muscle tissue labeling Connexin 43 / GJA1 using ab235585 at 1/250 dilution, followed by ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary at 1/1000 dilution (green). The nuclear counterstain is DAPI (blue). Positive staining on intercalated discs of mouse cardiac muscle (PMID : 18678643) is observed.

Secondary antibody only control : Used PBS instead of primary antibody, followed by ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary at 1/1000 dilution.

Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab235585).

• IP

Unknown

Immunoprecipitation - Anti-Connexin 43 / GJA1 antibody [EPR22955-101] - BSA and Azide free (AB259276)

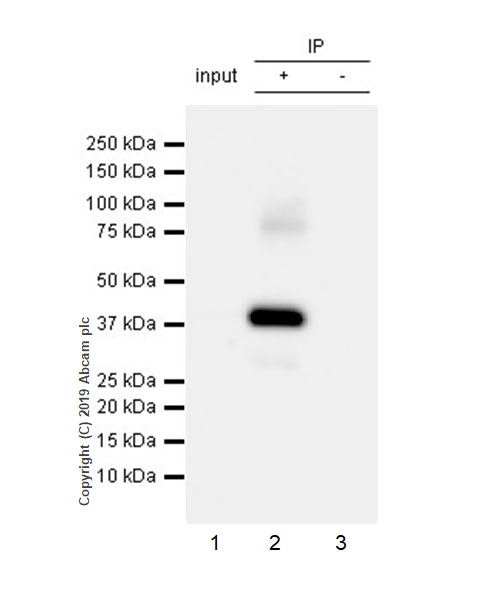

Connexin 43 / GJA1 was immunoprecipitated from 0.35 mg mouse brain lysate 10μg with ab235585 at 1/30 dilution (2μg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab235585 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366) was used at 1/5000 dilution.

Lane 1 : Mouse brain lysate 10μg.

Lane 2 : ab235585 IP in mouse brain lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab235585 in mouse brain lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 10 seconds.

High MW band between 75kDa and 100kDa represents Connexin 43 dimers which described in literature. (PMID : 19460776).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab235585).

All lanes:

Immunoprecipitation - Anti-Connexin 43 / GJA1 antibody [EPR22955-101] - Intercellular Junction Marker (<a href='/en-us/products/primary-antibodies/connexin-43-gja1-antibody-epr22955-101-intercellular-junction-marker-ab235585'>ab235585</a>)

Predicted band size: 43 kDa

Observed band size: 43 kDa

false

• WB

Lab

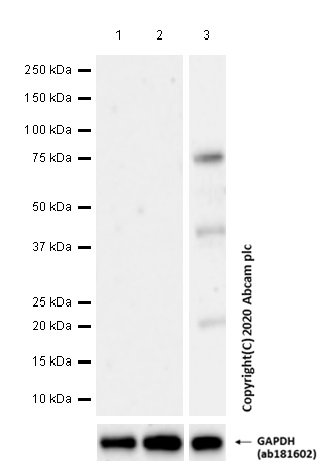

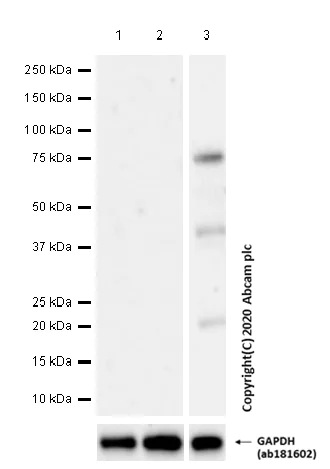

Western blot - Anti-Connexin 43 / GJA1 antibody [EPR22955-101] - BSA and Azide free (AB259276)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab235585).

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

ab235585 has low affinity in cell line samples.

This blot was developed using a high sensitivity ECL substrate. The high-sensitivity ECL substrate used allows for the detection of proteins in the mid-femtogram range.

All lanes:

Western blot - Anti-Connexin 43 / GJA1 antibody [EPR22955-101] - Intercellular Junction Marker (<a href='/en-us/products/primary-antibodies/connexin-43-gja1-antibody-epr22955-101-intercellular-junction-marker-ab235585'>ab235585</a>) at 1/1000 dilution

Lane 1:

Huh7 (Human hepatocellular carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 2:

HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 3:

C2C12 (Mouse myoblasts myoblast) whole cell lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/20000 dilution

Predicted band size: 43 kDa

true

Exposure time: 180s
