Anti-COX2 / Cyclooxygenase 2 antibody [EPR18377-106] - BSA and Azide free

• ICC/IF

Supplier Data

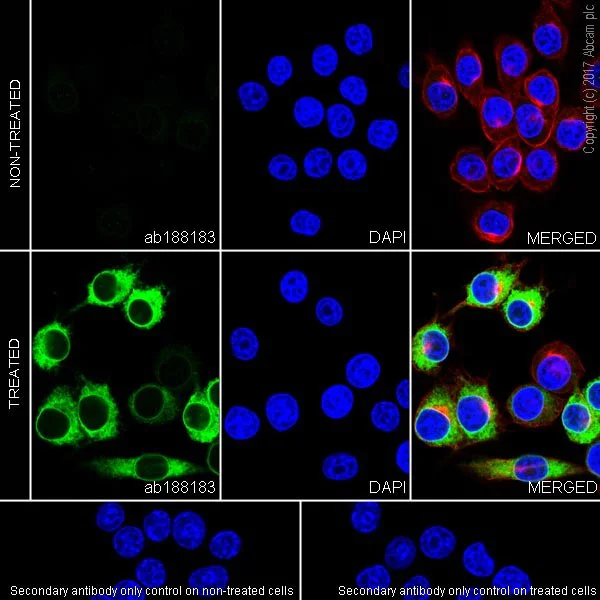

Immunocytochemistry/ Immunofluorescence - Anti-COX2 / Cyclooxygenase 2 antibody [EPR18377-106] - BSA and Azide free (AB226869)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized RAW 264.7 (mouse macrophage cell line transformed with Abelson murine leukemia virus) cells, untreated or treated with lipopolysaccharide (1 μg/ml) for 6 hours, labeling COX2 / Cyclooxygenase 2 with ab188183 at 1/250 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing increased cytoplasmic staining on RAW 264.7 cells treated with lipopolysaccharide (1 μg/ml) for 6 hours.

The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) (ab195889) (red) at 1/200 dilution.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab188183).

• IP

Supplier Data

Immunoprecipitation - Anti-COX2 / Cyclooxygenase 2 antibody [EPR18377-106] - BSA and Azide free (AB226869)

COX2 / Cyclooxygenase 2 was immunoprecipitated from 0.35 mg of NIH/3T3 (mouse embryo fibroblast cell line) whole cell lysate with ab188183 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab188183 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.

Lane 1 : NIH/3T3 whole cell lysate 10μg (Input).

Lane 2 : ab188183 IP in NIH/3T3 whole cell lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab188183 in NIH/3T3 whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure : 3 minutes.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab188183).

All lanes:

Immunoprecipitation - Anti-COX2 / Cyclooxygenase 2 antibody [EPR18377-106] - N-terminal (<a href='/en-us/products/primary-antibodies/cox2-cyclooxygenase-2-antibody-epr18377-106-n-terminal-ab188183'>ab188183</a>)

Predicted band size: 69 kDa

Observed band size: 74 kDa

false

• WB

Lab

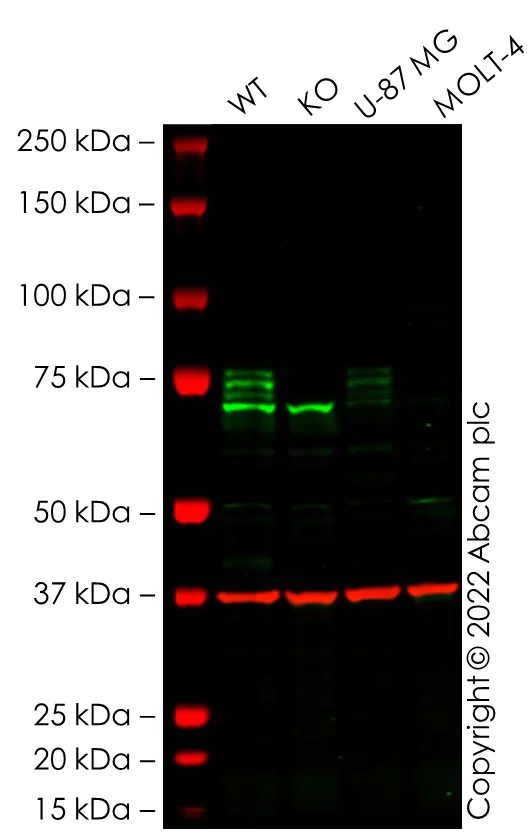

Western blot - Anti-COX2 / Cyclooxygenase 2 antibody [EPR18377-106] - BSA and Azide free (AB226869)

False colour image of Western blot : Anti-COX2 / Cyclooxygenase 2 antibody [EPR18377-106] - N-terminal staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (ab8245) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab188183 was shown to bind specifically to COX2 / Cyclooxygenase 2. A band was observed at 74-76 kDa in wild-type A549 cell lysates with no signal observed at this size in PTGS2 knockout cell line ab280802 (knockout cell lysate ab283825). Band at 70 kDa in both wild-type and knockout samples is non-specific but exact protein is not determined. To generate this image, wild-type and PTGS2 knockout A549 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

All lanes:

Western blot - Anti-COX2 / Cyclooxygenase 2 antibody [EPR18377-106] - N-terminal (<a href='/en-us/products/primary-antibodies/cox2-cyclooxygenase-2-antibody-epr18377-106-n-terminal-ab188183'>ab188183</a>) at 1/1000 dilution

Lane 1:

Wild-type A549 cell lysate at 20 µg

Lane 2:

PTGS2 knockout A549 cell lysate at 20 µg

Lane 3:

U-87 MG cell lysate at 20 µg

Lane 4:

MOLT-4 cell lysate at 20 µg

Observed band size: 74-76 kDa

false
