Anti-CRALBP antibody [EPR23448-119] (ab243664)

Rabbit Recombinant Monoclonal CRALBP antibody. Suitable for IP, WB, IHC-Fr, Flow Cyt (Intra), IHC-P and reacts with Human, Mouse, Rat samples. Cited in 2 publications.

Be the first to review this product! Submit a review

Images

Immunoprecipitation - Anti-CRALBP antibody [EPR23448-119] (AB243664), expandable thumbnail

Publications

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	IP	WB	ICC/IF	IHC-Fr	Flow Cyt (Intra)	IHC-P
Human	Tested	Tested	Not recommended	Expected	Tested	Tested
Mouse	Expected	Tested	Not recommended	Tested	Expected	Tested
Rat	Expected	Tested	Not recommended	Tested	Expected	Tested

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/30	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Expected
Expected

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info Use at an assay dependent concentration.	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/1000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Rat	Dilution info 1/1000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Human	Dilution info 1/1000	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human, Mouse, Rat	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/250	Notes Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).
Species Rat	Dilution info 1/250	Notes Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).

Expected
Expected

Species	Dilution info	Notes
Species Human	Dilution info Use at an assay dependent concentration.	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/700	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info Use at an assay dependent concentration.	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/2000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Rat	Dilution info 1/2000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Human	Dilution info 1/2000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Associated Products

Select an associated product type

4 products for Alternative Product

Target data

See full target information RLBP1

Function

Soluble retinoid carrier essential the proper function of both rod and cone photoreceptors. Participates in the regeneration of active 11-cis-retinol and 11-cis-retinaldehyde, from the inactive 11-trans products of the rhodopsin photocycle and in the de novo synthesis of these retinoids from 11-trans metabolic precursors. The cycling of retinoids between photoreceptor and adjacent pigment epithelium cells is known as the 'visual cycle'.

Alternative names

CRALBP, RLBP1, Retinaldehyde-binding protein 1, Cellular retinaldehyde-binding protein

Recommended products

Rabbit Recombinant Monoclonal CRALBP antibody. Suitable for IP, WB, IHC-Fr, Flow Cyt (Intra), IHC-P and reacts with Human, Mouse, Rat samples. Cited in 2 publications.

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal
Immunogen: The exact immunogen used to generate this antibody is proprietary information.
Clone number: EPR23448-119
Purification technique: Affinity purification Protein A
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage duration: 1-2 weeks
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: -20°C
Aliquoting information: Upon delivery aliquot
Storage information: Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

'CRALBP' also known as cellular retinaldehyde-binding protein is a protein involved in the visual cycle. It weighs approximately 36 kDa. Expressed mainly in the retina CRALBP is found in retinal pigment epithelial (RPE) cells and Muller glial cells. It binds to retinoids which are critical for proper vision functioning. CRALBP also goes by the synonyms such as 'BSA b 2' which is used in specific contexts related to its role in retinal metabolism.

Biological function summary

The protein aids in the effective conversion of all-trans-retinal to 11-cis-retinal an important step in the visual cycle. It acts as a chaperone that stabilizes retinoid intermediates facilitating their transport between various retinal cell types. CRALBP forms part of a complex with retinoid isomerohydrolase and 11-cis-retinol dehydrogenase enhancing its binding and transport function. This ensures smooth retinoid flux necessary for regenerating the visual pigment rhodopsin.

Pathways

CRALBP is integral to two main pathways; the retinoid cycle in cones and the rhodopsin regeneration pathway in rods. In these pathways it interacts with proteins such as RPE65 and 11-cis-retinol dehydrogenase ensuring efficient retinoid transfer and isomerization. This important involvement supports the regeneration of visual pigments necessary for photoreceptor cell function under various lighting conditions.

Associated diseases and disorders

CRALBP associates with retina-related conditions notably congenital stationary night blindness (CSNB) and retinitis pigmentosa (RP). Mutations affecting CRALBP can alter retinoid transport and contribute to these disorders. Additionally CRALBP dysfunction links to other proteins like RPE65 and RDH5 which can also play roles in the pathogenesis of these visual impairments. Understanding these relationships helps in developing targeted treatments for retinoid-related visual disorders.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

11 product images

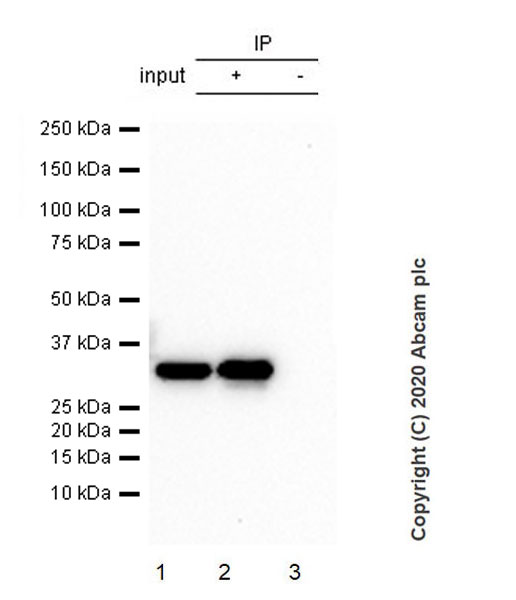

Immunoprecipitation - Anti-CRALBP antibody [EPR23448-119] (ab243664)
CRALBP was immunoprecipitated from 0.35 mg SK-MEL-28 (human malignant melanoma), whole cell lysate with ab243664 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab243664 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
Lane 1: SK-MEL-28 (human malignant melanoma), whole cell lysate 10 ug
Lane 2: ab243664 IP in SK-MEL-28 whole cell lysate
Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab243664 in SK-MEL-28 whole cell lysate
Blocking and dilution buffer and concentration: 5% NFDM/TBST.
Exposure time: 100 seconds
All lanes: Immunoprecipitation - Anti-CRALBP antibody [EPR23448-119] (ab243664)
Predicted band size: 36 kDa
Observed band size: 36 kDa

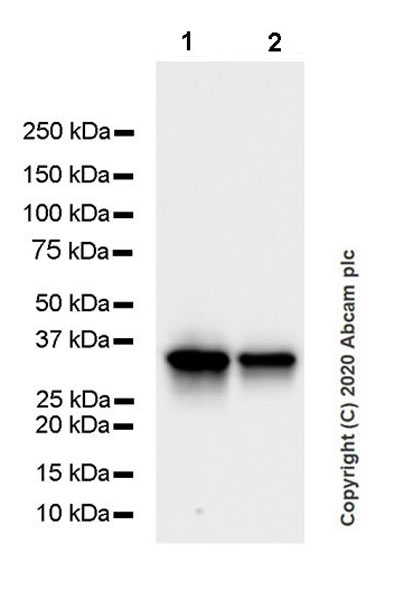

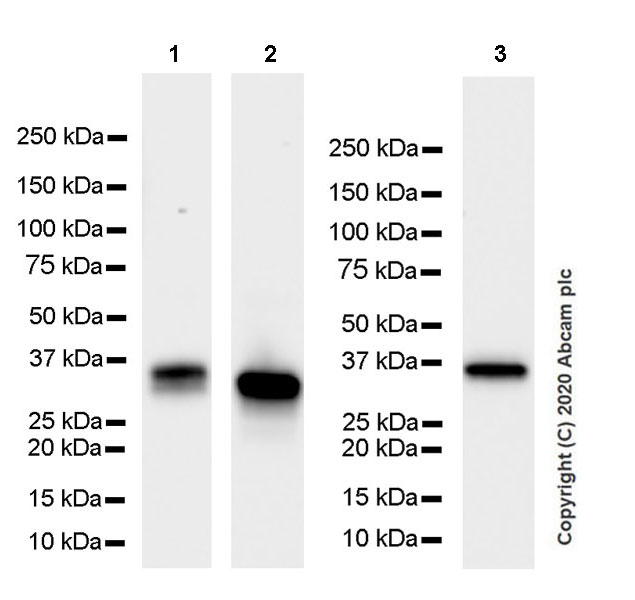

Western blot - Anti-CRALBP antibody [EPR23448-119] (ab243664)
Blocking and diluting buffer and concentration: 5% NFDM/TBST.
The molecular weight observed is consistent with what has been described in the literature (PMID: 29063836).
Exposure time: 15 seconds.
All lanes: Western blot - Anti-CRALBP antibody [EPR23448-119] (ab243664) at 1/1000 dilution
Lane 1: SK-MEL-2 (human skin malignant melanoma), whole cell lysate at 20 µg
Lane 2: SK-MEL-28 (human malignant melanoma), whole cell lysate at 20 µg
Secondary
All lanes: Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Predicted band size: 36 kDa
Observed band size: 36 kDa
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CRALBP antibody [EPR23448-119] (ab243664)
Immunohistochemical analysis of paraffin-embedded Human retina tissue labeling CRALBP with ab243664 at 1/2000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Positive staining on human retina. The section was incubated with ab243664 for 10 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND^® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

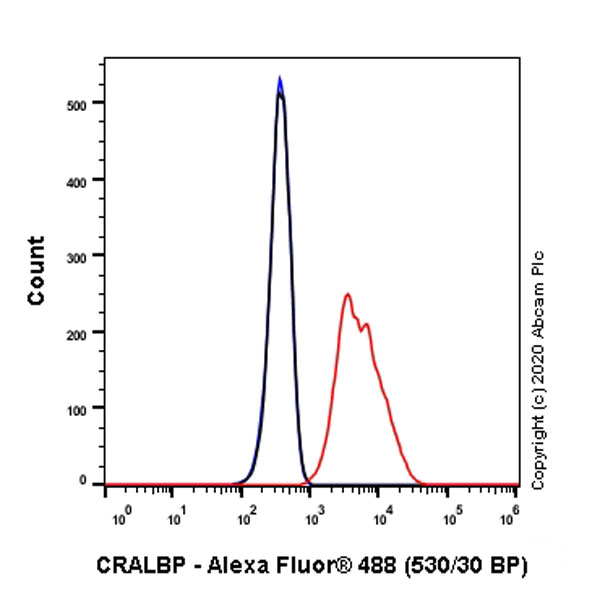

Flow Cytometry (Intracellular) - Anti-CRALBP antibody [EPR23448-119] (ab243664)
Intracellular flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized SK-MEL-28 (Human malignant melanoma) cells labelling CRALBP with ab243664 at 1/700 dilution (0.1ug) (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor^® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution was used as the secondary antibody.
Western blot - Anti-CRALBP antibody [EPR23448-119] (ab243664)
Blocking and diluting buffer and concentration: 5% NFDM/TBST.
The molecular weight observed is consistent with what has been described in the literature (PMID: 26199951)
Exposure time: 15 seconds.
All lanes: Western blot - Anti-CRALBP antibody [EPR23448-119] (ab243664) at 1/1000 dilution
Lane 1: Mouse eyeball tissue lysate at 20 µg
Lane 2: Rat eyeball tissue lysate at 20 µg
Lane 3: Mouse P20 retina tissue lysate at 20 µg
Secondary
All lanes: Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Predicted band size: 36 kDa
Observed band size: 36 kDa
Immunohistochemistry (Frozen sections) - Anti-CRALBP antibody [EPR23448-119] (ab243664)
Immunohistochemical analysis of frozen section of 4% PFA-fixed, 0.2% Triton X-100 peremeabilised mouse retina tissue labeling CRALBP with ab243664 at 1/250 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary at 1/1000 dilution (Green). Positive staining on mouse retina especially on retinal pigment epithelial cell (RPE) and Müller cells. The nuclear counter stain is DAPI (Blue).
Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary at 1/000 dilution.
Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).

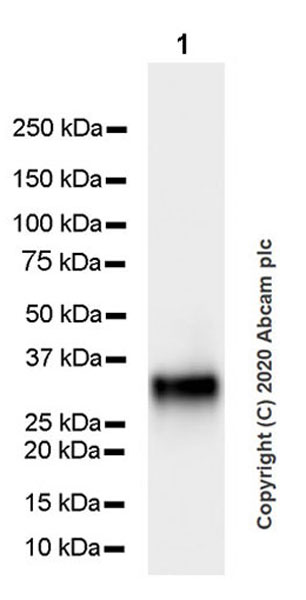

Western blot - Anti-CRALBP antibody [EPR23448-119] (ab243664)
Blocking and diluting buffer and concentration: 5% NFDM/TBST.
The molecular weight observed is consistent with what has been described in the literature (PMID: 29063836).
Exposure time: 3.25 seconds.
All lanes: Western blot - Anti-CRALBP antibody [EPR23448-119] (ab243664) at 1/1000 dilution
All lanes: Human eyeball tissue lysate at 20 µg
Secondary
All lanes: VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/1000 dilution
Predicted band size: 36 kDa
Observed band size: 36 kDa
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CRALBP antibody [EPR23448-119] (ab243664)
Immunohistochemical analysis of paraffin-embedded Rat retina tissue labeling CRALBP with ab243664 at 1/2000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Positive staining on rat retina. The section was incubated with ab243664 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND^® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.
Immunohistochemistry (Frozen sections) - Anti-CRALBP antibody [EPR23448-119] (ab243664)
Immunohistochemical analysis of frozen section of 4% PFA-fixed, 0.2% Triton X-100 peremeabilised rat retina tissue labeling CRALBP with ab243664 at 1/250 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary at 1/1000 dilution (Green). Positive staining on rat retina especially on retinal pigment epithelial cell (RPE) and Müller cells. The nuclear counter stain is DAPI (Blue).
Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary at 1/000 dilution.
Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CRALBP antibody [EPR23448-119] (ab243664)
Immunohistochemical analysis of paraffin-embedded Mouse retina tissue labeling CRALBP with ab243664 at 1/2000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Positive staining on mouse retina. The section was incubated with ab243664 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND^® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CRALBP antibody [EPR23448-119] (ab243664)
Immunohistochemical analysis of paraffin-embedded Human kidney tissue labeling CRALBP with ab243664 at 1/2000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Negative control: No staining on human kidney. The section was incubated with ab243664 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND^® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
