Anti-Creatine Kinase MM antibody [EPR25358-10]

14 product images

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Creatine Kinase MM antibody [EPR25358-10] (ab283683)

  Immunohistochemical analysis of paraffin-embedded Human skeletal muscle tissue labelling Creatine Kinase MM with ab283683 at 1/5000 (0.108 ug/ml) followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP polymer). Positive staining on human skeletal muscle. The section was incubated with ab283683 at 4 ? overnight. Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP polymer).

  Heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0)

•

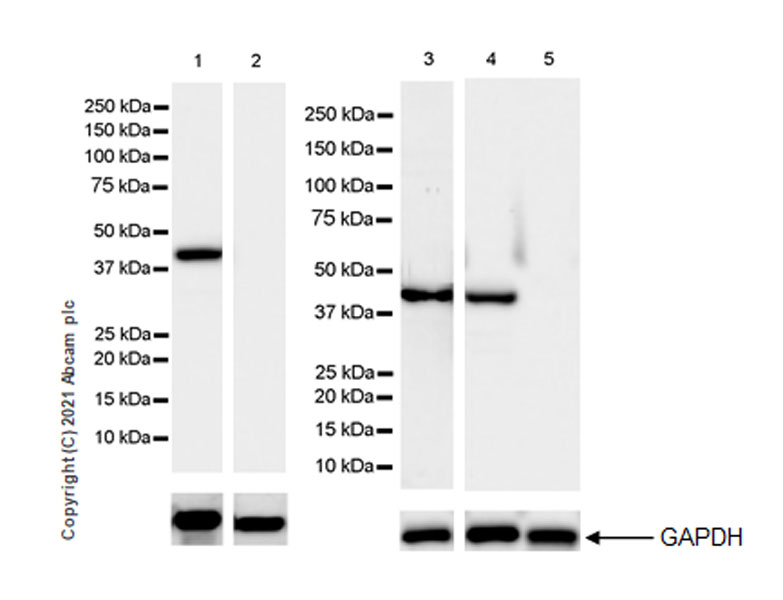

  Western blot - Anti-Creatine Kinase MM antibody [EPR25358-10] (ab283683)

  Blocking and diluting buffer and concentration: 5% NFDM/TBST


  Exposure time: Lanes 1-2: 3 seconds, Lane 3: 48 seconds; Lanes 4-5: 6 seconds.

  The molecular weight observed is consistent with what has been described in the literature (PMID: 22066028).

  No expression was observed in spleen.

  All lanes: Western blot - Anti-Creatine Kinase MM antibody [EPR25358-10] (ab283683) at 1/2000 dilution

  Lane 1: Mouse heart tissue lysate at 20 µg

  Lane 2: Mouse spleen tissue lysate at 20 µg

  Lane 3: A-673 (Human muscle Ewing's sarcoma) whole cell lysate at 20 µg

  Lane 4: Rat heart tissue lysate at 20 µg

  Lane 5: Rat spleen tissue lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Predicted band size: 43 kDa

  Observed band size: 43 kDa

•

  Immunohistochemistry (Frozen sections) - Anti-Creatine Kinase MM antibody [EPR25358-10] (ab283683)

  Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Mouse cardiac muscle (fresh) tissue labeling Creatine Kinase MM with ab283683 at 1/100 (5.39 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (Green). Cytoplasmic staining on mouse cardiac muscle is observed. The nuclear counterstain was DAPI (Blue). Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbedat 1/1000 dilution.<\p>

  .

•

  Immunocytochemistry/ Immunofluorescence - Anti-Creatine Kinase MM antibody [EPR25358-10] (ab283683)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized A-673 cells labelling Creatine Kinase MM with ab283683 at 1/100 (5.39 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing cytoplasmic staining in A-673 cell line. is observed. Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/ml dilution.

•

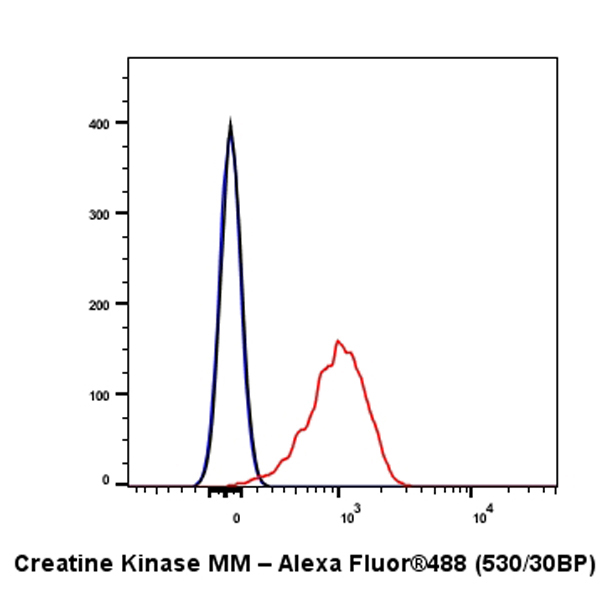

  Flow Cytometry (Intracellular) - Anti-Creatine Kinase MM antibody [EPR25358-10] (ab283683)

  Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized A-673 (Human muscle Ewing's Sarcoma) cells labelling Creatine Kinase MM with ab283683 at 1/50 dilution (1ug)/ red (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/2000 dilution was used as the secondary antibody.

•

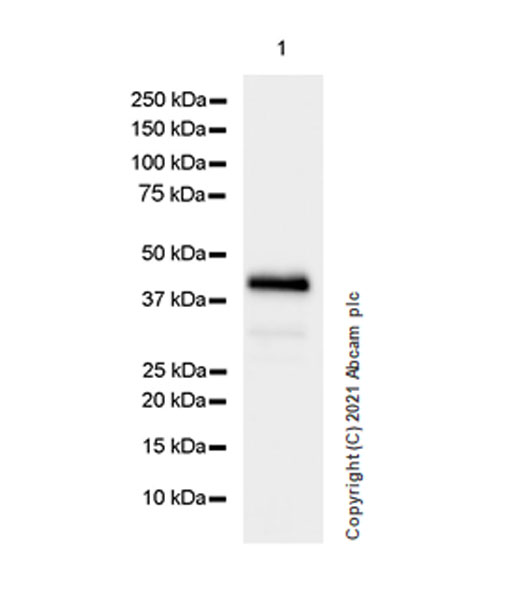

  Western blot - Anti-Creatine Kinase MM antibody [EPR25358-10] (ab283683)

  Blocking and diluting buffer and concentration: 5% NFDM/TBST


  Exposure time: 1 second

  All lanes: Western blot - Anti-Creatine Kinase MM antibody [EPR25358-10] (ab283683) at 1/2000 dilution

  All lanes: Human heart tissue lysate

  Secondary

  All lanes: Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

  Predicted band size: 43 kDa

•

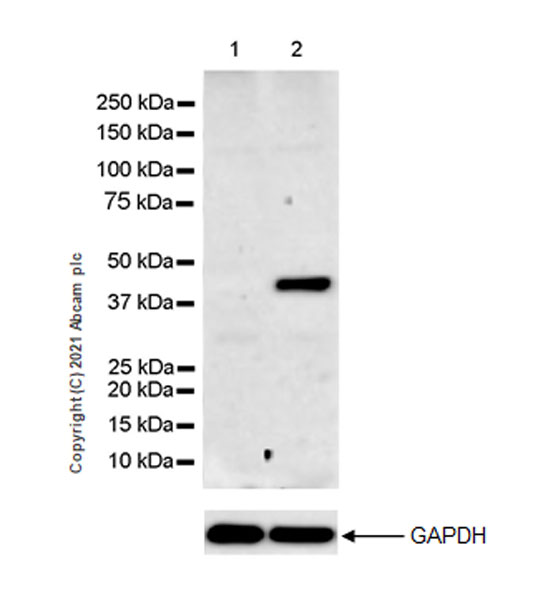

  Western blot - Anti-Creatine Kinase MM antibody [EPR25358-10] (ab283683)

  Blocking and diluting buffer and concentration: 5% NFDM/TBSTCK protein level is low in undifferentiated myoblasts and becomes strikingly upregulated as differentiation progresses. The expression profile observed is consistent with what has been described in the literature (PMID: 22703875).


  Exposure time: 3 minutes

  All lanes: Western blot - Anti-Creatine Kinase MM antibody [EPR25358-10] (ab283683) at 1/1000 dilution

  Lane 1: Untreated C2C12 (mouse myoblasts myoblast) whole cell lysate

  Lane 2: C2C12 treated with 2% horse serum for 6 days whole cell lysate

  Secondary

  All lanes: Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/50000 dilution

  Predicted band size: 43 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Creatine Kinase MM antibody [EPR25358-10] (ab283683)

  Immunohistochemical analysis of paraffin-embedded Mouse cardiac muscle tissue labelling Creatine Kinase MM with ab283683 at 1/10000 (0.054 ug/ml) followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP polymer). Cytoplasmic staining on mouse cardiac muscle. The section was incubated with ab283683 at 4 ? overnight. Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP polymer).

  Heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0)

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Creatine Kinase MM antibody [EPR25358-10] (ab283683)

  Immunohistochemical analysis of paraffin-embedded Rat cardiac muscle tissue labelling Creatine Kinase MM with ab283683 at 1/10000 (0.054 ug/ml) followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP polymer). Positive staining on rat cardiac muscle. The section was incubated with ab283683 at 4 ? overnight. Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP polymer).

  Heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0)

•

  Immunohistochemistry (Frozen sections) - Anti-Creatine Kinase MM antibody [EPR25358-10] (ab283683)

  Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Rat cardiac muscle (fresh) tissue labeling Creatine Kinase MM with ab283683 at 1/100 (5.39 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (Green). Cytoplasmic staining on rat cardiac muscle is observed. The nuclear counterstain was DAPI (Blue). Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbedat 1/1000 dilution.<\p>

  .

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Creatine Kinase MM antibody [EPR25358-10] (ab283683)

  Immunohistochemical analysis of paraffin-embedded Human spleen tissue labelling Creatine Kinase MM with ab283683 at 1/10000 (0.054 ug/ml) followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP polymer). Negative control: No staining on the human spleen. The section was incubated with ab283683 at 4 ? overnight. Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP polymer).

  Heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0)

•

  Immunohistochemistry (Frozen sections) - Anti-Creatine Kinase MM antibody [EPR25358-10] (ab283683)

  Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Rat spleen (fresh) tissue labeling Creatine Kinase MM with ab283683 at 1/100 (5.39 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (Green). No staining on rat spleen is observed. The nuclear counterstain was DAPI (Blue). Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbedat 1/1000 dilution.<\p>

  .

•

  Immunohistochemistry (Frozen sections) - Anti-Creatine Kinase MM antibody [EPR25358-10] (ab283683)

  Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Mouse spleen (fresh) tissue labeling Creatine Kinase MM with ab283683 at 1/100 (5.39 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (Green). No staining on mouse spleen is observed. The nuclear counterstain was DAPI (Blue). Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbedat 1/1000 dilution.<\p>

  .

•

  Multiplex immunohistochemistry - Anti-Creatine Kinase MM antibody [EPR25358-10] (ab283683)

  Fluorescence multiplex immunohistochemical analysis of the human skeletal muscle (Formalin/PFA-fixed paraffin-embedded sections).

  Panel A: merged staining of anti-Dystrophin (Anti-Dystrophin antibody [EPR23336-129] ab275391, red; Opal™690), anti-A2BP1/Fox1/RBFOX1 (Anti-A2BP1/Fox1/RBFOX1 antibody [EPR23656-5] ab254413, green; Opal™520) and anti-Creatine Kinase MM (ab283683, magenta; Opal™570) on human skeletal muscle. Panel B: anti-A2BP1/Fox1/RBFOX1 stained on nucleus of skeletal muscle. Panel C: anti-Creatine Kinase MM stained on cytoplasm of skeletal muscle. Panel D: anti-Dystrophin stained on membrane of skeletal muscle. Opal Polymer HRP Ms + Rb was used as a secondary antibody.

  The section was incubated in three rounds of staining: in the order of Anti-Dystrophin antibody [EPR23336-129] ab275391 at 1/500 (2.08 μg/ml) dilution, Anti-A2BP1/Fox1/RBFOX1 antibody [EPR23656-5] ab254413 at 1/2000 (0.239 μg/ml) dilution, and ab283683 at 1/3000 (0.18 μg/ml) dilution for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. DAPI (blue) was used as a nuclear counter stain.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

  Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.
